2018 HONDA CIVIC SEDAN trunk

uuIf a Tire Goes Flat uChanging a Flat Tire*
580
Handling the Unexpected
1. Remove the center cap.
2. Place the flat tire face down in the spare tire
well.
3. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
4. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
■Storing the Flat Tire1Storing the Flat Tire
Make sure the wire support ring is on the outer side
of the tire valve as shown.
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Models with wheel cover
Tire Valve
Wire Support Ring
Models with
aluminum
wheelsModels with aluminum wheels
Spacer Cone
Wing Bolt
For
compact
spare tireFor full-
size tire
All modelsAll models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 580 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

584
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
1. Open the trunk floor lid.
2. Take the kit out of the case.
3. Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.
Tire Repair Kit
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 584 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

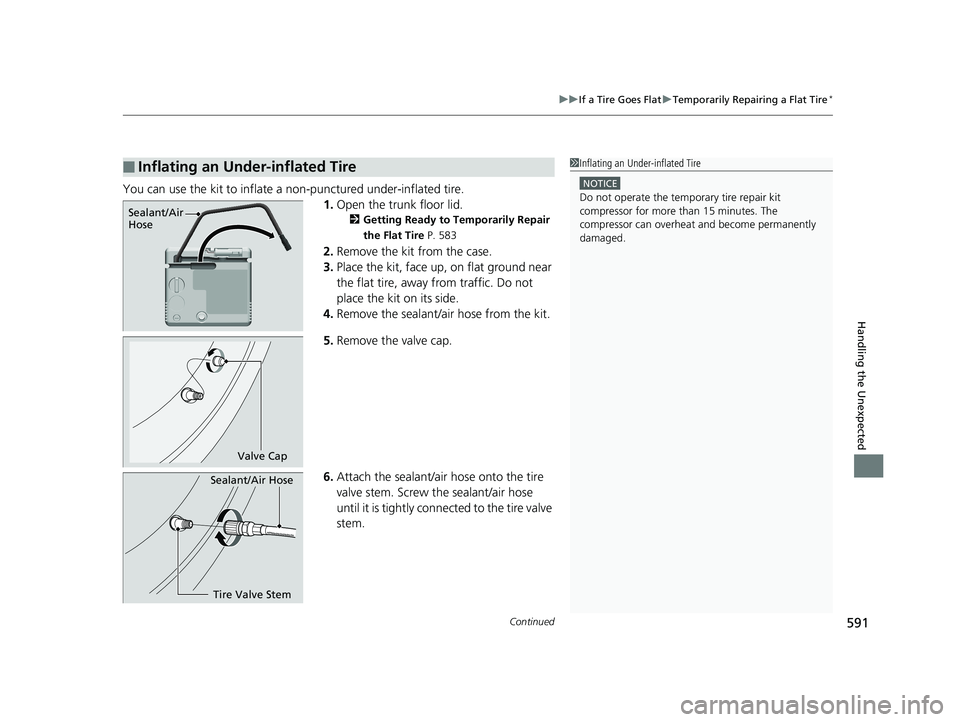

Continued591
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire*
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the trunk floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 583
2.Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
4. Remove the sealant/air hose from the kit.
5. Remove the valve cap.
6. Attach the sealant/air hose onto the tire
valve stem. Screw the sealant/air hose
until it is tightly connected to the tire valve
stem.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Sealant/Air
Hose
Valve Cap
Tire Valve Stem
Sealant/Air Hose
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 591 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

614
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk.
2. Pull the green release cord beneath the rear
tray as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release Cord
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 614 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

615
Handling the Unexpected
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
u Wrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 615 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

616
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 574
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 616 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

618
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
*
ModelCivic Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating U.S.: 3,737 lbs (1,695 kg)
Canada: 1,695 kg
Gross Axle Weight
Rating (Front)U.S.: 1,984 lbs (900 kg)
Canada: 900 kg
Gross Axle Weight
Rating (Rear)U.S.: 1,786 lbs (810 kg)
Canada: 810 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
2.0 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)
Headlights (High Beam) 60 W (HB3)
Parking/Daytime Running LightsLED
Front Side Marker Lights 3 W
Front Turn Signal Lights21 W (Amber)
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake Light21 W
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WTrunk Light5 W
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 618 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

620
uuSpecifications u
Information
■Vehicle Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Air Conditioning
ModelCivic Sedan
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingU.S.: 3,902 lbs (1,770 kg)*1
Canada: 1,770 kg*1
U.S.: 3,858 lbs (1,750 kg)*2
Canada: 1,750 kg*2
Gross Axle Weight
Rating (Front)U.S.: 2,105 lbs (955 kg)*1
Canada: 955 kg*1
U.S.: 2,017 lbs (915 kg)*2
Canada: 915 kg*2
Gross Axle Weight
Rating (Rear)U.S.: 1,808 lbs (820 kg)*1
Canada: 820 kg*1
U.S.: 1,841 lbs (835 kg)*2
Canada: 835 kg*2
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models■ Engine Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Fuel
*1: Models without SPORT mode
*2: Models with SPORT mode
*3: Models without detachable towing hook
*4: Models with detachable towing hook
■Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK
NGKILZKAR8H8S*1
ILZKAR8J8SY*2
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity
12.39 US gal (46.9 L)*3
12.4 US gal (47.0 L)*4
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■
Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models without SPORT mode
*4: Models with SPORT mode
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake Light21 W*3
LED*4
Rear License Plate Light LEDInterior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WTrunk Light5 W
* Not available on all models
