2018 HONDA CIVIC SEDAN manual transmission

575Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire*
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface, and apply the parking
brake.
2. Move the shift lever to
(P.
2. Move the shift lever to
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Changing a Flat Tire*
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.Continuously variable transmission models
Manual transmission models
All models
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 575 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

595
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected
If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the driver information interface, the ENGINE START/STOP button
flashes, and the engine won’t start. Start the engine as follows: 1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal (continuously
variable transmission) or clutch pedal
(manual transmission) and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
Models with smart entry system
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 595 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

596
uuEngine Does Not StartuEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to st op the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.
The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to
(P after the vehicle
comes to a complete stop.
Then press the ENGINE START/STOP button twice without depressing the brake
pedal.
The power mode changes to VEHICLE OFF.
Models with smart entry system
1 Emergency Engine Stop
Do not press the button while driving unless it is
absolutely necessary for the engine to be turned off.
Continuously variable transmission models
Canadian continuously variable transmission models
Manual transmission models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 596 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

606
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On
■If the brake system indicator (red) comes on or blinks at the
same time when the brake syst em indicator (amber) comes on,
release the parking brake manually or automatically.
2 Parking Brake P. 484
•If the brake system indicator (red) co ntinuously comes on or blinks at
the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place an d have it inspected by a dealer
immediately.
u Preventing the vehicle from moving
Move the shift lever to
(P.
Move the shift lever to
(1 or (R.
•If the brake system indicator (amber) comes on alone, avoid using the parking brake and have your vehicle checked by a dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On
If you apply the parking br ake, you may not be able
to release it.
If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.
If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.
U.S.
Canada
(Red)
U.S.
Canada
(Amber)
Continuously variable transmission models
Manual transmission models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 606 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

617
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 618
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 622
Devices that Emit Radio Waves ....... 623
Reporting Safety Defects ................. 624Emissions Testing
Testing of Readiness Codes.............. 625
Warranty Coverages ........................ 627
Authorized Manuals ......................... 629
Customer Service Information ......... 630
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 617 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

619
uuSpecifications u
Continued
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.7 US qt (3.5 L)
SpecifiedHonda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.4 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
RegularSize215/55R16 93HPressure
psi (kPa [kgf/cm2])32 (220 [2.2])
Compact
Spare Size
T125/80D16 97M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular16 x 7JCompact Spare16 x 4T
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 619 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

621
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2 Transmission Fluid
Capacity Change 3.9 US qt (3.7 L)
SpecifiedHonda Manual Transmission Fluid (MTF)
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
*3: Models without detachable towing hook
*4: Models with detachable towing hook
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.34 US gal (5.09 L)*1, *3
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)
*2, *3
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.30 US gal (4.92 L)
*4
(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)
■ Tire
*1: Models without SPORT mode
*2: Models with SPORT mode
*3: U.S. model with SPORT mode with optional 235/40R18 95Y
tires
*4: U.S. model with SPORT mode with optional spare tire
*5: Canadian model with SPORT mode
Regular
Size215/50R17 91H*1
235/40R18 91W*2
235/40R18 95Y*3
Pressure
psi (kPa [kgf/cm2])
Front
32 (220 [2.2])*1
33 (225 [2.3])*2, *3
Rear
32 (220 [2.2])*1, ,*2, *3
Compact
Spare*
Size T125/80D16 97M*1
T125/70R17 98M*4, *5
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular17 x 7J*1
18 x 8J*2, *3
Compact Spare*16 x 4T*1
17 x 4T*4, *5
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 621 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

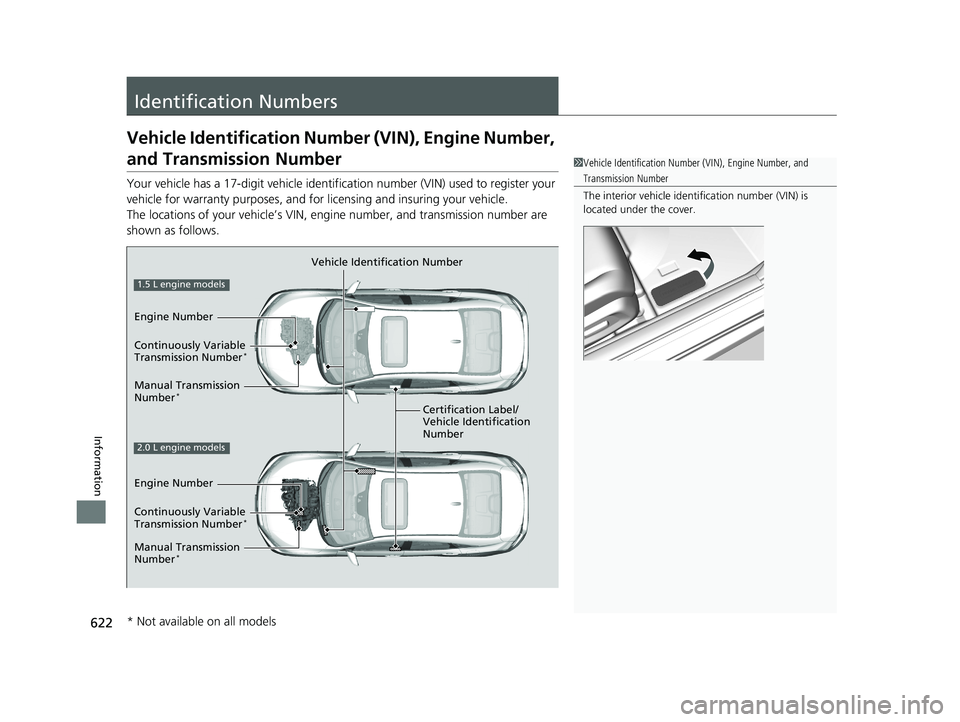

622
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models
1.5 L engine models
Continuously Variable
Transmission Number*
Engine Number
Manual Transmission
Number
*
Continuously Variable
Transmission Number*
Manual Transmission
Number*
* Not available on all models
