2018 HONDA CIVIC SEDAN stop start

97
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 601
●Appears when you turn the ignition switch to ON
(w*1 without fastening the driver’s seat belt.
●Fasten the seat belt properly before you start to drive.
●Appears if the automatic brake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automatic brake hold system is
turned off.
2Automatic Brake Hold P. 487
Continuously
variable
transmission models
Manual
transmission
models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 97 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

100
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
2Starting the Engine P. 429
●Appears when the steering wheel is locked.●Move the steering wheel left and right while pressing the
ENGINE START/STOP button.
Models with smart entry system
Continuously
variable
transmission
models
Manual
transmission
models
Except U.S.
models with
continuously
variable
transmission
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 100 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

101
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
●Move the shift lever to (P. The power mode changes to
VEHICLE OFF.
●Move the shift lever to (P, then press the ENGINE
START/STOP button twice.
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the ENGINE START/STOP button twice with your
foot off the brake pedal (continuously variable
transmission) or the clutch pedal (manual transmission)
to change the power mode to VEHICLE OFF (LOCK).
●Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.●Disappears when you bring the smart entry remote back
inside the vehicle and close the door.
2Smart Entry Remote Reminder P. 166
●Appears when the smart entry remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 562
●Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine.
A beeper sounds six times.●Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 595
Models with smart entry system
Continuously
variable
transmission
modelsU.S. models
Canadian models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 101 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

102
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears when the starter system has a problem.•As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal and clutch pedal (manual
transmission only), and manually start the engine.
Have your vehicle checked by a dealer.
• Appears as soon as a prob lem is detected in the
smart entry system or push button starting system.• Appears constantly - Have your vehicle checked by a
dealer.
MessageConditionExplanation
• Appears if there is a probl em with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have your
vehicle checked by a dealer as soon as possible.
Models with smart entry system
U.S.
Canada
Models with LED headlights
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 102 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

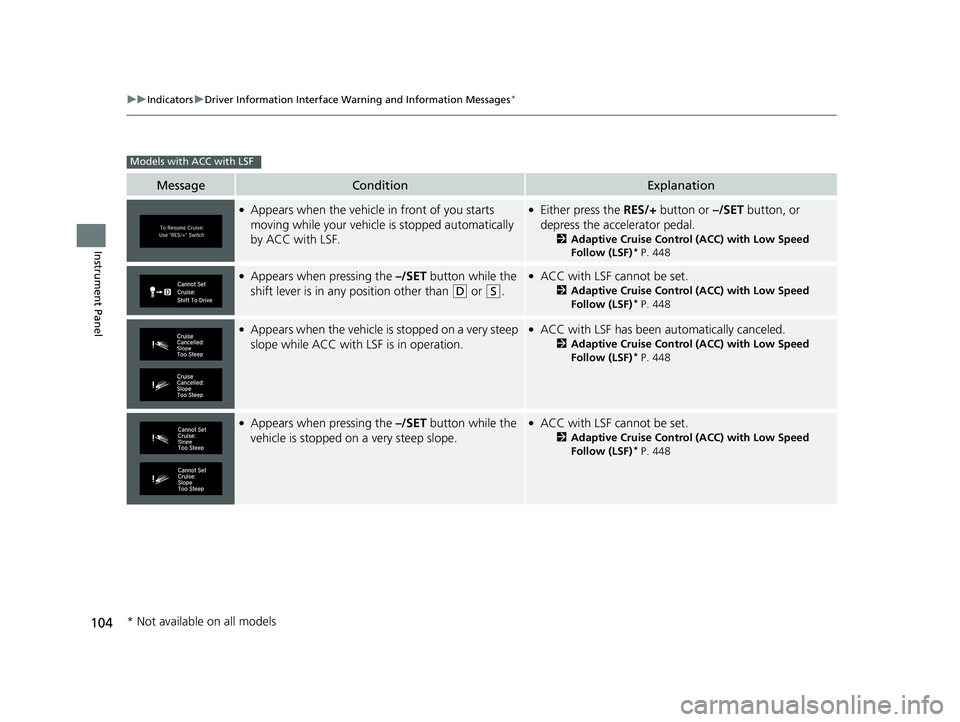

104
uuIndicators uDriver Information Interface Wa rning and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle in front of you starts
moving while your vehicle is stopped automatically
by ACC with LSF.●Either press the RES/+ button or –/SET button, or
depress the accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 448
●Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 448
●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 448
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 448
Models with ACC with LSF
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 104 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

108
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer, fuel gauge, and related indicators.
They are displayed when the ignition switch is in ON
(w*1.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Speedometer
■Tachometer
1 Gauges
Press and hold the km/mil e change knob until you
hear a beep. The speedometer reading and the
displayed measurements switch between mph and
km/h.
Press the (display/information) button
repeatedly until the icon is shown on the driver
information interface. Press ENTER , then press and
hold it again. The spee dometer reading and the
displayed measurements wi ll switch between mph
and km/h.
Models with information display
km/mile change knob
Models with driver information interface
1 Tachometer
You can turn on or off the tachometer display.
2 Customized Features P. 124, 328
Models with driver information interface
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 108 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

uuGauges and Displays uInformation Display*
112
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature indicator
Adjust the temperature reading by up to ± 5°F or ± 3°C if the temperature reading
seems incorrect.
1. Turn the ignition switch to ON
(w*1.
2. Press and hold the ( TRIP) knob for 10 seconds or more while the outside
temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing from -5°F to +5°F (U.S.) or -3°C to +3°C (Canada).
3. Release the knob when the righ t adjustment amount is shown.
u The adjustment is complete.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Outside Temperature1 Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 112 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

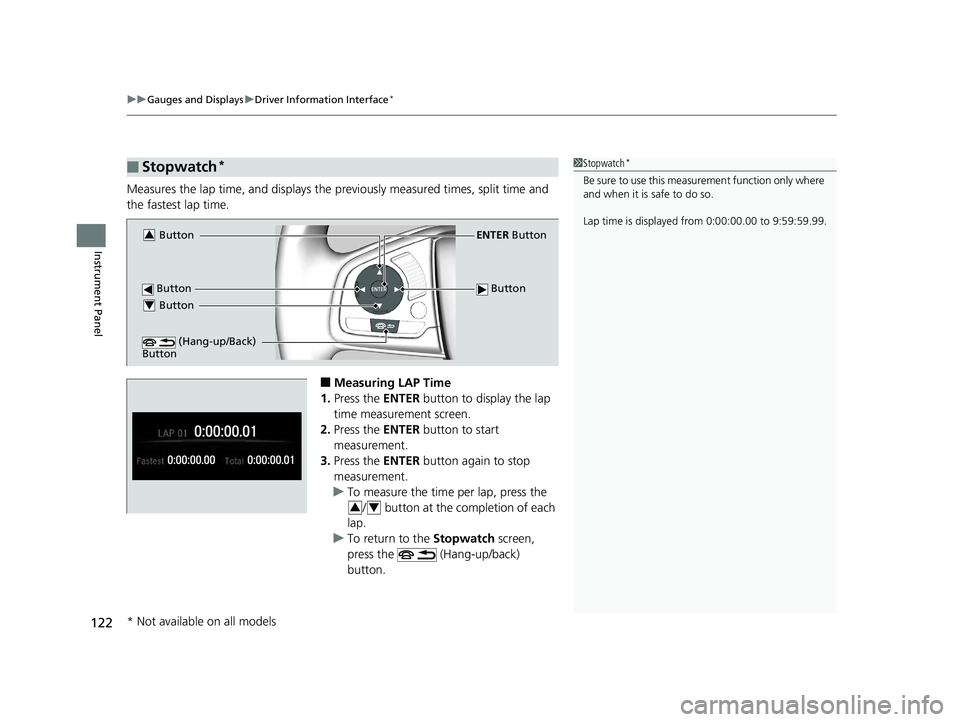

uuGauges and Displays uDriver Information Interface*
122
Instrument Panel
Measures the lap time, and displays the previously measured ti mes, split time and
the fastest lap time.
■Measuring LAP Time
1. Press the ENTER button to display the lap
time measurement screen.
2. Press the ENTER button to start
measurement.
3. Press the ENTER button again to stop
measurement.
u To measure the time per lap, press the
/ button at the completion of each
lap.
u To return to the Stopwatch screen,
press the (Hang-up/back)
button.
■Stopwatch*1 Stopwatch*
Be sure to use this measurement function only where
and when it is safe to do so.
Lap time is displayed from 0:00:00.00 to 9:59:59.99.
Button
ENTER Button
Button Button3
Button4
(Hang-up/Back)
Button
34
* Not available on all models
