2018 HONDA CIVIC SEDAN stop start

604
uuIndicator, Coming On/BlinkinguIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected

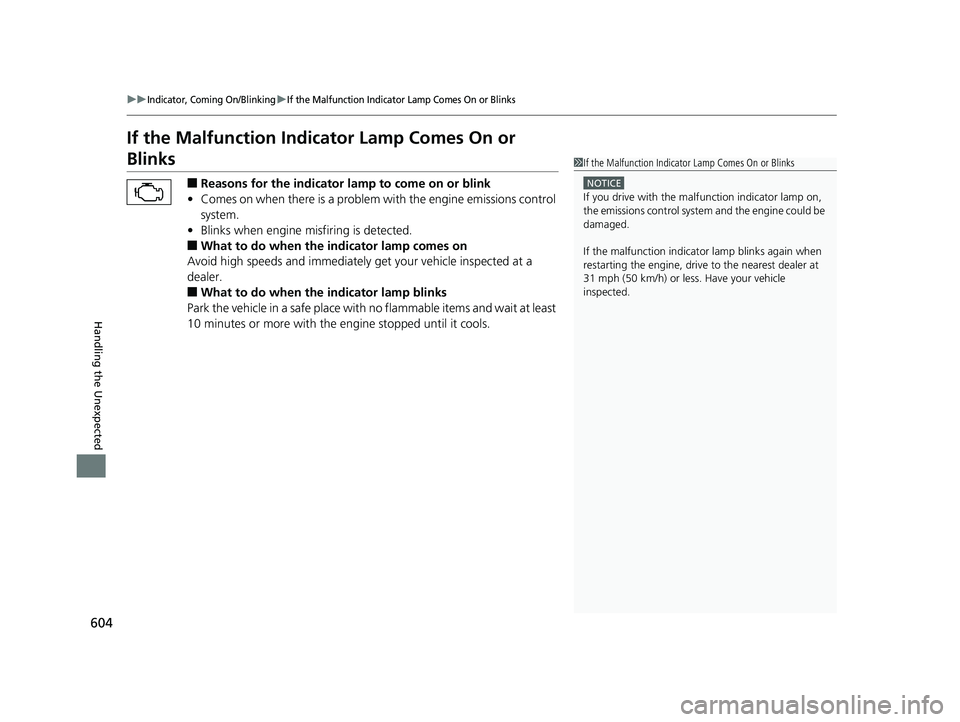

If the Malfunction Indicator Lamp Comes On or
Blinks
■Reasons for the indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 604 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

607
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
• Comes on when EPS steering angle cent er point memory is lost. This
could be due to a number of problems to include: battery disconnect,
main fuse blow, low battery causing reset of the EPS system, wire
damage to EPS harness. Vehicle Stability Assist (VSA ®) system, VSA®
OFF, Collision Mitiga tion Braking System
TM (CMBSTM)*, and low tire
pressure/TPMS* indicators also come on.
The Drive Carefully Systems Initializing... message appears on the
driver information interface.
■What to do when th e indicator comes on
• Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
• If the EPS indicator, VSA ® system indicator, VSA® OFF indicator,
CMBS
TM indicator*, and low tire pressure/TPMS indicator* come on
simultaneously, you need to ca librate the VSA and EPS systems.
Drive at a speed of more than 12 mph (20 km/h) to calibrate the VSA
and EPS systems.
If the indicators come on and stay on, park your vehicle in a safe
place, turn off and restart the engine, then repeat the above
operation.
If the indicators still come on an d stay on, immediately have your
vehicle inspected by a dealer.
Models with driver information interface
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 607 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

609Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0*1 and
check to see if any appl icable fuse is blown.
Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
Passenger’s Power Seat*/
Rear Seat Heaters*, *2
Adaptive Damper System/ Rear Seat Heaters*, *3
(60 A)
60 A
Cooling Fan*4(30 A)
Cooling Fan*5(50 A)
−−
IG Main*6
−*730 A −
Headlight High Beam Main30 A
Battery125 A
2
EPS70 A
IG Main 30 A*6
50 A*7
Fuse Box Option*(40 A)
Fuse Box 60 A
Front Wiper Motor30 A
Headlight Low Beam Main 30 A
3
Rear Defroster40 A
Starter Motor*6
−*730 A −
Fuse Box40 A
ABS/VSA Motor40 A
ABS/VSA FSR40 A
Blower Motor40 A
*1:Models with the smart entry system have an ENGINE START/STOP button
instead of an ignition switch.
*2:Models without SPORT mode
*3:Models with SPORT mode
*4:2.0L engine models
*5:1.5L engine models
*6:Models with smart entry system
*7:Models without smart entry system
*8:
Continuously variable transmission models
4 −−
−−
−−
−−
5Cooling Fan5A
6Washer 15A
7FI Main15 A
8FI Sub 15A
9Stop Lights10 A
10 Injector*5(15 A)
11LAF5A
12 FI ECU 10 A
13Parking Lights10 A
14 Hazard 15 A
15IG Coil15 A
16 Transmission*8(15 A)
17Daytime Running Lights10 A
18 Back Up 10 A
Circuit ProtectedAmps
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 609 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

612
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 612 ページ ２０１８年１０月３０日
　火曜日　午前７時２８分

625Continued
Information

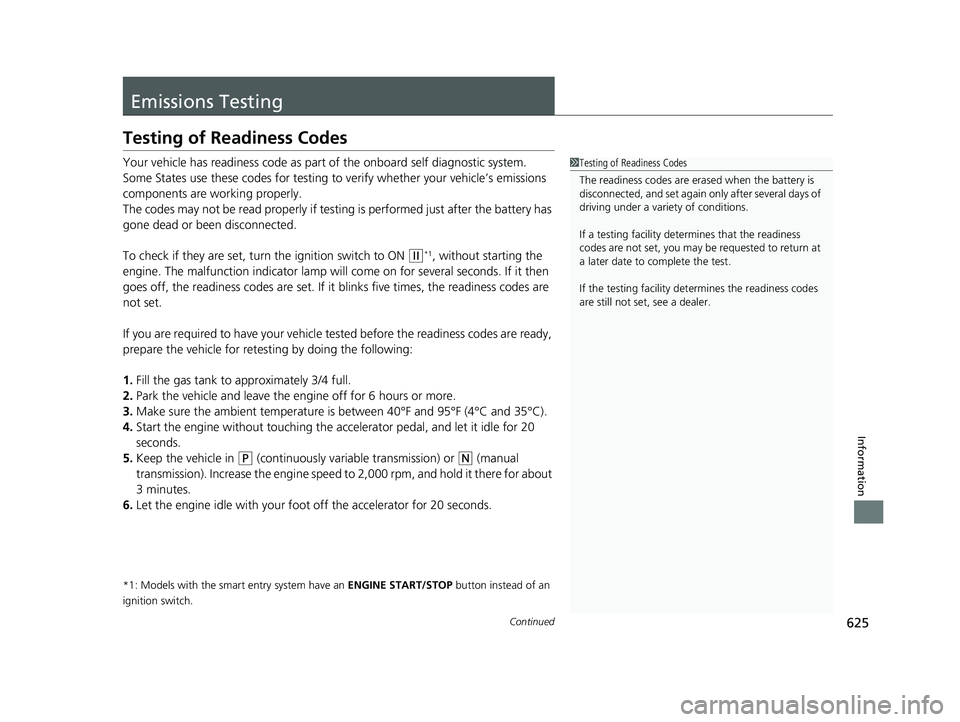

Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 625 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

633
Index
Cruise Control.......................................... 443
Indicator ................................................... 88
Cup Holders .............................................. 191
Customer Service Information ................ 630
Customized Features ....................... 124, 328
D
Daytime Running Lights .......................... 171
Dead Battery ............................................ 597
Defaulting All the Settings ...................... 360
Defrosting the Windshield and Windows ......................................... 200, 206
Devices that Emit Radio Waves ............... 623
Dimming Headlights .............................................. 168
Rearview Mirror ...................................... 177
Dipstick (Engine Oil) ................................ 527
Directional Signals (Turn Signal) ............. 168
Display Button .......................................... 238
Display Setup .................................... 225, 260
Display/Information Button .................... 114
Door Mirrors ............................................. 178
Doors ........................................................ 136
Auto Door Locking.................................. 149
Auto Door Unlocking .............................. 149
Door and Trunk Open Indicator........... 37, 83
Door Open Message ........................... 37, 96 Keys ........................................................ 136
Locking/Unlocking the Doors from
the Inside............................................... 146
Locking/Unlocking the Doors from the Outside............................................ 139
DOT Tire Quality Grading ........................ 553
Driver Information Interface ................... 113
Warning and Information Messages .......... 96
Driving ....................................................... 419
Braking .................................................... 484
Continuously Variable Transmission ......... 435
Cruise Control ......................................... 443
Shifting Gear ........................................... 438
Shifting Position ...................................... 436
Starting the Engine .......................... 426, 429
Dust and Pollen Filter ............................... 564
E
Eco Assist® System ........................................ 9
ECON Button ............................................. 442
Elapsed Time ............................................. 117
Electric Power Steering (EPS) System ........ 83
Indicator ............................................ 83, 607
Electronic Stability Control (ESC) ............. 473
Emergency ................................................ 613
Emergency Engine Stop ........................... 596
Emergency Trunk Opener ................ 155, 615Emissions Testing (Readiness Codes)
....... 625
Engine
Coolant ................................................... 533
Jump Starting .......................................... 597
Oil ........................................................... 526
Starting ........................................... 426, 429
Switch Buzzer.......................................... 163
Engine Coolant ......................................... 533
Adding the Coolant................................. 534
Overheating ............................................ 601
Temperature Gauge ................................ 109
Engine Oil ................................................. 526
Adding .................................................... 529
Checking................................................. 527
Displaying Maintenance Minder Information ................................... 513, 518
Low Oil Pressure Indicator ................. 78, 603
Recommended Engine Oil ....................... 526
ENGINE START/STOP Button .................... 164
EPS (Electric Power Steering) System ...... 607
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 567
Exterior Mirrors ........................................ 178
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 633 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

638
Index
S
Safe Driving................................................. 33
Safety Check ................................................ 37
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 45
Fastening ................................................... 42
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt .......................................................... 67
Pregnant Women ...................................... 44
Reminder ................................................... 40
Warning Indicator ................................ 40, 80
Seat Heaters ...................................... 197, 198
Seats .......................................................... 179
Adjusting ................................................. 179
Front Seat Heaters ................................... 197
Front Seats .............................................. 179
Rear Seat Heaters .................................... 198
Rear Seats................................................ 185
Security System ......................................... 156
Security System Alarm Indicator ................. 87
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 219
Setting the Clock ...................................... 134
Shift Lever ................................... 24, 436, 438
Releasing ................................................. 600
Won’t Move ............................................ 600 Shift Lever Position Indicator
............ 79, 437
Shift Up Backlight .................................... 109
Shifting (Transmission) ..................... 436, 438
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free ............................................. 299
SiriusXM ® Radio ........................................ 270
Smart Entry with Push Button Start System ..................................................... 139
Snow Tires ................................................. 558
Song By Voice
TM (SBV) .............................. 281
Spare Tire .................................. 575, 619, 621
Spark Plugs ....................................... 618, 620
Specifications ............................................ 618
Specified Fuel ........................... 503, 618, 620
Speedometer ............................................ 108
SPORT Mode ............................................. 441
SPORT Mode Indicator ............................. 441
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 426, 429
Does Not Start......................................... 594
Engine Switch Buzzer .............................. 163
Jump Starting .......................................... 597
Steering Wheel
Adjusting ................................................ 176
Stopping ................................................... 500
Stopwatch ................................................. 122
Summer Tires ............................................ 559
Supplemental Restraint System (SRS) ........ 49Switches (Around the Steering
Wheel) ............................................ 4, 5, 163
System Message Indicator ......................... 85
T
Tachometer.............................................. 108
Temperature Gauge .................................................... 109
Outside Temperature Display .......... 112, 118
Temperature Sensor ........................ 112, 118
Temporary Repair Kit (TRK) .................... 582
Time (Setting) ........................................... 134
Tire Pressure Monitoring System (TPMS) ..................................................... 479
Indicator ........................................... 84, 608
Tires .......................................................... 550
Air Pressure............................. 551, 619, 621
Checking and Maintaining ...................... 550
Inspection ............................................... 550
Labeling .................................................. 551
Puncture (Flat Tire) .................................. 575
Regulations ............................................. 553
Rotation.................................................. 557
Spare Tire ............................... 575, 619, 621
Summer .................................................. 559
Temporary Repair Kit (TRK) ..................... 582
Tire Chains.............................................. 558
Wear Indicators....................................... 555
Winter .................................................... 558
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 638 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
