2018 HONDA CIVIC SEDAN TPMS

607
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
• Comes on when EPS steering angle cent er point memory is lost. This
could be due to a number of problems to include: battery disconnect,
main fuse blow, low battery causing reset of the EPS system, wire
damage to EPS harness. Vehicle Stability Assist (VSA ®) system, VSA®
OFF, Collision Mitiga tion Braking System
TM (CMBSTM)*, and low tire
pressure/TPMS* indicators also come on.
The Drive Carefully Systems Initializing... message appears on the
driver information interface.
■What to do when th e indicator comes on
• Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
• If the EPS indicator, VSA ® system indicator, VSA® OFF indicator,
CMBS
TM indicator*, and low tire pressure/TPMS indicator* come on
simultaneously, you need to ca librate the VSA and EPS systems.
Drive at a speed of more than 12 mph (20 km/h) to calibrate the VSA
and EPS systems.
If the indicators come on and stay on, park your vehicle in a safe
place, turn off and restart the engine, then repeat the above
operation.
If the indicators still come on an d stay on, immediately have your
vehicle inspected by a dealer.
Models with driver information interface
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 607 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

608
uuIndicator, Coming On/BlinkinguIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

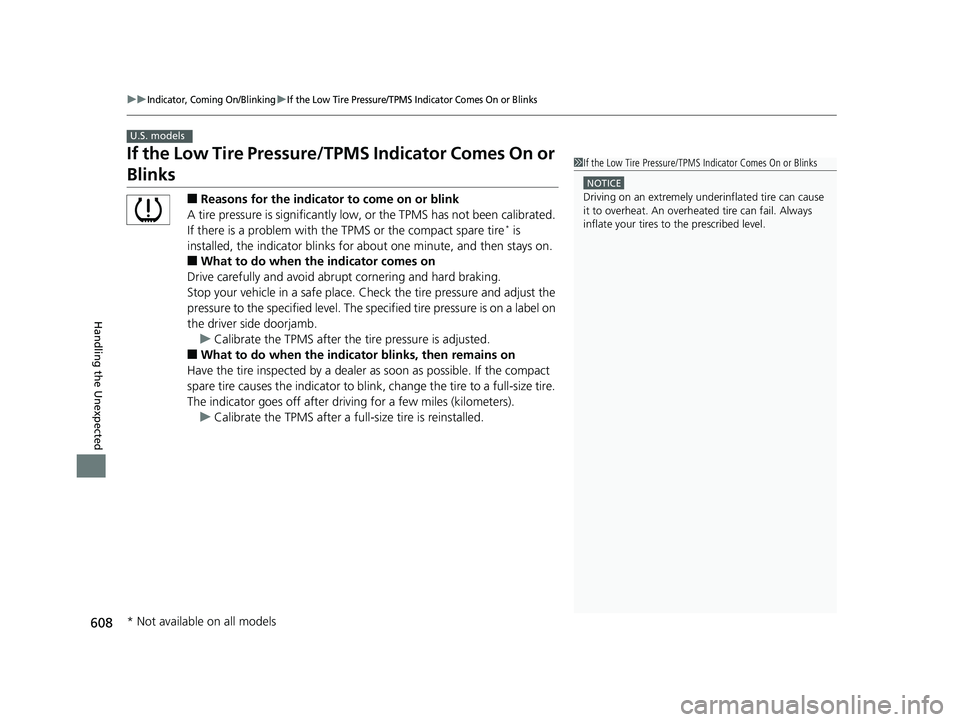

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is signifi cantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire
* is
installed, the indicator blinks for about one minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb. u Calibrate the TPMS after the tire pressure is adjusted.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
u Calibrate the TPMS after a full-size tire is reinstalled.
U.S. models
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 608 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

635
Index
Heaters (Front Seat)................................. 197
Heaters (Rear Seat) .................................. 198
Heating System ........................................ 199
Changing the Mode................................ 199
Defrosting the Windshield and
Windows .............................................. 200
Dust and Pollen Filter .............................. 564
Recirculation/Fresh Air Mode................... 200
Sensors ................................................... 201
Using Automatic Heating ........................ 199
HFL (HandsFreeLink ®) ...................... 361, 385
High Beam Indicator .................................. 85
Hill Start Assist System ..................... 428, 433
Honda App License Agreement .............. 312
Honda Sensing
TM........................................ 26
HondaLink ®.............................................. 292
I
Identification Numbers
Vehicle Identification............................... 622
Ignition Switch ......................................... 163
Illumination Control Knob ...................................................... 174
Immobilizer System .................................. 156
Immobilizer System Indicator............... 86, 87 Indicators
.................................................... 76
Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) ..................................... 91, 448
Anti-lock Brake System (ABS) ..................... 81
Automatic Brake Hold ....................... 78, 487
Automatic Brake Hold System ............ 78, 487
Brake Depressing ....................................... 89
Charging System ............................... 79, 603
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 93, 94
CRUISE CONTROL .............................. 88, 444
CRUISE MAIN .................................... 88, 443
Door and Trunk Open .......................... 37, 83
ECON Mode ...................................... 88, 442
Electric Power Steering (EPS) System .. 83, 607
Fog Light ................................................... 85
High Beam ................................................ 85
Immobilizer System .............................. 86, 87
Lane Keeping Assist System (LKAS) .... 92, 468
Lights On ................................................... 85
Low Fuel .................................................... 81
Low Oil Pressure ................................ 78, 603
Low Tire Pressure/TPMS ..... 84, 479, 482, 608
Maintenance Minder ......................... 88, 513
Malfunction Indicator Lamp ............... 79, 604
Parking Brake and Brake System (Amber) ........................................... 77, 606 Parking Brake and Brake System
(Red) ....................................... 76, 605, 606
Road Departure Mitigation (RDM) ............. 90
Seat Belt Reminder .............................. 40, 80
Security System Alarm ............................... 87
Shift Lever Position .................................... 79
SPORT Mode ..................................... 83, 441
Supplemental Restraint System ............ 57, 81
System Message ........................................ 85
Transmission System.................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist (VSA® )
System ............................................ 82, 473
VSA ® OFF .......................................... 82, 474
Washer Level ............................................. 88
Information .............................................. 617
Information Display ................................. 110
Warning and Information Messages .......... 95
Instant Fuel Economy ....................... 111, 118
Instrument Panel ........................................ 75
Brightness Control................................... 174
Interior Lights ........................................... 187
Interior Rearview Mirror .......................... 177
iPod ................................................... 228, 278
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 635 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

638
Index
S
Safe Driving................................................. 33
Safety Check ................................................ 37
Safety Labels ............................................... 74
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 43
Automatic Seat Belt Tensioners .................. 41
Checking ................................................... 45
Fastening ................................................... 42
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt .......................................................... 67
Pregnant Women ...................................... 44
Reminder ................................................... 40
Warning Indicator ................................ 40, 80
Seat Heaters ...................................... 197, 198
Seats .......................................................... 179
Adjusting ................................................. 179
Front Seat Heaters ................................... 197
Front Seats .............................................. 179
Rear Seat Heaters .................................... 198
Rear Seats................................................ 185
Security System ......................................... 156
Security System Alarm Indicator ................. 87
Selecting a Child Seat ................................. 64
Selector Knob (Audio) .............................. 219
Setting the Clock ...................................... 134
Shift Lever ................................... 24, 436, 438
Releasing ................................................. 600
Won’t Move ............................................ 600 Shift Lever Position Indicator
............ 79, 437
Shift Up Backlight .................................... 109
Shifting (Transmission) ..................... 436, 438
Shoulder Anchor ........................................ 43
Side Airbags ................................................ 53
Side Curtain Airbags .................................. 55
Siri Eyes Free ............................................. 299
SiriusXM ® Radio ........................................ 270
Smart Entry with Push Button Start System ..................................................... 139
Snow Tires ................................................. 558
Song By Voice
TM (SBV) .............................. 281
Spare Tire .................................. 575, 619, 621
Spark Plugs ....................................... 618, 620
Specifications ............................................ 618
Specified Fuel ........................... 503, 618, 620
Speedometer ............................................ 108
SPORT Mode ............................................. 441
SPORT Mode Indicator ............................. 441
SRS Airbags (Airbags) ................................. 49
Starting the Engine .......................... 426, 429
Does Not Start......................................... 594
Engine Switch Buzzer .............................. 163
Jump Starting .......................................... 597
Steering Wheel
Adjusting ................................................ 176
Stopping ................................................... 500
Stopwatch ................................................. 122
Summer Tires ............................................ 559
Supplemental Restraint System (SRS) ........ 49Switches (Around the Steering
Wheel) ............................................ 4, 5, 163
System Message Indicator ......................... 85
T
Tachometer.............................................. 108
Temperature Gauge .................................................... 109
Outside Temperature Display .......... 112, 118
Temperature Sensor ........................ 112, 118
Temporary Repair Kit (TRK) .................... 582
Time (Setting) ........................................... 134
Tire Pressure Monitoring System (TPMS) ..................................................... 479
Indicator ........................................... 84, 608
Tires .......................................................... 550
Air Pressure............................. 551, 619, 621
Checking and Maintaining ...................... 550
Inspection ............................................... 550
Labeling .................................................. 551
Puncture (Flat Tire) .................................. 575
Regulations ............................................. 553
Rotation.................................................. 557
Spare Tire ............................... 575, 619, 621
Summer .................................................. 559
Temporary Repair Kit (TRK) ..................... 582
Tire Chains.............................................. 558
Wear Indicators....................................... 555
Winter .................................................... 558
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 638 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

639
Index
Tools......................................................... 574
Towing Your Vehicle ............................... 425
Emergency .............................................. 613
TPMS (Tire Pressure Monitoring System) .................................................... 479
Indicator ........................................... 84, 608
Transmission ..................................... 436, 438
Continuously Variable Transmission ........ 436
Fluid ....................................................... 535
Manual ................................................... 438
Shift Lever Position Indicator ............. 79, 437
TRIP Knob ......................................... 110, 116
Trip Meter ........................................ 110, 116
TRK (Temporary Repair Kit) .................... 582
Troubleshooting ...................................... 573
Blown Fuse ..................................... 609, 610
Brake Pedal Vibrates ................................. 29
Buzzer Sounds When Opening Door ......... 30
Emergency Towing ................................. 613
Engine Won’t Start ................................. 594
Noise When Braking ........................... 30, 31
Overheating ............................................ 601
Puncture/Flat Tire .................................... 575
Rear Door Won’t Open ..................... 30, 148
Shift Lever Won’t Move .......................... 600
Warning Indicators.................................... 76 Trunk
......................................................... 153
Lid ........................................................... 153
Light Bulb ........................................ 618, 620
Release Lever ........................................... 615
Unable to Open ....................................... 615
Turbo Engine Vehicle ............................... 507
Turbo Meter .............................................. 118
Turn Signals .............................................. 168
Indicators (Instrument Panel) ...................... 85
U
Unlocking the Doors ................................ 139
Unlocking the Front Doors from the Inside ................................................. 146
USB Adapter Cable ................................... 212
USB Flash Drives ........................ 231, 287, 311
USB Port(s) ................................................ 213
Using the Smart Entry wi th Push Button Start
System ..................................................... 139
V
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 622
Vehicle Stability Assist (VSA ®).................. 473
Off Button............................................... 474
Off Indicator.............................................. 82
System Indicator ........................................ 82
Viscosity (Oil) ............................ 526, 619, 621
Voice Control Operation .......................... 262
Audio Commands ................................... 264
Climate Control Commands .................... 265
General Commands ................................ 265
Music Search Commands ........................ 265
On Screen Commands............................. 265
Phone Commands ................................... 264
Useful Commands ................................... 264
Voice Portal Screen.................................. 263
Voice Recognition ................................... 262
VSA ® (Vehicle Stability Assist) .................. 473
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 639 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
