2018 HONDA CIVIC SEDAN display

530
uuMaintenance Under the Hood uChanging the Engine Oil and Oil Filter
Maintenance
Changing the Engine Oil and Oil Filter
You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.
Change the oil and filter in accordance with the maintenance message on the
information display
*/driver information interface*.
1. Run the engine until it reaches normal
operating temperature, and then turn the
engine off.
2. Open the hood and remove the engine oil
fill cap.
3. Remove the Phillips-head screws and
slotted head screws by turning 90°
counter-clockwise on the undercarriage
and remove the under cover.
1Changing the Engine Oil and Oil Filter
NOTICE
You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself , appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.
Under Cover
Screw
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 530 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

557
uuChecking and Maintaining Tires uTire Rotation
Maintenance

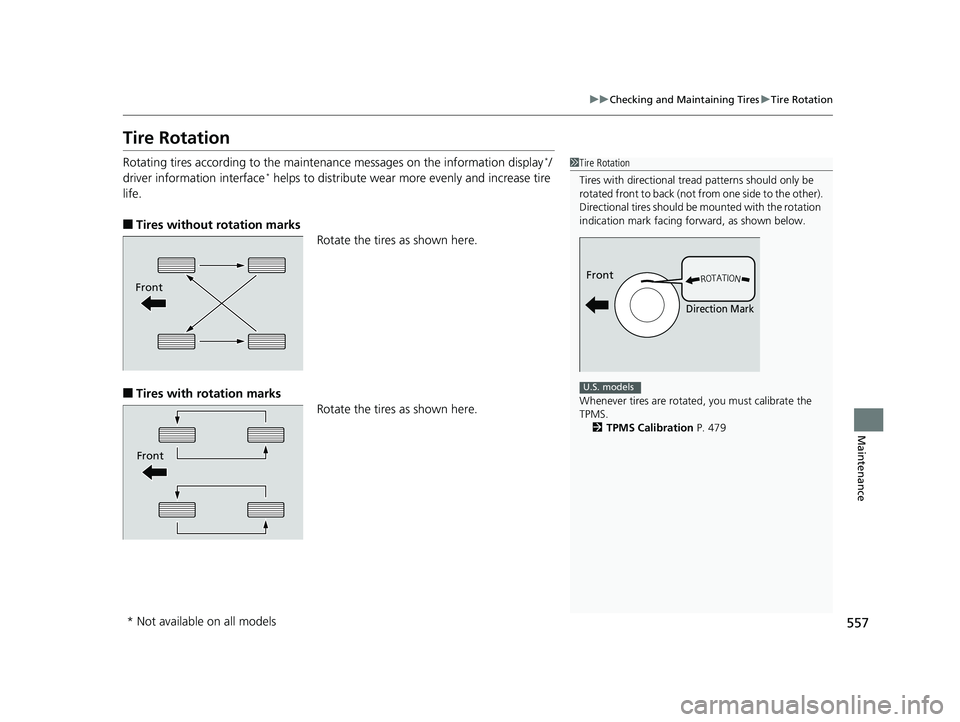

Tire Rotation
Rotating tires according to the maintena nce messages on the information display*/
driver information interface* helps to distribute wear mo re evenly and increase tire
life.
■Tires without rotation marks Rotate the tires as shown here.
■Tires with rotation marks
Rotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
Whenever tires are rotated, you must calibrate the
TPMS. 2 TPMS Calibration P. 479
Front
Direction Mark
U.S. models
Front
Front
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 557 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

560
Maintenance
Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the information display
*/driver information
interface* will display a warning message. If
this happens, have your vehicle inspected by a
dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 214
•The clock* resets.
2 Adjusting the Clock P. 134
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 86
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 560 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

Index
631
Index
Index
A
ABS (Anti-lock Brake System).................. 490
Accelerator Position Meter ..................... 120
Accessories and Modifications ................ 570
Accessory Power Socket ........................... 193
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 91, 448
Adding the Coolant ................................. 534
Additives Coolant .................................................. 533
Engine Oil ............................................... 526
Washer ................................................... 537
Additives, Engine Oil ............................... 526
Adjusting
Armrest .................................................. 186
Clock ...................................................... 134
Front Head Restraints .............................. 182
Front Seats.............................................. 179
Mirrors.................................................... 177
Rear Seats ............................................... 185
Steering Wheel ....................................... 176
Temperature ................................... 112, 118
Adjusting the Clock ................................. 134
Adjusting the Sound ........................ 224, 259
Agile Handling Assist ............................... 475
Air Conditioning System (Climate Control System) .................................................... 202
Changing the Mode................................ 205
Defrosting the Windshield and Windows .............................................. 206
Dust and Pollen Filter .............................. 564 Recirculation/Fresh Air Mode ................... 205
Sensor ..................................................... 209
Synchronized Mode ................................. 208
Using Automatic Climate Control ............ 202
Air Pressure ............................... 551, 619, 621
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 81
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 226, 266
Android Auto ............................................ 303
Anti-lock Brake System (ABS) .................. 490
Indicator .................................................... 81
Apple CarPlay ........................................... 300
Armrest ..................................................... 186
Audio Remote Controls ............................ 215
Audio System ............................ 212, 219, 237
Adjusting the Sound ........................ 224, 259
Audio/Information Screen ................ 220, 238
Changing the Home Screen Icon Layout .. 242
Changing the Screen Interface ................. 256
Closing Apps ........................................... 258
Customizing the Meter ............................ 243
Display Setup ................................... 225, 260 Error Messages ........................................ 307
General Information ................................ 310
Home Screen........................................... 249
iPod ................................................ 228, 278
Limitations for Manual Operation ............ 261
Menu Customize ..................................... 257
MP3/WMA/AAC .............................. 231, 287
Reactivating ............................................ 214
Recommended Devices............................ 311
Remote Controls ..................................... 215
Security Code .......................................... 214
Selecting an Audio Source ....................... 261
Status Area ............................................. 255
Theft Protection ...................................... 214
USB Flash Drives ...................................... 311
USB Port(s) .............................................. 213
Wallpaper Setup.............................. 222, 247
Audio/Information Screen ............... 220, 238
Authorized Manuals ................................ 629
Auto Door Locking/Unlocking ................. 149
Customize ............................... 130, 150, 359
Automatic Brake Hold ............................. 487
Indicator............................................ 78, 487
Automatic Brake Hold System Indicator............................................ 78, 487
Automatic Lighting .................................. 169
Average Fuel Economy .................... 111, 117
Average Speed ..
....................................... 117
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 631 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

633
Index
Cruise Control.......................................... 443
Indicator ................................................... 88
Cup Holders .............................................. 191
Customer Service Information ................ 630
Customized Features ....................... 124, 328
D
Daytime Running Lights .......................... 171
Dead Battery ............................................ 597
Defaulting All the Settings ...................... 360
Defrosting the Windshield and Windows ......................................... 200, 206
Devices that Emit Radio Waves ............... 623
Dimming Headlights .............................................. 168
Rearview Mirror ...................................... 177
Dipstick (Engine Oil) ................................ 527
Directional Signals (Turn Signal) ............. 168
Display Button .......................................... 238
Display Setup .................................... 225, 260
Display/Information Button .................... 114
Door Mirrors ............................................. 178
Doors ........................................................ 136
Auto Door Locking.................................. 149
Auto Door Unlocking .............................. 149
Door and Trunk Open Indicator........... 37, 83
Door Open Message ........................... 37, 96 Keys ........................................................ 136
Locking/Unlocking the Doors from
the Inside............................................... 146
Locking/Unlocking the Doors from the Outside............................................ 139
DOT Tire Quality Grading ........................ 553
Driver Information Interface ................... 113
Warning and Information Messages .......... 96
Driving ....................................................... 419
Braking .................................................... 484
Continuously Variable Transmission ......... 435
Cruise Control ......................................... 443
Shifting Gear ........................................... 438
Shifting Position ...................................... 436
Starting the Engine .......................... 426, 429
Dust and Pollen Filter ............................... 564
E
Eco Assist® System ........................................ 9
ECON Button ............................................. 442
Elapsed Time ............................................. 117
Electric Power Steering (EPS) System ........ 83
Indicator ............................................ 83, 607
Electronic Stability Control (ESC) ............. 473
Emergency ................................................ 613
Emergency Engine Stop ........................... 596
Emergency Trunk Opener ................ 155, 615Emissions Testing (Readiness Codes)
....... 625
Engine
Coolant ................................................... 533
Jump Starting .......................................... 597
Oil ........................................................... 526
Starting ........................................... 426, 429
Switch Buzzer.......................................... 163
Engine Coolant ......................................... 533
Adding the Coolant................................. 534
Overheating ............................................ 601
Temperature Gauge ................................ 109
Engine Oil ................................................. 526
Adding .................................................... 529
Checking................................................. 527
Displaying Maintenance Minder Information ................................... 513, 518
Low Oil Pressure Indicator ................. 78, 603
Recommended Engine Oil ....................... 526
ENGINE START/STOP Button .................... 164
EPS (Electric Power Steering) System ...... 607
Exhaust Gas Hazard (Carbon Monoxide) .. 73
Exterior Care (Cleaning) ........................... 567
Exterior Mirrors ........................................ 178
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 633 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

634
Index
F
Features..................................................... 211
Filters Dust and Pollen ....................................... 564
Oil ........................................................... 530
Flat Tire ..................................................... 575
Floor Mats ................................................. 566
Fluids
Brake/Clutch ............................................ 536
Continuously Variable Transmission (CVT) ..................................................... 535
Engine Coolant ........................................ 533
Manual Transmission ............................... 535
Windshield Washer .................................. 537
FM/AM Radio .................................... 226, 266
Fog Light Indicator ..................................... 85
Folding Down the Rear Seats ................... 185
Foot Brake ................................................. 486
Front Airbags (SRS) ..................................... 49
Front Head Restraints ............................... 182
Front Seat Heaters .................................... 197
Front Seats
Adjusting ................................................. 179
Front Sensor Camera ................................ 446 Fuel
...................................................... 25, 503
Economy ................................................. 506
Gauge ..................................................... 109
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Range ............................................. 111, 117
Recommendation .................................... 503
Refueling......................................... 503, 616
Fuel Economy ........................................... 506
Fuel Fill Door ...................................... 25, 504
Fuses .......................................................... 609
Inspecting and Changing......................... 612
Locations......................................... 609, 610
G
Gasoline (Fuel) Economy ................................................. 506
Gauge ..................................................... 109
Information ............................................. 503
Instant Fuel Economy ...................... 111, 118
Low Fuel Indicator ..................................... 81
Refueling......................................... 503, 616
Gauges ...................................................... 108
Gear Shift Lever Positions Manual Transmission ............................... 439
Glass (care) ........................................ 565, 568
Glove Box .................................................. 189
G-Meter ..................................................... 120
H
Halogen Bulbs .................................. 538, 541
Handling the Unexpected ....................... 573
HandsFreeLink® (HFL)...................... 361, 385
Automatic Import of Cellular Phonebook and
Call History ................................... 374, 398
Displaying Messages ............................... 412
HFL Buttons .................................... 361, 385
HFL Menus...................................... 364, 388
HFL Status Display ........................... 363, 387
In Case of Emergency ............................. 416
Limitations for Manual Operation .... 363, 387
Making a Call ................................. 379, 406
Options During a Call...................... 384, 409
Phone Setup ................................... 368, 393
Phonebook Phonetic M odification........... 402
Receiving a Call............................... 383, 409
Receiving a Text/E-mail Message ............. 410
Ring Tone ....................................... 372, 397
Selecting a Mail Account......................... 411
Speed Dial ...................................... 375, 399
To Set Up Text/E-mail Message Options .. 396
Hazard Warning Button .............................. 4
HD Radio
TM............................................... 267
Headlights ................................................ 168
Aiming.................................................... 538
Automatic Operation .............................. 169
Dimming......................................... 168, 171
Operating ............................................... 168
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 634 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

635
Index
Heaters (Front Seat)................................. 197
Heaters (Rear Seat) .................................. 198
Heating System ........................................ 199
Changing the Mode................................ 199
Defrosting the Windshield and
Windows .............................................. 200
Dust and Pollen Filter .............................. 564
Recirculation/Fresh Air Mode................... 200
Sensors ................................................... 201
Using Automatic Heating ........................ 199
HFL (HandsFreeLink ®) ...................... 361, 385
High Beam Indicator .................................. 85
Hill Start Assist System ..................... 428, 433
Honda App License Agreement .............. 312
Honda Sensing
TM........................................ 26
HondaLink ®.............................................. 292
I
Identification Numbers
Vehicle Identification............................... 622
Ignition Switch ......................................... 163
Illumination Control Knob ...................................................... 174
Immobilizer System .................................. 156
Immobilizer System Indicator............... 86, 87 Indicators
.................................................... 76
Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF) ..................................... 91, 448
Anti-lock Brake System (ABS) ..................... 81
Automatic Brake Hold ....................... 78, 487
Automatic Brake Hold System ............ 78, 487
Brake Depressing ....................................... 89
Charging System ............................... 79, 603
Collision Mitigation Braking System
TM
(CMBSTM) ........................................... 93, 94
CRUISE CONTROL .............................. 88, 444
CRUISE MAIN .................................... 88, 443
Door and Trunk Open .......................... 37, 83
ECON Mode ...................................... 88, 442
Electric Power Steering (EPS) System .. 83, 607
Fog Light ................................................... 85
High Beam ................................................ 85
Immobilizer System .............................. 86, 87
Lane Keeping Assist System (LKAS) .... 92, 468
Lights On ................................................... 85
Low Fuel .................................................... 81
Low Oil Pressure ................................ 78, 603
Low Tire Pressure/TPMS ..... 84, 479, 482, 608
Maintenance Minder ......................... 88, 513
Malfunction Indicator Lamp ............... 79, 604
Parking Brake and Brake System (Amber) ........................................... 77, 606 Parking Brake and Brake System
(Red) ....................................... 76, 605, 606
Road Departure Mitigation (RDM) ............. 90
Seat Belt Reminder .............................. 40, 80
Security System Alarm ............................... 87
Shift Lever Position .................................... 79
SPORT Mode ..................................... 83, 441
Supplemental Restraint System ............ 57, 81
System Message ........................................ 85
Transmission System.................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist (VSA® )
System ............................................ 82, 473
VSA ® OFF .......................................... 82, 474
Washer Level ............................................. 88
Information .............................................. 617
Information Display ................................. 110
Warning and Information Messages .......... 95
Instant Fuel Economy ....................... 111, 118
Instrument Panel ........................................ 75
Brightness Control................................... 174
Interior Lights ........................................... 187
Interior Rearview Mirror .......................... 177
iPod ................................................... 228, 278
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 635 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

637
Index
Modifications (and Accessories).............. 570
Moonroof ................................................. 162
MP3 ................................................... 231, 287
Multi-View Rear Camera ......................... 501
N
Numbers (Identification)......................... 622
O
Odometer......................................... 110, 116
Oil (Engine) .............................................. 526
Adding ................................................... 529
Checking ................................................ 527
Displaying Maintenance Minder Information ................................... 513, 518
Low Oil Pressure Indicator ................. 78, 603
Recommended Engine Oil ....................... 526
Viscosity.................................................. 526
Open Source Licenses .............................. 326
Opening Trunk ...................................................... 615
Opening/Closing Hood ...................................................... 525
Moonroof ............................................... 162
Power Windows...................................... 159
Trunk ...................................................... 153
Outside Temperature Display ......... 112, 118
Overheating ............................................. 601
P
Pandora®................................................... 285
Panic Mode ............................................... 158
Parking ...................................................... 500
Parking Brake ........................................... 484
Parking Brake and Brake System Indicator (Amber) ............................................. 77, 606
Parking Brake and Brake System Indicator
(Red) .......................................... 76, 605, 606
Passenger Front Airb ag Off Indicator....... 58
Passing Indicators ..................................... 168
Playing Bluetooth ® Audio ................ 234, 290
Power Windows ........................................ 159
Precautions While Driving
Rain ......................................................... 434
Pregnant Women ....................................... 44
Puncture (Tire) .......................................... 575
R
Radio (FM/AM).................................. 226, 266
Radio (SiriusXM ®) ..................................... 270
Radio Data System (RDS) .................. 227, 268
Range ................................................ 111, 117
RDS (Radio Data System) .................. 227, 268
Readiness Codes (Emissions Testing) ....... 625
Rear Defogger/Heated Door Mirror
Button ..................................................... 175
Rear Seat Heaters ..................................... 198 Rear Seats (Folding Down)
...................... 185
Rearview Mirror ....................................... 177
Refueling .................................................. 503
Fuel Gauge.............................................. 109
Gasoline .......................... 503, 616, 618, 620
Low Fuel Indicator ..................................... 81
Regulations ............................... 482, 553, 623
Remote Transmitter ................................. 143
Replacement Battery .................................................... 562
Bulbs ....................................................... 538
Fuses ............................................... 609, 610
Tires ........................................................ 556
Wiper Blade Rubber ................................ 547
Reporting Safety Defects ......................... 624
Resetting a Trip Meter ..................... 110, 116
Rev Indicators ........................................... 121
Road Departure Mitigation (RDM) ......... 462
On and Off.............................................. 463
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 637 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
