GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
In Brief 71. Air Vents 0 185 .
2. Head-Up Display (HUD) 0 154
(If Equipped).
3.
g Traction Control/Electronic
Stability Control 0 229 .
j Power Assist Steps 0 48 (If
Equipped).
X Parking Assist Button (If
Equipped). See Assistance
Systems for Parking or Backing
0 243 .
A Lane Departure Warning
(LDW) 0 252 (If Equipped).
0 Pedal Adjust Switch (If
Equipped). See Adjustable
Throttle and Brake Pedal
0 205 .
4. Turn Signal Lever. See Turn
and Lane-Change Signals
0 174 .
Windshield Wiper/Washer
0 123 . 5. Favorite Switches (Out of
View). See “ Steering Wheel
Controls ” in the infotainment
manual.
Volume Switches (Out of View).
See “ Steering Wheel Controls ”
in the infotainment manual.
6. Hazard Warning Flashers
0 174 .
7. Instrument Cluster 0 133 .
8. Shift Lever. See Automatic
Transmission 0 216 .
Tow/Haul Selector Button. See
Tow/Haul Mode 0 222 .
Range Selection Mode (If
Equipped). See Manual Mode
0 218 .
9. Light Sensor. See Automatic
Headlamp System 0 173 .
10. Infotainment 0 179 .
11. Dual Automatic Climate Control
System 0 180 .
12. Heated and Ventilated Front
Seats 0 67 . 13. Rear Climate Control Buttons.
See Rear Climate Control
System 0 184 .
14. Ignition Positions (Key Access)
0 207 or Ignition Positions
(Keyless Access) 0 205 .
15. Steering Wheel Controls. See
the infotainment manual.
16. Horn 0 123 .
17. Steering Wheel Adjustment
0 123 .
18. Hood Release. See Hood
0 279 .
19. Cruise Control 0 233 .
Adaptive Cruise Control 0 235
(If Equipped).
Forward Collision Alert (FCA)
System 0 246 (If Equipped).
Heated Steering Wheel 0 123 .
20. Trailer Brake Control Panel (If
Equipped). See Towing
Equipment 0 267 .
21. Data Link Connector (DLC)
(Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0 143 .

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Keys, Doors, and Windows 315. Repeat Steps 2 – 4 two more
times. After the third time, turn
the ignition on; the key is
learned and all previously
known keys will no longer work
with the vehicle.
6. To learn the second key, turn
the ignition off, insert the
second key to be learned, and
turn the ignition on without
starting the engine.
After the two keys are learned,
remaining keys can be learned by
following the procedure in
“ Programming with Two Recognized
Keys (Key Vehicles Only). ”
The key has a bar-coded key tag
that the dealer or qualified locksmith
can use to make new keys. Store
this information in a safe place, not
in the vehicle.
See your dealer if a replacement
key or additional key is needed.
If it becomes difficult to turn a key,
inspect the key blade for debris.
Periodically clean with a brush
or pick. If locked out of the vehicle, see
Roadside Assistance Program
0 390 .
With an active OnStar service plan,
an OnStar Advisor may remotely
unlock the vehicle. See OnStar
Overview 0 400 .
Remote Keyless Entry
(RKE) System See Radio Frequency Statement
0 396 .
If there is a decrease in the Remote
Keyless Entry (RKE) operating
range:
.
Check the distance. The
transmitter may be too far from
the vehicle.
.
Check the location. Other
vehicles or objects may be
blocking the signal.
.
Check the transmitter's battery.
See “ Battery Replacement ” later
in this section. .
If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.
Remote Keyless Entry
(RKE) System Operation
(Key Access) The RKE transmitter functions may
work up to 60 m (197 ft) away from
the vehicle.
Other conditions can affect the
performance of the transmitter. See
Remote Keyless Entry (RKE)
System 0 31 .

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
40 Keys, Doors, and Windows The rear defog and heated and
ventilated seats may also come on.
See Heated and Ventilated Front
Seats 0 67 and Vehicle
Personalization 0 158 .
Laws in some communities may
restrict the use of remote starters.
Check local regulations for any
requirements on remote starting of
vehicles.
Do not use remote start if the
vehicle is low on fuel.
The vehicle cannot be remote
started if:
.
The key is in the ignition (Key
Access) or the RKE transmitter
is in the vehicle (Keyless
Access).
.
The hood is not closed.
.
There is an emission control
system malfunction and the
malfunction indicator lamp is on.
The engine will turn off during a
remote vehicle start if:
.
The coolant temperature gets
too high.
.
The oil pressure gets low. The RKE transmitter range may be
reduced while the vehicle is running.
Other conditions can affect the
performance of the transmitter.
See Remote Keyless Entry (RKE)
System 0 31 or Vehicle
Personalization 0 158 .
Starting the Engine Using Remote
Start
1. Press and release
Q .
2. Immediately press and hold
/until the turn signal lamps flash
or for at least four seconds.
When the vehicle starts, the
parking lamps will turn on. The
doors will be locked and the
climate control system may
come on.
The engine will continue to run
for 10 minutes. Repeat
Steps 1 and 2 for a 10-minute
time extension.
Turn the ignition on to operate the
vehicle. Extending Engine Run Time
The engine run time can be
extended by 10 minutes, for a total
of 20 minutes, if during the first
10 minutes Steps 1 and 2 are
repeated while the engine is still
running. An extension can be
requested, 30 seconds after
starting.
A maximum of two remote starts,
or a single start with an extension,
is allowed between ignition cycles.
The vehicle's ignition must be
turned on and then back off to use
remote start again.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.
Press and hold
/ until the
parking lamps turn off.
.
Turn on the hazard warning
flashers.
.
Turn the ignition on and then off.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
Keys, Doors, and Windows 43This can be manually overridden by
pressing and holding
Q on the
power door lock switch.
Keyless Access : When locking is
requested with the driver door open
and the vehicle is on or in ACC/
ACCESSORY, all the doors will lock
and then the driver door will unlock.
If the vehicle is off and locking is
requested while a door is open,
when all doors are closed the
vehicle will check for RKE
transmitters inside. If an RKE
transmitter is detected and the
number of RKE transmitters inside
has not reduced, the driver door will
unlock and the horn will sound three
times.
This can be manually overridden by
pressing and holding
Q on the
power door lock switch.
Unlocked Door Anti-Lockout
If Unlocked Door Anti-Lockout is
turned on and the vehicle is off, the
driver door is open, and locking is
requested, all the doors will lock and
the driver door will remain open.
Press the button again to lock the driver door. The Unlocked Door
Anti-Lockout feature can be turned
on or off. See Vehicle
Personalization 0 158 .
Safety Locks The rear door safety locks prevent
passengers from opening the rear
doors from inside the vehicle.
Press
{ to activate the safety locks
on the rear doors. The indicator light
comes on when activated.
Press
{ again to deactivate the
safety locks. Doors Liftgate
{ WarningExhaust gases can enter the
vehicle if it is driven with the
liftgate or trunk/hatch open,
or with any objects that pass
through the seal between the
body and the trunk/hatch or
liftgate. Engine exhaust contains
carbon monoxide (CO) which
cannot be seen or smelled. It can
cause unconsciousness and even
death.
If the vehicle must be driven with
the liftgate or trunk/hatch open:
.
Close all of the windows.
.
Fully open the air outlets on
or under the instrument
panel.
.
Adjust the climate control
system to a setting that
brings in only outside air
(Continued)

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
52 Keys, Doors, and Windows When trying to start the vehicle, the
security light comes on briefly when
the ignition is turned on.
If the engine does not start and the
security light stays on, there is a
problem with the system. Turn the
ignition off and try again.
If the engine still does not start, and
the key appears to be undamaged,
try another ignition key. It may be
necessary to check the fuse. See
Fuses and Circuit Breakers 0 309 .
If the engine still does not start with
the other key, the vehicle needs
service. If the vehicle does start, the
first key may be faulty. See your
dealer. It is possible for the immobilizer
system to learn new or replacement
keys. Up to eight keys can be
programmed for the vehicle. To
program additional keys, see Keys
(Keyless Access) 0 27 or Keys (Key
Access) 0 28 . To program additional
transmitters, see your dealer.
Do not leave the key or device that
disarms or deactivates the vehicle
theft system in the vehicle.
See your dealer to get a new key
blank cut exactly as the ignition key
that operates the system. Exterior Mirrors Convex Mirrors
{ WarningA convex mirror can make things,
like other vehicles, look farther
away than they really are. If you
cut too sharply into the right lane,
you could hit a vehicle on the
right. Check the inside mirror or
glance over your shoulder before
changing lanes.
The passenger side mirror is convex
shaped. A convex mirror's surface is
curved so more can be seen from
the driver seat.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
122 Instruments and Controls
Instruments and
Controls Controls Steering Wheel Adjustment . . . 123
Steering Wheel Controls . . . . . . 123
Heated Steering Wheel . . . . . . . 123
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Windshield Wiper/Washer . . . . 123
Rear Window Wiper/
Washer . . . . . . . . . . . . . . . . . . . . . 125
Compass . . . . . . . . . . . . . . . . . . . . . 126
Clock . . . . . . . . . . . . . . . . . . . . . . . . . 126
Power Outlets . . . . . . . . . . . . . . . . 127
Wireless Charging . . . . . . . . . . . . 129
Warning Lights, Gauges, and
Indicators Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . 132
Instrument Cluster . . . . . . . . . . . . 133
Speedometer . . . . . . . . . . . . . . . . . 136
Odometer . . . . . . . . . . . . . . . . . . . . . 136
Trip Odometer . . . . . . . . . . . . . . . . 136
Tachometer . . . . . . . . . . . . . . . . . . . 136
Fuel Gauge . . . . . . . . . . . . . . . . . . . 137

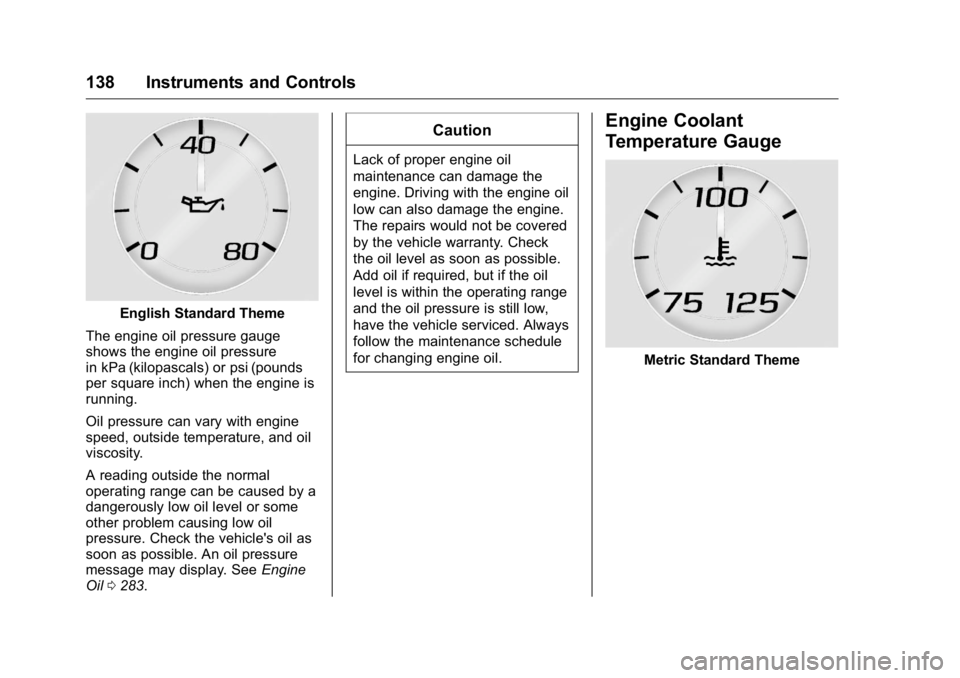

Engine Oil Pressure
Gauge . . . . . . . . . . . . . . . . . . . . . . 137 Engine Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 138
Transmission Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 139
Voltmeter Gauge . . . . . . . . . . . . . 140
Seat Belt Reminders . . . . . . . . . 140
Airbag Readiness Light . . . . . . . 141
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . 142
Charging System Light . . . . . . . 142
Malfunction Indicator Lamp
(Check Engine Light) . . . . . . . . 143
Brake System Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . 145
Antilock Brake System (ABS)
Warning Light . . . . . . . . . . . . . . . 145
Four-Wheel-Drive Light . . . . . . . 146
Tow/Haul Mode Light . . . . . . . . . 146
Lane Keep Assist (LKA)
Light . . . . . . . . . . . . . . . . . . . . . . . . 146
Vehicle Ahead Indicator . . . . . . 146
Traction Off Light . . . . . . . . . . . . . 147
StabiliTrak OFF Light . . . . . . . . . 147
Traction Control System (TCS)/
StabiliTrak Light . . . . . . . . . . . . . 147
Engine Coolant Temperature
Warning Light . . . . . . . . . . . . . . . 148
Tire Pressure Light . . . . . . . . . . . 148
Engine Oil Pressure Light . . . . 149
Low Fuel Warning Light . . . . . . 149
Security Light . . . . . . . . . . . . . . . . . 149 High-Beam On Light . . . . . . . . . . 149
Front Fog Lamp Light . . . . . . . . . 150
Lamps On Reminder . . . . . . . . . 150
Cruise Control Light . . . . . . . . . . 150
Door Ajar Light . . . . . . . . . . . . . . . 150
Information Displays Driver Information
Center (DIC) . . . . . . . . . . . . . . . . 151
Head-Up Display (HUD) . . . . . . 154
Vehicle Messages Vehicle Messages . . . . . . . . . . . . 157
Engine Power Messages . . . . . 158
Vehicle Speed Messages . . . . . 158
Vehicle Personalization Vehicle Personalization . . . . . . . 158
Universal Remote System Universal Remote System . . . . 166
Universal Remote System
Programming . . . . . . . . . . . . . . . 166
Universal Remote System
Operation . . . . . . . . . . . . . . . . . . . 168

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
132 Instruments and Controls
Warning Lights,
Gauges, and
Indicators Warning lights and gauges can
signal that something is wrong
before it becomes serious enough
to cause an expensive repair or
replacement. Paying attention to the
warning lights and gauges could
prevent injury.
Some warning lights come on briefly
when the engine is started to
indicate they are working. When
one of the warning lights comes on
and stays on while driving, or when
one of the gauges shows there may
be a problem, check the section that
explains what to do. Waiting to do
repairs can be costly and even
dangerous.

GMC Yukon/Yukon XL/Denali Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-11349262) - 2018 - crc - 6/20/17
138 Instruments and Controls
English Standard Theme
The engine oil pressure gauge
shows the engine oil pressure
in kPa (kilopascals) or psi (pounds
per square inch) when the engine is
running.
Oil pressure can vary with engine
speed, outside temperature, and oil
viscosity.
A reading outside the normal
operating range can be caused by a
dangerously low oil level or some
other problem causing low oil
pressure. Check the vehicle's oil as
soon as possible. An oil pressure
message may display. See Engine
Oil 0 283 . CautionLack of proper engine oil
maintenance can damage the
engine. Driving with the engine oil
low can also damage the engine.
The repairs would not be covered
by the vehicle warranty. Check
the oil level as soon as possible.
Add oil if required, but if the oil
level is within the operating range
and the oil pressure is still low,
have the vehicle serviced. Always
follow the maintenance schedule
for changing engine oil. Engine Coolant
Temperature Gauge
Metric Standard Theme
