2018 GENESIS G80 display

6-9
What to do in an emergency
6
(1) Low Tire Pressure Telltale/TPMS Malfunction Indicator
(2) Low Tire Pressure Position Telltale and Tire Pressure Telltale
(Shown on the LCD display)
Check tire pressure
• You can check the tire pressure inthe Information Mode on the clus-
ter.
Refer to "User Settings Mode" in
chapter 3.
Tire pressure is displayed 1~2 min- utes after driving.
If tire pressure is not displayed when the vehicle is stopped, "Drive
to display" message will appear.
After driving, check the tire pres-
sure. The displayed tire pressure values
may differ from those measured
with a tire pressure gauge.
You can change the tire pressure unit in the User Settings Mode on
the cluster.
- psi, kpa, bar (Refer to "UserSettings Mode" in chapter 3) .
T TI
IR
R E
E
P
P R
R E
ES
SS
SU
U R
RE
E
M
M O
ON
NI
IT
T O
O R
RI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
(
( T
T P
P M
M S
S)
)
ODH063007
ODH047346L
ODH067029L

6-11
What to do in an emergency
6
✽
✽NOTICE
If any of the below happens, have
the system checked by an authorized
retailer of Genesis Branded prod-
ucts.
1. The Low Tire Pressure Telltale/
TPMS Malfunction Indicator
does not illuminate for 3 seconds
when the Engine Start/Stop but-
ton is turned to the ON position
or engine is running.
2. The TPMS Malfunction Indicator remains illuminated after blink-
ing for approximately 1 minute.
3. The Low Tire Pressure Position Telltale remains illuminated.
Low tire pressure
telltale
Low tire pres-
sure position
and tire pres-
sure telltale
When the tire pressure monitoring
system warning indicators are illumi-
nated and warning message dis-
played on the cluster LCD display,
one or more of your tires is signifi-
cantly under-inflated. The Low Tire
Pressure Position Telltale will indi-
cate which tire is significantly under-
inflated by illuminating the corre-
sponding position light.
If either telltale illuminates, immedi-
ately reduce your speed, avoid hard
cornering and anticipate increased
stopping distances. You should stop
and check your tires as soon as pos-
sible. Inflate the tires to the proper
pressure as indicated on the vehi-
cle's placard or tire inflation pressure
label located on the driver's side cen-
ter pillar outer panel. If you cannot reach a service station
or if the tire cannot hold the newly
added air, replace the low pressure
tire with the spare tire.
The Low Tire Pressure Telltale will
remain on and the TPMS Malfunction
Indicator may blink for one minute
and then remain illuminated (when
the vehicle is driven approximately
20 minutes at speed above 15.5 mph
(25 km/h)) until you have the low
pressure tire repaired and replaced
on the vehicle.
✽ ✽
NOTICE
The spare tire is not equipped with a
tire pressure sensor.
ODH047346L

7-50
Maintenance
Wheel size designation
Wheels are also marked with impor-
tant information that you need if you
ever have to replace one. The follow-
ing explains what the letters and
numbers in the wheel size designa-
tion mean.
Example wheel size designation:
6.5JX18
6.5 - Rim width in inches.
J - Rim contour designation.
18 - Rim diameter in inches.
Tire speed ratings
The chart below lists many of the dif-
ferent speed ratings currently being
used for passenger car tires. The
speed rating is part of the tire size
designation on the sidewall of the
tire. This symbol corresponds to that
tire's designed maximum safe oper-
ating speed.
3. Checking tire life (TIN : Tire
Identification Number)
Any tires that are over six years old,
based on the manufacturing date,
(including the spare tire) should be
replaced by new ones. You can find
the manufacturing date on the tire
sidewall (possibly on the inside of the
wheel), displaying the DOT Code.
The DOT Code is a series of num-
bers on a tire consisting of numbers
and English letters. The manufactur-
ing date is designated by the last four
digits (characters) of the DOT code.
DOT : XXXX XXXX OOOO
The front part of the DOT means a
plant code number, tire size and
tread pattern and the last four num-
bers indicate week and year manu-
factured.
For example:
DOT XXXX XXXX 2717 represents
that the tire was produced in the 27th
week of 2017.
Speed
Rating
SymbolMaximum Speed
S 112 mph (180 km/h)
T 118 mph (190 km/h)
H 130 mph (210 km/h)
V 149 mph (240 km/h)
Z Above 149 mph (240 km/h)

7-65
7
Maintenance
Instrument panel fuse panel
Fuse NameFuse ratingCircuit Protected
SUNROOF25A Sunroof Motor
MULTIMEDIA 210A A/V & Navigation Head Unit, Keyboard, Front Monitor, I-BOX
MULTIMEDIA 115A A/V & Navigation Head Unit
CLUSTER10A Instrument Cluster, Head-Up Display
MODULE 615A Head Lamp LH/RH, Adaptive Front Lighting Module, A/T Shift Lever IND.
Auto Head Lamp Leveling Device Module, Auto Hold & Driver Mode Switch
MEMORY 110A Steering Tilt & Telescopic Module, External Buzzer, BCM, Tire Pressure Monitoring Module,
Security Indicator, A/C Control Module, Digital Clock, Head-Up Display, Instrument Cluster,
Driver Lumbar Support Unit, Driver IMS Control Module, Power Trunk Lid Control Module
PRESAFETY
SEAT BELT10A Pre-Active Seat Belt Module
E-SHIFTER 210A Electronic ATM Shift Lever
SMART KEY 310A Smart Key Control Module
POWER HANDLE15A Steering Tilt & Telescopic Module
SMART KEY 215A Smart Key Control Module
POWER OUTLET 220A Front Power Outlet & Cigarette Lighter
MODULE 310A Multifunction Switch, BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module,
Rear Door Module LH/RH
A/BAG IND10A A/C Control Module, Instrument Cluster

7-67
7
Maintenance
Fuse NameFuse ratingCircuit Protected
E-SHIFTER 110A Electronic ATM Shift Lever
SMART KEY 110A Start/Stop Button Switch
MODULE 710A Multi-View Camera Module, Sunroof Motor, Head-Up Display, Cooling Fan Controller,
Passenger Lumbar Support Unit
MODULE 810A Smart Key Control Module, BCM
MODULE 220A
Smart Key Control Module, Overhead Console Lamp, BCM, AMP
Digital Clock, Keyboard, I-BOX, A/V & Navigation Head Unit, Front Monitor, Electronic ATM Shift Lever,
Front Wireless Charger, Front Power Outlet & Cigarette Lighter, Multi-View Camera Module,
Metal Core Block (PCB #1 - Power Outlet Relay)
P/SEAT DRV 130A Driver IMS Control Module, Driver Power Seat Relay Box
P/SEAT PASS 130A Passenger Power Seat Relay Box
DOOR LAMP10A Driver/Passenger Door Module, Rear Door Module LH/RH
BRAKE SWITCH10A Smart Key Control Module, Stop Lamp Switch
A/CON20A Metal Core Block (PCB #1 - Blower Relay), Ionizer, CO2 Sensor, A/C Control Module

I-2
Accessing your vehicle .....................................................3-4
Immobilizer System .....................................................3-9
Smart key......................................................................3-4
Advanced smart cruise control system ...........................5-78
Air bag ............................................................................2-46
Air bag warning labels ...............................................2-69
Air bag warning light .................................................2-52
Curtain air bags ..........................................................2-51
Driver's and passenger's front air bags.......................2-48
Occupant classification system (OCS) .......................2-57
Side air bags ...............................................................2-49
Air cleaner.......................................................................7-33
Air conditioning system....................................................8-5
All Wheel Drive (AWD) .................................................5-29
Antenna .............................................................................4-3
Anti-lock brake system (ABS) .......................................5-45
Appearance care..............................................................7-83
Exterior care ...............................................................7-83
Interior care ................................................................7-88
AUTO HOLD .................................................................5-41
Automatic climate control system ................................3-131
Automatic heating and air conditioning ...................3-132
Manual heating and air conditioning .......................3-133Automatiac Emergency Braking (AEB) .........................5-65
AEB front radar sensor ..............................................5-70
AEB warning message and system control................5-67
Limitation of the System ............................................5-72
System malfunction ....................................................5-71
System setting and activation .....................................5-65
Automatic transmission (SBC) .......................................5-11
Automatic transmission operation ..............................5-11
Good driving practices ...............................................5-17
Parking........................................................................5-17
Automatic transmission (SBW) ......................................5-19
Automatic transmission operation..............................5-19
Good driving practices ...............................................5-27
LCD display messages ...............................................5-25
Parking........................................................................5-24
Battery .............................................................................7-38
Battery recharging ......................................................7-40
For best battery service ..............................................7-39
Reset features .............................................................7-42
Before driving ...................................................................5-4
Before entering the vehicle ..........................................5-4
Before starting ..............................................................5-4
Engine Start/Stop button ..............................................5-6
Index
A
B

I-4
Driver Attention Alert System (DAA) ..........................5-104
Resetting the system .................................................5-106
System malfunction ..................................................5-106
System setting and activation ...................................5-104
System standby.........................................................5-106
Driver position memory system .....................................3-16
Easy access function ..................................................3-18
Resetting the driver's seat memory system ................3-17
Storing positions into memory ...................................3-16
Emission control system .................................................7-91
Engine ...............................................................................8-2
Engine compartment..................................................1-7, 7-3
Engine coolant ................................................................7-27
Changing engine coolant ............................................7-29
Checking the engine coolant level .............................7-27
Engine number ..................................................................8-9
Engine oil ........................................................................7-24
Checking the engine oil and filter ..............................7-25
Checking the engine oil level .....................................7-24
Explanation of scheduled maintenance items.................7-21
Exterior features..............................................................3-43
Fuel filler door............................................................3-54
Hood ...........................................................................3-43
Smart trunk .................................................................3-51
Trunk ..........................................................................3-44
Exterior overview ......................................................1-2, 1-3Fuses ...............................................................................7-59
Engine compartment panel fuse replacement ............7-62
Fuse/Relay panel description .....................................7-64
Instrument panel fuse replacement.............................7-60
Genesis Adaptive Control Suspension............................5-53
Dynamic stability damping control (DSDC) .............5-53
Electronic control suspension (ECS) .........................5-53
Gross vehicle weight.........................................................8-5
Hazard warning flasher .....................................................6-2
Head Up Display (HUD) ..............................................3-103
Index
E
F
H
G

I-5

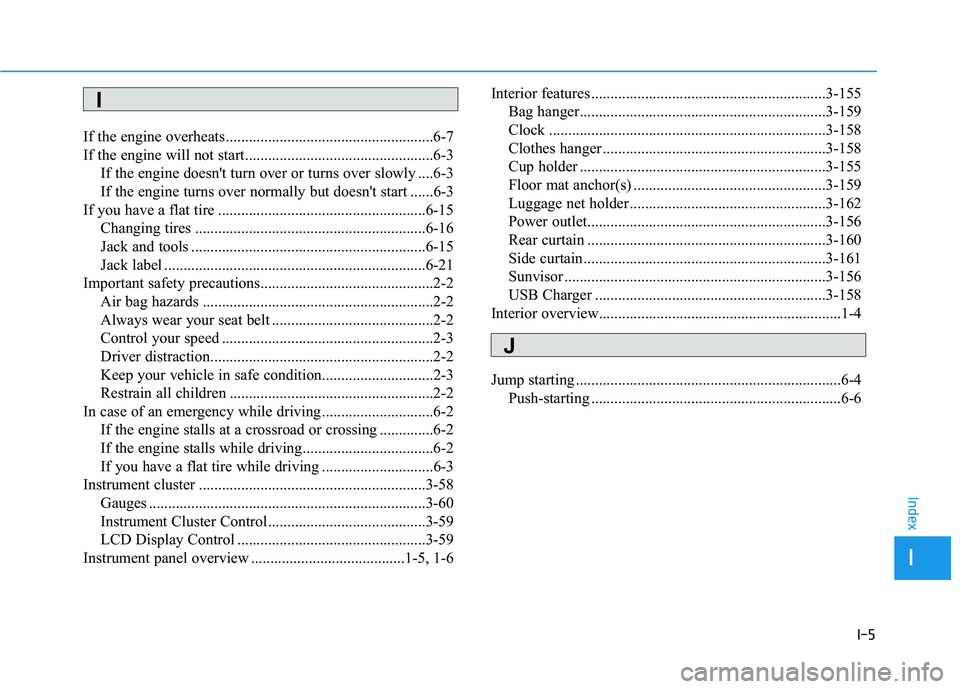

If the engine overheats ......................................................6-7
If the engine will not start.................................................6-3
If the engine doesn't turn over or turns over slowly ....6-3
If the engine turns over normally but doesn't start ......6-3
If you have a flat tire ......................................................6-15
Changing tires ............................................................6-16
Jack and tools .............................................................6-15
Jack label ....................................................................6-21
Important safety precautions.............................................2-2
Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of an emergency while driving .............................6-2
If the engine stalls at a crossroad or crossing ..............6-2
If the engine stalls while driving..................................6-2
If you have a flat tire while driving .............................6-3
Instrument cluster ...........................................................3-58
Gauges ........................................................................3-60
Instrument Cluster Control .........................................3-59
LCD Display Control .................................................3-59
Instrument panel overview ........................................1-5, 1-6Interior features .............................................................3-155
Bag hanger................................................................3-159
Clock ........................................................................3-158
Clothes hanger ..........................................................3-158
Cup holder ................................................................3-155
Floor mat anchor(s) ..................................................3-159
Luggage net holder ...................................................3-162
Power outlet..............................................................3-156
Rear curtain ..............................................................3-160
Side curtain...............................................................3-161
Sunvisor ....................................................................3-156
USB Charger ............................................................3-158
Interior overview...............................................................1-4
Jump starting .....................................................................6-4
Push-starting .................................................................6-6
I
Index
I
J
