2018 FORD FUSION ENERGI fuse box

FUSE SPECIFICATION CHART
Power Distribution Box
WARNINGS
Always disconnect the battery beforeservicing high current fuses.
To reduce risk of electrical shock,always replace the cover to thepower distribution box beforereconnecting the battery or refilling fluidreservoirs.
The power distribution box is in the enginecompartment. It has high-current fusesthat protect your vehicle's main electricalsystems from overloads.
If the battery has been disconnected andreconnected, some features need to bereset. See Changing the 12V Battery(page 267).
246
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
FusesE144783

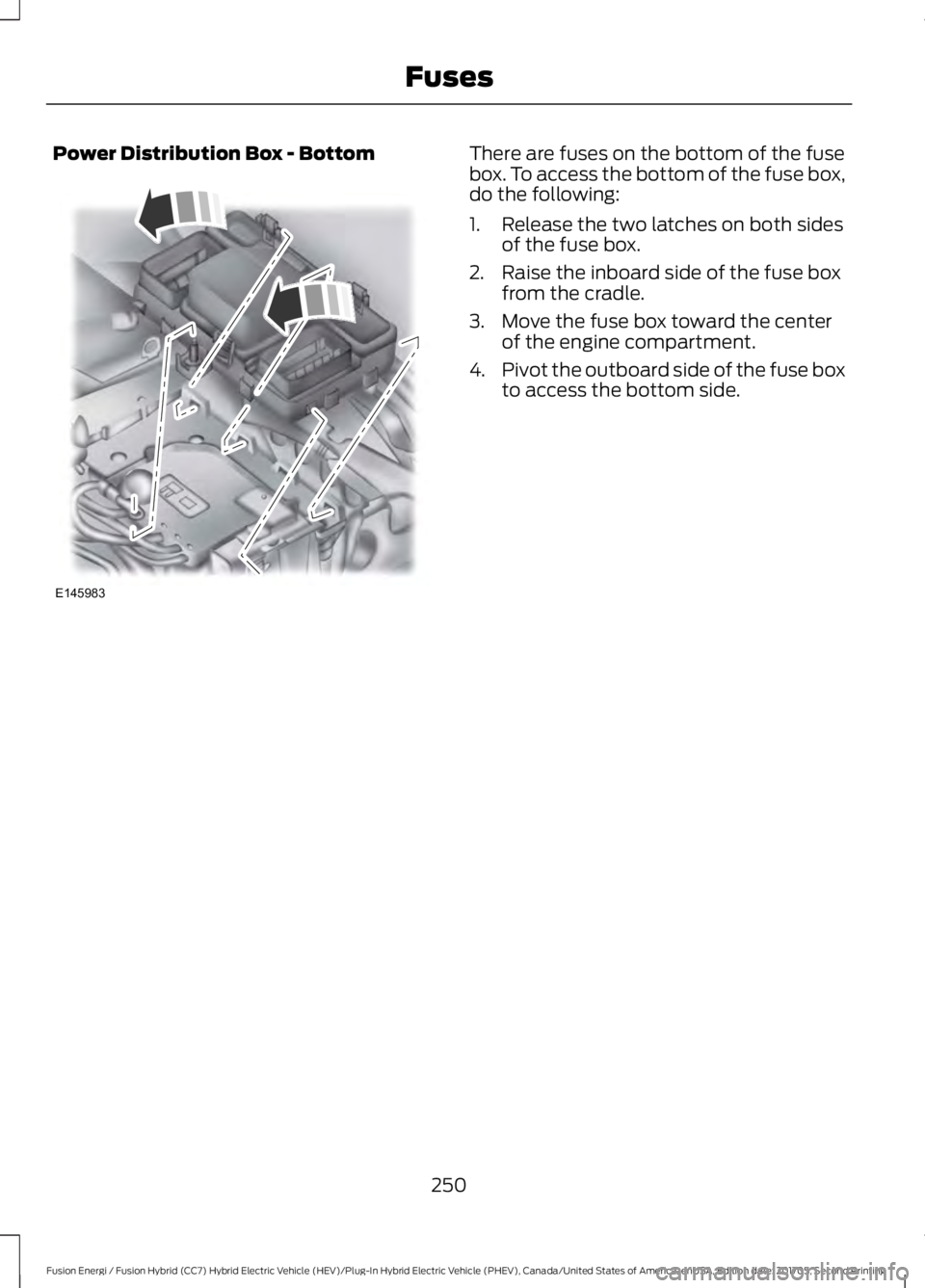

Power Distribution Box - BottomThere are fuses on the bottom of the fusebox. To access the bottom of the fuse box,do the following:
1. Release the two latches on both sidesof the fuse box.
2. Raise the inboard side of the fuse boxfrom the cradle.
3. Move the fuse box toward the centerof the engine compartment.
4.Pivot the outboard side of the fuse boxto access the bottom side.
250
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
FusesE145983

Engine coolant reservoir. SeeEngine Coolant Check (page261).
A
Engine oil filler cap. See EngineOil Check (page 260).B
Air filter. See Changing theEngine Air Filter (page 272).C
Brake fluid reservoir. See BrakeFluid Check (page 266).D
Engine compartment fuse box.See Fuses (page 246).E
Inverter system controller.F
Inverter system controllercoolant reservoir. See EngineCoolant Check (page 261).
G
Engine oil dipstick. See EngineOil Dipstick (page 260).H
Washer system fluid reservoir.See Washer Fluid Check (page266).
I
ENGINE OIL DIPSTICK
MINA
FULLB
MAXC
ENGINE OIL CHECK
Check the level before starting the engineand make sure that the level is betweenthe MIN and the MAX marks.
1. Make sure that your vehicle is on levelground.
2. Switch the engine off and wait 10minutes for the oil to drain into the oilpan.
3. Remove the dipstick and wipe it witha clean, lint-free cloth. Replace thedipstick and remove it again to checkthe oil level.
If the level is at the MIN mark, add oilimmediately.
Adding Engine Oil
Note:Do not remove the filler cap whenthe engine is running.
Note:Do not add oil further than the MAXmark. Oil levels above the MAX mark maycause engine damage.
Only use oils certified for gasoline enginesby the American Petroleum Institute (API).An oil with this trademark symbolconforms to the current engine andemission system protection standards andfuel economy requirements of theInternational Lubricants SpecificationAdvisory Committee (ILSAC).
260
Fusion Energi / Fusion Hybrid (CC7) Hybrid Electric Vehicle (HEV)/Plug-In Hybrid Electric Vehicle (PHEV), Canada/United States of America, enUSA, Edition date: 201705, Second Printing
MaintenanceE250320 E142732
