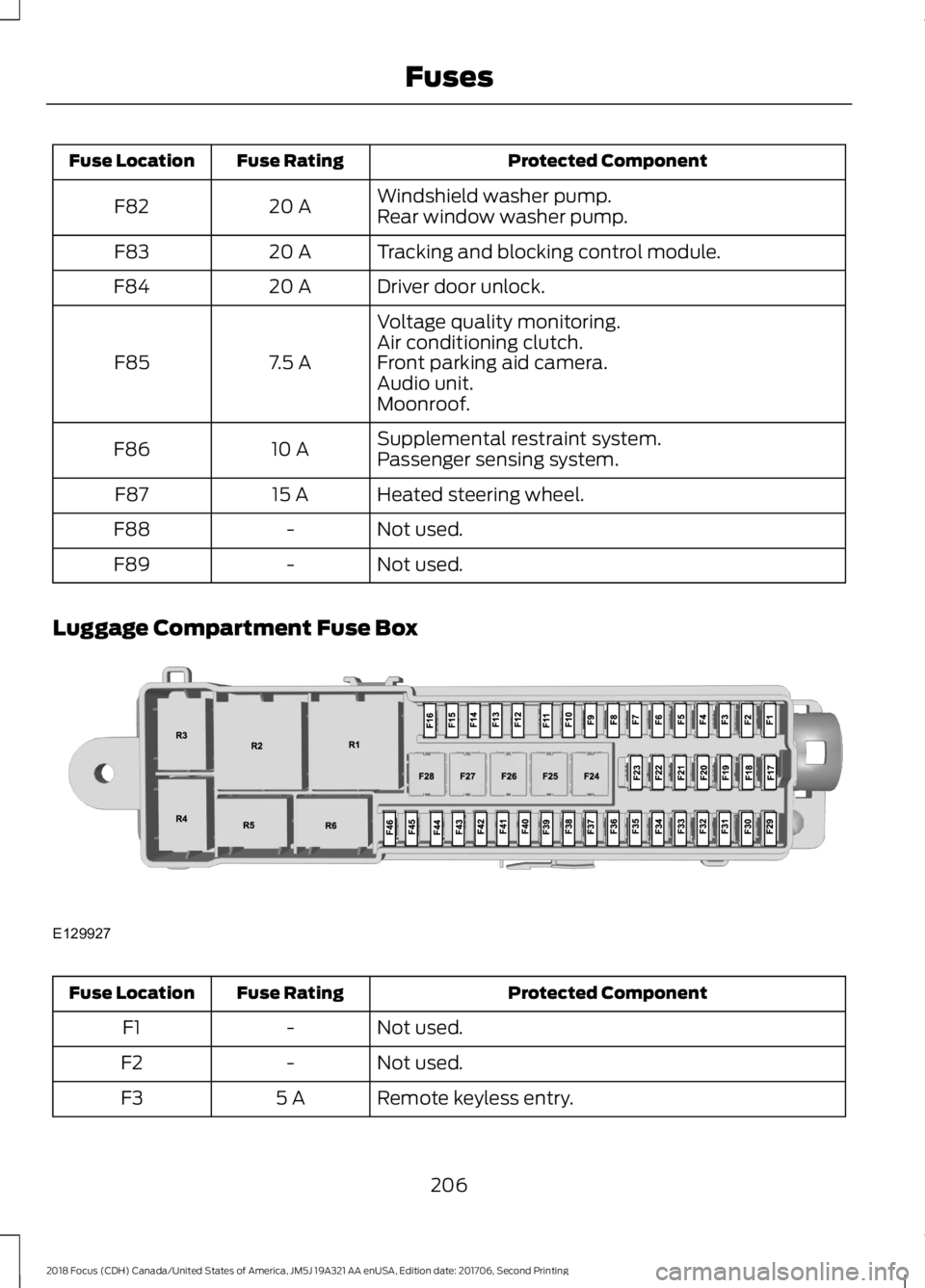

Protected ComponentFuse RatingFuse Location
Windshield washer pump.20 AF82Rear window washer pump.
Tracking and blocking control module.20 AF83
Driver door unlock.20 AF84
Voltage quality monitoring.
7.5 AF85Air conditioning clutch.Front parking aid camera.Audio unit.Moonroof.
Supplemental restraint system.10 AF86Passenger sensing system.
Heated steering wheel.15 AF87
Not used.-F88
Not used.-F89
Luggage Compartment Fuse Box
Protected ComponentFuse RatingFuse Location
Not used.-F1
Not used.-F2
Remote keyless entry.5 AF3
2062018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFusesE129927

Protected ComponentFuse RatingFuse Location

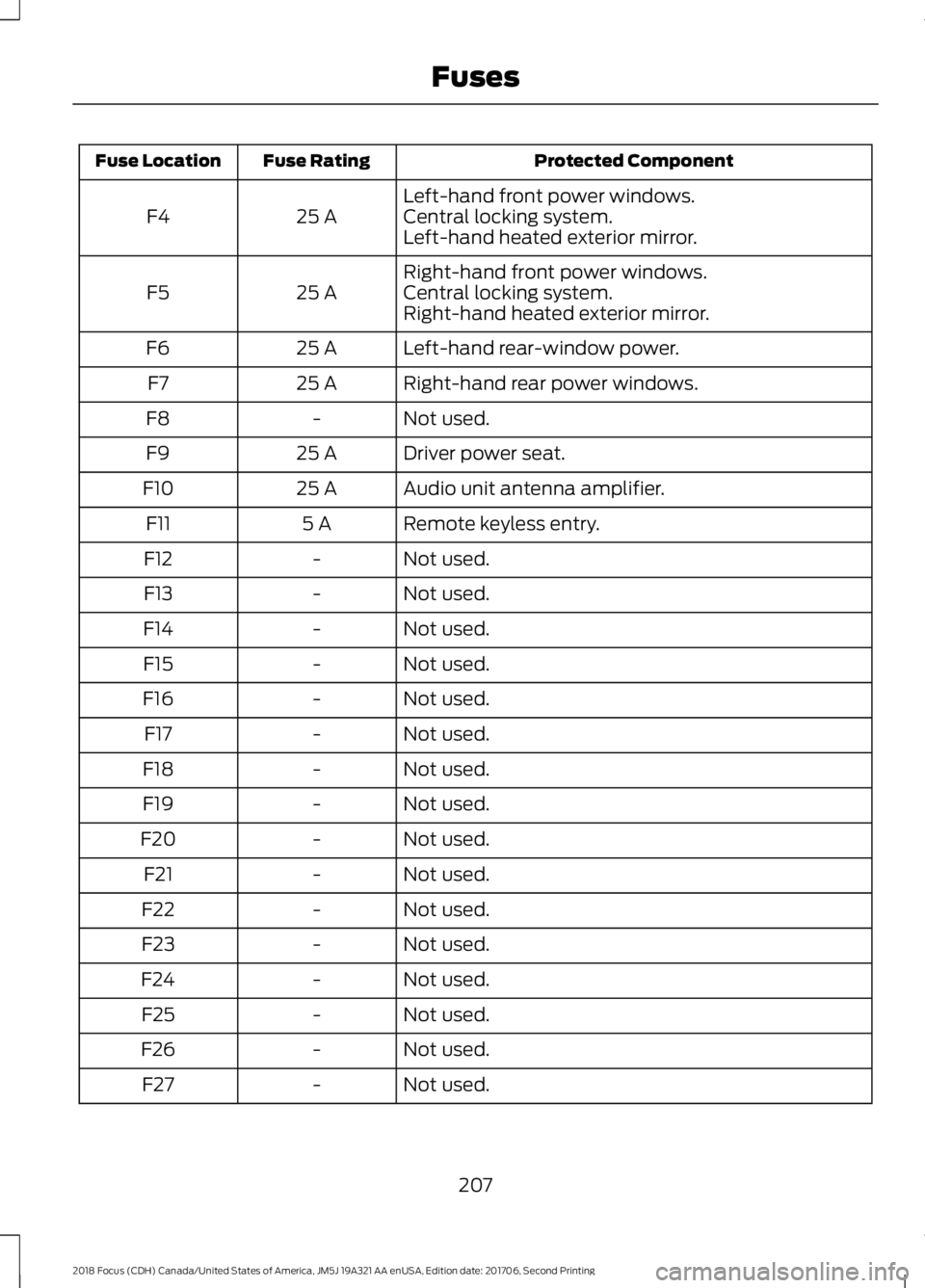

Left-hand front power windows.25 AF4Central locking system.Left-hand heated exterior mirror.
Right-hand front power windows.25 AF5Central locking system.Right-hand heated exterior mirror.
Left-hand rear-window power.25 AF6
Right-hand rear power windows.25 AF7
Not used.-F8
Driver power seat.25 AF9
Audio unit antenna amplifier.25 AF10
Remote keyless entry.5 AF11
Not used.-F12
Not used.-F13
Not used.-F14
Not used.-F15
Not used.-F16
Not used.-F17
Not used.-F18
Not used.-F19
Not used.-F20
Not used.-F21
Not used.-F22
Not used.-F23
Not used.-F24
Not used.-F25
Not used.-F26
Not used.-F27
2072018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses

Protected ComponentFuse RatingFuse Location
Not used.-F28
Not used.-F29
Not used.-F30
Not used.-F31
Not used.-F32
Not used.-F33
Not used.-F34
Not used.-F35
Not used.-F36
Not used.-F37
Not used.-F38
Not used.-F39
Not used.-F40
Not used.-F41
Not used.-F42
Not used.-F43
Not used.-F44
Not used.-F45
Not used.-F46
Circuits SwitchedRelay Number
Not used.R1
Not used.R2
Not used.R3
Not used.R4
Not used.R5
Not used.R6
2082018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses

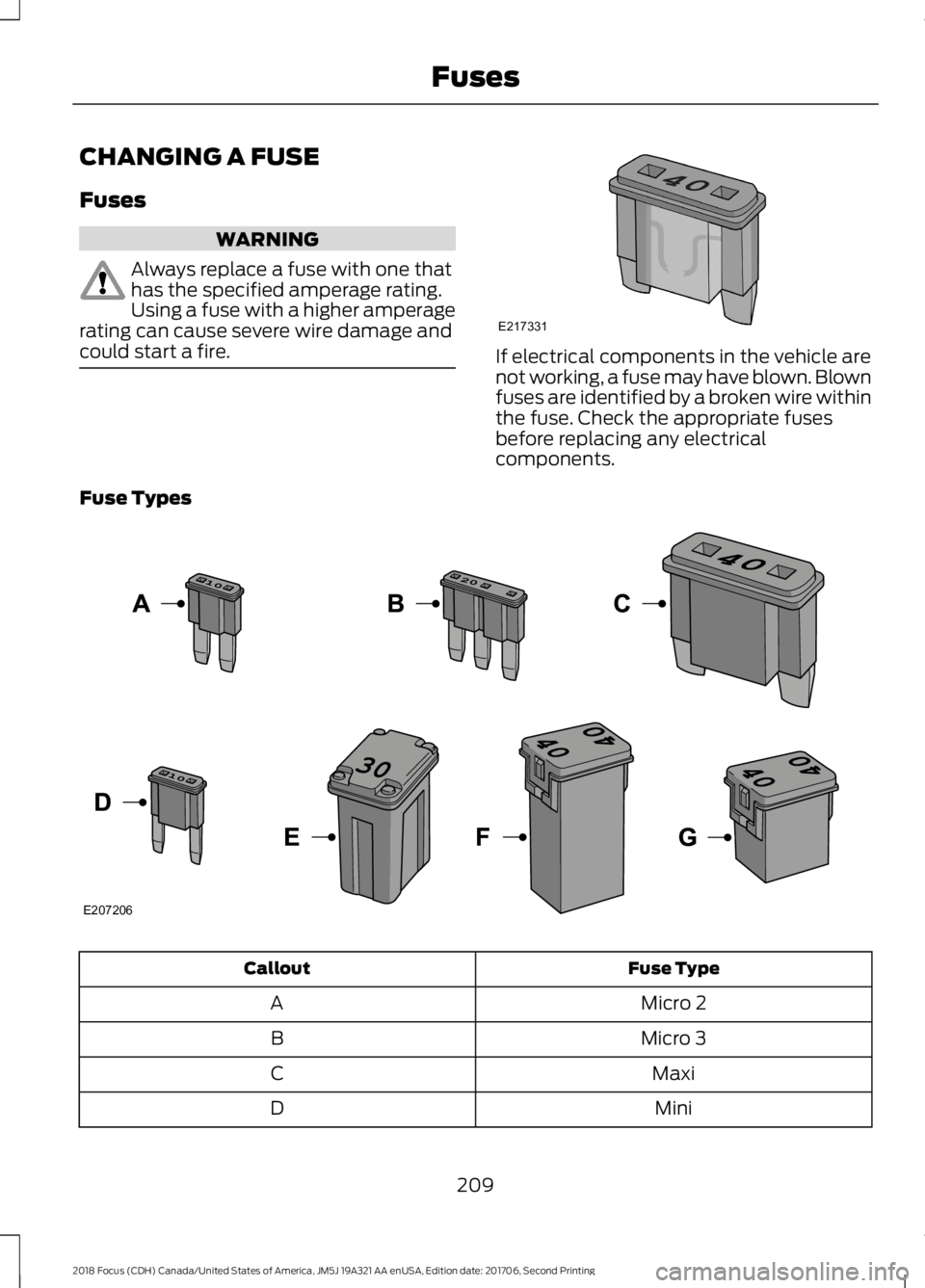

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one thathas the specified amperage rating.Using a fuse with a higher amperagerating can cause severe wire damage andcould start a fire.If electrical components in the vehicle arenot working, a fuse may have blown. Blownfuses are identified by a broken wire withinthe fuse. Check the appropriate fusesbefore replacing any electricalcomponents.
Fuse Types
Fuse TypeCallout
Micro 2A
Micro 3B
MaxiC
MiniD
2092018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFusesE217331 E207206

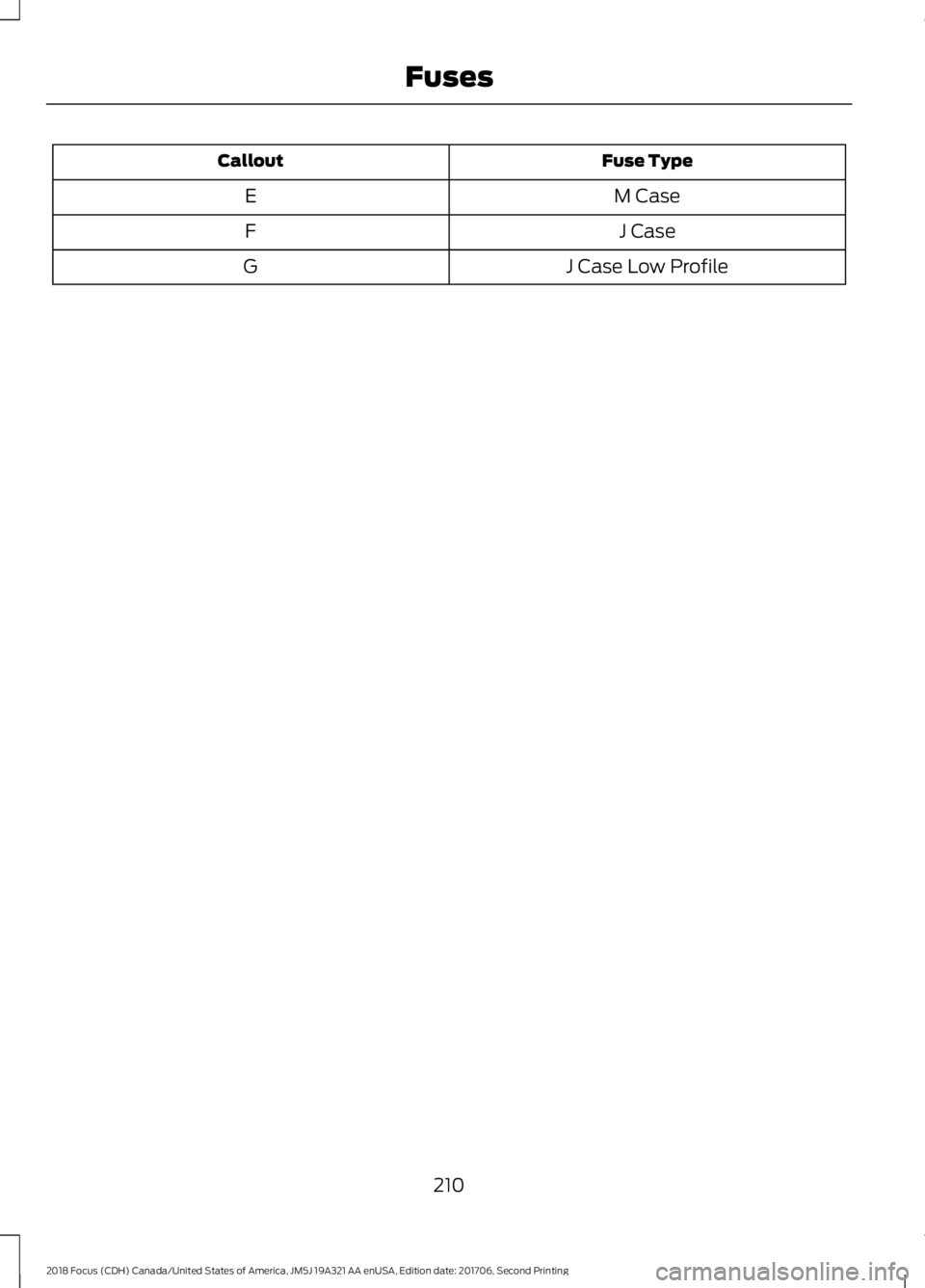

Fuse TypeCallout
M CaseE
J CaseF
J Case Low ProfileG
2102018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingFuses

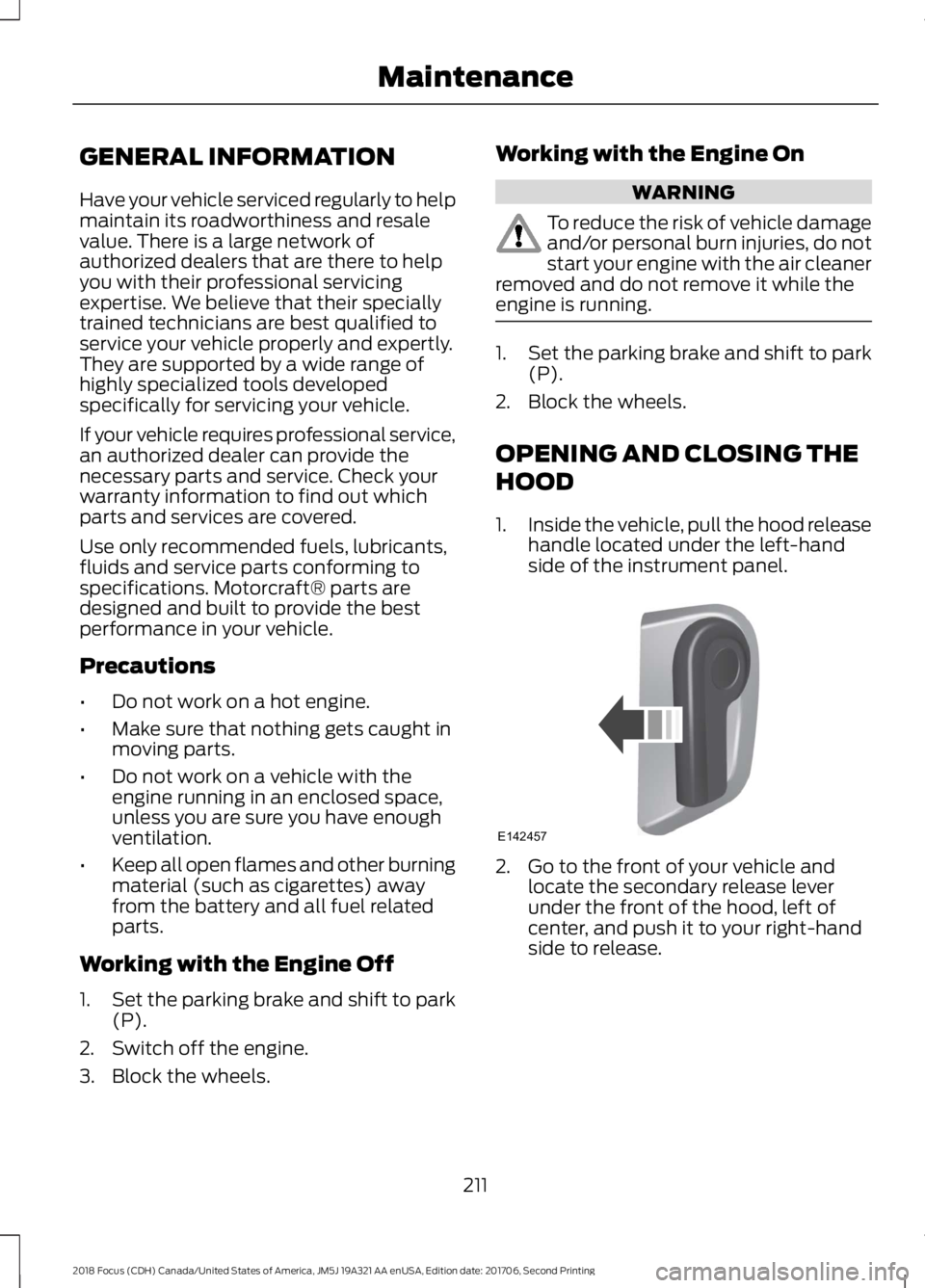

GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resalevalue. There is a large network ofauthorized dealers that are there to helpyou with their professional servicingexpertise. We believe that their speciallytrained technicians are best qualified toservice your vehicle properly and expertly.They are supported by a wide range ofhighly specialized tools developedspecifically for servicing your vehicle.
If your vehicle requires professional service,an authorized dealer can provide thenecessary parts and service. Check yourwarranty information to find out whichparts and services are covered.
Use only recommended fuels, lubricants,fluids and service parts conforming tospecifications. Motorcraft® parts aredesigned and built to provide the bestperformance in your vehicle.
Precautions
•Do not work on a hot engine.
•Make sure that nothing gets caught inmoving parts.
•Do not work on a vehicle with theengine running in an enclosed space,unless you are sure you have enoughventilation.
•Keep all open flames and other burningmaterial (such as cigarettes) awayfrom the battery and all fuel relatedparts.
Working with the Engine Off
1.Set the parking brake and shift to park(P).
2.Switch off the engine.
3.Block the wheels.
Working with the Engine On
WARNING
To reduce the risk of vehicle damageand/or personal burn injuries, do notstart your engine with the air cleanerremoved and do not remove it while theengine is running.
1.Set the parking brake and shift to park(P).
2.Block the wheels.
OPENING AND CLOSING THE
HOOD
1.Inside the vehicle, pull the hood releasehandle located under the left-handside of the instrument panel.
2.Go to the front of your vehicle andlocate the secondary release leverunder the front of the hood, left ofcenter, and push it to your right-handside to release.
2112018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingMaintenanceE142457

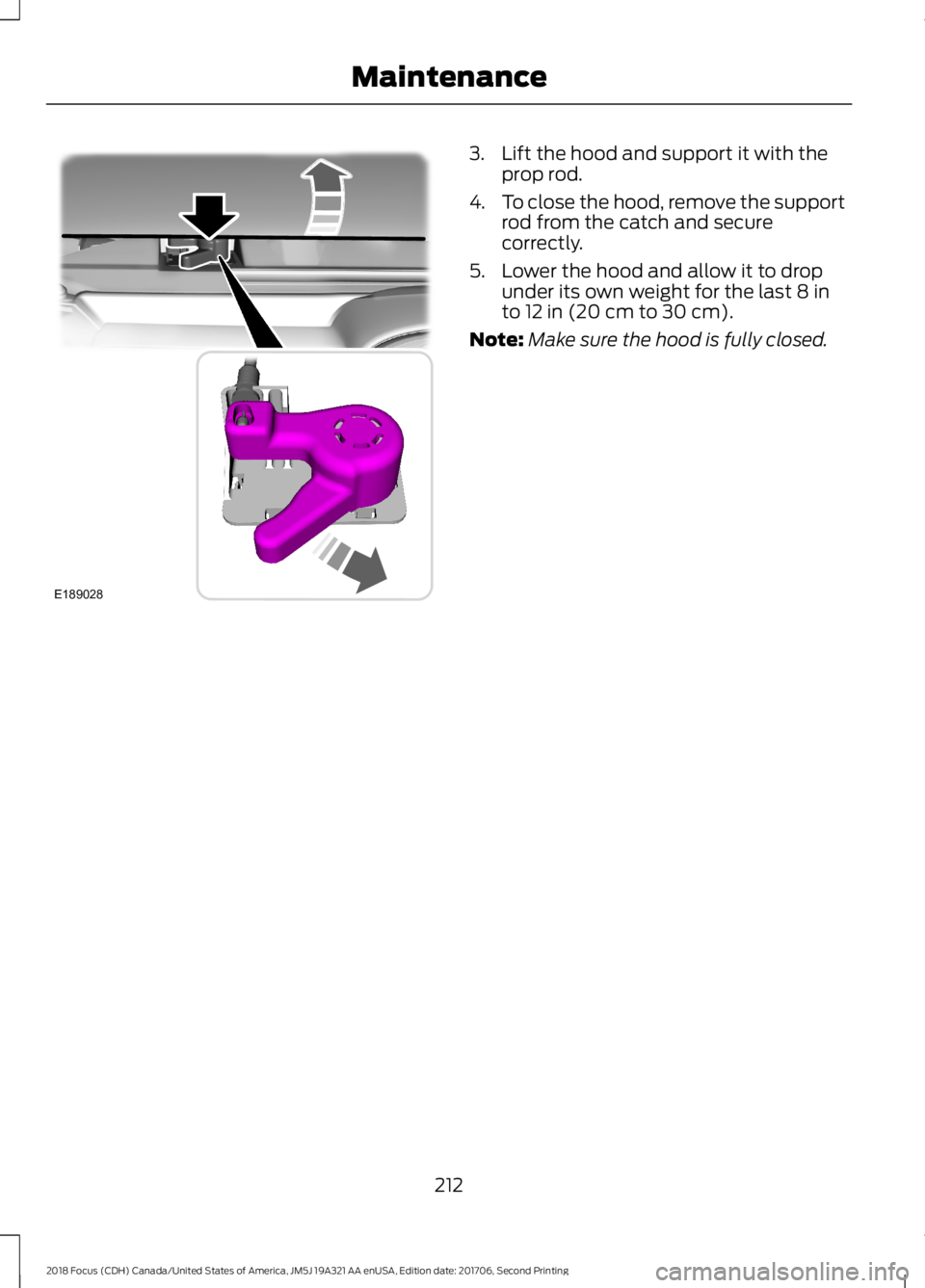

3.Lift the hood and support it with theprop rod.
4.To close the hood, remove the supportrod from the catch and securecorrectly.
5.Lower the hood and allow it to dropunder its own weight for the last 8 into 12 in (20 cm to 30 cm).
Note:Make sure the hood is fully closed.
2122018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingMaintenanceE189028

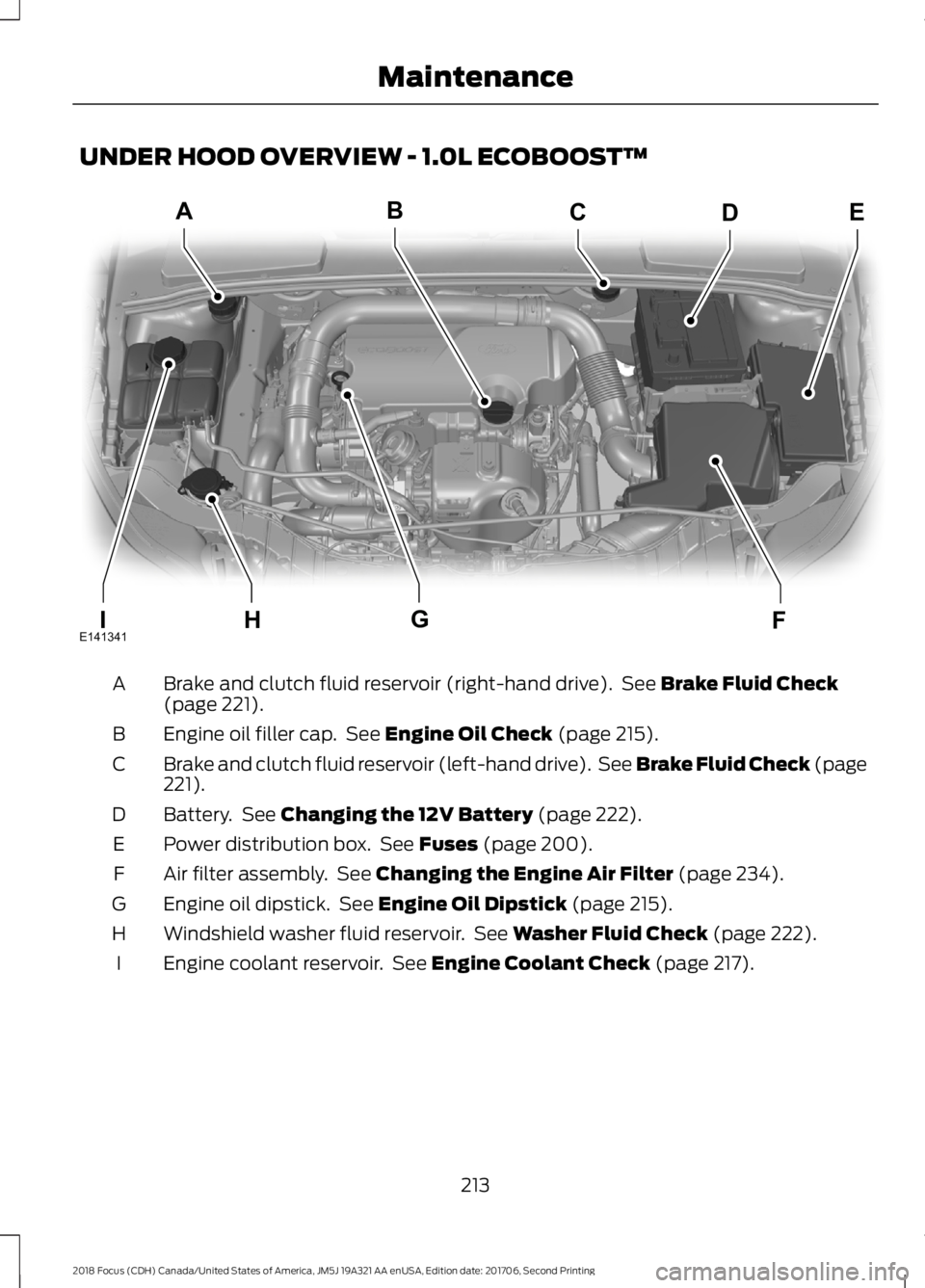

UNDER HOOD OVERVIEW - 1.0L ECOBOOST™
Brake and clutch fluid reservoir (right-hand drive). See Brake Fluid Check(page 221).A
Engine oil filler cap. See Engine Oil Check (page 215).B
Brake and clutch fluid reservoir (left-hand drive). See Brake Fluid Check (page221).C
Battery. See Changing the 12V Battery (page 222).D
Power distribution box. See Fuses (page 200).E
Air filter assembly. See Changing the Engine Air Filter (page 234).F
Engine oil dipstick. See Engine Oil Dipstick (page 215).G
Windshield washer fluid reservoir. See Washer Fluid Check (page 222).H
Engine coolant reservoir. See Engine Coolant Check (page 217).I
2132018 Focus (CDH) Canada/United States of America, JM5J 19A321 AA enUSA, Edition date: 201706, Second PrintingMaintenanceAIHFGBCDEE141341
