DIRECTION INDICATORS
Push the lever up or down to use thedirection indicators.
Note:Tap the lever up or down to make thedirection indicators flash three times toindicate a lane change.
INTERIOR LAMPS
Courtesy lamp
OffA
Door contactB
OnC
If you set the switch to position B, thecourtesy lamp will come on when youunlock or open a door or the luggagecompartment lid. If you leave a door openwith the ignition switch off, the courtesylamp will go off automatically after sometime to prevent the vehicle battery fromdischarging. To switch it back on, switchon the ignition for a short time.
The courtesy lamp will also come on whenyou switch off the ignition. It will go offautomatically after a short time or whenyou start or restart the engine.
If you set the switch to position C with theignition switch off, the courtesy lamp willcome on. It will go off automatically aftera short time to prevent the vehicle batteryfrom discharging. To switch it back on,switch on the ignition for a short time.
Reading lamps
Press the buttons to switch the readinglamps on and off.
74EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingLighting

Brake System
ActionMessage
The system has detected a fault that requires service.Have your vehicle checked as soon as possible.Check Brake System
Battery and Charging System
ActionMessage
Stop your vehicle as soon as it is safe to do so andswitch off the ignition. Contact an authorized dealer.Electrical system overvoltageStop safely
Displays to warn of a low battery condition. Turn offall unneeded electrical accessories. Contact anauthorized dealer.
Battery low See manual
Tire Pressure Monitoring System
ActionMessage
Displays if the tire pressure in one or more tires is belowthe correct pressure. See Tire Pressure MonitoringSystem (page 261).
Tire Pressure Low
Tire Pressure Low Specified:
The system has detected a fault that requires service.Have your vehicle checked as soon as possible. SeeTire Pressure Monitoring System (page 261).
Tire Pressure Monitor Fault
Displays if the system detects a fault with a tire pres-sure sensor or the spare tire is in use. See Tire Pres-sure Monitoring System (page 261).If the warning message remains on after you havechecked the tire pressures, the system has detecteda fault that requires service. Have your vehicle checkedas soon as possible.
Tire Pressure Sensor Fault
90EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingInformation Displays

Illumination of the service engine soonindicator, charging system warning light orthe temperature warning light, fluid leaks,strange odors, smoke or loss of enginepower could indicate that the emissioncontrol system is not working properly.
An improperly operating or damagedexhaust system may allow exhaust toenter the vehicle. Have a damaged orimproperly operating exhaust systeminspected and repaired immediately.
Do not make any unauthorized changes toyour vehicle or engine. By law, vehicleowners and anyone who manufactures,repairs, services, sells, leases, tradesvehicles, or supervises a fleet of vehiclesare not permitted to intentionally removean emission control device or prevent itfrom working. Information about yourvehicle’s emission system is on the VehicleEmission Control Information Decallocated on or near the engine. This decalalso lists engine displacement.
Please consult your warranty informationfor complete details.
On-Board Diagnostics (OBD-II)
Your vehicle has a computer known as theon-board diagnostics system (OBD-II) thatmonitors the engine’s emission controlsystem. The system protects theenvironment by making sure that yourvehicle continues to meet governmentemission standards. The OBD-II systemalso assists a service technician in properlyservicing your vehicle.
When the service engine soonindicator illuminates, the OBD-IIsystem has detected amalfunction. Temporary malfunctions maycause the service engine soon indicator toilluminate. Examples are:
1.Your vehicle has run out of fuel—theengine may misfire or run poorly.
2.Poor fuel quality or water in thefuel—the engine may misfire or runpoorly.
3.The fuel fill inlet may not have closedproperly. See Refueling (page 130).
4.Driving through deep water—theelectrical system may be wet.
You can correct these temporarymalfunctions by filling the fuel tank withgood quality fuel, properly closing the fuelfill inlet or letting the electrical system dryout. After three driving cycles without theseor any other temporary malfunctionspresent, the service engine soon indicatorshould stay off the next time you start theengine. A driving cycle consists of a coldengine startup followed by mixed city andhighway driving. No additional vehicleservice is required.
If the service engine soon indicator remainson, have your vehicle serviced at the firstavailable opportunity. Although somemalfunctions detected by the OBD-II maynot have symptoms that are apparent,continued driving with the service enginesoon indicator on can result in increasedemissions, lower fuel economy, reducedengine and transmission smoothness andlead to more costly repairs.
Readiness for Inspection andMaintenance (I/M) Testing
Some state and provincial and localgovernments may haveInspection/Maintenance (I/M) programsto inspect the emission control equipmenton your vehicle. Failure to pass thisinspection could prevent you from gettinga vehicle registration.
If the service engine soonindicator is on or the bulb doesnot work, your vehicle may needservice. See On-Board Diagnostics.
136EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingEngine Emission Control

General
•Store all vehicles in a dry, ventilatedplace.
•Protect from sunlight, if possible.
•If vehicles are stored outside, theyrequire regular maintenance to protectagainst rust and damage.
Body
•Wash your vehicle thoroughly toremove dirt, grease, oil, tar or mud fromexterior surfaces, rear-wheel housingand the underside of front fenders.
•Periodically wash your vehicle if it isstored in exposed locations.
•Touch-up exposed or primed metal toprevent rust.
•Cover chrome and stainless steel partswith a thick coat of auto wax to preventdiscoloration. Re-wax as necessarywhen you wash your vehicle.
•Lubricate all hood, door and luggagecompartment hinges and latches witha light grade oil.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil andsolvents.
Engine
•Change the engine oil and filter prior tostorage because used engine oilcontains contaminates which maycause engine damage.
•Start the engine every 15 days for aminimum of 15 minutes. Run at fast idlewith the climate controls set to defrostuntil the engine reaches normaloperating temperature.
•With your foot on the brake, shiftthrough all the gears while the engineis running.
•We recommend that you change theengine oil before you use your vehicleagain.
Fuel system
•Fill the fuel tank with high-quality fueluntil the first automatic shutoff of thefuel pump nozzle.
Cooling system
•Protect against freezing temperatures.
•When removing your vehicle fromstorage, check coolant fluid level.Confirm that there are no coolingsystem leaks and that fluid is at therecommended level.
Battery
•Check and recharge as necessary. Keepconnections clean.
•If storing your vehicle for more than 30days without recharging the battery,we recommend that you disconnectthe battery cables to maintain batterycharge for quick starting.
Note:It is necessary to reset memoryfeatures if battery cables are disconnected.
Brakes
•Make sure the brakes and parking brakerelease fully.
Tires
•Maintain recommended air pressure.
235EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingVehicle Care

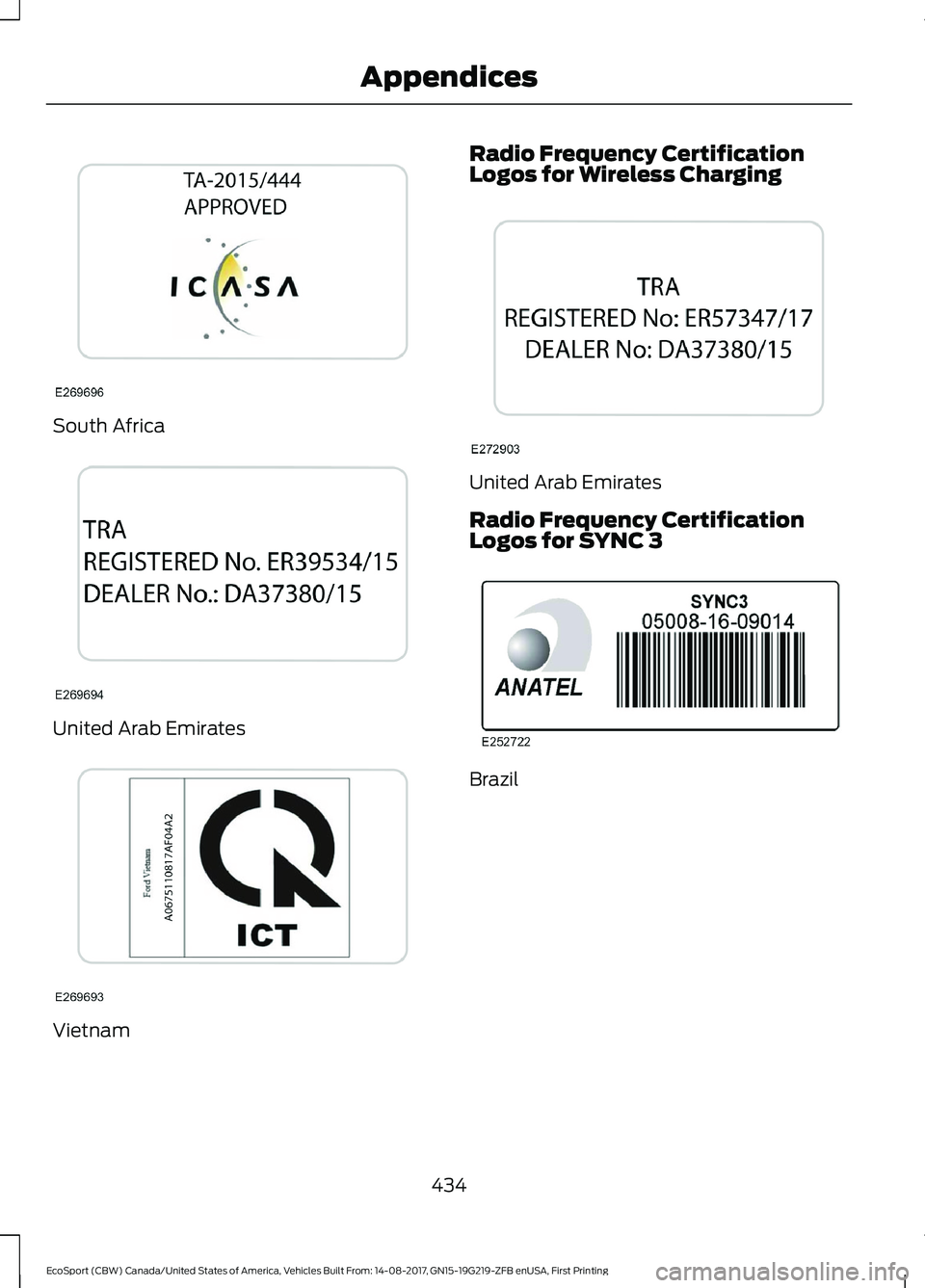

South Africa
United Arab Emirates
Vietnam
Radio Frequency CertificationLogos for Wireless Charging
United Arab Emirates
Radio Frequency CertificationLogos for SYNC 3
Brazil
434EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingAppendices

I
Ignition Switch................................................119Starting the Engine............................................120Switching the Ignition Off................................119Switching the Ignition On.................................119Switching the Ignition to AccessoryMode....................................................................119In California (U.S. Only)..............................187Information Display Control......................66Information Displays.....................................85General Information............................................85Information Messages.................................88Accessory Power..................................................89Airbag.......................................................................89Alarm........................................................................89Battery and Charging System.........................90Brake System........................................................90Engine........................................................................91Fuel System.............................................................91Hill Start Assist......................................................91Keyless Vehicle......................................................92Lighting....................................................................92Maintenance..........................................................92MyKey.......................................................................93Park Aid....................................................................94Park Brake...............................................................94Power Steering......................................................95Stability Control....................................................95Starting System ...................................................95Tire Pressure Monitoring System...................90Traction Control...................................................96Transmission.........................................................96Vehicle Settings....................................................97Installing Child Restraints.............................17Child Seats...............................................................17Using Lap and Shoulder Belts..........................18Using Lower Anchors and Tethers forCHildren (LATCH)...........................................20Using Tether Straps.............................................22Instrument Cluster........................................80Instrument Lighting Dimmer......................72Interior Lamps..................................................74Courtesy lamp........................................................74Reading lamps.......................................................74Vanity lamp.............................................................75Interior Mirror....................................................78Auto-Dimming Mirror..........................................78
Introduction.........................................................7
J
Jump Starting the Vehicle.........................183Connecting the Jumper Cables.....................183Jump Starting......................................................184Preparing Your Vehicle.....................................183Removing the Jumper Cables........................184
K
Keyless Entry....................................................57Disabled Keys........................................................58General Information............................................57Intelligent Access - Locking and Unlockingthe Doors with the Key Blade.....................58Locking Using Intelligent Access....................57Unlocking only Driver Door...............................58Unlocking Using Intelligent Access................57Keys and Remote Controls.........................45Principle of Operation........................................45
L
Lighting Control..............................................70Headlamp Flasher.................................................71High Beams..............................................................71Parking Lamps.......................................................70Lighting..............................................................70General Information............................................70Load CarriersSee: Roof Racks and Load Carriers.............164Load Carrying.................................................163Load Limit.......................................................165Special Loading Instructions for Owners ofPick-up Trucks and Utility-typeVehicles.............................................................170Vehicle Loading - with and without aTrailer..................................................................165Locking and Unlocking.................................54Autolock..................................................................54Autounlock.............................................................56Illuminated Entry..................................................56Illuminated Exit.....................................................56Locking and Unlocking the Doors with theKey........................................................................55Power Door Locks................................................54
440EcoSport (CBW) Canada/United States of America, Vehicles Built From: 14-08-2017, GN15-19G219-ZFB enUSA, First PrintingIndex

T
Tailgate..............................................................59Closing the Tailgate............................................60Opening the Tailgate..........................................59Technical SpecificationsSee: Capacities and Specifications..............271The Better Business Bureau (BBB) AutoLine Program (U.S. Only).......................188Tire Care..........................................................245Glossary of Tire Terminology.........................247Information About Uniform Tire QualityGrading.............................................................245Information Contained on the TireSidewall...........................................................248Temperature A B C............................................246Traction AA A B C..............................................246Treadwear............................................................246Tire Inflation When PuncturedSee: Tire Sealant and Inflator Kit.................239Tire Pressure Monitoring System............261Changing Tires With a Tire PressureMonitoring System.......................................262Understanding Your Tire PressureMonitoring System ......................................263Tire Repair KitSee: Tire Sealant and Inflator Kit.................239Tire Sealant and Inflator Kit....................239First stage: reinflating the tire with sealingcompound and air........................................240General Information.........................................239Second stage: checking tire pressure........244Tips for use of the kit.......................................240What to do after the tire has beensealed................................................................245What to do when a tire is punctured.........240TiresSee: Wheels and Tires......................................237Towing a Trailer...............................................171Load Placement...................................................171Towing Points.................................................175Front Towing Point.............................................175Rear Towing Point...............................................175Towing the Vehicle on FourWheels...........................................................176Emergency Towing.............................................176Recreational Towing..........................................176Towing................................................................171
Traction Control............................................149Principle of Operation.......................................149Trailer Sway Control......................................171Transmission Code Designation............278Transmission Specifications - 1.0LEcoBoost™..................................................274Transmission Specifications - 2.0L.......273Transmission..................................................138Transporting the Vehicle............................176Trip Computer.................................................88All Values................................................................88Average Fuel Consumption.............................88Distance to Empty...............................................88Instantaneous Fuel.............................................88Outside Air Temperature..................................88Resetting the Trip Computer...........................88Trip Odometer.......................................................88Trip Timer................................................................88Type Approvals............................................426Radio Frequency Certification Logos forBlind Spot Information System...............433Radio Frequency Certification Logos for MidRange Radar...................................................429Radio Frequency Certification Logos forPassive Anti-Theft System.......................430Radio Frequency Certification Logos forRadio Transceiver Module.........................432Radio Frequency Certification Logos forSYNC 3..............................................................434Radio Frequency Certification Logos for TirePressure Monitoring Sensor(s)...............426Radio Frequency Certification Logos forWireless Charging.........................................434
U
Under Hood Overview - 1.0LEcoBoost™.................................................204Under Hood Overview - 2.0L..................203Unique Driving Characteristics................125USB Port.........................................................289Using Cruise Control....................................156Switching Cruise Control Off..........................157Switching Cruise Control On..........................156Using Four-Wheel Drive.............................142Driving In Special Conditions WithFour-Wheel Drive (4WD)............................142
