2018 FIAT PANDA spark plugs

Thousands of miles 9 18 27 36 45 54 63 72 81 90
Thousands of kilometres 15 30 45 60 75 90 105 120 135 150
Years12345678910
Replace spark plugs (1.2 8V 69 HP and 0.9 TwinAir Turbo
80 HP/85 HP versions) (6)
Replace spark plugs (0.9 TwinAir 60 HP/65 HP) (6)
Replace accessory drive belt/s(2)
Replace toothed timing drive belt (all 0.9 TwinAir versions
excluded)(2)
Replace air cleaner cartridge (7)
Change the brake fluid(8)
(6) For 0.9 TwinAir versions, to guarantee correct operation and prevent serious damage to the engine, it is essential to proceed as follows: only use spark plugs
specifically certified for these engines; all spark plugs should be of the same type and brand (see the "Engine" paragraph in the "Technical specifications"
chapter); strictly comply with the spark plugs replacement intervals in the Service Schedule. It is advisable to contact a FIAT Dealership for plug replacement. (2) The maximum mileage is 120,000 km. The belt must be replaced every 6 years, regardless of distance travelled. If the vehicle is used in heavy conditions (dusty
areas, cold climates, urban driving, long periods of idling), the maximum mileage is 60,000 km. The belt must be replaced every 4 years regardless of the
mileage.
(7) If the vehicle is used in dusty areas, this cleaner must be replaced every 15,000 km.
(8) The brake fluid replacement has to be done every two years, irrespective of the mileage.
133

ENGINE
Versions 1.2 8V 69 HP 1.2 8V 69 HP LPG
Engine code 169A4000 169A4000
Cycle Otto Otto
Number and position of cylinders 4 in line 4 in line
Piston bore and stroke (mm) 70.8 × 78.86 70.8 × 78.86
Total displacement (cm³) 1242 1242
Compression ratio 11.1: 1 11.1: 1
LPG Petrol
Maximum power (EC) (kW) 51 51 51
Maximum power (EEC) (HP) 69 69 69
corresponding engine speed (rpm) 5500 5500 5500
Maximum torque (EC) (Nm) 102 102 102
Maximum torque (EC) (kgm) 10.4 10.4 10.4
corresponding engine speed (rpm) 3000 3000 3000
Spark plugsNGK ZKR7A-10 or
CHAMPION RA8MCX4NGK ZKR7AI-8
FuelUnleaded petrol 95 R.O.N.
(EN 228 specifications)LPG for motor vehicles
(EN589 Specification)Unleaded petrol 95 R.O.N.
(EN 228 specifications)
152
TECHNICAL DATA

Versions
0.9 TwinAir 60 HP(*)0.9 TwinAir 65 HP0.9 TwinAir Turbo 80 HP(*)
Engine code 312A6000 312A4000 312A5000
Cycle Otto Otto Otto
Number and position of cylinders 2 in line 2 in line 2 in line
Piston bore and stroke (mm) 83.5 × 88 83.5 × 88 80.5 × 86
Total displacement (cm³) 964 964 875
Compression ratio 11.1: 1 11.1: 1 10: 1
Maximum power (EC) (kW) 44 48 59
Maximum power (EEC) (HP) 60 65 80
corresponding engine speed (rpm) 6250 6250 5500
Maximum torque (EC) (Nm) 88 88 145
Maximum torque (EC) (kgm) 8.9 8.9 14.8
corresponding engine speed (rpm) 3500 3500 1900
Spark plugs NGK T20182U NGK LKR7DI-12 NGK PLKR9C8
FuelUnleaded petrol 95 R.O.N.
(EN 228 specifications)Unleaded petrol 95 R.O.N.
(EN 228 specifications)Unleaded petrol 95 R.O.N.
(EN 228 specifications)
(*) For versions/markets, where provided
153

Versions 0.9 TwinAir Turbo 85 HP 0.9 TwinAir Turbo Natural Power
Engine code 312A2000 312A2000
Cycle Otto Otto
Number and position of cylinders 2 in line 2 in line
Piston bore and stroke (mm) 80.5 × 86.0 80.5 × 86.0
Total displacement (cm³) 875 875
Compression ratio 10: 1 10: 1
Methane Petrol
Maximum power (EC) (kW)
62.5 / 57
(*)59 62.5
Maximum power (EEC) (HP)
85 / 77.5
(*)80 85
corresponding engine speed (rpm) 5500 5500 5500
Maximum torque (EC) (Nm)
145 / 100
(*)140 145
Maximum torque (EC) (kgm)
14.8 / 10.2
(*)14.3 14.8
corresponding engine speed (rpm)
1900 / 2000
(*)2500 1900
Spark plugs NGK ILKR9G8 NGK ILKR9G8
FuelUnleaded petrol 95 R.O.N.
(EN 228 specifications)Methane for motor vehiclesUnleaded petrol 95 R.O.N.
(EN 228 specifications)
(*) With ECO button pressed
154
TECHNICAL DATA

Versions0.9 TwinAir Turbo 90 HP(*)1.3 16V Multijet 95 HP 1.3 16V MultiJet 80 HP
Engine code 312A7000
312B1000 / 330A1000(°)312B2000 / 225A2000(°°)
Cycle Otto Diesel Diesel
Number and position of cylinders 2 in line 4 in line 4 in line
Piston bore and stroke (mm) 80.5 × 86.0 69.6 × 82 69.6 × 82
Total displacement (cm³) 875 1248 1248
Compression ratio 10: 1 16.8: 1 16.8: 1
Maximum power (EC) (kW)
66.2 / 57
(**)70 59
Maximum power (EEC) (HP)
90 / 77.5
(**)95 80
corresponding engine speed (rpm) 5500 3750 3750
Maximum torque (EC) (Nm)
145 / 100
(**)200 200
Maximum torque (EC) (kgm)
14.8 / 10.2
(**)20.4 20.4
corresponding engine speed (rpm)
1900 / 2000
(**)1500 1500
Spark plugs NGK ILKR9G8 - -
FuelUnleaded petrol 95 R.O.N.
(EN 228 specifications)Diesel for motor vehicles
(EN590 Specification)Diesel for motor vehicles
(EN590 Specification)
(*) For versions/markets, where provided
(°) 4x4 and Cross Versions
(°°) 4x4 versions (**) With ECO button pressed
155

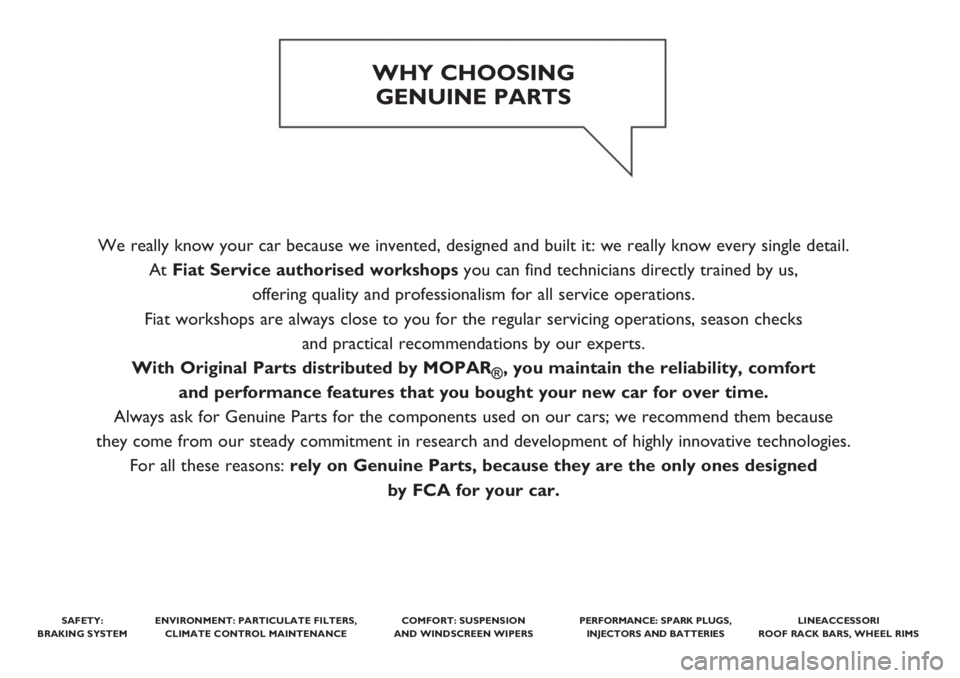

We really know your car because we invented, designed and built it: we really know every single detail.
