TECHNICAL SPECIFICATIONS
Everything you may find useful for
understanding how your vehicle is
made and works is contained in this
chapter and illustrated with data, tables
and graphics. For the enthusiasts and
the technician, but also just for those
who want to know every detail of their
vehicle.
IDENTIFICATION DATA.........207
ENGINE ..................208
WHEELS .................211
DIMENSIONS ..............213
WEIGHTS .................215
SUPPLIES ................218
FLUIDS AND LUBRICANTS ......222
PERFORMANCE ............225
FUEL CONSUMPTION .........226
CO2 EMISSIONS ............229
PRESCRIPTIONS FOR HANDLING
THE CAR AT THE END OF ITS
LIFE ....................231
206
TECHNICAL SPECIFICATIONS

ENGINE
189)
Versions1.4 T-Jet LPG 120 HP 1.4 Turbo Multi Air
136/140 HP 1.4 Turbo Multi Air
163/170 HP
Engine code 552777015526362455263623
Cycle
OttoOttoOtto
Number and position of
cylinders 4 in line
4 in line4 in line
Piston bore and stroke (mm) 72 × 8472 × 8472 × 84
Total displacement (cm³) 136813681368
Compression ratio 9.8 ± 0.210.0 ± 0.210.0 ± 0.2
LPG PETROL
Maximum power (EC) (kW) 8888 100
(*)/ 103 120(**)/ 125
Maximum power (EEC) (HP) 120 120 136
(*)/ 140163(**)/ 170
corresponding engine speed
(rpm) 5000 5000 5000 5500
Maximum torque (EEC) (Nm) 215 215 230 250
corresponding engine speed
(rpm) 2500 2500 1750 2500
Spark plugs NGK IKR9J8 NGK IKR9J8 NGK IKR9J8
Fuel LPG for motor
vehicles
(EN589 Specification) Unleaded petrol
95 R.O.N.
(EN228 specifications) Unleaded petrol 95 R.O.N.
(EN228 specifications) Unleaded petrol 95 R.O.N.
(EN228 specifications)
(*) 1.4 Turbo Multi Air 136 HP version
(**) 1.4 Turbo Multi Air 163 HP version
208
TECHNICAL SPECIFICATIONS

Versions1.3 Multijet 1.6 Multijet2.0 MultiJet(*)2.0 MultiJet(**)
Engine code 55266963552603845526308755263088
Cycle DieselDieselDieselDiesel
Number and position of
cylinders 4 in line
4 in line4 in line4 in line
Piston bore and stroke
(mm) 69.6 X 82
79.5 × 80.5 83 × 90.483 × 90.4
Total displacement (cm³) 1248159819561956
Compression ratio 16.8 ± 0.216.5 ± 0.416.5 ± 0.416.5 ± 0.4
Maximum power (EC)
(kW) 70
88 / 84.4
(***)103 / 100(***)103 / 100(***)
Maximum power (EC)
(HP) 95
120 / 115(***)140 / 136(***)140 / 136(***)
corresponding engine
speed (rpm) 3750 3750 3750 4000
Maximum torque (EC)
(Nm) 200 320 350 350
corresponding engine
speed (rpm) 1750 1750 1750 1500
Fuel Diesel for motor vehicles
(EN 590 Specification) Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)Diesel for motor vehicles
(EN 590 Specification)
(*) Versions with mechanical gearbox
(**) Versions with AT9 automatic transmission
(***) Version for specific markets
WARNING
189)
Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
210
TECHNICAL SPECIFICATIONS

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value. However, recheck that
the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
TyresUnladen/medium load Full load
Space-saver
wheel
Front Rear Front Rear
215 / 60 R16 95H 2.42.42.62.6
4.2
215

/ 55 R17 94V 2.42.42.62.6
225 / 45 R18 91V 2.42.42.62.6
225 / 45 R18 91Y 2.42.42.62.6
WARNING
190)If winter tyres with a lower speed rating than that indicated in the Registration Document are used, do not exceed the maximum speed
corresponding to the speed rating of the tyres used.
191) DO NOT fit wheel hub caps when using integral hub caps fixed (with springs) to the steel rim and after sale tyres provided with Rim
Protector. Use of unsuitable tyres and wheel caps may cause sudden decrease of tyre pressure.
212
TECHNICAL SPECIFICATIONS

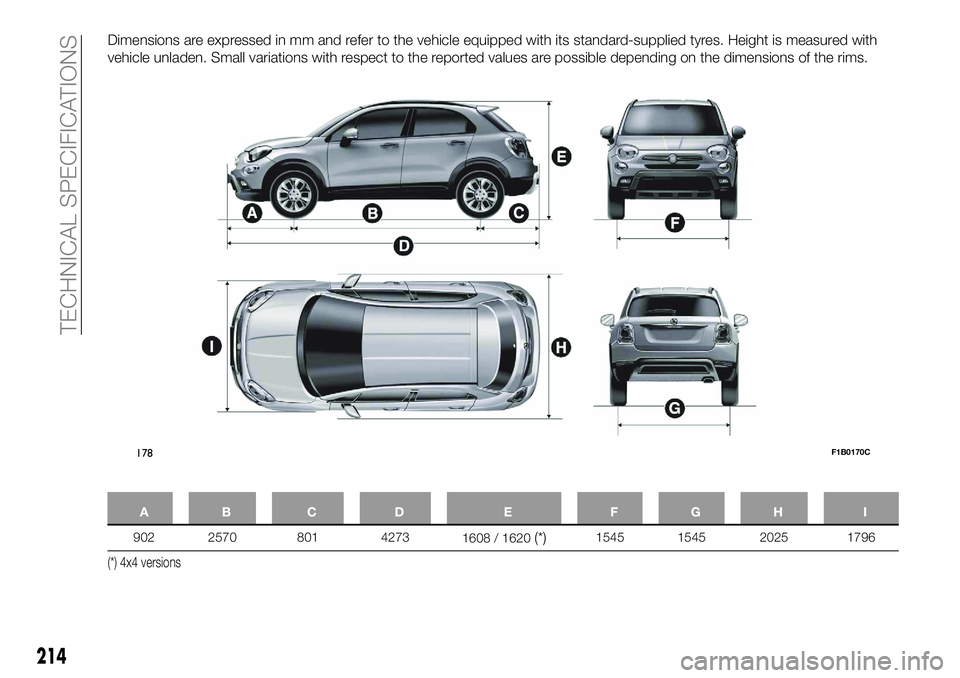

Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen. Small variations with respect to the reported values are possible depending on the dimensions of the rims.
AB C D E FGH I
902 2570 801 4273 1608
/ 1620(*)1545 1545 2025 1796
(*) 4x4 versions
178F1B0170C
214
TECHNICAL SPECIFICATIONS

Weights (kg)2.4 Tigershark(*)1.3 Multijet 1.6 Multijet
Unladen weight (with all fluids,
fuel
tank filled to 90% and
without optional equipment) 1505 1320 1320
Payload including the driver
(**)595 555
555 / 580(*****)
Maximum permitted loads(***)
– front axle 115010501050
– rear axle 1000900900
– total 20801875
1875 / 1900
(*****)
Towable loads
– braked trailer 1200
(°)/ 900(°°)10001200 / 900(*****)
Maximum load on tow hitch
(trailer with brakes) 60 60 60
Maximum load on roof
(****)50 5050
(*) Version for specific markets
(**) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in relation to the maximum
permissible loads.
(*****) Automatic transmission versions with dual clutch (***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or on the load platform within the maximum permitted loads.
(°) 4x4 version
(°°) 4x2 version (****) With carrier rack
216
TECHNICAL SPECIFICATIONS

SUPPLIES
1.4 T-Jet
LPG 120 HP 1.4 Turbo
Multi Air(*)1.4 Turbo
Multi Air(**)Recommended fuels and original lubricants
Fuel tank (litres) 484848
Unleaded
petrol with RON no lower than 95
(EN228 specifications)
including a reserve of (litres) 5 - 7 5 - 7 5 - 7
Fuel tank (LPG) (litres) 38 – – LPG for motor vehicles (EN589 Specification)
Engine cooling system (litres) 5.2 5.2 5.2 Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres)– 3.2 3.2 SELENIA DIGITEK P.E.
2.95 –– SELENIA Multipower GAS
Engine sump and filter (litres) – 3.6 3.6 SELENIA DIGITEK P.E.
3.25 – – SELENIA Multipower GAS
Gearbox casing/differential (litres) 2.0 1.8 2.1 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.83 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5 2.5 2.5 Mixture of water and PETRONAS DURANCE
SC35
(*) Versions with manual transmission
(**) Automatic transmission versions with dual clutch
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLU
UPand 40% demineralised water.
218
TECHNICAL SPECIFICATIONS

1.6 E.Torq1.3 Multijet Prescribed fuels and original lubricants
Fuel tank (litres) 4848Unleaded
petrol with RON no lower than 95 (EN
228 specifications) (1.6 E.Torq versions) / Diesel
for motor vehicles (EN 590 Specification)
(1.3 Multijet versions)
including a reserve of (litres) 5 - 7 5 - 7
Engine cooling system (litres) 5.6 6.1 Mixture of distilled water and PARAFLU
UP
50%(***)
Engine sump (litres)
4.03.7
SELENIA DIGITEK P.E. (1.6 E.Torq versions) /
SELENIA WR FORWARD (1.3 Multijet versions)
Engine sump and filter (litres) 4.33.9
Transmission/differential casing
(litres) 2.0
2.0TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (kg) 0.830.83TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres) 2.5
2.5Mixture of water and PETRONAS DURANCE
SC35
(***) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60% mixture of PARAFLUUPand 40% demineralised water.
220
