Reactivating the interior volumetric
and anti-tilt monitoring
F Deactivate the perimeter monitoring by unlocking the vehicle with the remote
control or the "Keyless Entry and Starting"
system.
The indicator lamp in the button goes off.
F

R
eactivate all monitoring by locking the
vehicle with the remote control or the
"Keyless Entry and Starting" system.
The indicator lamp in the button flashes once per second again.
Triggering the alarm
This results in sounding the siren and flashing
the direction indicators for thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times in
succession.
When the vehicle is unlocked using the remote
control or the "Keyless Entry and Starting"
system, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. Upon ignition,
this flashing stops immediately.
Remote control failure
To deactivate the monitoring functions:
F u nlock the vehicle using the key (integral to
the remote control) in the driver's door lock,
F

o
pen the door; the alarm is triggered,
F

s
witch on the ignition; the alarm stops; the
indicator lamp in the button goes off.
Locking the vehicle without
activating the alarm
F Lock or deadlock the vehicle using the key (integral to the remote control) in the driver's
door lock.
Malfunction
When the ignition is switched on, fixed
illumination of the indicator lamp indicates a
fault in the system.
Have it checked in the dealer network or by a
qualified workshop.
Doors
Opening
From outside
F After unlocking the vehicle or with the electronic key of the Keyless Entry and
Starting system in the recognition zone, pull
the door handle.
When the selective unlocking is activated,
the first press of the remote control
unlocking button permits unlocking of the
driver's door only.
02
Access

60
From inside
With the selective unlocking activated:
- o pening the driver's door unlocks the
driver's door only (if the vehicle has not
already been completely unlocked),
-
o

pening one of the passenger doors
unlocks the rest of the vehicle.
The interior door controls do
not operate when the vehicle is
deadlocked.
Closing
F Pull the interior control lever of a door; this unlocks the vehicle completely. -

w
ith the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning lamp
comes on, accompanied by an
alert message displayed for a few
seconds.
-
w
ith the vehicle moving (speed
above 6 mph (10 km/h)), in addition
to the warning lamp and alert
message, an audible signal sounds
for a few seconds.
When a door is not closed correctly:
Boot
Opening
The vehicle or the boot only is unlocked,
depending on the setting.
Complete unlocking
F After unlocking the vehicle or the boot with
the Keyless Entry and Starting system
electronic key on your person in the
recognition zone A , press the boot opening
control then raise the tailgate. In case of malfunction or difficulties in
opening or closing, have it checked by the
dealer network or a qualified workshop to
ensure that this inconvenience does not
get worse, making it drop and causing a
serious injury.
02
Access

61
When unlocking of the boot only is activated:
F W ith the electronic key on your person and
in the recognition zone A , press the boot
unlocking control to unlock just the boot,
then raise the tailgate.
Unlocking is signalled by rapid flashing of the
direction indicators for a few seconds.
Closing
F Lower the tailgate using one of the interior grab handles.
If the tailgate is not fully closed:
-

w
ith the engine running or the
vehicle moving (speed below
6
mph (10 km/h)), this warning lamp
comes on, accompanied by an alert
message for a few seconds.
-

w
ith the vehicle moving (speed
above 6 mph (10 km/h), in addition
to the warning lamp and alert
message, there is an audible signal
for a few seconds.
Back-up control
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Unlocking
F Fold the rear seats to gain access to the lock from inside the boot.
Locking after closing
If the fault persists after closing again, the boot
will remain locked. F
I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F
M
ove the latch to the left.
Electric windows
Fitted with a safety anti-pinch system.
1.
Driver.
2. Pa s se n g e r.
Manual operation
F Press or pull the control, without
passing the point of resistance.
The window stops as soon as the control is
released.
Selective unlocking
The complete or selective boot
unlocking parameter is set via the
vehicle configuration menu.
02
Access

62
Automatic operation
F Press or pull the switch fully, beyond the resistance point.
The window opens or closes
completely when the switch is
released.
F

P
ressing the switch again stops
the movement of the window.
The electric window controls remain
operational for approximately 45 seconds
after the ignition has been switched off
or, if a door has been opened, until the
vehicle is locked.
If the passenger 's window cannot be
operated from the driver's door control
panel, carry out the operation from the
passenger's door control panel, and vice
versa.
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and partially lowers again.
If the window cannot be closed (for
example, in the presence of ice), once
the


window has lowered:
F

p
ress and hold the control until the
window opens fully,
F

t
hen pull the control immediately and
hold it until the window closes,
F

c
ontinue to hold the control for
approximately one second after the
window has closed.
The safety anti-pinch function is not
effective during these operations.
Reinitialisation
If a window does not rise automatically, its
operation must be reinitialised:
F

p
ull the control until the window stops,
F

r
elease the control and pull it again until the
window closes fully,
F

c
ontinue to hold the switch for
approximately one second after the window
has closed, In the event of contact (pinching) during
operation of the windows, you must
reverse the movement of the window. To
do this, press the corresponding switch.
When the driver operates the passenger's
electric window control, they must ensure
that nothing is preventing the windows
from closing correctly.
The driver must ensure that all
passengers make correct use of electric
windows.
Be particularly aware of children when
operating the windows.
Be aware of passengers and/or other
persons present when closing the
windows with the key or the "Keyless
Entry and Starting" system.
Always remove the key from the ignition
when leaving the vehicle, even for a short
time.
In order to avoid damaging the electric
window motor, a protection device
activates after ten full opening/closing
manoeuvres of the window in succession,
allowing only the closing the window.
Once the window is closed, the controls
will become available again after
approximately 40 minutes. F

p
ress the control to lower the window
automatically to the open position,
F
w
hen the window has reached the open
position, press the control again for
approximately one second.
The safety anti-pinch function is not
operational during these operations.
02
Access

71
Folding
F From outside: lock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
Unfolding
F From outside: unlock the vehicle using the
remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
The folding and unfolding of the door
mirrors using the remote control can be
deactivated in the dealer network or a
qualified workshop.
If necessary, the mirrors can be folded
manually.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
Memorisation
F With the engine running, engage reverse g e a r.
F

S
elect and adjust the left-hand and right-
hand mirrors in succession.
The adjustment is stored immediately.
Operation
F With the engine running, engage reverse g e a r.
F

M
ove control A to the right or to the left to
select the corresponding mirror.
The glass of the selected mirror tilts
downwards, in accordance with its
memorisation.
Switching off
F Exit reverse gear and wait ten seconds.
or
F
R
eturn control A to the central position.
The mirror glass returns to its initial position.
Rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps from other vehicles, etc.
Manual model
Adjustment
F Adjust the mirror so that the glass is directed correctly in the "day" position.
It also returns to its initial position:
-

i
f the speed exceeds 6 mph (10 km/h),
-
i
f the engine is stopped.
03
Ease of use and comfort

83
Courtesy lamps
1.Front courtesy lamp
2. Front map reading lamps
3. Rear courtesy lamp
4. Rear map reading lamps
Front and rear courtesy lamps
In this position, the courtesy
lamp comes on gradually:
-

w

hen the vehicle is unlocked,
-

w

hen the key is removed from the ignition,
-
w

hen opening a door,
-

w

hen the remote control locking button is
activated, in order to locate your vehicle.
It switches off gradually:
-

w

hen the vehicle is locked,
-

w

hen the ignition is switched on,
-

3

0 seconds after the last door is closed. Permanently off.
Permanent lighting.
In "permanent lighting" mode, the lighting time varies
according to the circumstances:
-
w
hen the ignition is off, approximately ten minutes,
-

i
n energy saving mode, approximately thirty
seconds,
-
w

ith the engine running, unlimited.
When the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if it
is in the "permanently off " position.
To switch off the rear courtesy lamp, put it
in the "permanently off " position.
Front and rear map reading
lamps
F With the ignition on, operate the corresponding switch.
Take care not to put anything in contact
with the courtesy lamps.
03
Ease of use and comfort

86

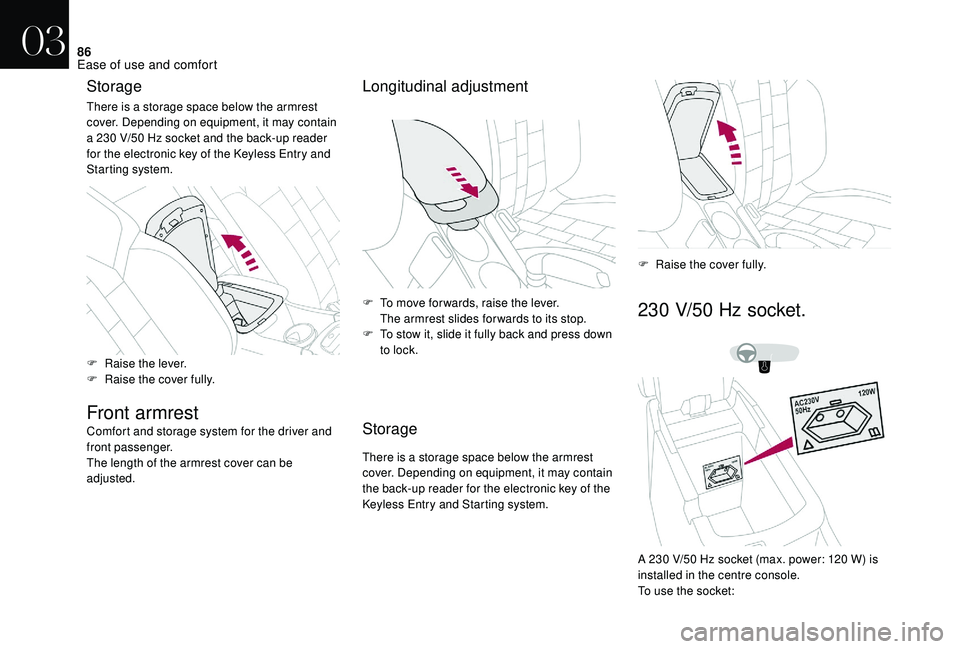

Storage
There is a storage space below the armrest
cover. Depending on equipment, it may contain
a 230 V/50 Hz socket and the back-up reader
for the electronic key of the Keyless Entry and
Starting system.F

Ra
ise the lever.
F

R
aise the cover fully.
Front armrest
Comfort and storage system for the driver and
front passenger.
The length of the armrest cover can be
adjusted.
Longitudinal adjustment
F To move for wards, raise the lever. The armrest slides for wards to its stop.
F

T
o stow it, slide it fully back and press down
to lock.
Storage
There is a storage space below the armrest
cover. Depending on equipment, it may contain
the back-up reader for the electronic key of the
Keyless Entry and Starting system. F

R
aise the cover fully.
230 V/50 Hz socket.
A 230 V/50 Hz socket (max. power: 120 W) is
installed in the centre console.
To use the socket:
03
Ease of use and comfort

89
Hooks
These can be used to secure shopping bags.
12 V accessory socket
F To connect a 12 V accessory (max. power: 120 W), remove the cap and connect an
appropriate adaptor.
F

T
urn the key to the ignition on position.
Portable torch
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
Observe the polarities when fitting the
rechargeable batteries.
Never replace the rechargeable batteries
with normal disposable batteries.
This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For more information on the Boot lamp
, refer
to the corresponding section.
Use
F Extract the torch from its location pulling it upwards.
F

P
ress the switch, located on the back, to
switch the torch on or off.
F

U
nfold the support, located on the back,
to hold up the torch, for example, when
changing a wheel.
Storage
F Put the torch back in place in its location starting with the lower part.
If you have forgotten to switch off the torch,
this switches it off automatically.
If the torch is not engaged correctly, it may
not charge and may not come on when the
boot is opened.
03
Ease of use and comfort
