2018 CITROEN C3 AIRCROSS bluetooth

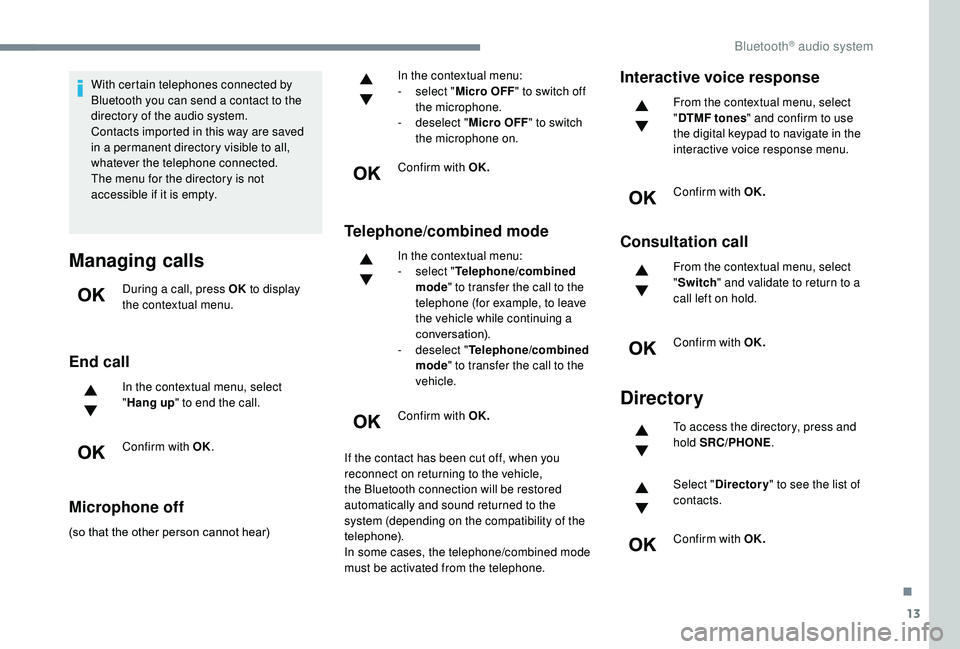

13
With certain telephones connected by
Bluetooth you can send a contact to the
directory of the audio system.
Contacts imported in this way are saved
in a permanent directory visible to all,
whatever the telephone connected.
The menu for the directory is not
accessible if it is empty.
Managing calls
During a call, press OK to display
the contextual menu.
End call
In the contextual menu, select
" Hang up " to end the call.
Confirm with OK.
Microphone off
(so that the other person cannot hear) In the contextual menu:
-

s
elect "
Micro OFF " to switch off
the microphone.
-
d
eselect "
Micro OFF " to switch
the microphone on.
Confirm with OK.
Telephone/combined mode
In the contextual menu:
- s elect " Telephone/combined
mode " to transfer the call to the
telephone (for example, to leave
the vehicle while continuing a
conversation).
-

d
eselect " Telephone/combined
mode " to transfer the call to the
vehicle.
Confirm with OK.
If the contact has been cut off, when you
reconnect on returning to the vehicle,
the Bluetooth connection will be restored
automatically and sound returned to the
system (depending on the compatibility of the
telephone).
In some cases, the telephone/combined mode
must be activated from the telephone.
Interactive voice response
From the contextual menu, select
" DTMF tones " and confirm to use
the digital keypad to navigate in the
interactive voice response menu.
Confirm with OK.
Consultation call
From the contextual menu, select
" Switch " and validate to return to a
call left on hold.
Confirm with OK.
Directory
To access the directory, press and
hold SRC/PHONE .
Select " Directory " to see the list of
contacts.
Confirm with OK.
.
Bluetooth® audio system

14
To modify the contacts saved in the
system, press MENU then select
" Telephone " and confirm.
Select " Directory management "
and confirm.
Yo u c a n :
-
"Consult an entr y ",
-
"Delete an entry ",
-
"Delete all entries ".
The system accesses the
telephone's contacts directory,
depending on its compatibility, and
while it is connected via Bluetooth.
With certain telephones connected
by Bluetooth you can send a contact
to the directory of the audio system.
Contacts imported in this way are
saved in a permanent directory
visible to all, whatever the telephone
connected.
The menu for the directory is not
accessible if it is empty.
Voice recognition
This function allows you to use your
smartphone's voice recognition via the system. To start voice recognition, depending on the
type of steering mounted controls:
Make a long press on the end of the lighting
control stalk.
OR
Press this button.
Voice recognition requires the use of a
compatible smartphone first connected to
the vehicle by Bluetooth.
Frequently asked questions
The following information groups together the
answers to the most frequently asked questions
concerning your audio system.
Bluetooth® audio system

15
QUESTIONRESPONSESOLUTION
With the engine off, the audio system switches
off after a few minutes of use. When the engine is switched off, the audio
system operating time depends on the state of
charge of the battery.
The switch-off is normal: the audio system
switches to economy mode and switches off to
prevent discharging the vehicle's battery.Turn the ignition on to increase the charge of
the battery.
The message "the audio system is overheated"
appears on the display. In order to protect the installation if the
surrounding temperature is too high, the audio
system switches to an automatic thermal
protection mode leading to a reduction in
volume or the CD play stopping.Switch the audio system off for a few minutes
to allow the system to cool.
Radio
QUESTION
RESPONSESOLUTION
There is a difference in sound quality between
the different audio sources (radio, CD, etc.). To allow for optimal listening quality, the audio
settings (Volume, Bass, treble, Ambience,
Loudness) can be tailored to different
sound sources, which can generate audible
differences when changing source (radio, CD,
e t c .) .Check that the audio settings (Volume, Bass,
Treble, Ambience and Loudness) are adapted
to the sources listened to. It is advisable to set
the audio functions (Bass, Treble, Front-Rear
Balance and Left-Right Balance) to the middle
position, select the musical ambience "None"
and set the loudness correction to the "Active"
position in CD mode or to the "Inactive"
position in radio mode.
.
Bluetooth® audio system

16
The preset stations do not function (no sound,
87.5 MHz is displayed, etc.). An incorrect waveband is selected.
Press the BAND button to return to the
waveband (FM, FM2, DAB, AM) on which the
stations are preset.
The traffic announcement (TA) is displayed. I
do not receive any traffic information. The radio station is not part of the regional
traffic information network.Tune to a radio station which broadcasts traffic
information.
The reception quality of the tuned radio station
gradually deteriorates or the stored stations are
not working (no sound, 87.5
MHz is displayed,
e t c .) . The vehicle is too far from the transmitter of
the station or no transmitter is present in the
geographical area.
Activate the RDS function to allow the system
to see if a more power ful transmitter is within
the geographic area.
The environment (hills, buildings, tunnels,
basement car parks, etc.) block reception,
including in RDS mode. This phenomenon is normal and does not
indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for
example when going through an automatic car
wash or in an underground car park). Have the aerial checked by a dealer.
Sound cut-outs of 1 to 2
seconds in radio
mode. During this brief sound cut-out, the RDS
searches for another frequency giving better
reception of the station.Switch off the RDS function if the phenomenon
is too frequent and always on the same route.
Bluetooth® audio system

17
Media
QUESTIONRESPONSESOLUTION
The Bluetooth connection is cut. The battery of the peripheral may not be
sufficiently charged.Charge the battery of the peripheral device.
The message "USB device error" is displayed
in the screen. The USB memory stick is not recognised.
The USB memory stick may be corrupt.Reformat the USB memory stick.
The CD is ejected every time or is not played. The CD is upside down, cannot be read, does not contain audio files or contains audio files of
a format not recognised by the audio system.
The CD is protected by an anti-pirating system
not recognised by the audio system.-

C
heck that the CD is inserted in the player
the right way up.
-

C
heck the condition of the CD: the CD
cannot be played if it is too badly damaged.
-

C
heck the content in the case of a recorded
CD: consult the advice in the "Audio"
section.
-

D
ue to insufficient quality, certain burned
CDs will not be read by the audio system.
The CD sound is of poor quality. The CD used in scratched or of poor quality. Insert good quality CDs and store them in
suitable conditions.
The audio settings (bass, treble, ambience) are
unsuitable. Return bass and treble settings to 0, without
selecting an ambience.
I am unable to play the music files on my
smartphone via the USB port. Depending on the smartphone, access by the
audio system to music on the smartphone may
have to be approved on the latter.Manual activate the MTP profile on the
smartphone (USB settings menu).
.
Bluetooth® audio system

18
QUESTIONRESPONSESOLUTION
I am unable to access my voicemail. Few telephones or ser vice providers allow the
use of this function.Call the voicemail, via the telephone menu,
using the number provided by your operator.
I am unable to access my directory of contacts. Check the compatibility of your telephone.
You did not give access to your contacts when
pairing the telephone.Accept or confirm access by the system to the
contacts on your telephone.
I am unable to continue a conversation when
getting into my vehicle. Telephone mode is activated.
Deselect telephone mode to transfer the call to
the vehicle.
I am unable to pair my telephone by Bluetooth. Telephones (models, versions of operating
systems) have their own specific aspects in the
pairing procedure and some telephones are not
compatible.Before starting the pairing procedure, delete
the pairing of the telephone from the system
and
of the system from the telephone, so as to
see the compatibility of the telephones.
Telephone
Bluetooth® audio system

213
180° rear vision ......................................15 4 -15 5
AAccessories ............................................ 90, 123
Active Safety Brake.......................... 14, 142-145
AdBlue
® ................................ 18, 28-29, 18 0 -182
Adjusting headlamps ...................................... 85
Adjusting head restraints


................................ 59
Adjusting seats


.......................................... 57- 5 8
Adjusting the air distribution


.....................66-69
Adjusting the air flow
................................. 6

6-69
Adjusting the date


................... 32-33, 40, 31, 18
Adjusting the height and reach of the steering wheel


.................................... 62
Adjusting the seat belt height
......................... 98
A

djusting the temperature

........................66-69
Adjusting the time


.................... 32-33, 40, 31, 17
Advice on driving


................................... 11 8 -11 9
Airbags
...............................

...................102, 10 6
Airbags, curtain


..................................... 103 -104
Airbags, front .................................. 102-104, 107
Airbags, lateral


...................................... 103 -104
Air conditioning


......................................... 67- 6 9
Air conditioning, automatic


.................65, 67- 6 9
Air conditioning, manual
........................... 6

5 - 67
Air intake


................................................... 66-69
Air vents


.................................................... 64-65
Alarm


.......................................................... 51- 5 2
Anti-lock braking system (ABS)
......................93
Anti-slip regulation (ASR)
............................... 93
Apple CarPlay connection


........................16, 12
Armrest, front
............................................ 71, 74
Armrest, rear
...............................

....................75
Assistance, emergency braking


.............93, 14 4
Assistance call
...............................

...........91-92
Audio streaming (Bluetooth)
...................24, 9 , 9
BBattery ................................... 172, 178 , 202 , 204
Battery, charging ................................... 203-204
Battery, remote control


.............................45-46
Blind
..............................

..................................53
Blinds, side


...................................................... 75
Blind spot monitoring system
...........21, 14 9 -15 0
BlueHDi


..................................... 28-29, 18 0, 18 4
Bluetooth (hands-free)

........2

5 -26, 13 -14 , 1 0 -11
Bluetooth (telephone)
......................

25 -27, 13 -15
Bonnet


.................................................... 174 -175
Boot


..................................................... 48-49, 70
Brake discs


.................................................... 18 0
Brake lamps
...............................

...................195
Brakes


..................................................... 12, 18 0
Braking, automatic emergency


........14, 142-145
Brightness


....................................................... 16
Bulbs (changing)


................................... 193, 195
CCable, audio ................................................ 23, 9
Cable, Jack ................................................. 23, 9
Cap, fuel filler

...............................
..........166 -167
Capacity, fuel tank


................................. 166 -167
CD, MP3


............................................ 23 -24, 9, 9
Central locking
.................................... 43

-44, 49
Changing a bulb
............................. 19

3, 195 -197
Changing a fuse
..................................... 1

97-2 01
Changing a wheel
......................... 18

5, 18 8 -19 0
Changing a wiper blade
.......................... 88,

173
Changing the remote control battery


..............46
Charger, wireless
....................................... 7

2-73
Checking the engine oil level


..........................28
Checking the levels


................................ 176 -178
Checking tyre pressures (using the kit)
.............................. 18 4 -185, 187
Checks


........................................... 175, 178 -18 0
Checks, routine


...................................... 178 -18 0
Child lock


....................................................... 117
Children ................................................... 111 -115
Children (safety) ............................................ 117
Child seats
.............. 10

1, 105 -10 6 , 11 0 -111, 11 6
Child seats, conventional


.......................11 0 -111
Child seats, i-Size
......................................... 115
Child seats, ISOFIX
...............................112 -115
CITROËN Connect Nav


....................................1
CITROËN Connect Radio
................................. 1
C

losing the boot
.................................. 42,

48-49
Closing the doors


................................ 42- 44, 48
Coat hanger


.................................................... 74
Collision risk alert


.................................. 14 4 -145
Configuration, vehicle
............................... 3

2-36
Connection, Bluetooth
........ 19,

25 -27, 13 -15 , 11
Connection, MirrorLink


.........................17, 11 -12
Connection, Wi-Fi network


.............................20
Control, back-up boot release
........................49
Control, back-up door
...............................45-46
Control, electric windows


..........................55-56
Control, heated seats


................................59-60
Control stalk, lighting


....................22-23, 80, 82
Control stalk, wipers

................................. 8

6-89
Courtesy lamps
............................... 78, 19 6 -197
Cruise control


...........13 3 -13 4 , 13 6 -137 , 13 9 -142
Cruise control by speed limit recognition
...............................

............13 6 -137
Cup holder
................................................. 71, 75
DDAB (Digital Audio
Broadcasting) – Digital radio ............22, 8, 6 -7
Date (setting)
........................... 32-33, 40, 31, 18
Daytime running lamps


.............80, 82 , 193 -19 4
Daytime running lamps, LED


........................19 4
Deactivating the passenger airbag


................................... 102-103, 10 6 -107
Deactivation of ASR


........................................ 94
Deadlocking


.............................................. 42, 44
.
Alphabetical index

216
Replacing the passenger compartment filter ....179Reservoir, screenwash .................................178
Resetting the service indicator .......................28
Resetting the trip recorder


........................3 0 - 31
Reversing camera
...............................

...15 4 -15 5
Roof bars


................................................ 173 -174
Running out of fuel (Diesel)
..........................18 4
SSafety, children .........102-103 , 105 -107 , 111 -115
SCR (Selective Catalytic Reduction) ............18 0
Screen, instrument panel


................................38
Screen, monochrome


...............................32-33
Screen, multifunction (with audio system)
........4
Screen menu map


........................................... 12
Screenwash, front


........................................... 88
Screenwash, rear


............................................ 87
Seat belts


......................................... 9 8 -101, 11 0
Seats, front
...............................

.................57- 5 8
Seats, heated


............................................ 59-60
Seats, rear


................................................. 60-62
Selector, gear


......................................... 125 -128
Serial number, vehicle


..................................2 11
Service indicator


....................................... 26, 28
Servicing
......................................................... 26
S

ettings, equipment

................................... 31- 3 6
Settings, system


........................................ 30, 16
Sidelamps
................................. 80,

82, 193 -195
Side repeater


................................................ 195
Snow chains


................................... 162, 167-168
Socket, 12
V accessory .......................71-72, 76
Socket, auxiliary
...................................... 23,

9, 8
Socket, Jack


............................................ 23, 9, 8
Sockets, audio
................................................ 73
Spe

ed limiter
.......................... 13

3 -13 4, 13 6 -13 9
Speed limit recognition
.......................... 13

4 -13 5
Stability control (ESC)...............................15, 93
Starting a Diesel engine ............................... 16
5
Starting the engine
....................................... 12

0
Starting the vehicle
......... 11

8, 120 -12 2 , 125 -128
Starting using another battery


..............123, 202
Station, radio
...............................

......21-22 , 6, 4
Stay, bonnet


........................................... 174 -175
Steering mounted controls, audio
........ 3,

3, 2-3
Steering wheel, adjustment
............................ 62
S

TOP (warning lamp)
...................................... 12
St

op & Start

..............................
22 , 39 , 66 , 69, 12 9 -131 , 166, 175, 179 , 205
Stopping the vehicle


.......11 8, 120 -12 2 , 125 -128
Storage


...................................................... 71, 75
Storage box


..................................................... 77
Storage wells


.................................................. 77
Stowing rings


.................................................. 75
Sunroof, panoramic
........................................ 53
S

un visor
...............................
..........................71
Switching off the engine


...............................120
Synchronising the remote control
...................47
TTables of fuses ....................................... 1 97-2 01
Ta n k , f u e l ................................................ 166 -167
Telephone
.......... 7

2-73, 25 -29 , 13 -16, 1 0 -11, 13
Telephone, Bluetooth with voice recognition ......14Temperature, coolant ...................................... 25
Three flashes (direction indicators) ................8
2
Time (setting)
........................... 32-33, 40, 31, 17
TMC (Traffic info)

............................................ 13
T

o o l s

........................... 77, 78, 188 -189, 188 -19 0
Total distance recorder


.............................3 0 - 31
Touch screen ....................... 33-36, 86, 13 5 , 1, 1
To w b a r
...............................

....................11 9, 171
Towbar with quickly detachable towball ...... 1 6 8 -171
Towed loads .................................................. 207
Towing another vehicle .........................205-206
Traction control (ASR)
...................15 -16, 93-95
Traffic information (TA)
.....................................5
Traffic information (TMC)
................................13
Tr a i l e r
...............

..................................... 11 9, 171
Trip computer


............................................. 37- 3 9
Trip distance recorder
............................... 3

0 - 31
Ty r e s


.............................................................. 2 11
Tyre under-inflation detection


.........15, 161 , 188
UUnder-inflation (detection) ............................161
Unlocking .................................................. 42- 43
Unlocking from the inside
...............................49
Updating the date
................................ 40,

31, 18
Updating the time
...............................

.40 , 31 , 17
USB


................................................... 23 -24, 9, 7
VVentilation ................................................. 64- 67
Voice commands ......................................... 5 -10
WWarning and indicator lamps .....................1 0 -11
Warning lamp, braking system .......................12
Warning lamp, Diesel engine pre-heater


.......21
Warning lamp, driver’s seat belt not fastened
...............................

....9 9 -10 0
Warning lamp, low fuel level
...........................17
Warning lamp, seat belts


........................9 9 -10 0
Warning lamp, Service ....................................20
Alphabetical index
