2018 CHRYSLER PACIFICA HYBRID emergency towing

engine off immediately and call for service. Refer to “If
Your Engine Overheats” in “In Case Of Emergency” for
further information.

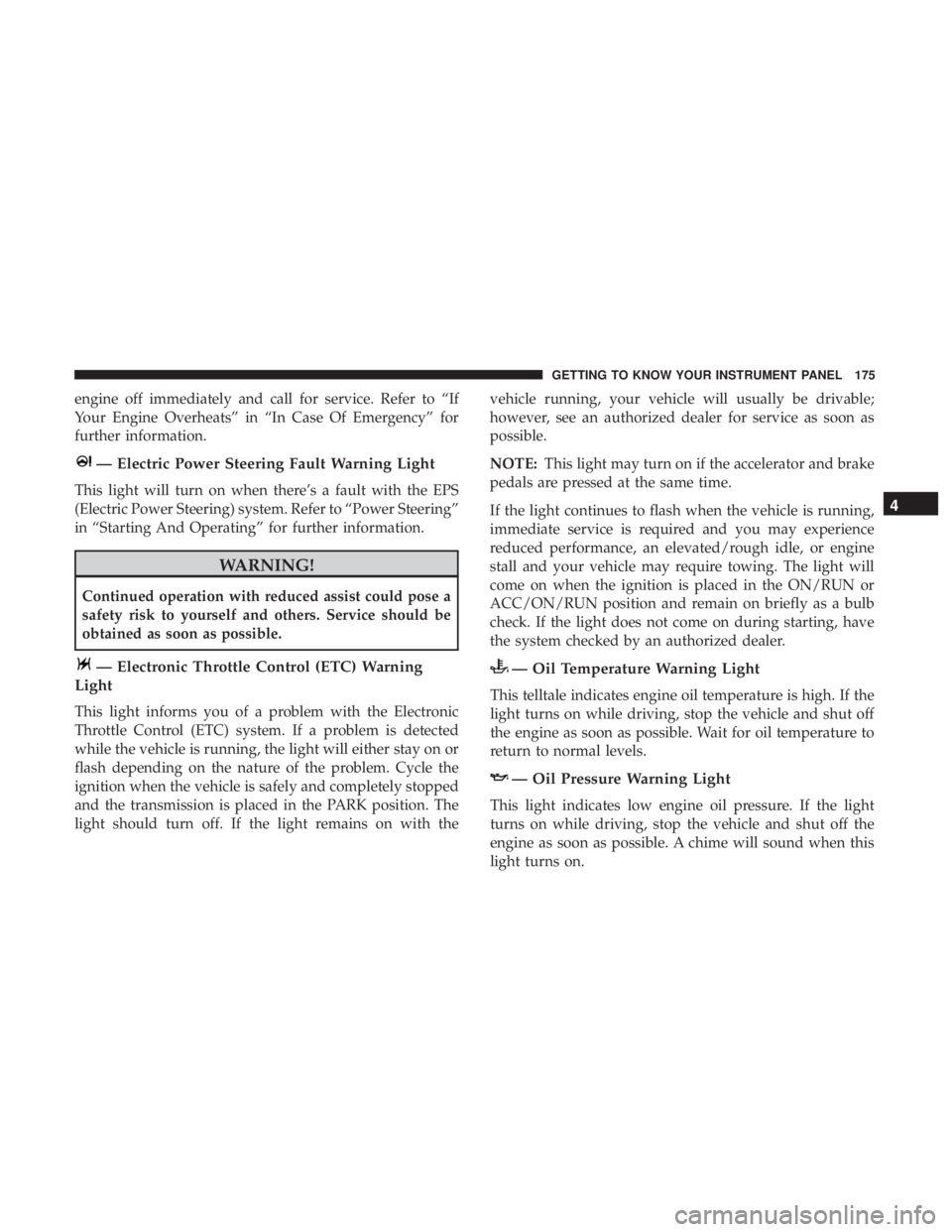

— Electric Power Steering Fault Warning Light
This light will turn on when there’s a fault with the EPS
(Electric Power Steering) system. Refer to “Power Steering”
in “Starting And Operating” for further information.
WARNING!
Continued operation with reduced assist could pose a
safety risk to yourself and others. Service should be
obtained as soon as possible.
— Electronic Throttle Control (ETC) Warning
Light
This light informs you of a problem with the Electronic
Throttle Control (ETC) system. If a problem is detected
while the vehicle is running, the light will either stay on or
flash depending on the nature of the problem. Cycle the
ignition when the vehicle is safely and completely stopped
and the transmission is placed in the PARK position. The
light should turn off. If the light remains on with the vehicle running, your vehicle will usually be drivable;
however, see an authorized dealer for service as soon as
possible.
NOTE:
This light may turn on if the accelerator and brake
pedals are pressed at the same time.
If the light continues to flash when the vehicle is running,
immediate service is required and you may experience
reduced performance, an elevated/rough idle, or engine
stall and your vehicle may require towing. The light will
come on when the ignition is placed in the ON/RUN or
ACC/ON/RUN position and remain on briefly as a bulb
check. If the light does not come on during starting, have
the system checked by an authorized dealer.
— Oil Temperature Warning Light
This telltale indicates engine oil temperature is high. If the
light turns on while driving, stop the vehicle and shut off
the engine as soon as possible. Wait for oil temperature to
return to normal levels.
— Oil Pressure Warning Light
This light indicates low engine oil pressure. If the light
turns on while driving, stop the vehicle and shut off the
engine as soon as possible. A chime will sound when this
light turns on.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 175

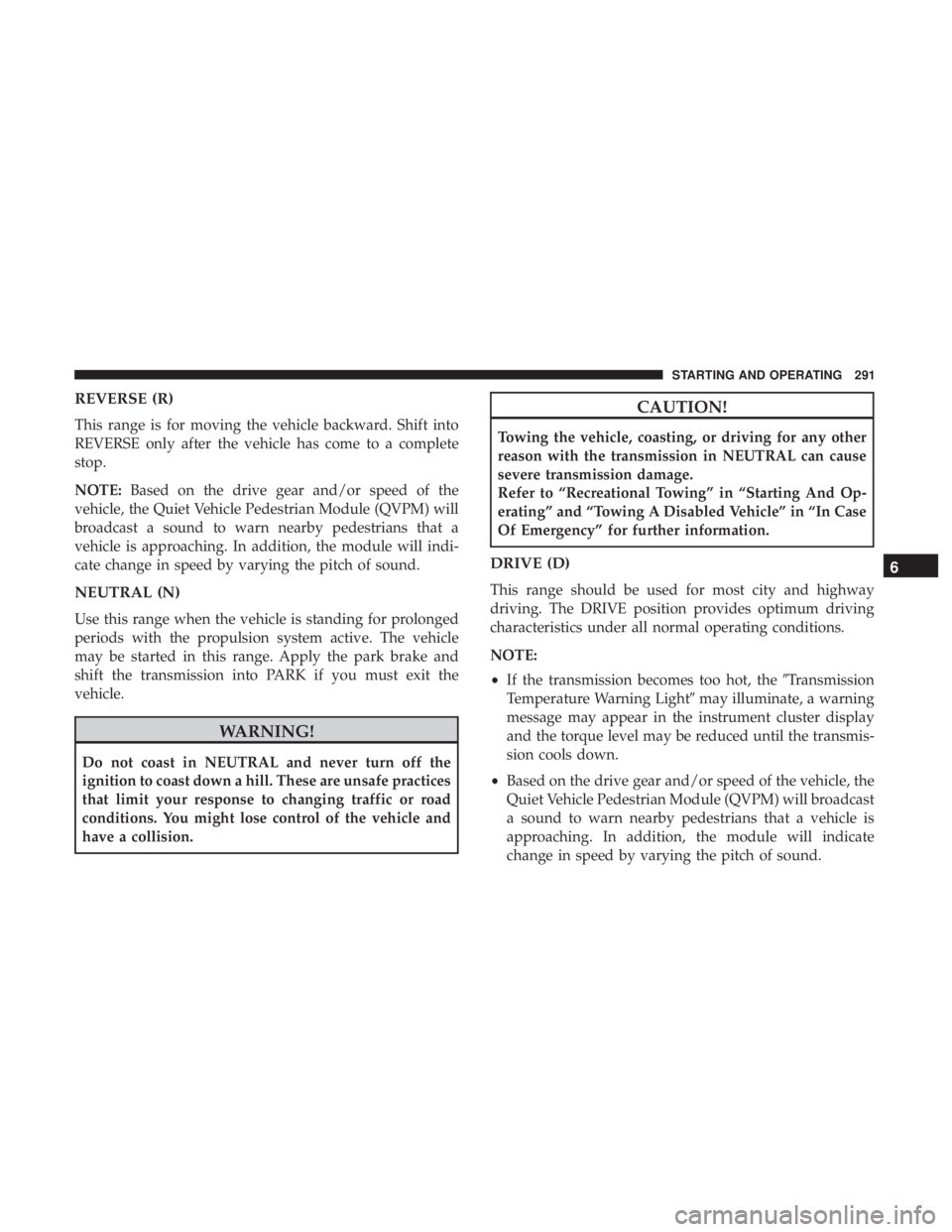

REVERSE (R)
This range is for moving the vehicle backward. Shift into
REVERSE only after the vehicle has come to a complete
stop.
NOTE:Based on the drive gear and/or speed of the
vehicle, the Quiet Vehicle Pedestrian Module (QVPM) will
broadcast a sound to warn nearby pedestrians that a
vehicle is approaching. In addition, the module will indi-
cate change in speed by varying the pitch of sound.
NEUTRAL (N)
Use this range when the vehicle is standing for prolonged
periods with the propulsion system active. The vehicle
may be started in this range. Apply the park brake and
shift the transmission into PARK if you must exit the
vehicle.
WARNING!
Do not coast in NEUTRAL and never turn off the
ignition to coast down a hill. These are unsafe practices
that limit your response to changing traffic or road
conditions. You might lose control of the vehicle and
have a collision.
CAUTION!
Towing the vehicle, coasting, or driving for any other
reason with the transmission in NEUTRAL can cause
severe transmission damage.
Refer to “Recreational Towing” in “Starting And Op-
erating” and “Towing A Disabled Vehicle” in “In Case
Of Emergency” for further information.
DRIVE (D)
This range should be used for most city and highway
driving. The DRIVE position provides optimum driving
characteristics under all normal operating conditions.
NOTE:
• If the transmission becomes too hot, the Transmission
Temperature Warning Light may illuminate, a warning
message may appear in the instrument cluster display
and the torque level may be reduced until the transmis-
sion cools down.
• Based on the drive gear and/or speed of the vehicle, the
Quiet Vehicle Pedestrian Module (QVPM) will broadcast
a sound to warn nearby pedestrians that a vehicle is
approaching. In addition, the module will indicate
change in speed by varying the pitch of sound.
6
STARTING AND OPERATING 291

NOTE:
•To avoid inadvertent Electric Park Brake engagement,
you must ensure that the Auto Park Brake feature is
disabled before towing this vehicle (if rear wheels are on
the ground). The Auto Park Brake feature is enabled or
disabled via the customer programmable features in the
Uconnect Settings.
• When towing your vehicle, always follow applicable
state and provincial laws. Contact state and provincial
Highway Safety offices for additional details.
• If your vehicle is disabled and in need of commercial
towing service, please refer to “Towing A Disabled
Vehicle” in “In Case Of Emergency”.

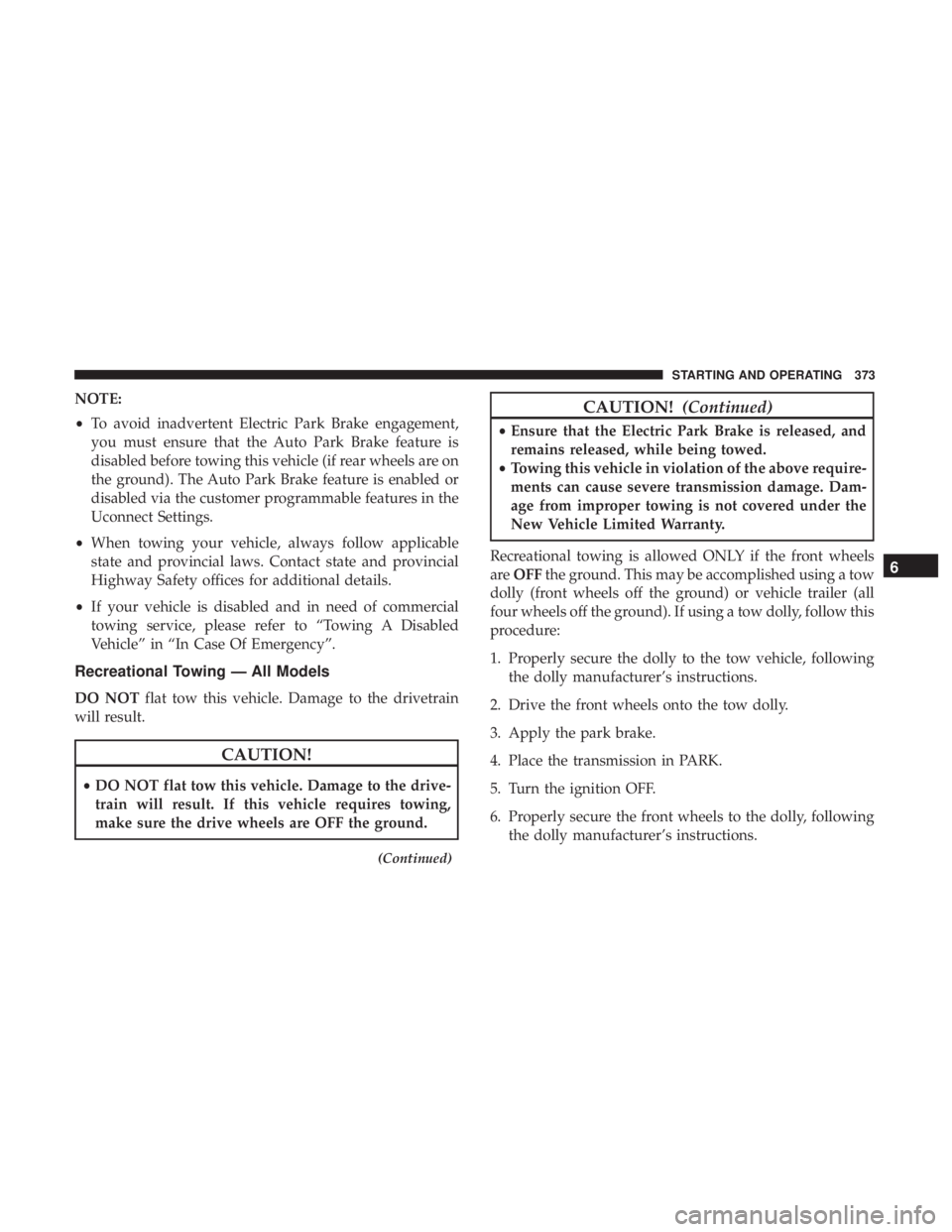

Recreational Towing — All Models
DO NOT flat tow this vehicle. Damage to the drivetrain
will result.
CAUTION!
• DO NOT flat tow this vehicle. Damage to the drive-
train will result. If this vehicle requires towing,
make sure the drive wheels are OFF the ground.
(Continued)
CAUTION! (Continued)
•Ensure that the Electric Park Brake is released, and
remains released, while being towed.
• Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Dam-
age from improper towing is not covered under the
New Vehicle Limited Warranty.
Recreational towing is allowed ONLY if the front wheels
are OFF the ground. This may be accomplished using a tow
dolly (front wheels off the ground) or vehicle trailer (all
four wheels off the ground). If using a tow dolly, follow this
procedure:
1. Properly secure the dolly to the tow vehicle, following the dolly manufacturer’s instructions.
2. Drive the front wheels onto the tow dolly.
3. Apply the park brake.
4. Place the transmission in PARK.
5. Turn the ignition OFF.
6. Properly secure the front wheels to the dolly, following the dolly manufacturer’s instructions.
6
STARTING AND OPERATING 373

IN CASE OF EMERGENCY
CONTENTS
HAZARD WARNING FLASHERS ............378
 ASSIST AND SOS MIRROR — IF EQUIPPED . . . .378
 BULB REPLACEMENT ....................384
▫ Replacement Bulbs ..................... .384
▫ Replacing Exterior Bulbs ..................386
 FUSES ............................... .390
▫ General Information .....................391
▫ Fuse Location ........................ .391
▫ Underhood Fuses ...................... .392
 JACKING AND TIRE CHANGING ...........400
▫ Preparations For Jacking .................401
▫ Jacking Instructions .....................401
▫ Road Tire Installation ....................405
TIRE SERVICE KIT — IF EQUIPPED ..........407
 JUMP STARTING ....................... .418
▫ Preparations For Jump Start ...............420
▫ Jump Starting Procedure ..................421
 REFUELING IN EMERGENCY ..............422
 IF YOUR ENGINE OVERHEATS .............423
 FREEING A STUCK VEHICLE ..............424
 TOWING A DISABLED VEHICLE ............425
 ENHANCED ACCIDENT RESPONSE SYSTEM
(EARS) .............................. .428
 EVENT DATA RECORDER (EDR) ............428
7

CAUTION!(Continued)
•Spinning the wheels too fast may lead to transmis-
sion overheating and failure. It can also damage the
tires. Do not spin the wheels above 30 mph (48 km/h)
while in gear (no transmission shifting occurring).
(Continued)
CAUTION! (Continued)
•Allow the engine to idle with the transmission in
NEUTRAL for at least one minute after every five
rocking-motion cycles. This will minimize overheat-
ing and reduce the risk of transmission failure dur-
ing prolonged efforts to free a stuck vehicle.

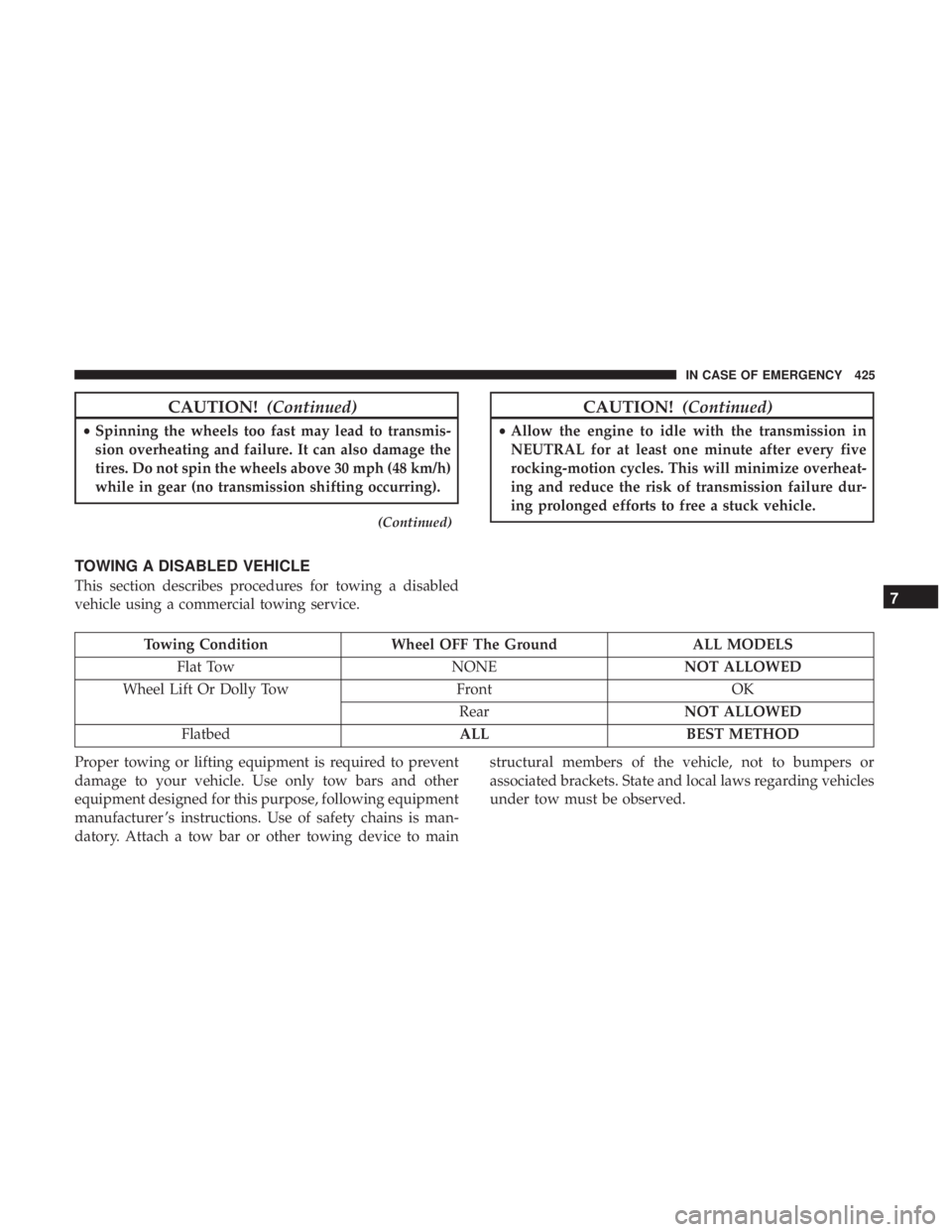

TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service.
Towing Condition Wheel OFF The Ground ALL MODELS
Flat Tow NONENOT ALLOWED
Wheel Lift Or Dolly Tow FrontOK
Rear NOT ALLOWED
Flatbed ALLBEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equipment
manufacturer ’s instructions. Use of safety chains is man-
datory. Attach a tow bar or other towing device to main structural members of the vehicle, not to bumpers or
associated brackets. State and local laws regarding vehicles
under tow must be observed.
7
IN CASE OF EMERGENCY 425

NOTE:
•You must ensure that the Auto Park Brake feature is
disabled before towing this vehicle (if rear wheels are on
the ground), to avoid inadvertent Electric Park Brake
engagement. The Auto Park Brake feature is enabled or
disabled via the customer programmable features in the
Uconnect Settings.
• Vehicles with a discharged battery or total electrical
failure when the Electric Parking Brake (EPB) is en-
gaged, will need a wheel dolly or jack to raise the rear
wheels off the ground when moving the vehicle onto a
flatbed.
The manufacturer recommends towing your vehicle with
all four wheels OFFthe ground using a flatbed.
If flatbed equipment is not available, this vehicle must be
towed with the front wheels OFF the ground (using a
towing dolly, or wheel lift equipment with the front wheels
raised).
NOTE: Ensure that the Electric Park Brake is released, and
remains released, while being towed.CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe transmission damage. Damage
from improper towing is not covered under the New
Vehicle Limited Warranty.
Vehicle Recovery Tow Points
Your vehicle is equipped with Vehicle Recovery Points that
can be used to recover a disabled vehicle, located on the
underbody of the vehicle.
NOTE:
• Ensure that the towing service tow hooks are properly
seated and secured in the attachment points.
• This recovery tow feature should be used by a trained
professional only.
• Use approved receptacle location to free the disabled
vehicle from its environment.
426 IN CASE OF EMERGENCY

CAUTION!
Recovery feature:
•Is to be used by a professional ONLY.
• Is used only to provide recovery of the vehicle.
• Is NOT to be used to recover secondary vehicle.
• Is NOT to be used for transporting the vehicle over
the road, i.e. “Flat Towing”.
Recovery load should:
• Be applied at constant speed.
(Continued)
CAUTION! (Continued)
•Be applied parallel to the center line of the length of
the vehicle.
• Not be an abrupt acceleration.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
mode, not the ACC mode.
NOTE: The Safehold feature will engage the Electric Park
Brake whenever the driver’s door is opened (if the ignition
is ON, transmission is not in PARK, and brake pedal is
released). If you are towing this vehicle with the ignition in
the ON/RUN mode, you must manually disable the Elec-
tric Park Brake each time the driver’s door is opened, by
pressing the brake pedal and then releasing the EPB.
CAUTION!
• Do not use sling-type equipment when towing. Ve-
hicle damage may occur.
• When securing the vehicle to a flatbed truck, do not
attach to front or rear suspension components. Dam-
age to your vehicle may result from improper towing.
(Continued)
Front Recovery Points
7
IN CASE OF EMERGENCY 427

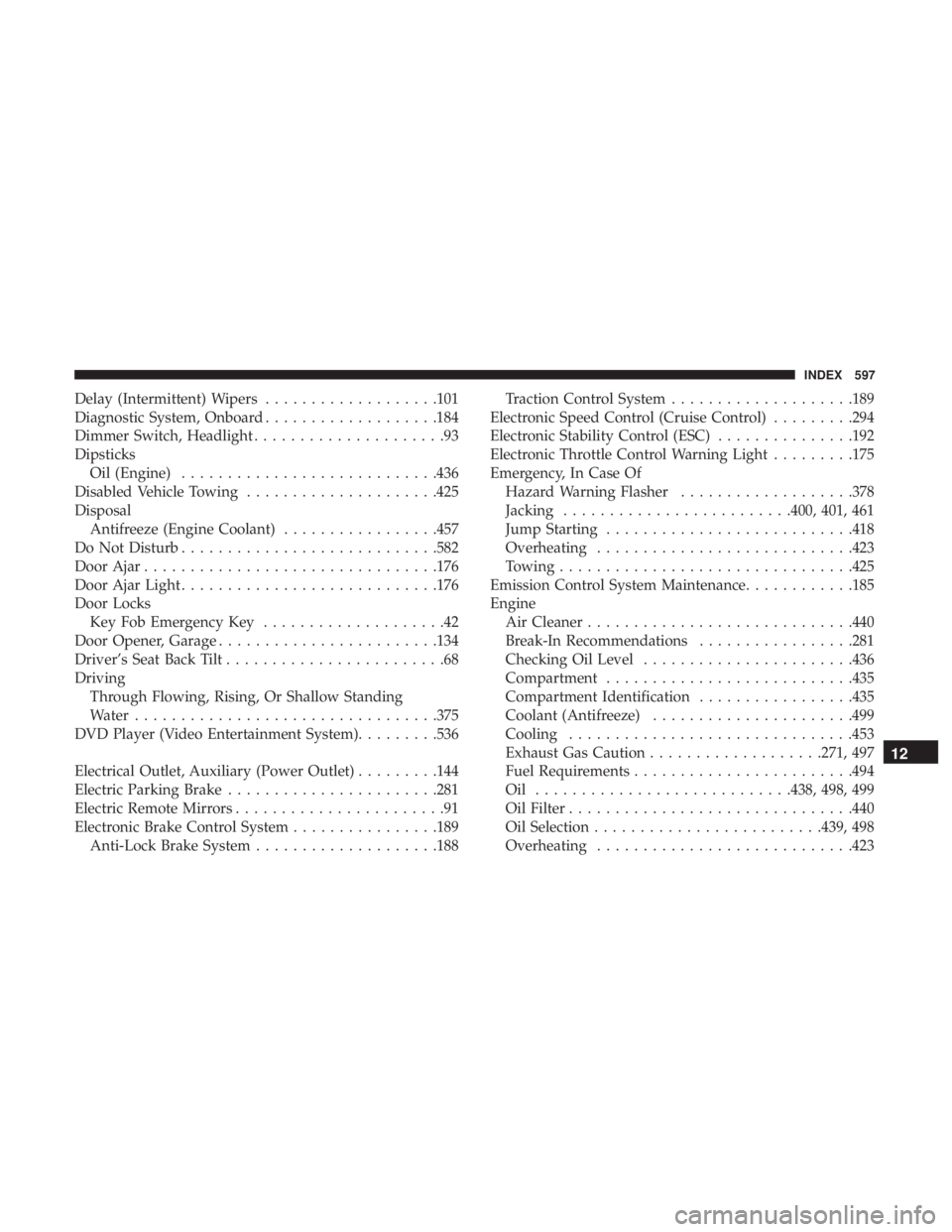

Delay (Intermittent) Wipers...................101
Diagnostic System, Onboard ...................184
Dimmer Switch, Headlight .....................93
Dipsticks Oil (Engine) ........................... .436
Disabled Vehicle Towing .....................425
Disposal Antifreeze (Engine Coolant) .................457
Do Not Disturb ........................... .582
Door Ajar ............................... .176
Door Ajar Light ........................... .176
Door Locks Key Fob Emergency Key ....................42
Door Opener, Garage ....................... .134
Driver’s Seat Back Tilt ........................68
Driving Through Flowing, Rising, Or Shallow Standing
Water ................................ .375
DVD Player (Video Entertainment System) .........536
Electrical Outlet, Auxiliary (Power Outlet) .........144
Electric Parking Brake ...................... .281
Electric Remote Mirrors .......................91
Electronic Brake Control System ................189
Anti-Lock Brake System ....................188 Traction Control System
....................189
Electronic Speed Control (Cruise Control) .........294
Electronic Stability Control (ESC) ...............192
Electronic Throttle Control Warning Light .........175
Emergency, In Case Of Hazard Warning Flasher ...................378
Jacking ........................ .400, 401, 461
Jump Starting .......................... .418
Overheating ........................... .423
Towing ............................... .425
Emission Control System Maintenance ............185
Engine Air Cleaner ............................ .440
Break-In Recommendations .................281
Checking Oil Level ...................... .436
Compartment .......................... .435
Compartment Identification .................435
Coolant
(Antifreeze) ..................... .499
Cooling .............................. .453
Exhaust Gas Caution ...................271, 497
Fuel Requirements ....................... .494
Oil ........................... .438, 498, 499
Oil Filter .............................. .440
Oil Selection ........................ .439, 498
Overheating ........................... .423
12
INDEX 597
