2018 CHEVROLET SILVERADO technical data

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 34
Seats and Restraints . . . . . . . . . . . 57
Storage . . . . . . . . . . . . . . . . . . . . . . . 124
Instruments and Controls . . . . . . 128
Lighting . . . . . . . . . . . . . . . . . . . . . . . 171
Infotainment System . . . . . . . . . . 181
Climate Controls . . . . . . . . . . . . . . 216
Driving and Operating . . . . . . . . . 226
Vehicle Care . . . . . . . . . . . . . . . . . . 334
Service and Maintenance . . . . . 441
Technical Data . . . . . . . . . . . . . . . . 456
Customer Information . . . . . . . . . 461
Reporting Safety Defects . . . . . . 472
OnStar . . . . . . . . . . . . . . . . . . . . . . . . 475
Index . . . . . . . . . . . . . . . . . . . . 487

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
456 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 456
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 456
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 457
Engine Drive Belt Routing . . . . 460
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement parts. See
“Engine Specifications”
under Capacities and Specifications
0 457 for the vehicle's engine code.
Service Parts
Identification Label
There may be a label on the inside
of the glove box that contains the
following information:
.
Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options and special
equipment
If there is no label, there is a
barcode on the certification label on
the center (B) pillar to scan for this
same information.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
Technical Data 457
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants 0451.
If the vehicle has a diesel engine, see the Duramax diesel supplement.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System
4.3L V6 1500 Series 15.1 L 15.9 qt
5.3L V8 1500 Series 15.7 L 16.6 qt
6.0L V8 2500 Series and 3500 Series 16.1 L 17.0 qt
6.2L V8 1500 Series 15.7 L 16.6 qt
Engine Oil with Filter 4.3L V6 5.7 L 6.0 qt
5.3L V8; 6.2L V8 7.6 L 8.0 qt
6.0L V8 5.7 L 6.0 qt

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
458 Technical Data
ApplicationCapacities
Metric English
Fuel Tank
1500 Series Standard and Short Box 98.4 L 26.0 gal
1500 Series Long Box 128.7 L 34.0 gal
2500 Series and 3500 Series Standard Box 136.3 L 36.0 gal
2500 Series and 3500 Series Long Box 136.3 L 36.0 gal
3500 Series Chassis Cab 240.4 L 63.5 gal
3500 Chassis Cab –Front Tank 89.0 L 23.5 gal
3500 Chassis Cab –Rear Tank (if equipped) 151.4 L 40.0 gal
Transfer Case Fluid 1.5 L 1.6 qt
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
Technical Data 459
Engine Specifications
EngineVIN CodeSpark Plug Gap
4.3L V6 (LV3) H0.95–1.10 mm (0.037–
0.043 in)
5.3L V8 (L83) C0.95–1.10 mm (0.037–
0.043 in)
6.0L V8 (L96) G0.95–1.10 mm (0.037–
0.043 in)
6.2L V8 (L86) J0.95–1.10 mm (0.037–
0.043 in)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349200) - 2018 - CRC - 2/27/18
460 Technical Data

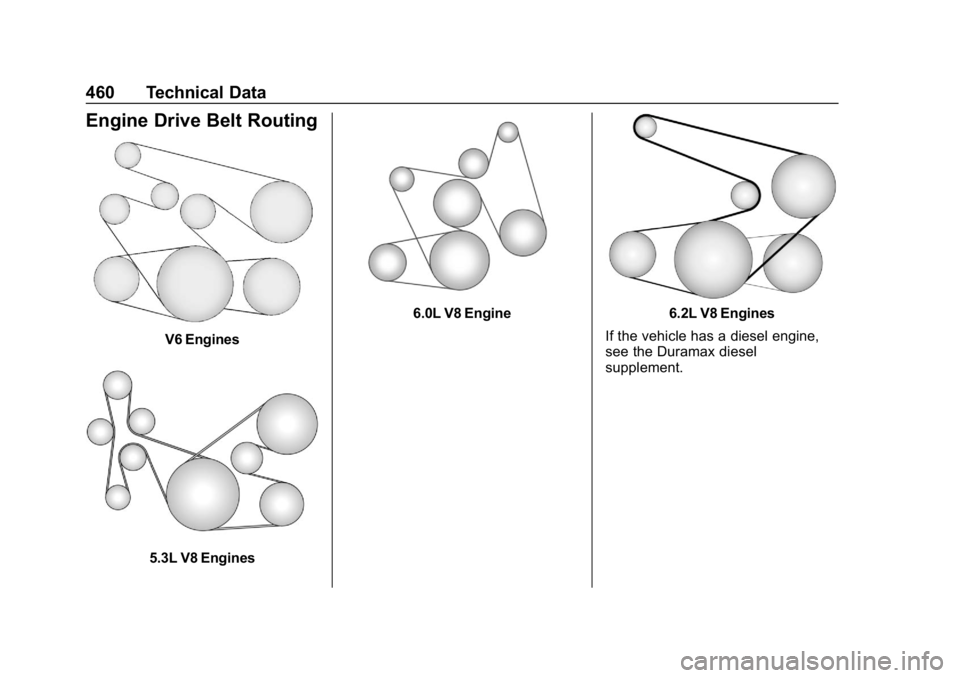

Engine Drive Belt Routing
V6 Engines
5.3L V8 Engines
6.0L V8 Engine6.2L V8 Engines
If the vehicle has a diesel engine,
see the Duramax diesel
supplement.
