Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Driving and Operating 175
If the DEF level becomes too low or
incorrect fluid is added to the DEF
tank, the warning buzzer will sound,
warning and indicator lights will
come on and engine power will be
reduced. If you see these warning
and indicator lights, add DEF as
soon as possible or have your
vehicle serviced as soon as
possible.
Continuing to drive for too long after
these lights come on will result in
additional warnings, more engine
power reduction and will eventually
result in a severe vehicle speed
limitation. See“Diesel Exhaust
Fluid (DEF) Low Level Warning” and
“Incorrect Diesel Exhaust Fluid
(DEF)/SCR System Malfunction
Warnings” later in this section.
{Warning
Do not touch the water that
comes out from the muffler. The
water is mildly acidified due to the
action of oxidation catalyst inside
the muffler. In the event that the
(Continued)
Warning (Continued)
fluid does come into contact with
your skin, completely wash it off
with water. You and others could
be seriously injured.
Do not relocate or modify the
exhaust pipe, muffler, DPF, SCR,
or DEF tank, which may affect the
exhaust gas cleaning performance.
If any relocation or modification is
necessary, consult your dealer.
The SCR system continues to
operate for approximately 3 minutes
after the engine control switch is
turned to the "LOCK" position. It is
normal to hear a buzzing type noise
from the DEF supply pump
(mounted on the left side frame rail
behind the cab) during the
shutdown process.
If it is necessary to disconnect the
batteries for any reason, be sure to
wait at least 3 minutes after turning
the engine control switch to the
"LOCK" position. This will allow the SCR system to properly complete
its shutdown processes. See
Winter
Driving 0133.
Diesel Exhaust Fluid (DEF) Low
Level Warning
Diesel Exhaust Fluid (DEF) is a
required fluid for the operation of
your diesel engine just as diesel fuel
is required. To avoid running out of
DEF your vehicle will turn on
warning and indicator lights and
reduce engine power in progressive
stages to encourage adding DEF.
The following is a summary of the
diesel exhaust fluid (DEF) low level
warning lights, indicator lights and
engine power reductions.
Continuing to drive for too long after
these lights come on will eventually
result in a severe vehicle speed
limitation.
These warning and indicator lights
will go out automatically and engine
power will be restored to normal
after the SCR system detects that
the DEF tank is refilled with DEF.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16

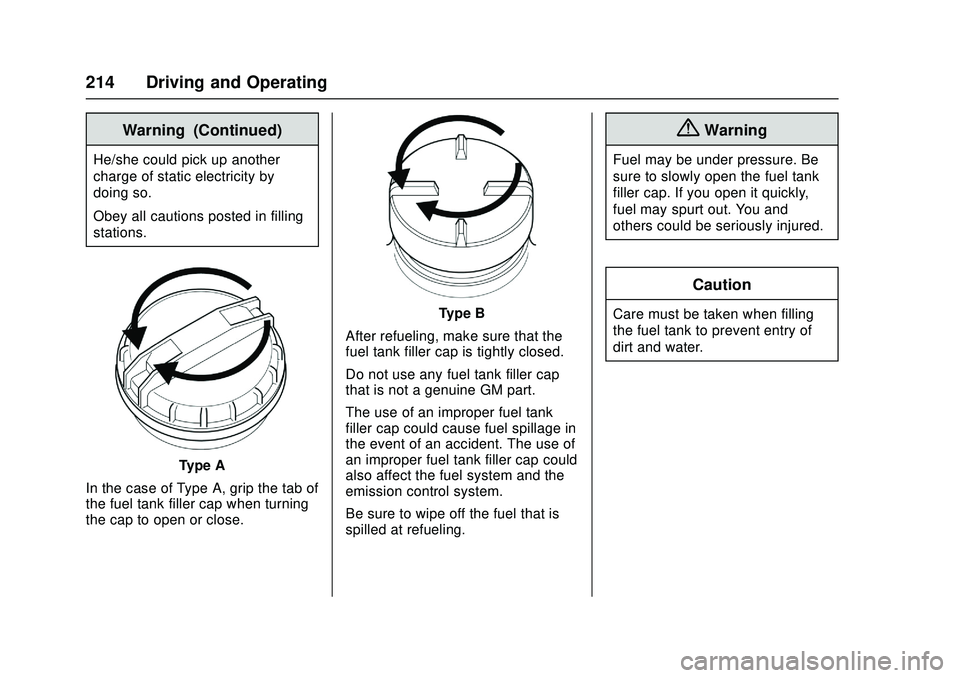

214 Driving and Operating
Warning (Continued)
He/she could pick up another
charge of static electricity by
doing so.
Obey all cautions posted in filling
stations.
Type A
In the case of Type A, grip the tab of
the fuel tank filler cap when turning
the cap to open or close.
Type B
After refueling, make sure that the
fuel tank filler cap is tightly closed.
Do not use any fuel tank filler cap
that is not a genuine GM part.
The use of an improper fuel tank
filler cap could cause fuel spillage in
the event of an accident. The use of
an improper fuel tank filler cap could
also affect the fuel system and the
emission control system.
Be sure to wipe off the fuel that is
spilled at refueling.
{Warning
Fuel may be under pressure. Be
sure to slowly open the fuel tank
filler cap. If you open it quickly,
fuel may spurt out. You and
others could be seriously injured.
Caution
Care must be taken when filling
the fuel tank to prevent entry of
dirt and water.

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
306 Service and Maintenance
Maintenance Schedule Table
Letters Used to Indicate Maintenance Service Types
I :Inspect then clean, repair or replace as necessary
A : Adjust
R : Replace
T : Tighten to the specified torque
L : Lubricate
C : Clean
No. Service Interval
16 000 km/10,000 mi
24 000 km/15,000 mi
32 000 km/20,000 mi
48 000 km/30,000 mi
64 000 km/40,000 mi
72 000 km/45,000 mi
80 000 km/50,000 mi
96 000 km/60,000 mi
112 000 km/70,000 mi
120 000 km/75,000 mi
128 000 km/80,000 mi
144 000 km/90,000 mi
160 000 km/100,000 mi
168 000 km/105,000 mi
176 000 km/110,000 mi
Service intervals
months or
kilometers
(miles)
whichever
occurs first (1)
1 Engine noise check I - I I I - I I I - I I I - I
2 Valve lash - - - A - - - A - - - A - - - or every
12 months
3 Engine oil and oil filter (2) R - R R R - R R R - R R R - R or every
12 months
4 Fuel filter - R - R - R - R - R - R - R - or every
24 months

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
Technical Data 335
Vehicle Data
Capacities and Specifications
These specifications are given here for information only. Before using them, see the Cautions and other instructions
throughout this manual–the index may help you locate such items. For more information, see the Service Manual
covering the chassis or body part in question. Your dealer may also be able to help.
Engine Specifications
Description Water-cooled, overhead camshaft, direct injection engine with a charge air cooled
turbocharger.
Manufacturer Isuzu
Model 5.2L Diesel Engine
Engine type Inline 4, Four Cycle
Induction Turbocharged W/Charge Air Cooler
Bore 115 mm
Stroke 125 mm
Displacement 5.193 L (317 CID)
Full load RPM 2,400 r/min
Compression ratio 16.5 to 1
Firing order 1-3-4-2
Fuel injection timing
(static) degree 0°

Chevrolet Low Cab Forward Owner Manual (GMNA-Localizing-U.S.-
11254764) - 2018 - crc - 12/5/16
340 Technical Data
Oil filter—
Oil filter cartridge 63.7 Y(6.5 kgf m/47.0 lb ft)
Remarks:
*1see Engine Oil 0223.
Remarks:*2see Engine Coolant 0231.
Remarks:*3see Automatic Transmission Fluid 0229.
Remarks:*4see Rear Axle (Gear Oil Viscosity Chart) 0249 orRear Axle (Oil Level Check) 0249.
Remarks:*5only for vehicles equipped with optional limited slip differential.
Remarks:*6The fuel tank capacity is stated on a metal plate attached to the fuel tank body. Only fill the tank to
95 percent of its capacity; this allows room for the expansion of the fuel.
Remarks:
*7larger capacity batteries 31 (180-930) × 2 can also be used. However, do not mix batteries of different
types and from different makers.
