Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Introduction 3
Danger, Warning, and
Caution
Warning messages found on vehicle
labels and in this manual describe
hazards and what to do to avoid or
reduce them.
{Danger
Danger indicates a hazard with a
high level of risk which will result
in serious injury or death.
{Warning
Warning indicates a hazard that
could result in injury or death.
Caution
Caution indicates a hazard that
could result in property or vehicle
damage.
A circle with a slash through it is a
safety symbol which means“Do
Not,” “Do not do this,” or“Do not let
this happen.”
Symbols
The vehicle has components and
labels that use symbols instead of
text. Symbols are shown along with
the text describing the operation or
information relating to a specific
component, control, message,
gauge, or indicator.
M: Shown when the owner ’s
manual has additional instructions
or information.
*: Shown when the service
manual has additional instructions
or information.
0: Shown when there is more
information on another page —
“see page.” Vehicle Symbol Chart
Here are some additional symbols
that may be found on the vehicle
and what they mean. See the
features in this manual for
information.
9:
Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
$:Brake System Warning Light
":Charging System
I: Cruise Control
`:Do Not Puncture
^:Do Not Service
B:Engine Coolant Temperature
O:Exterior Lamps
_: Flame/Fire Prohibited
.:Fuel Gauge
+: Fuses
3:Headlamp High/Low-Beam
Changer
j: LATCH System Child Restraints
*:Malfunction Indicator Lamp

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
In Brief 7
1.Air Vents 0193.
2. Headlamp High/Low-Beam
Changer 0155.
Turn Signal Lever. See Turn
and Lane-Change Signals
0 157.
Driver Information Center (DIC)
Buttons (If Equipped).
See Driver Information Center
(DIC) (Base) 0138 orDriver
Information Center (DIC)
(Uplevel) 0141.
3. Instrument Cluster 0120.
4. Windshield Wiper/Washer
0111.
5. Infotainment 0161.
6. Light Sensor. See Automatic
Headlamp System 0155.
7. Hazard Warning Flashers
0156.
8. Heated Front Seats 064 (If
Equipped).
9. Instrument Panel Fuse Block
0295. 10.
Climate Control Systems (With
Heater Only) 0188 orClimate
Control Systems (With Air
Conditioning) 0186.
Automatic Climate Control
System 0190 (If Equipped).
11. Power Outlets 0115.
USB Port 0169.
12. Wireless Charging Pocket (If Equipped). See Wireless
Charging 0117.
13. Traction Control/Electronic
Stability Control 0231.
Assistance Systems for
Parking or Backing 0236.
14. Shift Lever. SeeAutomatic Transmission
0 224 orManual Transmission
0 227.
15. Steering Wheel Controls 0110.
Driver Information Center (DIC)
Controls (If Equipped).
See Driver Information Center
(DIC) (Base) 0138 orDriver
Information Center (DIC)
(Uplevel) 0141. 16.
Horn 0111.
17. Steering Wheel Adjustment
0110.
18. Cruise Control 0233.
Heated Steering Wheel 0111
(If Equipped).
Forward Collision Alert (FCA)
System 0238 (If Equipped).
Lane Keep Assist (LKA) 0242
(If Equipped).
19. Hood Release. See Hood
0 261.
20. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp (Check Engine
Light) 0130.
21. Exterior Lamp Controls 0153.
Fog Lamps 0157 (If
Equipped).
Instrument Panel Illumination
Control 0158.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17

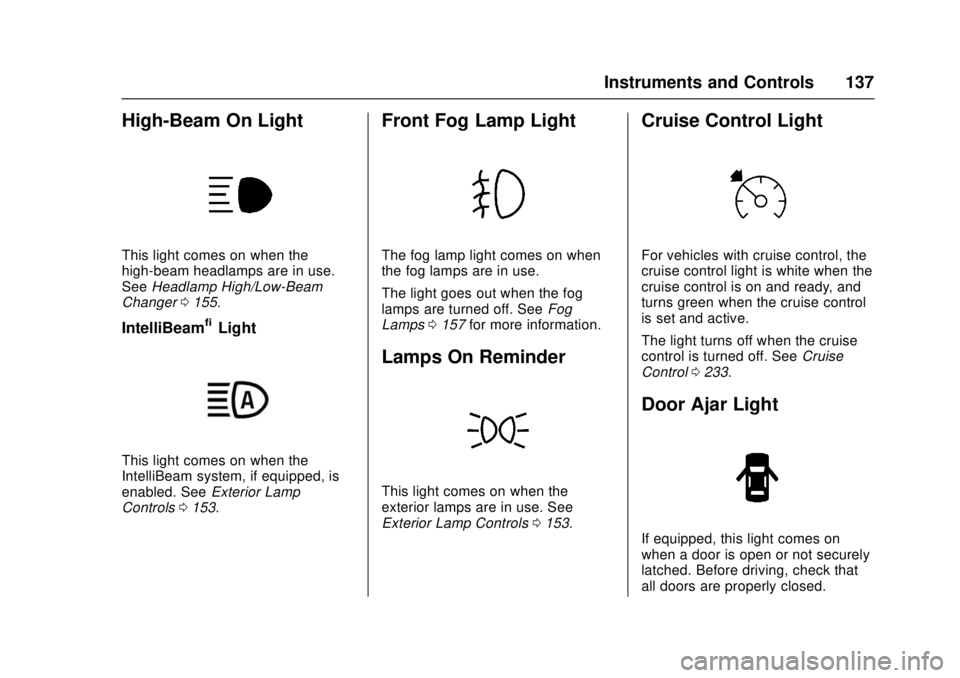

Instruments and Controls 137
High-Beam On Light
This light comes on when the
high-beam headlamps are in use.
SeeHeadlamp High/Low-Beam
Changer 0155.
IntelliBeam®Light
This light comes on when the
IntelliBeam system, if equipped, is
enabled. See Exterior Lamp
Controls 0153.
Front Fog Lamp Light
The fog lamp light comes on when
the fog lamps are in use.
The light goes out when the fog
lamps are turned off. See Fog
Lamps 0157 for more information.
Lamps On Reminder
This light comes on when the
exterior lamps are in use. See
Exterior Lamp Controls 0153.
Cruise Control Light
For vehicles with cruise control, the
cruise control light is white when the
cruise control is on and ready, and
turns green when the cruise control
is set and active.
The light turns off when the cruise
control is turned off. See Cruise
Control 0233.
Door Ajar Light
If equipped, this light comes on
when a door is open or not securely
latched. Before driving, check that
all doors are properly closed.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17

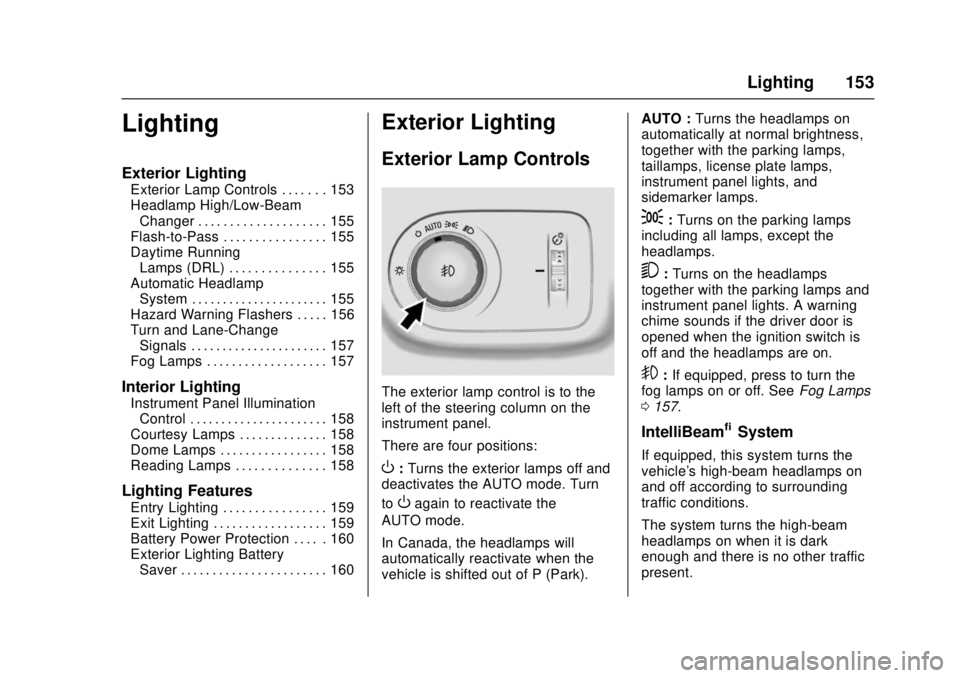

Lighting 153
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . 153
Headlamp High/Low-BeamChanger . . . . . . . . . . . . . . . . . . . . 155
Flash-to-Pass . . . . . . . . . . . . . . . . 155
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . 155
Automatic Headlamp System . . . . . . . . . . . . . . . . . . . . . . 155
Hazard Warning Flashers . . . . . 156
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . 157
Fog Lamps . . . . . . . . . . . . . . . . . . . 157
Interior Lighting
Instrument Panel Illumination Control . . . . . . . . . . . . . . . . . . . . . . 158
Courtesy Lamps . . . . . . . . . . . . . . 158
Dome Lamps . . . . . . . . . . . . . . . . . 158
Reading Lamps . . . . . . . . . . . . . . 158
Lighting Features
Entry Lighting . . . . . . . . . . . . . . . . 159
Exit Lighting . . . . . . . . . . . . . . . . . . 159
Battery Power Protection . . . . . 160
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 160
Exterior Lighting
Exterior Lamp Controls
The exterior lamp control is to the
left of the steering column on the
instrument panel.
There are four positions:
O: Turns the exterior lamps off and
deactivates the AUTO mode. Turn
to
Oagain to reactivate the
AUTO mode.
In Canada, the headlamps will
automatically reactivate when the
vehicle is shifted out of P (Park). AUTO :
Turns the headlamps on
automatically at normal brightness,
together with the parking lamps,
taillamps, license plate lamps,
instrument panel lights, and
sidemarker lamps.
;: Turns on the parking lamps
including all lamps, except the
headlamps.
5: Turns on the headlamps
together with the parking lamps and
instrument panel lights. A warning
chime sounds if the driver door is
opened when the ignition switch is
off and the headlamps are on.
9: If equipped, press to turn the
fog lamps on or off. See Fog Lamps
0 157.
IntelliBeam®System
If equipped, this system turns the
vehicle's high-beam headlamps on
and off according to surrounding
traffic conditions.
The system turns the high-beam
headlamps on when it is dark
enough and there is no other traffic
present.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17

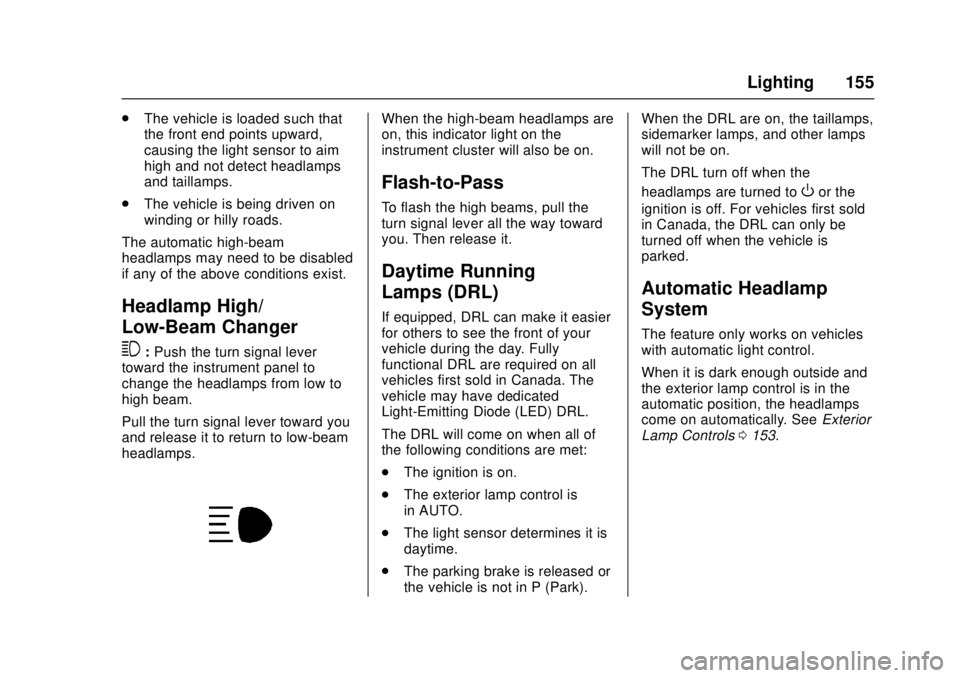

Lighting 155
.The vehicle is loaded such that
the front end points upward,
causing the light sensor to aim
high and not detect headlamps
and taillamps.
. The vehicle is being driven on
winding or hilly roads.
The automatic high-beam
headlamps may need to be disabled
if any of the above conditions exist.
Headlamp High/
Low-Beam Changer
3
: Push the turn signal lever
toward the instrument panel to
change the headlamps from low to
high beam.
Pull the turn signal lever toward you
and release it to return to low-beam
headlamps.
When the high-beam headlamps are
on, this indicator light on the
instrument cluster will also be on.
Flash-to-Pass
To flash the high beams, pull the
turn signal lever all the way toward
you. Then release it.
Daytime Running
Lamps (DRL)
If equipped, DRL can make it easier
for others to see the front of your
vehicle during the day. Fully
functional DRL are required on all
vehicles first sold in Canada. The
vehicle may have dedicated
Light-Emitting Diode (LED) DRL.
The DRL will come on when all of
the following conditions are met:
. The ignition is on.
. The exterior lamp control is
in AUTO.
. The light sensor determines it is
daytime.
. The parking brake is released or
the vehicle is not in P (Park). When the DRL are on, the taillamps,
sidemarker lamps, and other lamps
will not be on.
The DRL turn off when the
headlamps are turned to
Oor the
ignition is off. For vehicles first sold
in Canada, the DRL can only be
turned off when the vehicle is
parked.
Automatic Headlamp
System
The feature only works on vehicles
with automatic light control.
When it is dark enough outside and
the exterior lamp control is in the
automatic position, the headlamps
come on automatically. See Exterior
Lamp Controls 0153.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
396 Index
Fuel (cont'd)Cold Weather Operation . . . . . . 250
Diesel Engines . . . . . . . . . . . . . . . 246
Economy Driving . . . . . . . . . . . . . . . 28
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 256
Filling the Tank . . . . . . . . . . . . . . . 254
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Filter Replacement . . . . . . . . . . . 254
Foreign Countries . . . . . . . . . . . . 245
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 126
Low Fuel Warning Light . . . . . . . 136
Requirements, California . . . . . 245
Running out of Fuel . . . . . . . . . . . 253
Water in Fuel . . . . . . . . . . . . . . . . . 250
What to Use in the U.S. . . . . . . 246
Fuel for Diesel Engines . . . . . . . . . 246
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 291
Fuses and Circuit Breakers . . . 290
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 295
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 283
GaugesEngine Coolant
Temperature . . . . . . . . . . . . . . . . 127 Gauges (cont'd)
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Odometer . . . . . . . . . . . . . . . . . . . . . 125
Speedometer . . . . . . . . . . . . . . . . . 125
Tachometer . . . . . . . . . . . . . . . . . . . 125
Trip Odometer . . . . . . . . . . . . . . . . 125
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . .119
General Information
Service and Maintenance . . . . . 349
Towing . . . . . . . . . . . . . . . . . . . . . . . . 257
Vehicle Care . . . . . . . . . . . . . . . . . . 259
Glove Box . . . . . . . . . . . . . . . . . . . . . . 107
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 371
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 284
Hands-Free Phone . . . . . . . . . . . . . 181
Hazard Warning Flashers . . . . . . . 156
Head Restraints . . . . . . . . . . . . . . . . . 61
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 284
Automatic . . . . . . . . . . . . . . . . . . . . . 155
Bulb Replacement . . . . . . . 284, 285
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 155
Flash-to-Pass . . . . . . . . . . . . . . . . . 155 Headlamps (cont'd)
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 285
High-Beam On Light . . . . . . . . . . 137
High/Low Beam Changer . . . . . 155
Lamps On Reminder . . . . . . . . . 137
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 68
Steering Wheel . . . . . . . . . . . . . . . . 111
Heated Front Seats . . . . . . . . . . . . . . 64
Heated Mirrors . . . . . . . . . . . . . . . . . . . 55
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 213
Heating . . . . . . . . . . . . . . .186, 188, 190
High-Beam On Light . . . . . . . . . . . . 137
High-Speed Operation . . . . . . . . . . 306
Hill and Mountain Roads . . . . . . . . 200
Home Page . . . . . . . . . . . . . . . . . . . . . 164
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 261
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 70
HVAC . . . . . . . . . . . . . . . . .186, 188, 190
Hydraulic Clutch . . . . . . . . . . . . . . . . 270

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Index 397
I
Ignition Positions . . . . . . . . . . 206, 208
Ignition Transmission LockCheck . . . . . . . . . . . . . . . . . . . . . . . . . 281
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 53
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . 133
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 89
Infotainment . . . . . . . . . . . . . . . . . . . . 161
Infotainment System . . . . . . . . . . . . 380
Instrument Cluster . . . . . . . . . . . . . . 120
Instrument Panel Overview . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . 55
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . . . 333
K
Keyless EntryRemote (RKE) System . . . . . 34, 36
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
L
Labeling, Tire Sidewall . . . . . . . . . . 300
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 158
Daytime Running (DRL) . . . . . . 155 Lamps (cont'd)
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 158
Exterior Controls . . . . . . . . . . . . . . 153
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 160
License Plate . . . . . . . . . . . . . . . . . 289
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 130
On Reminder . . . . . . . . . . . . . . . . . 137
Reading . . . . . . . . . . . . . . . . . . . . . . 158
Taillamps and Back-up . . . . . . . 286
Lane Change Alert (LCA) . . . . . . . 240
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 242
Lane Keep Assist (LKA) . . . . . . . . 242
Lane Keep Assist Light . . . . . . . . . 133
Lap-Shoulder Belt . . . . . . . . . . . . . . . 71
LATCH System Replacing Parts after aCrash . . . . . . . . . . . . . . . . . . . . . . . 101
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 94
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 159
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Illumination Control . . . . . . . . . . . 158 Lights
Airbag Readiness . . . . . . . . . . . . . 128
Antilock Brake System
(ABS) Warning . . . . . . . . . . . . . . 132
Brake System Warning . . . . . . . 132
Charging System . . . . . . . . . . . . . 130
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . 130
Cruise Control . . . . . . . . . . . . . . . . 137
Diesel Exhaust Fluid (DEF) . . . 136
Door Ajar . . . . . . . . . . . . . . . . . . . . . 137
Engine Oil Pressure . . . . . . . . . . 135
Flash-to-Pass . . . . . . . . . . . . . . . . . 155
Front Fog Lamp . . . . . . . . . . . . . . 137
High-Beam On . . . . . . . . . . . . . . . . 137
High/Low Beam Changer . . . . . 155
Lane Keep Assist . . . . . . . . . . . . . 133
Low Fuel Warning . . . . . . . . . . . . 136
Seat Belt Reminders . . . . . . . . . . 128
Security . . . . . . . . . . . . . . . . . . . . . . 136
StabiliTrak OFF . . . . . . . . . . . . . . . 134
Tire Pressure . . . . . . . . . . . . . . . . . 135
Traction Control System (TCS)/StabiliTrak . . . . . . . . . . . . 134
Traction Off . . . . . . . . . . . . . . . . . . . 134
Up-Shift . . . . . . . . . . . . . . . . . . . . . . 133
Wait to Start . . . . . . . . . . . . . . . . . . 135
