Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Service and Maintenance 351
Engine Oil Change
When the CHANGE ENGINE OIL
SOON DIC message displays, have
the engine oil and filter changed
within the next 1 000 km/600 mi.
If driven under the best conditions,
the engine oil life system may not
indicate the need for vehicle service
for up to a year. The engine oil and
filter must be changed at least once
a year and the oil life system must
be reset. Your trained dealer
technician can perform this work.
If the engine oil life system is reset
accidentally, service the vehicle
within 5 000 km/3,000 mi since the
last service. Reset the oil life
system when the oil is changed.
SeeEngine Oil Life System 0268.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the
following services. See Tire
Rotation 0311. .
Check engine oil level and oil
life percentage. If needed,
change engine oil and filter, and
reset oil life system.
See Engine Oil 0265 and
Engine Oil Life System 0268.
. Check engine coolant level. See
Cooling System 0272.
. Check windshield washer fluid
level. See Washer Fluid 0276.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0339. Replace worn or
damaged wiper blades. See
Wiper Blade Replacement
0 282.
. Check tire inflation pressures.
See Tire Pressure 0305.
. Inspect tire wear. See Tire
Inspection 0311.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter
0 270.
. Inspect brake system. See
Exterior Care 0339. .
Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of
wear. See Exterior Care 0339.
. Check restraint system
components. See Safety System
Check 074.
. Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for
loose or damaged parts.
. Lubricate body components. See
Exterior Care 0339.
. Check starter switch. See Starter
Switch Check 0280.
. Check automatic transmission
shift lock control function. See
Automatic Transmission Shift
Lock Control Function Check
0281.
. Check ignition transmission lock.
See Ignition Transmission Lock
Check 0281.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Service and Maintenance 353
Maintenance Schedule
Additional Required
Services - Normal12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Inspect evaporative control system. (2)@ @@
Diesel Engine Only: Replace fuel filter. (3)@@@@@
Replace engine air cleaner filter. (4)@ @@
Replace spark plugs. Inspect ignition coil boots.@ @
Drain and fill engine cooling system. (5)@
Visually inspect accessory drive belts. (6)@
Replace brake fluid. If equipped with an automatic
transmission. (7)
Replace brake/clutch fluid. If equipped with
manual transmission. (8)
Footnotes—Maintenance
Schedule Additional Required
Services - Normal
(1) Or every two years, whichever
comes first. More frequent
passenger compartment air filter
replacement may be needed if driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filter
replacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.
(2)
Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Service and Maintenance 355
Maintenance Schedule
Additional Required
Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi
60 000 km/37,500 mi
72 000 km/45,000 mi
84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi
120 000 km/75,000 mi
132 000 km/82,500 mi
144 000 km/90,000 mi
156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi
204 000 km/127,500 mi
216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services.
Check engine oil level and oil life percentage.
Change engine oil and filter, if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Inspect evaporative control system. (2)@ @@
Diesel Engine Only: Replace fuel filter. (3)@@@@@
Replace engine air cleaner filter. (4)@ @@
Change automatic transmission fluid.@@@
Change manual transmission fluid.@@@
Replace spark plugs. Inspect ignition coil boots.@ @
Drain and fill engine cooling system. (5)@
Visually inspect accessory drive belts. (6)@
Replace brake fluid. If equipped with an automatic
transmission. (7)
Replace brake/clutch fluid. If equipped with
manual transmission. (8)
Footnotes—Maintenance
Schedule Additional Required
Services - Severe
(1) Or every two years, whichever
comes first. More frequent passenger compartment air filter
replacement may be needed if
driving in areas with heavy traffic,
poor air quality, high dust levels,
or environmental allergens.
Passenger compartment air filterreplacement may also be needed if
there is reduced airflow, window
fogging, or odors. Your GM dealer
can help determine when to replace
the filter.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17

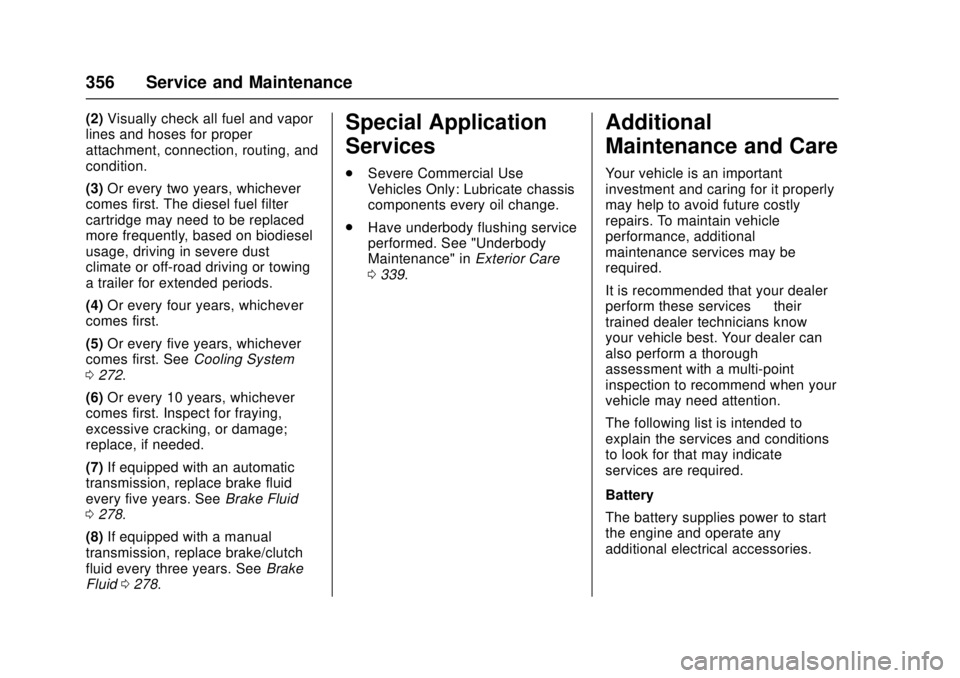

356 Service and Maintenance
(2)Visually check all fuel and vapor
lines and hoses for proper
attachment, connection, routing, and
condition.
(3) Or every two years, whichever
comes first. The diesel fuel filter
cartridge may need to be replaced
more frequently, based on biodiesel
usage, driving in severe dust
climate or off-road driving or towing
a trailer for extended periods.
(4) Or every four years, whichever
comes first.
(5) Or every five years, whichever
comes first. See Cooling System
0 272.
(6) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage;
replace, if needed.
(7) If equipped with an automatic
transmission, replace brake fluid
every five years. See Brake Fluid
0 278.
(8) If equipped with a manual
transmission, replace brake/clutch
fluid every three years. See Brake
Fluid 0278.Special Application
Services
.
Severe Commercial Use
Vehicles Only: Lubricate chassis
components every oil change.
. Have underbody flushing service
performed. See "Underbody
Maintenance" in Exterior Care
0 339.
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services —their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention.
The following list is intended to
explain the services and conditions
to look for that may indicate
services are required.
Battery
The battery supplies power to start
the engine and operate any
additional electrical accessories.

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Service and Maintenance 357
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
. A message may indicate when
scheduled maintenance on the
timing belt and other
components is required.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0359 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
392 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 260
Accessory Power . . . . . . . . . . . . . . . 215
Add-On Electrical Equipment . . . 257
Additional Information OnStar . . . . . . . . . . . . . . . . . . . . . . . 387
Additional Maintenance and Care . . . . . . . . . . . . . . . . . . . . . . 356
Agreements
Trademarks and License . . . . . 184
Air Cleaner/Filter, Engine . . . . . . . 270
Air Conditioning . . . . . .186, 188, 190
Air Filter, Passenger Compartment . . . . . . . . . . . . . . . . . 194
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 193
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 86
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 80
Passenger Sensing System . . . . 81
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 79
What Will You See after an
Airbag Inflates? . . . . . . . . . . . . . . . 80
When Should an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 78
Where Are the Airbags? . . . . . . . . 77 Airbags
Adding Equipment to the
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . 86
Passenger Status Indicator . . . 129
Readiness Light . . . . . . . . . . . . . . 128
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 85
System Check . . . . . . . . . . . . . . . . . . 75
Alarm Vehicle Security . . . . . . . . . . . . . . . . 51
Alert
Lane Change . . . . . . . . . . . . . . . . . 240
Side Blind Zone (SBZA) . . . . . . 240
All-Season Tires . . . . . . . . . . . . . . . . 298
AM-FM Radio . . . . . . . . . . . . . . . . . . . 166
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . 169
Antilock Brake System (ABS) . . . 228 Warning Light . . . . . . . . . . . . . . . . . 132
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 339
Interior . . . . . . . . . . . . . . . . . . . . . . . . 344
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . 181
Assistance Program,
Roadside . . . . . . . . . . . . . . . . . . . . . . 371
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 238

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Index 393
Assistance Systems forParking and Backing . . . . . . . . . . 236
Audio Theft-Deterrent Feature . . . . . . . 162
Automatic Climate Control System . . . . . . . 190
Door Locks . . . . . . . . . . . . . . . . . . . . . 46
Headlamp System . . . . . . . . . . . . 155
Transmission . . . . . . . . . . . . . . . . . 224
Transmission Fluid . . . . . . . . . . . 269
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . 226
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . 281
Auxiliary Devices . . . . . . . . . . . . . . . . . . . . . . . 175
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . 169
B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 160
Power Protection . . . . . . . . . . . . . 160
Battery - North America . . . . 279, 333
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . 249
Blade Replacement, Wiper . . . . . 282
Bluetooth Overview . . . . . . . . . . . . . . . . 176, 177 Brake
System Warning Light . . . . . . . . 132
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 277 Antilock . . . . . . . . . . . . . . . . . . . . . . . 228
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 231
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Parking . . . . . . . . . . . . . . . . . . . . . . . 229
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 197
Break-In, New Vehicle . . . . . . . . . . 206
Bulb Replacement Halogen Bulbs . . . . . . . . . . . . . . . . 284
Headlamp Aiming . . . . . . . . . . . . . 284
Headlamps . . . . . . . . . . . . . . . . . . . 284
Headlamps and Front Turn
Signal . . . . . . . . . . . . . . . . . . . . . . . 285
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 285
License Plate Lamps . . . . . . . . . 289
Taillamps and Back-up Lamps . . . . . . . . . . . . . . . . . . . . . . 286
Buying New Tires . . . . . . . . . . . . . . . 313
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 113
California Fuel Requirements . . . . . . . . . . . 245 California (cont'd)
Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 260
California
Proposition
65 Warning . . . . . . . . . .259, 279, 333, Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 364
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 217
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 50
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Winter Driving . . . . . . . . . . . . . . . . 201
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . 107
Chains, Tire . . . . . . . . . . . . . . . . . . . . 317
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . .117
Charging System Light . . . . . . . . . 130
Check Engine Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 130
Ignition Transmission Lock . . . 281
Child Restraints Infants and Young Children . . . . . 89

Chevrolet Cruze Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11348462) - 2018 - crc - 5/15/17
Index 395
Driving (cont'd)Defensive . . . . . . . . . . . . . . . . . . . . . 197
Drunk . . . . . . . . . . . . . . . . . . . . . . . . . 197
For Better Fuel Economy . . . . . . . 28
Hill and Mountain Roads . . . . . . 200
If the Vehicle is Stuck . . . . . . . . . 202
Loss of Control . . . . . . . . . . . . . . . 199
Off-Road Recovery . . . . . . . . . . . 198
Vehicle Load Limits . . . . . . . . . . . 202
Wet Roads . . . . . . . . . . . . . . . . . . . 199
Winter . . . . . . . . . . . . . . . . . . . . . . . . 201
E
Electrical Equipment,
Add-On . . . . . . . . . . . . . . . . . . . . . . . 257
Electrical System Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 291
Fuses and Circuit Breakers . . . 290
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 295
Overload . . . . . . . . . . . . . . . . . . . . . 290
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . 382
Engine Air Cleaner/Filter . . . . . . . . . . . . . 270
Check Light (MalfunctionIndicator) . . . . . . . . . . . . . . . . . . . . 130
Compartment Overview . . . . . . . 262 Engine (cont'd)
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 127
Cooling System . . . . . . . . . . . . . . . 272
Drive Belt Routing . . . . . . . . . . . . 366
Exhaust . . . . . . . . . . . . . . . . . . . . . . 217
Heater . . . . . . . . . . . . . . . . . . . . . . . . 213
Oil Life System . . . . . . . . . . . . . . . 268
Oil Pressure Light . . . . . . . . . . . . 135
Overheating . . . . . . . . . . . . . . . . . . 275
Power Messages . . . . . . . . . . . . . 144
Running While Parked . . . . . . . . 218
Starting . . . . . . . . . . . . . . . . . . . . . . . 209
Engines
Diesel Fuel . . . . . . . . . . . . . . . . . . . 246
Entry Lighting . . . . . . . . . . . . . . . . . . . 159
Event Data Recorders . . . . . . . . . . 379
Exhaust Fluid Diesel . . . . . . . . . . . . . . . . . . . . . . . . 219
Exit Lighting . . . . . . . . . . . . . . . . . . . . 159
Extended Parking . . . . . . . . . . . . . . . 216
Extender, Seat Belt . . . . . . . . . . . . . . 74
Exterior Lamp Controls . . . . . . . . . 153
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 160
F
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 280 Filter (cont'd)
Replacement (Fuel) . . . . . . . . . . . 254
Filter, Engine Air Cleaner . . . . . . . . . . . 270
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 155
Flashers, Hazard Warning . . . . . . 156
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 318 Changing . . . . . . . . . . . . . . . . . . . . . 326
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 347
Fluid
Automatic Transmission . . . . . . 269
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 278
Diesel Exhaust . . . . . . . . . . . . . . . . . 29
Washer . . . . . . . . . . . . . . . . . . . . . . . 276
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 157
Folding Mirrors . . . . . . . . . . . . . . . . . . 55
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 238
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 377
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 62
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244 Additives . . . . . . . . . . . . . . . . . . . . . 245
Biodiesel . . . . . . . . . . . . . . . . . . . . . 249
