2018 CHEVROLET BOLT EV service indicator

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18
230 Driving and Operating
directly in front of the vehicle, the
pedestrian ahead indicator will
display amber.
Front Pedestrian Alert
When the vehicle approaches a
pedestrian ahead too rapidly, the
red FPB alert display will flash on
the windshield. Eight rapid
high-pitched beeps will sound from
the front. When this Pedestrian Alert
occurs, the brake system may
prepare for driver braking to occur
more rapidly which can cause a
brief, mild deceleration. Continue to
apply the brake pedal as needed.
Cruise control may be disengaged
when the Front Pedestrian Alert
occurs.
Automatic Braking
If FPB detects it is about to crash
into a pedestrian directly ahead, and
the brakes have not been applied,
FPB may automatically brake
moderately or brake hard. This can
help to avoid some very low speed
pedestrian crashes or reduce
pedestrian injury. FPB can
automatically brake to detected
pedestrians between 8 km/h (5 mph)
and 80 km/h (50 mph). Automatic
braking levels may be reduced
under certain conditions, such as
higher speeds.
If this happens, Automatic Braking
may engage the Electric Parking
Brake (EPB) to hold the vehicle at a
stop. Release the EPB. A firm press
of the accelerator pedal will also
release Automatic Braking and
the EPB.{Warning
FPB may alert or automatically
brake the vehicle suddenly in
situations where it is unexpected
and undesired. It could falsely
alert or brake for objects similar in
shape or size to pedestrians,
including shadows. This is normal
operation and the vehicle does
not need service. To override
Automatic Braking, firmly press
the accelerator pedal, if it is safe
to do so.
Automatic Braking can be disabled
through vehicle personalization. See
“Front Pedestrian Detection” in
“Collision/Detection Systems” under
Vehicle Personalization 0143.
Cleaning the System
If FPB does not seem to operate
properly, cleaning the outside of the
windshield in front of the rearview
mirror may correct the issue.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18

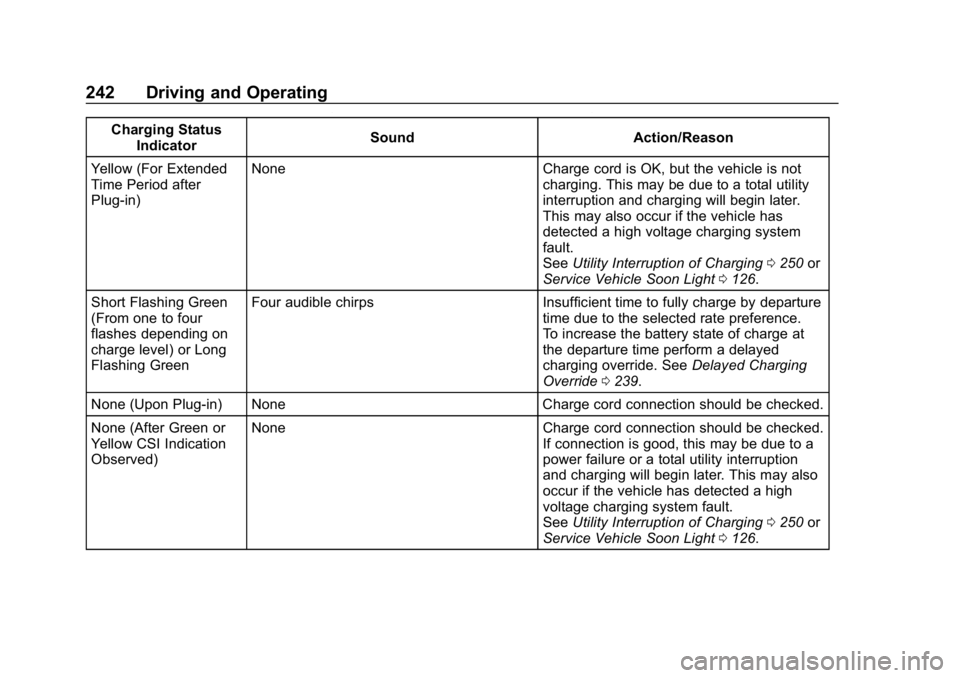

242 Driving and Operating
Charging StatusIndicator Sound Action/Reason
Yellow (For Extended
Time Period after
Plug-in) None Charge cord is OK, but the vehicle is not
charging. This may be due to a total utility
interruption and charging will begin later.
This may also occur if the vehicle has
detected a high voltage charging system
fault.
SeeUtility Interruption of Charging 0250 or
Service Vehicle Soon Light 0126.
Short Flashing Green
(From one to four
flashes depending on
charge level) or Long
Flashing Green Four audible chirps Insufficient time to fully charge by departure
time due to the selected rate preference.
To increase the battery state of charge at
the departure time perform a delayed
charging override. SeeDelayed Charging
Override 0239.
None (Upon Plug-in) None Charge cord connection should be checked.
None (After Green or
Yellow CSI Indication
Observed) None Charge cord connection should be checked.
If connection is good, this may be due to a
power failure or a total utility interruption
and charging will begin later. This may also
occur if the vehicle has detected a high
voltage charging system fault.
SeeUtility Interruption of Charging 0250 or
Service Vehicle Soon Light 0126.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18
244 Driving and Operating
A portable charge cord used to
charge the vehicle high voltage
battery is stored under the load floor
in the rear cargo area.
1. Wall Plug
2. Status Indicators
3. Vehicle Plug
4. Release Button
Important Information about
Portable Electric Vehicle Charging
.Charging an electric vehicle can
stress a building’ s electrical
system more than a typical
household appliance.
. Before plugging into any
electrical outlet, have a qualified
electrician inspect and verify the
electrical system (electrical
outlet, wiring, junctions, and
protection devices) for
heavy-duty service at a 12 amp
continuous load.
. Electrical outlets may wear out
with normal usage or may be
damaged over time, making
them unsuitable for electric
vehicle charging. .
Check the electrical outlet/plug
while charging and discontinue
use if the electrical outlet/plug is
hot, then have the electrical
outlet serviced by a qualified
electrician.
. When outdoors, plug into an
electrical outlet that is
weatherproof while in use.
. Mount the charge cord to reduce
strain on the electrical
outlet/plug.
. Do not place the charge cord in
a position where it is expected to
be submerged in water.
{Danger
Improper use of portable electric
vehicle charge cords may cause
a fire, electrical shock, or burns,
and may result in damage to
property, serious injury, or death.
(Continued)

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18
248 Driving and Operating
OPSymbol Fault/Condition/Event
(Off (No Light)nFlashing RedRb
Vehicle Fault: The charge cord ground-fault circuit interrupter
(GFCI) has tripped. Ensure that there is no physical damage
to the charge cord, and that the vehicle plug is seated
completely and making a good connection. Reset the charge
cord by unplugging it from the electrical outlet and
re-plugging it. If the fault remains, see an authorized dealer
for service.
OSolid GreennFlashing RedR m
Charge Cord Fault: The charge cord has detected a potential
problem with the charge cord. Reset the charge cord by
unplugging it from the electrical outlet and re-plugging it.
If the fault remains, see an authorized dealer for service.
If no status indicators are lit, ensure
the electrical outlet is powered.
Charge Limit Selection
Charge level selection can be made
using the Charge Mode tab on the
Charging screen on the infotainment
display. See “Charge Current Limit
Selection” underProgrammable
Charging 0131.
{Warning
Using a charge level that exceeds
the electrical circuit or electrical
outlet capacity may start a fire or
damage the electrical circuit. Use
the lowest charge level until a
qualified electrician inspects the
electrical circuit capacity. Use the
(Continued)
Warning (Continued)
lowest charge level if the
electrical circuit or electrical outlet
capacity is not known.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18
262 Vehicle Care
Caution
.Do not use washer fluid that
contains any type of water
repellent coating. This can
cause the wiper blades to
chatter or skip.
. Do not use engine coolant
(antifreeze) in the
windshield washer. It can
damage the windshield
washer system and paint.
. Do not mix water with
ready-to-use washer fluid.
Water can cause the
solution to freeze and
damage the washer fluid
tank and other parts of the
washer system.
. When using concentrated
washer fluid, follow the
manufacturer instructions for
adding water.
. Fill the washer fluid tank
only three-quarters full when
it is very cold. This allows
(Continued)
Caution (Continued)
for fluid expansion if
freezing occurs, which could
damage the tank if it is
completely full.
Brakes
Disc brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake pads
are worn and new pads are needed.
The sound can come and go or can
be heard all the time when the
vehicle is moving, except when
applying the brake pedal firmly.
{Warning
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
a crash. When the brake wear
warning sound is heard, have the
vehicle serviced.
Caution
Continuing to drive with worn-out
brake pads could result in costly
brake repair.
Some driving conditions or climates
can cause a brake squeal when the
brakes are first applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent brake
pulsation. When tires are rotated,
inspect brake pads for wear and
evenly tighten wheel nuts in the
proper sequence to torque
specifications. See Capacities and
Specifications 0331.
Brake pads should be replaced as
complete sets.
Brake Pedal Travel
See your dealer if the brake pedal
does not return to normal height,
or if there is a rapid increase in
pedal travel. This could be a sign
that brake service may be required.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18
326 Service and Maintenance
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
.Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs
of leaking, blown seals,
or damage, and can advise
when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and
reduce the risk of tire failure.
. Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord
or fabric showing through the
rubber; cracks or cuts in the
tread or sidewall; or a bulge or
split in the tire. .
Trained dealer technicians can
inspect and recommend the right
tires. Your dealer can also
provide tire/wheel balancing
services to ensure smooth
vehicle operation at all speeds.
Your dealer sells and services
name brand tires.
Vehicle Care
To help keep the vehicle looking like
new, vehicle care products are
available from your dealer. For
information on how to clean and
protect the vehicle’s interior and
exterior, see Interior Care 0316 and
Exterior Care 0311.
Wheel Alignment
Wheel alignment is critical for
ensuring that the tires deliver
optimal wear and performance.
. Signs that the alignment may
need to be adjusted include
pulling, improper vehicle
handling, or unusual tire wear.
. Your dealer has the required
equipment to ensure proper
wheel alignment. Windshield
For safety, appearance, and the
best viewing, keep the windshield
clean and clear.
.
Signs of damage include
scratches, cracks, and chips.
. Trained dealer technicians can
inspect the windshield and
recommend proper replacement
if needed.
Wiper Blades
Wiper blades need to be cleaned
and kept in good condition to
provide a clear view.
. Signs of wear include streaking,
skipping across the windshield,
and worn or split rubber.
. Trained dealer technicians can
check the wiper blades and
replace them when needed.

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18
362 Index
General InformationService and Maintenance . . . . . 321
Towing . . . . . . . . . . . . . . . . . . . . . . . . 252
Vehicle Care . . . . . . . . . . . . . . . . . . 255
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . 336
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 269
Hands-Free Phone . . . . . . . . . . . . . 178
Hazard Warning Flashers . . . . . . . 153
Head Restraints . . . . . . . . . . . . . . . . . 57
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . 269
Automatic . . . . . . . . . . . . . . . . . . . . . 153
Bulb Replacement . . . . . . . . . . . . 269
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 152
Flash-to-Pass . . . . . . . . . . . . . . . . . 152
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 269
High-Beam On Light . . . . . . . . . . 130
High/Low Beam Changer . . . . . 152
Lamps On Reminder . . . . . . . . . 130
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . 64
Steering Wheel . . . . . . . . . . . . . . . .110
Heated Front Seats . . . . . . . . . . . . . . 60 Heating . . . . . . . . . . . . . . . . . . . . . . . . . 186
High Voltage Battery Gauge . . . . 122
High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 271
High-Beam On Light . . . . . . . . . . . . 130
Hill and Mountain Roads . . . . . . . . 198
Hill Start Assist (HSA) . . . . . . . . . . 215
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
How to Wear Seat Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 66
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
I
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 48
Indicator Pedestrian Ahead . . . . . . . . . . . . 128
Vehicle Ahead . . . . . . . . . . . . . . . . 128
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 85
Information
Energy . . . . . . . . . . . . . . . . . . . . . . . 138
Instrument Cluster . . . . . . . . . . . . . . 118
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . 105
Interior Rearview Mirrors . . . . . . . . . 51
Introduction . . . . . . . . . . . . . . . . . . 2, 157
J
Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . . . 304
K
Keyless EntryRemote (RKE) System . . . . . . . . . 33
KeyPass . . . . . . . . . . . . . . . . . . . . . . . . . 45
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
L
Labeling, Tire Sidewall . . . . . . . . . . 280
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . 155
Daytime Running (DRL) . . . . . . 152
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 155
Exterior Controls . . . . . . . . . . . . . . 150
Exterior Lamps OffReminder . . . . . . . . . . . . . . . . . . . 152
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . 156
License Plate . . . . . . . . . . . . . . . . . 270
On Reminder . . . . . . . . . . . . . . . . . 130
Reading . . . . . . . . . . . . . . . . . . . . . . 155
Lane Change Alert (LCA) . . . . . . . 231
Lane Departure
Warning (LDW) . . . . . . . . . . . . . . . . 233
Lane Keep Assist (LKA) . . . . . . . . 233
Lane Keep Assist Light . . . . . . . . . 127

Chevrolet BOLT EV Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11434431) - 2018 - crc - 2/14/18
364 Index
N
NavigationOnStar . . . . . . . . . . . . . . . . . . . . . . . 348
New Vehicle Break-In . . . . . . . . . . . 203
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 121 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 196
Older Children, Restraints . . . . . . . 83
Online Owner Center . . . . . . . . . . . 335
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 345
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 352
OnStar Connections . . . . . . . . . . . . 349
OnStar Diagnostics . . . . . . . . . . . . . 351
OnStar Emergency . . . . . . . . . . . . . 347
OnStar Navigation . . . . . . . . . . . . . . 348
OnStar Overview . . . . . . . . . . . . . . . 346
OnStar Security . . . . . . . . . . . . . . . . 348
OnStar System . . . . . . . . . . . . . . . . . 175
Operation Infotainment System . . . . . . . . . . 159
Ordering Service Publications . . . . . . . . . . 341
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . .114 Overview . . . . . . . . . . . . . . . . . . . . . . . 158
Underhood Compartment . . . . . 259
Owner Checks and Services . . . . 324
P
Park Shifting Into . . . . . . . . . . . . . . . . . . . 206
Shifting Out of . . . . . . . . . . . . . . . . 207
Parking Extended . . . . . . . . . . . . . . . . . . . . . 207
Parking Assist . . . . . . . . . . . . . . . . . . 222
Parking or Backing Assistance Systems . . . . . . . . . . 222
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 125
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Passenger Sensing System . . . . . 77
Pedestrian Ahead Indicator . . . . . 128
Pedestrian Safety Signal . . . . . . . 110
Perchlorate Materials Requirements, California . . . . . . 256
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 143
Phone Apple CarPlay and
Android Auto . . . . . . . . . . . . . . . . 177
Bluetooth . . . . . . . . . . . . . . . . . . . . . 175 Phone (cont'd)
Hands-Free . . . . . . . . . . . . . . . . . . . 178
Plug-In Charging . . . . . . . . . . . . . . . 235
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Power Button . . . . . . . . . . . . . . . . . . . . . . . . 204
Door Locks . . . . . . . . . . . . . . . . . . . . . 43
Flows . . . . . . . . . . . . . . . . . . . . . . . . . 131
Indicator Gauge . . . . . . . . . . . . . . 123
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Outlets . . . . . . . . . . . . . . . . . . . . . . . .114
Protection, Battery . . . . . . . . . . . . 156
Retained Accessory (RAP) . . . 206
Windows . . . . . . . . . . . . . . . . . . . . . . . 53
Pregnancy, Using Seat Belts . . . . 69
Privacy Vehicle Data Recording . . . . . . . 344
Program Courtesy Transportation . . . . . . 338
Programmable Charging . . . . . . . . 131
Proposition 65 Warning,
California . . . . . . . . . . . .255, 264, 304,
Back Cover
Propulsion Power Messages . . . 143
