2018 CADILLAC CTS fuel filter

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
IN BRIEF 27
as 87 may be used, but it will reduce
performance and fuel economy. See
Fuel0242.
Fuel (LF3 3.6L V6 Twin
Turbo and LT4 6.2L
V8 Engines)
Premium Required Fuel
Use premium 93 octane unleaded
gasoline in your vehicle. Unleaded
gasoline with a 91 octane rating may
be used, but it will reduce
performance and fuel economy. See
Fuel 0242.
E85 or FlexFuel
No E85 or FlexFuel
Gasoline-ethanol fuel blends greater
than E15 (15% ethanol by volume),
such as E85, cannot be used in this
vehicle.
Engine Oil Life System
The engine oil life system calculates
engine oil life based on vehicle use
and displays the CHANGE ENGINE
OIL SOON message when it is time to
change the engine oil and filter. The
oil life system should be reset to 100%
only following an oil change.
Resetting the Oil Life System
1. Using the DIC buttons, display REMAINING OIL LIFE on the
DIC. See Driver Information Center
(DIC) 0137. 2. Press and hold SEL to clear the
CHANGE ENGINE OIL SOON
message and reset the oil life
at 100%.
Be careful not to reset the oil life
display accidentally at any time
other than after the oil is
changed. It cannot be reset
accurately until the next oil
change.
The oil life system can also be reset as
follows: 1. Using the DIC buttons, display REMAINING OIL LIFE on the
DIC. See Driver Information Center
(DIC) 0137.
2. Fully press and release the accelerator pedal three times
within five seconds.
If the CHANGE ENGINE OIL
SOON message is not on, the
system is reset.
See Engine Oil Life System 0265.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
SERVICE AND MAINTENANCE 339
Cadillac Premium Care
Maintenance
This vehicle comes with Cadillac
Premium Care Maintenance. It is a
maintenance program that covers
select services, when scheduled in
accordance with the owner’s manual,
including:
.Oil changes based on the vehicle's
oil life monitor system.
. Tire rotation every 12 000 km
(7,500 mi).
. Passenger compartment air filter
replacement.
. Multi-point vehicle inspection
(MPVI) performed by a qualified
technician.
Cadillac requires that all Cadillac
Premium Care Maintenance services
be performed by a Cadillac authorized
service dealer.
Maintenance Schedule
Owner Checks and Services
At Each Fuel Stop
. Check the engine oil level. See
Engine Oil 0263.
Once a Month
. Check the tire inflation pressures.
See Tire Pressure 0301.
. Inspect the tires for wear. See Tire
Inspection 0307.
. Check the windshield washer fluid
level. See Washer Fluid 0275.
Engine Oil Change
When the CHANGE ENGINE OIL
SOON message displays, have the
engine oil and filter changed within
the next 1 000 km/600 mi. If driven
under the best conditions, the engine
oil life system may not indicate the
need for vehicle service for up to a
year. The engine oil and filter must be
changed at least once a year and the
oil life system must be reset. Your
trained dealer technician can perform
this work. If the engine oil life system is reset accidentally, service the
vehicle within 5 000 km/3,000 mi since
the last service. Reset the oil life
system when the oil is changed. See
Engine Oil Life System
0265.
Tire Rotation and Required
Services Every 12 000 km/
7,500 mi
Rotate the tires, if recommended for
the vehicle, and perform the following
services. See Tire Rotation0307.
. Check engine oil level and oil
life percentage. If needed, change
engine oil and filter, and reset oil
life system. See Engine Oil0263
and Engine Oil Life System 0265.
. Check engine coolant level. See
Cooling System 0269.
. Check windshield washer fluid
level. See Washer Fluid 0275.
. Visually inspect windshield wiper
blades for wear, cracking,
or contamination. See Exterior
Care 0329. Replace worn or
damaged wiper blades. See Wiper
Blade Replacement 0280.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
340 SERVICE AND MAINTENANCE
.Check tire inflation pressures. See
Tire Pressure 0301.
. Inspect tire wear. See Tire
Inspection 0307.
. Visually check for fluid leaks.
. Inspect engine air cleaner filter.
See Engine Air Cleaner/Filter 0267.
. Inspect brake system. See Exterior
Care 0329.
. Visually inspect steering,
suspension, and chassis
components for damaged, loose,
or missing parts or signs of wear.
See Exterior Care 0329.
. Check restraint system
components. See Safety System
Check 075. .
Visually inspect fuel system for
damage or leaks.
. Visually inspect exhaust system
and nearby heat shields for loose
or damaged parts.
. Lubricate body components. See
Exterior Care 0329.
. Check starter switch. See Starter
Switch Check 0279.
. Check automatic transmission
shift lock control function. See
Automatic Transmission Shift Lock
Control Function Check 0280.
. Check parking brake and
automatic transmission park
mechanism. See Park Brake and
P (Park) Mechanism Check 0280. .
Check accelerator pedal for
damage, high effort, or binding.
Replace if needed.
. Visually inspect gas strut for signs
of wear, cracks, or other damage.
Check the hold open ability of the
strut. If the hold open is low,
service the gas strut. See Gas
Strut(s) 0281.
. Inspect sunroof track and seal,
if equipped. See Sunroof053.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
342 SERVICE AND MAINTENANCE

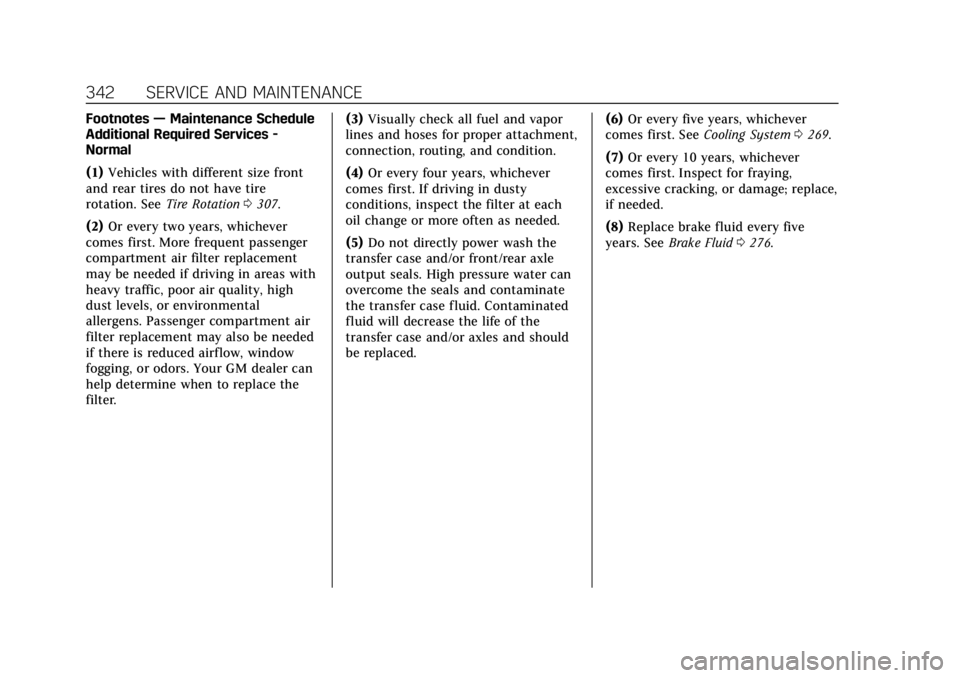

Footnotes—Maintenance Schedule
Additional Required Services -
Normal
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0307.
(2) Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air
filter replacement may also be needed
if there is reduced airf low, window
fogging, or odors. Your GM dealer can
help determine when to replace the
filter. (3)
Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition.
(4) Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate
the transfer case fluid. Contaminated
fluid will decrease the life of the
transfer case and/or axles and should
be replaced. (6)
Or every five years, whichever
comes first. See Cooling System0269.
(7) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(8) Replace brake fluid every five
years. See Brake Fluid 0276.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
344 SERVICE AND MAINTENANCE
Footnotes—Maintenance Schedule
Additional Required Services -
Severe
(1) Vehicles with different size front
and rear tires do not have tire
rotation. See Tire Rotation0307.
(2) Or every two years, whichever
comes first. More frequent passenger
compartment air filter replacement
may be needed if driving in areas with
heavy traffic, poor air quality, high
dust levels, or environmental
allergens. Passenger compartment air
filter replacement may also be needed
if there is reduced airf low, window
fogging, or odors. Your GM dealer can
help determine when to replace the
filter.
(3) Visually check all fuel and vapor
lines and hoses for proper attachment,
connection, routing, and condition. (4)
Or every four years, whichever
comes first. If driving in dusty
conditions, inspect the filter at each
oil change or more often as needed.
(5) Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate
the transfer case fluid. Contaminated
fluid will decrease the life of the
transfer case and/or axles and should
be replaced.
(6) Or every five years, whichever
comes first. See Cooling System0269.
(7) Or every 10 years, whichever
comes first. Inspect for fraying,
excessive cracking, or damage; replace,
if needed.
(8) Replace brake fluid every five
years. See Brake Fluid 0276.Special Application
Services
.
Severe Commercial Use Vehicles
Only: Lubricate chassis
components every oil change.
. Have underbody flushing service
performed. See "Underbody
Maintenance" in Exterior Care
0 329.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
354 TECHNICAL DATA
ApplicationCapacities
Metric English
Engine Oil with Filter
2.0L L4 Engine RWD 4.7 L 5.0 qt
2.0L L4 Engine AWD 5.7 L 6.0 qt
3.6L V6 Engine (LGX) RWD (without oil cooler) 5.2 L 5.5 qt
3.6L V6 Engine (LGX) RWD (with oil cooler) 5.7 L 6.0 qt
3.6L V6 Engine (LGX) AWD 6.15 L 6.5 qt
3.6L V6 Engine (LF3) 6.6 L 7.0 qt
6.2L V8 Engine (V-Series) 9.5 L 10.0 qt
Fuel Tank 72 L 19 gal
Transfer Case –AWD 0.8 L 0.8 qt
Rear Axle (with limited slip) 1.2 L 1.3 qt
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual.
Recheck fluid level after filling.

Cadillac CTS/CTS-V Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
11349156) - 2018 - CRC - 9/29/17
INDEX 385
Driving (cont'd)Track Events and Competitive . . . 180
Vehicle Load Limits . . . . . . . . . . . . . . 188
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . 185
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Dual Automatic Climate Control System . . . . . . . . . . . . . . . . . . . . 167
E
Electric Parking Brake . . . . . . . . . . . . . . 204
Electric Parking Brake Light . . . . . . . 130
Electrical Equipment, Add-On . . . . . 251
Electrical SystemEngine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Fuses and Circuit Breakers . . . . . . . 285
Instrument Panel Fuse Block . . . . 289
Overload . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Emergency OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . 267
Check Light (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . 128
Compartment Overview . . . . . . . . . . 256
Coolant Temperature Gauge . . . . . 124 Engine (cont'd)
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . . . . . 133
Cooling System . . . . . . . . . . . . . . . . . . . 269
Drive Belt Routing . . . . . . . . . . . . . . . . 356
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Oil Life System . . . . . . . . . . . . . . . . . . . . 265
Oil Pressure Light . . . . . . . . . . . . . . . . . 134
Overheating . . . . . . . . . . . . . . . . . . . . . . . 274
Power Messages . . . . . . . . . . . . . . . . . . 143
Running While Parked . . . . . . . . . . . 200
Starting . . . . . . . . . . . . . . . . . . . . . . . . 20, 194
Engine Oil
Temperature Gauge . . . . . . . . . . . . . . . 124
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . 159
Equipment, Towing . . . . . . . . . . . .250, 251
Event Data Recorders . . . . . . . . . . . . . . 369
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . 159
Extended Parking . . . . . . . . . . . . . . . . . . . 199
Extender, Seat Belt . . . . . . . . . . . . . . . . . . 75
Exterior Lamp Controls . . . . . . . . . . . . 153
Exterior Lamps Off Reminder . . . . . . 155
Exterior Lighting Battery Saver . . . . 160
F
Features Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Filter,
Engine Air Cleaner . . . . . . . . . . . . . . . . 267
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . 155
Flashers, Hazard Warning . . . . . . . . . . 157
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Fluid Automatic Transmission . . . . . . . . . 266
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 275
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 47
Forward Automatic Braking . . . . . . . . 235
Forward Collision Alert (FCA)
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
Front Seats Heated and Ventilated . . . . . . . . . . . . . 64
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242 Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Economy Driving . . . . . . . . . . . . . . . . . . . 28
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . . . . . . 246
Filling the Tank . . . . . . . . . . . . . . . . . . . 244
Foreign Countries . . . . . . . . . . . . . . . . . 244
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Low Fuel Warning Light . . . . . . . . . 134
Requirements, California . . . . . . . . . 243
