2018 BMW X5 Owners Manual

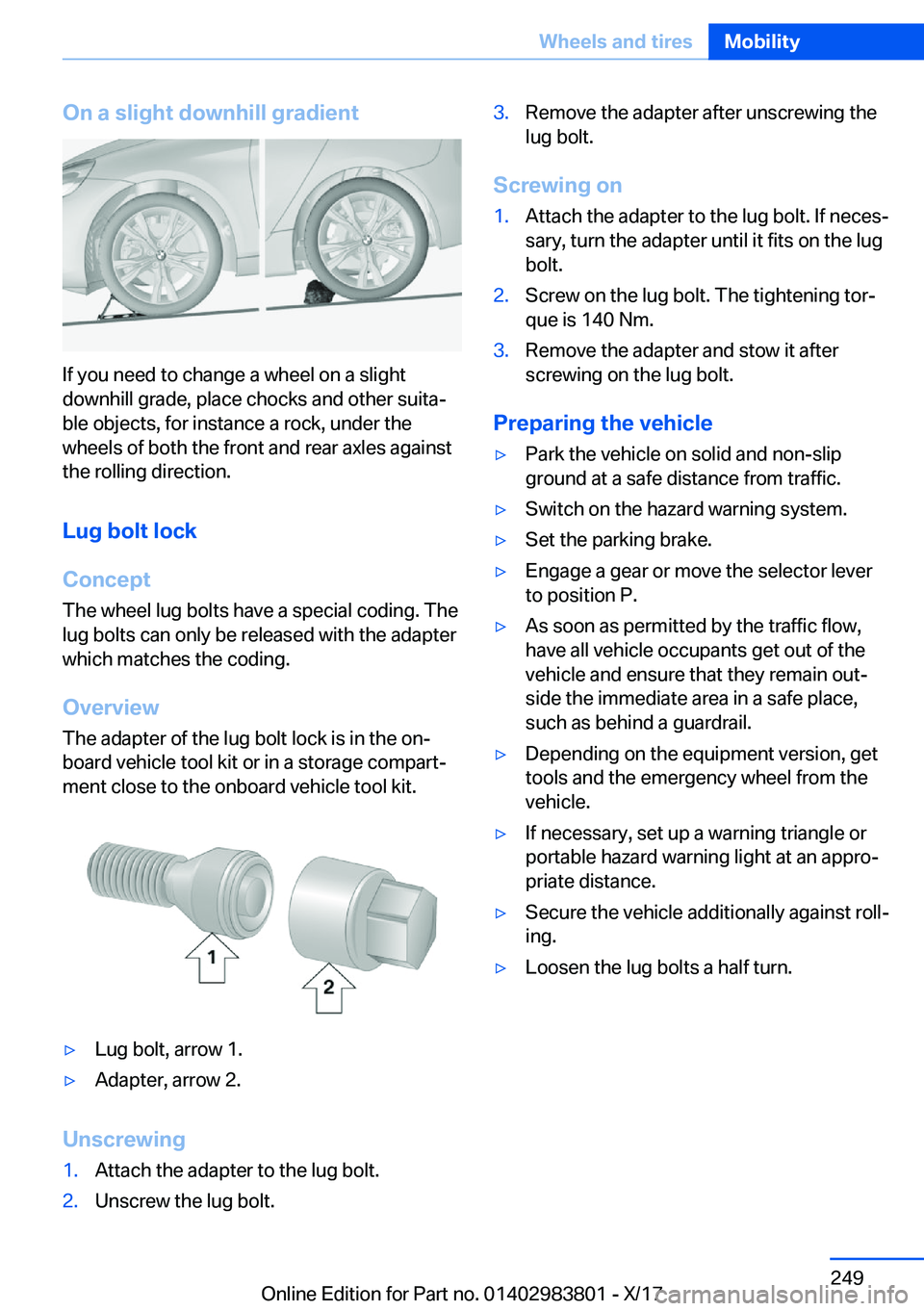

On
a
slight
downhill
gradient
If you need to change a wheel on a slightdownhill grade, place chocks and other suitajble objects, for instance a rock, under the
wheels of both the front and rear axles against
the rolling direction.
Lug
bolt
lock
Concept
The wheel lug bolts have a special coding. The
lug bolts can only be released with the adapter
which matches the coding.
Overview
The adapter of the lug bolt lock is in the onj board vehicle tool kit or in a storage compartj
ment close to the onboard vehicle tool kit.
'yLug bolt, arrow 1.'yAdapter, arrow 2.
Unscrewing
1.Attach the adapter to the lug bolt.2.Unscrew the lug bolt.3.Remove the adapter after unscrewing the lug bolt.
Screwing
on
1.Attach the adapter to the lug bolt. If necesj
sary, turn the adapter until it fits on the lug bolt.2.Screw on the lug bolt. The tightening torj
que is 140 Nm.3.Remove the adapter and stow it after screwing on the lug bolt.
Preparing
the
vehicle
'yPark the vehicle on solid and non-slipground at a safe distance from traffic.'ySwitch on the hazard warning system.'ySet the parking brake.'yEngage a gear or move the selector leverto position P.'yAs soon as permitted by the traffic flow,have all vehicle occupants get out of the
vehicle and ensure that they remain outj side the immediate area in a safe place,
such as behind a guardrail.'yDepending on the equipment version, get tools and the emergency wheel from the
vehicle.'yIf necessary, set up a warning triangle or
portable hazard warning light at an approj priate distance.'ySecure the vehicle additionally against rollj
ing.'yLoosen the lug bolts a half turn.Seite 249Wheels
and
tiresMobility249
Online Edition for Part no. 01402983801 - X/17

Jacking
points
for
the
vehicle
jack
The jacking points for the vehicle jack are lojcated at the indicated positions.
Jacking
up
the
vehicle WARNING
Hands and fingers can be jammed when
using the vehicle jack. There is a risk of injury. Comply with the described hand position and
do not change this position while using the vej
hicle jack.'

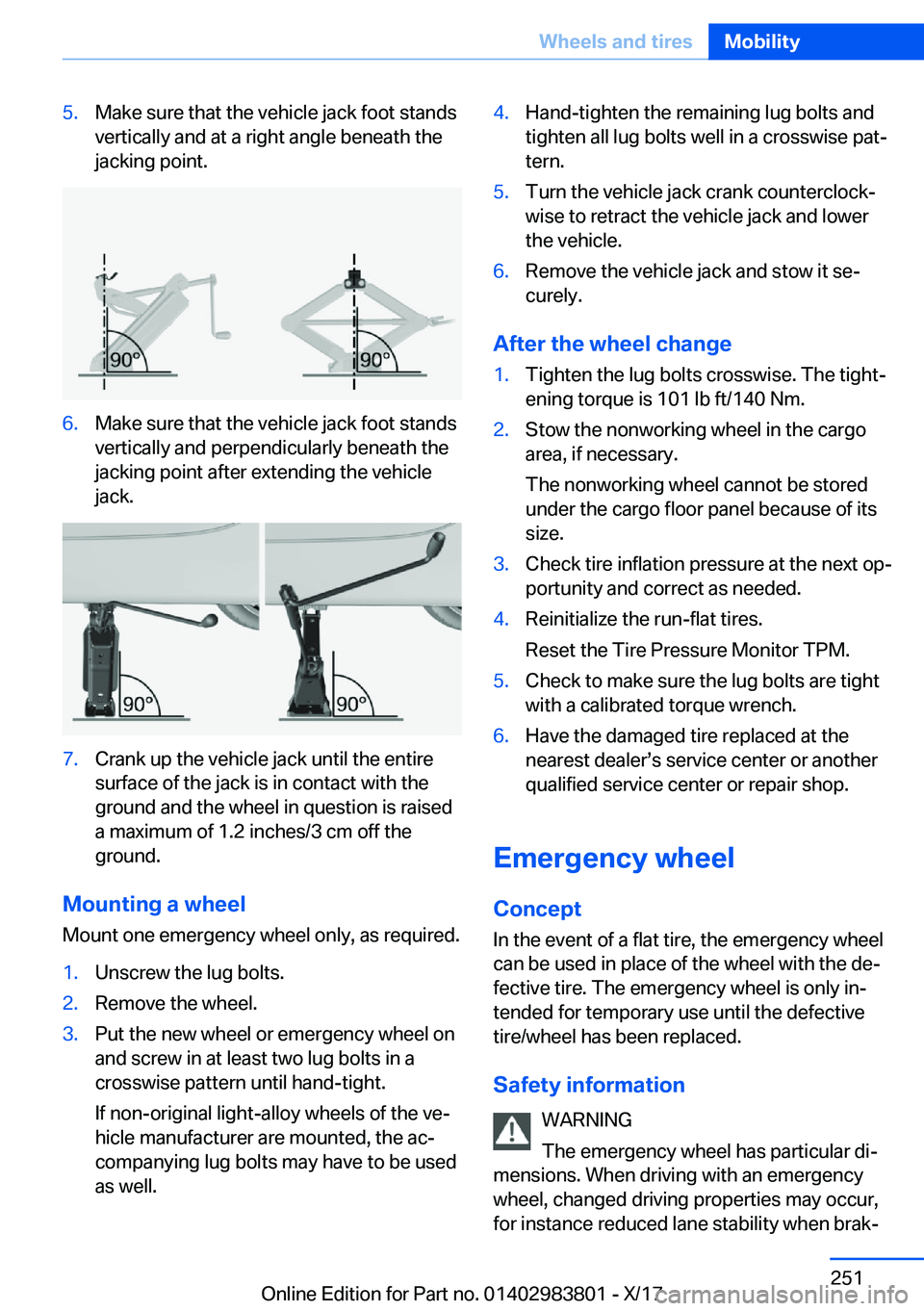

5.Make sure that the vehicle jack foot stands
vertically and at a right angle beneath the jacking point.6.Make sure that the vehicle jack foot stands
vertically and perpendicularly beneath the jacking point after extending the vehicle
jack.7.Crank up the vehicle jack until the entire
surface of the jack is in contact with the
ground and the wheel in question is raised
a maximum of 1.2 inches/3 cm off the ground.
Mounting
a
wheel
Mount one emergency wheel only, as required.
1.Unscrew the lug bolts.2.Remove the wheel.3.Put the new wheel or emergency wheel on and screw in at least two lug bolts in a
crosswise pattern until hand-tight.
If non-original light-alloy wheels of the vej hicle manufacturer are mounted, the acj
companying lug bolts may have to be used
as well.4.Hand-tighten the remaining lug bolts and tighten all lug bolts well in a crosswise patj
tern.5.Turn the vehicle jack crank counterclockj
wise to retract the vehicle jack and lower
the vehicle.6.Remove the vehicle jack and stow it sej
curely.
After
the
wheel
change
1.Tighten the lug bolts crosswise. The tightj ening torque is 101 lb ft/140 Nm.2.Stow the nonworking wheel in the cargo
area, if necessary.
The nonworking wheel cannot be stored under the cargo floor panel because of its
size.3.Check tire inflation pressure at the next opj
portunity and correct as needed.4.Reinitialize the run-flat tires.
Reset the Tire Pressure Monitor TPM.5.Check to make sure the lug bolts are tight
with a calibrated torque wrench.6.Have the damaged tire replaced at the
nearest dealerss service center or another
qualified service center or repair shop.
Emergency
wheel
Concept
In the event of a flat tire, the emergency wheel
can be used in place of the wheel with the dej
fective tire. The emergency wheel is only inj tended for temporary use until the defective
tire/wheel has been replaced.
Safety
information WARNING
The emergency wheel has particular dij
mensions. When driving with an emergency wheel, changed driving properties may occur,
for instance reduced lane stability when brakj
Seite 251Wheels
and
tiresMobility251
Online Edition for Part no. 01402983801 - X/17

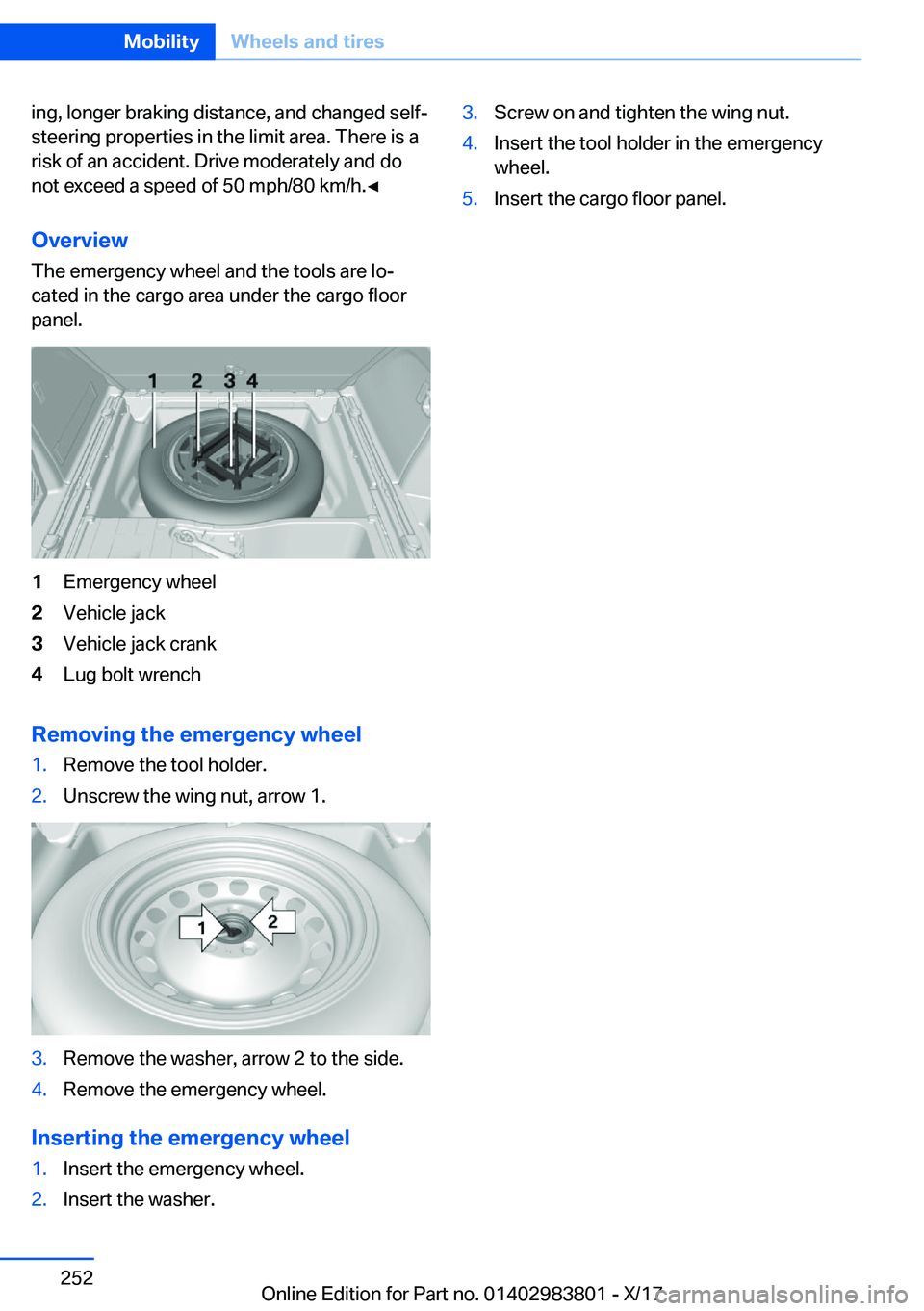

ing, longer braking distance, and changed self-
steering properties in the limit area. There is a
risk of an accident. Drive moderately and do
not exceed a speed of 50 mph/80 km/h.'

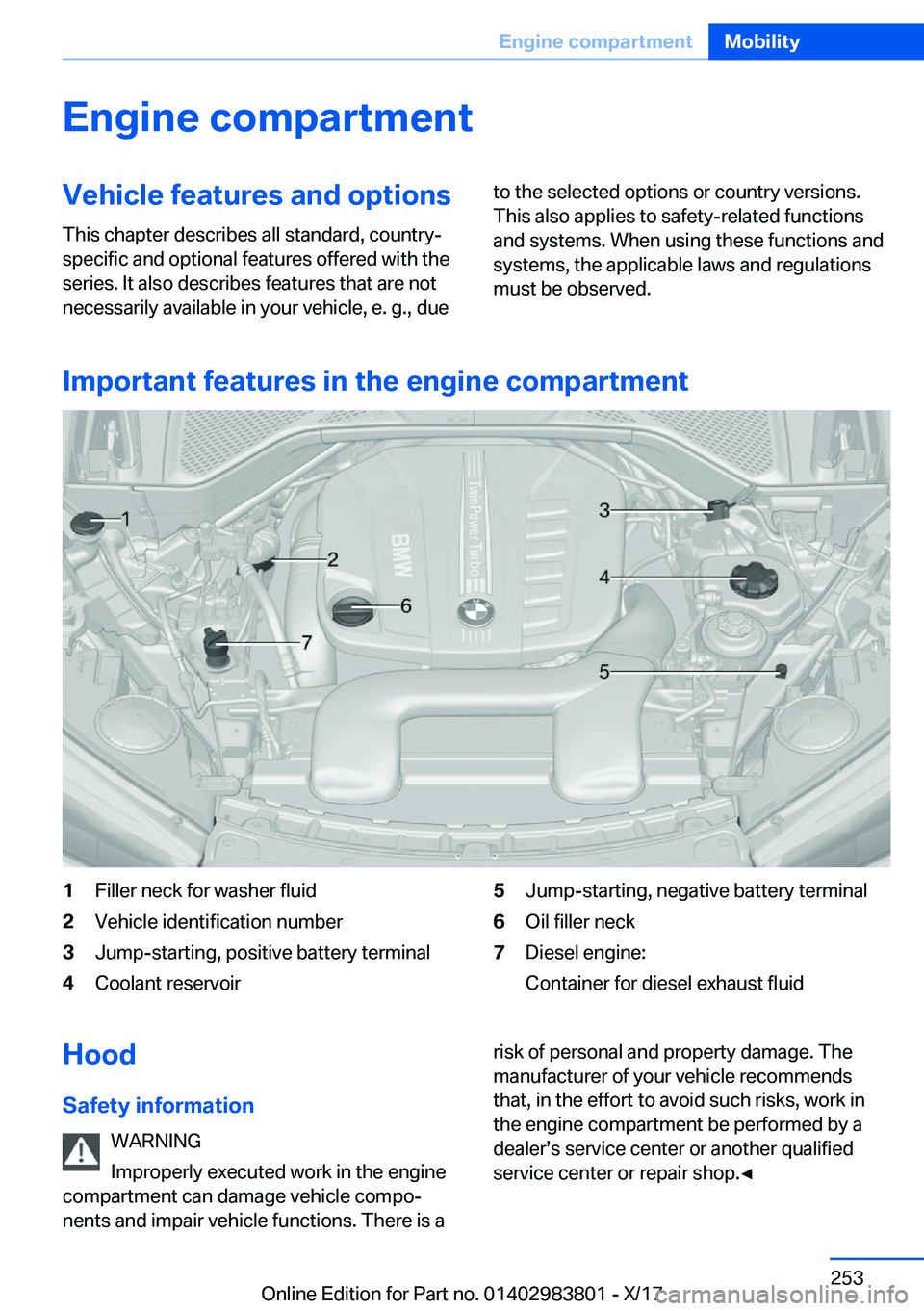

Engine
compartmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., dueto the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
Important
features
in
the
engine
compartment
1Filler neck for washer fluid2Vehicle identification number3Jump-starting, positive battery terminal4Coolant reservoir5Jump-starting, negative battery terminal6Oil filler neck7Diesel engine:
Container for diesel exhaust fluidHood
Safety
information WARNING
Improperly executed work in the engine
compartment can damage vehicle compoj nents and impair vehicle functions. There is arisk of personal and property damage. Themanufacturer of your vehicle recommendsthat, in the effort to avoid such risks, work inthe engine compartment be performed by adealerss service center or another qualified
service center or repair shop.'

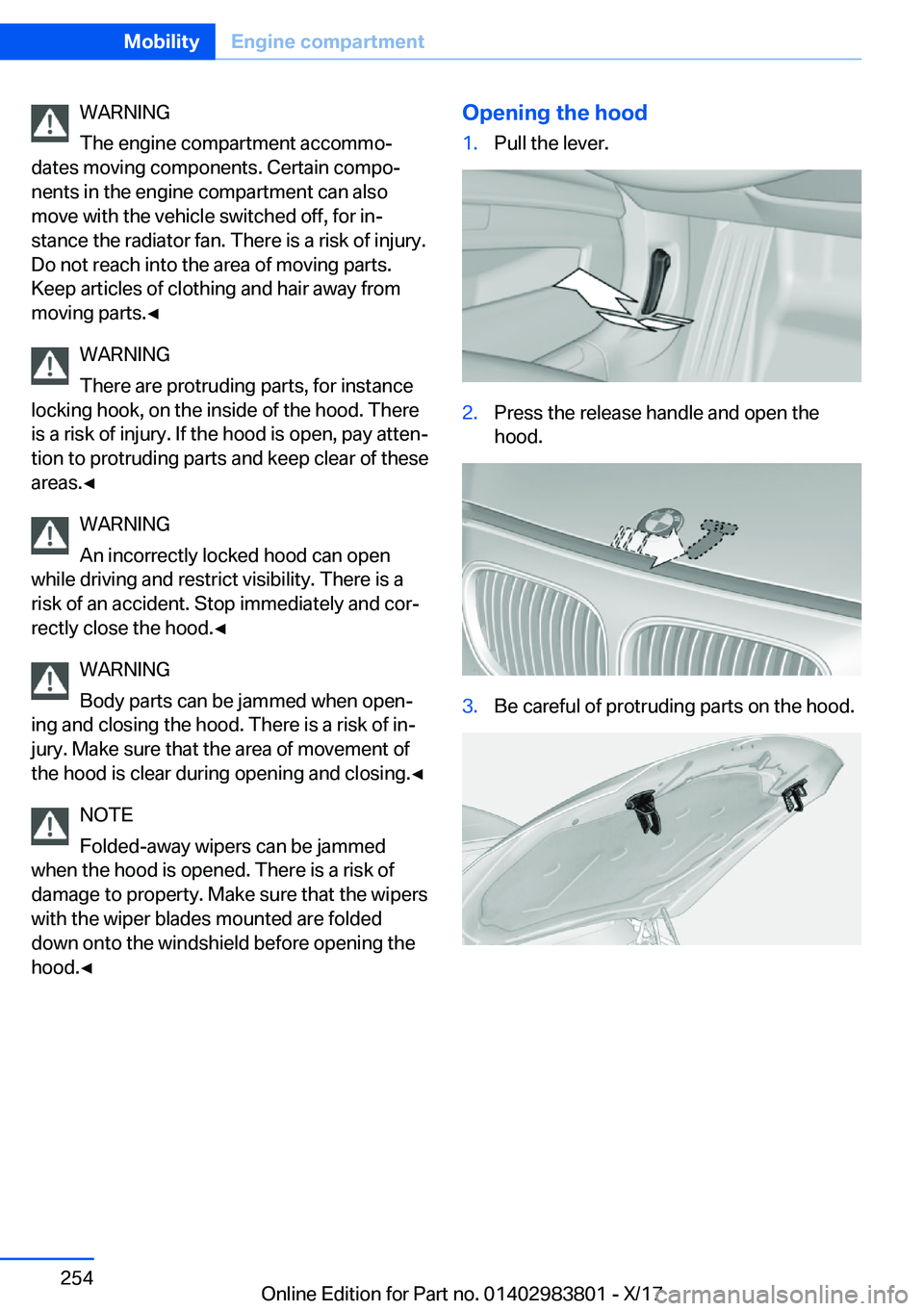

WARNING
The engine compartment accommoj
dates moving components. Certain compoj nents in the engine compartment can also
move with the vehicle switched off, for inj
stance the radiator fan. There is a risk of injury. Do not reach into the area of moving parts.
Keep articles of clothing and hair away from
moving parts.'

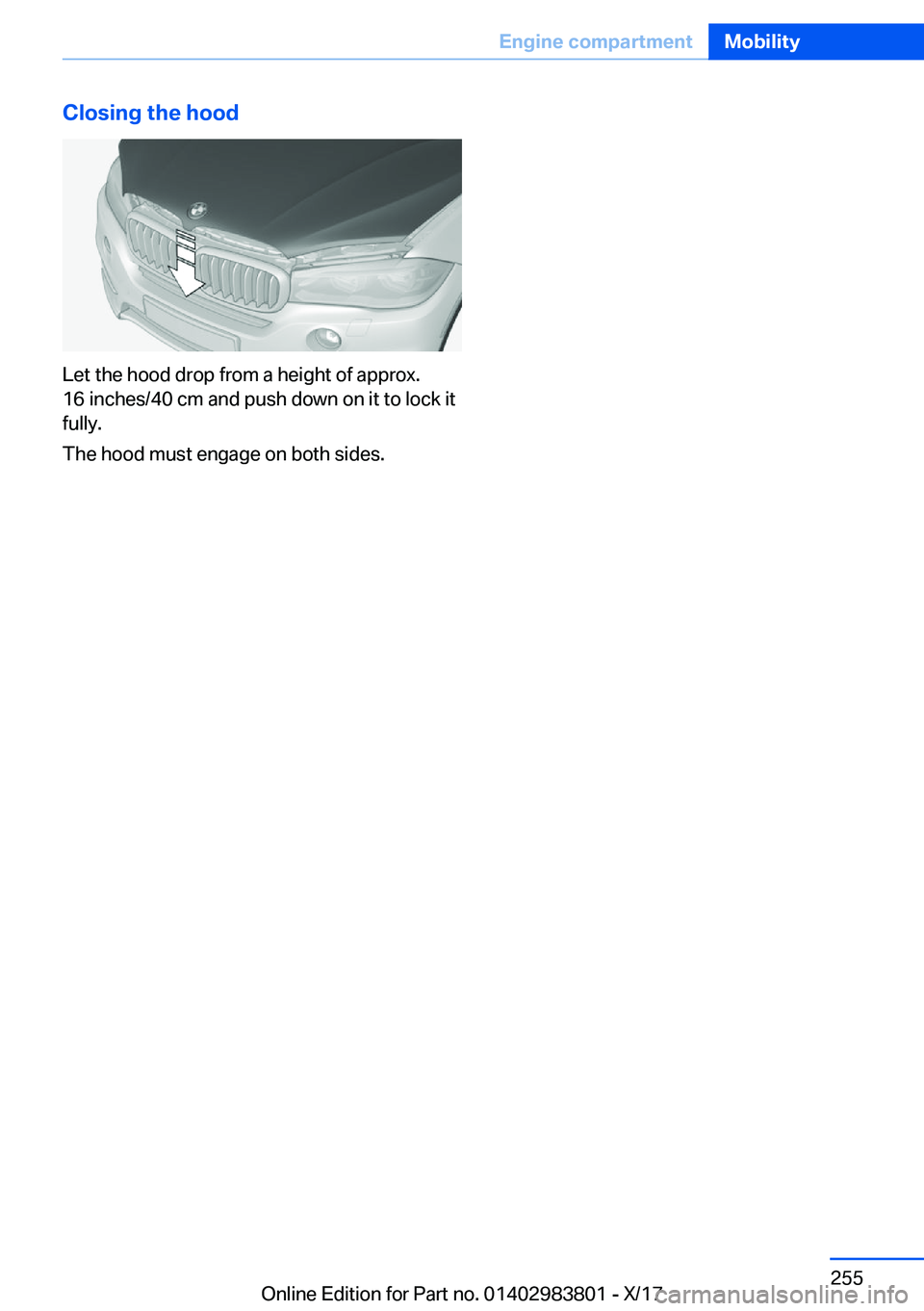

Closing
the
hood
Let the hood drop from a height of approx.
16 inches/40 cm and push down on it to lock it
fully.
The hood must engage on both sides.
Seite 255Engine
compartmentMobility255
Online Edition for Part no. 01402983801 - X/17

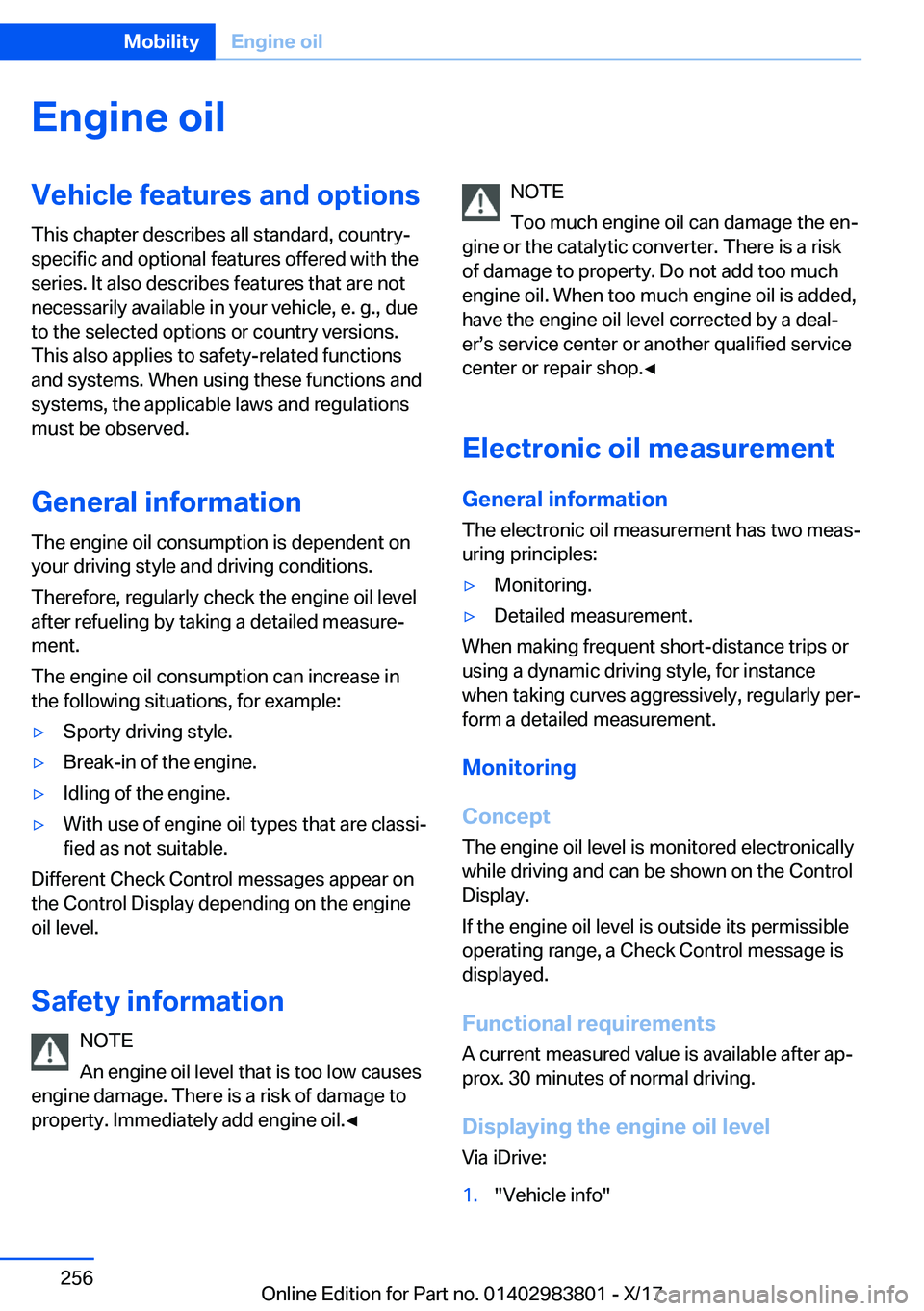

Engine
oilVehicle
features
and
options
This chapter describes all standard, country- specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable laws and regulations
must be observed.
General
information
The engine oil consumption is dependent on
your driving style and driving conditions.
Therefore, regularly check the engine oil level
after refueling by taking a detailed measurej
ment.
The engine oil consumption can increase in
the following situations, for example:'ySporty driving style.'yBreak-in of the engine.'yIdling of the engine.'yWith use of engine oil types that are classij
fied as not suitable.
Different Check Control messages appear on the Control Display depending on the engine
oil level.
Safety
information NOTE
An engine oil level that is too low causes
engine damage. There is a risk of damage to
property. Immediately add engine oil.'
