2018 BMW 3 SERIES GRAN TURISMO Owners Manual

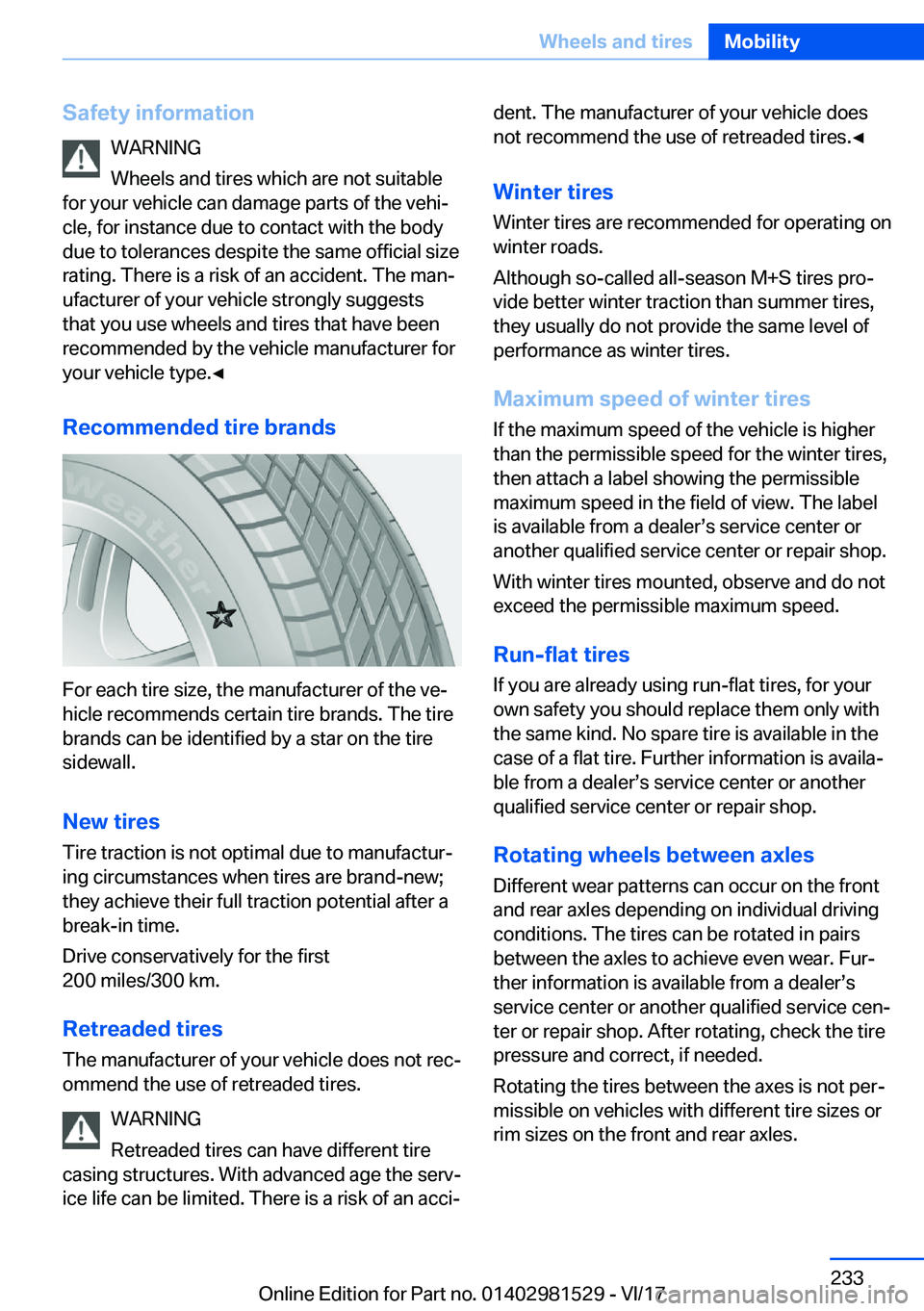

Safety
informationWARNING
Wheels and tires which are not suitable
for your vehicle can damage parts of the vehij cle, for instance due to contact with the body
due to tolerances despite the same official size rating. There is a risk of an accident. The manjufacturer of your vehicle strongly suggests
that you use wheels and tires that have been
recommended by the vehicle manufacturer for your vehicle type.'

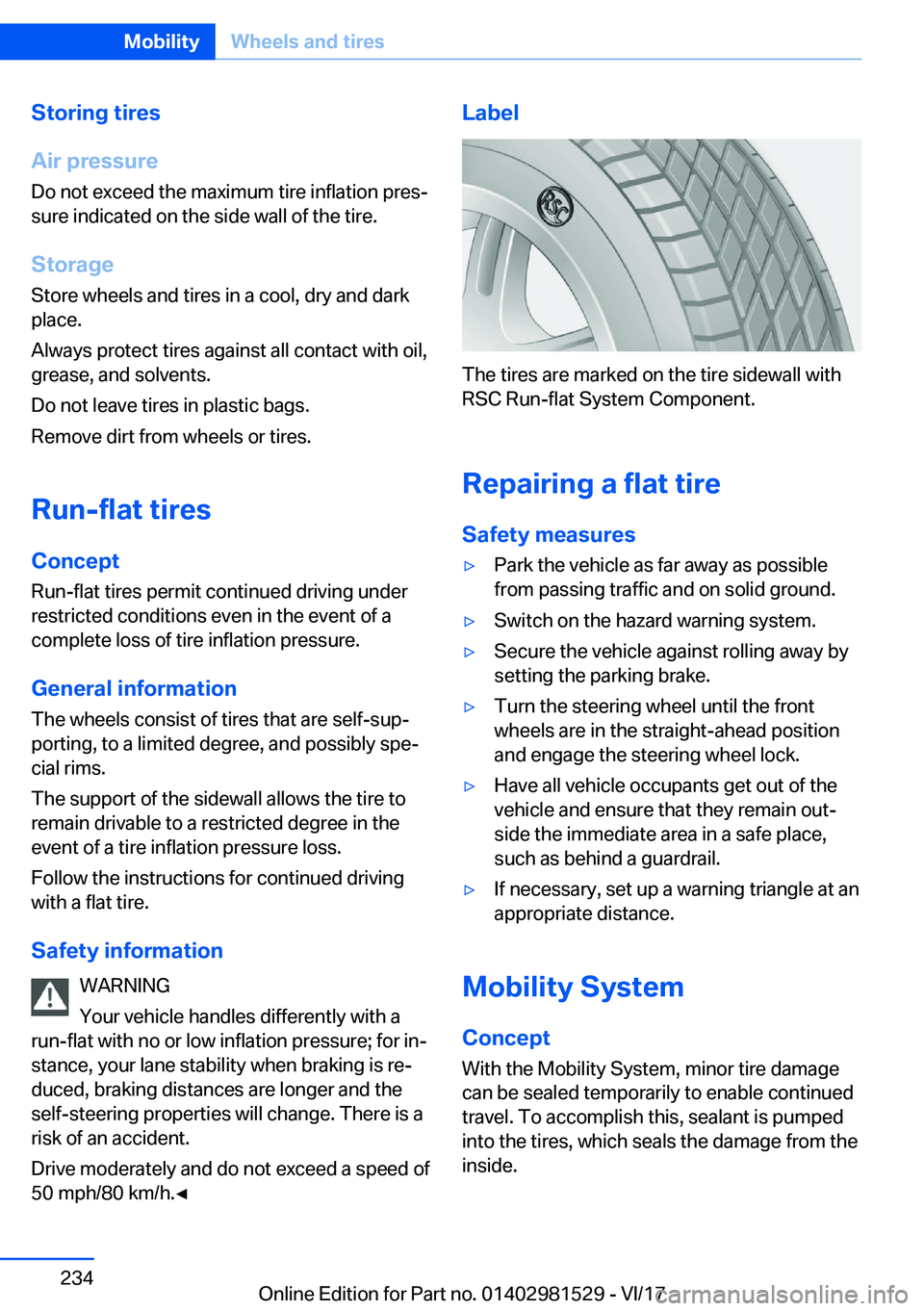

Storing
tires
Air
pressure
Do not exceed the maximum tire inflation presj sure indicated on the side wall of the tire.
Storage
Store wheels and tires in a cool, dry and dark place.
Always protect tires against all contact with oil,
grease, and solvents.
Do not leave tires in plastic bags.
Remove dirt from wheels or tires.
Run-flat
tires Concept
Run-flat tires permit continued driving under restricted conditions even in the event of acomplete loss of tire inflation pressure.
General
information
The wheels consist of tires that are self-supj porting, to a limited degree, and possibly spej
cial rims.
The support of the sidewall allows the tire to remain drivable to a restricted degree in the
event of a tire inflation pressure loss.
Follow the instructions for continued driving
with a flat tire.
Safety
information WARNING
Your vehicle handles differently with a
run-flat with no or low inflation pressure; for inj stance, your lane stability when braking is rejduced, braking distances are longer and theself-steering properties will change. There is a
risk of an accident.
Drive moderately and do not exceed a speed of 50 mph/80 km/h.'

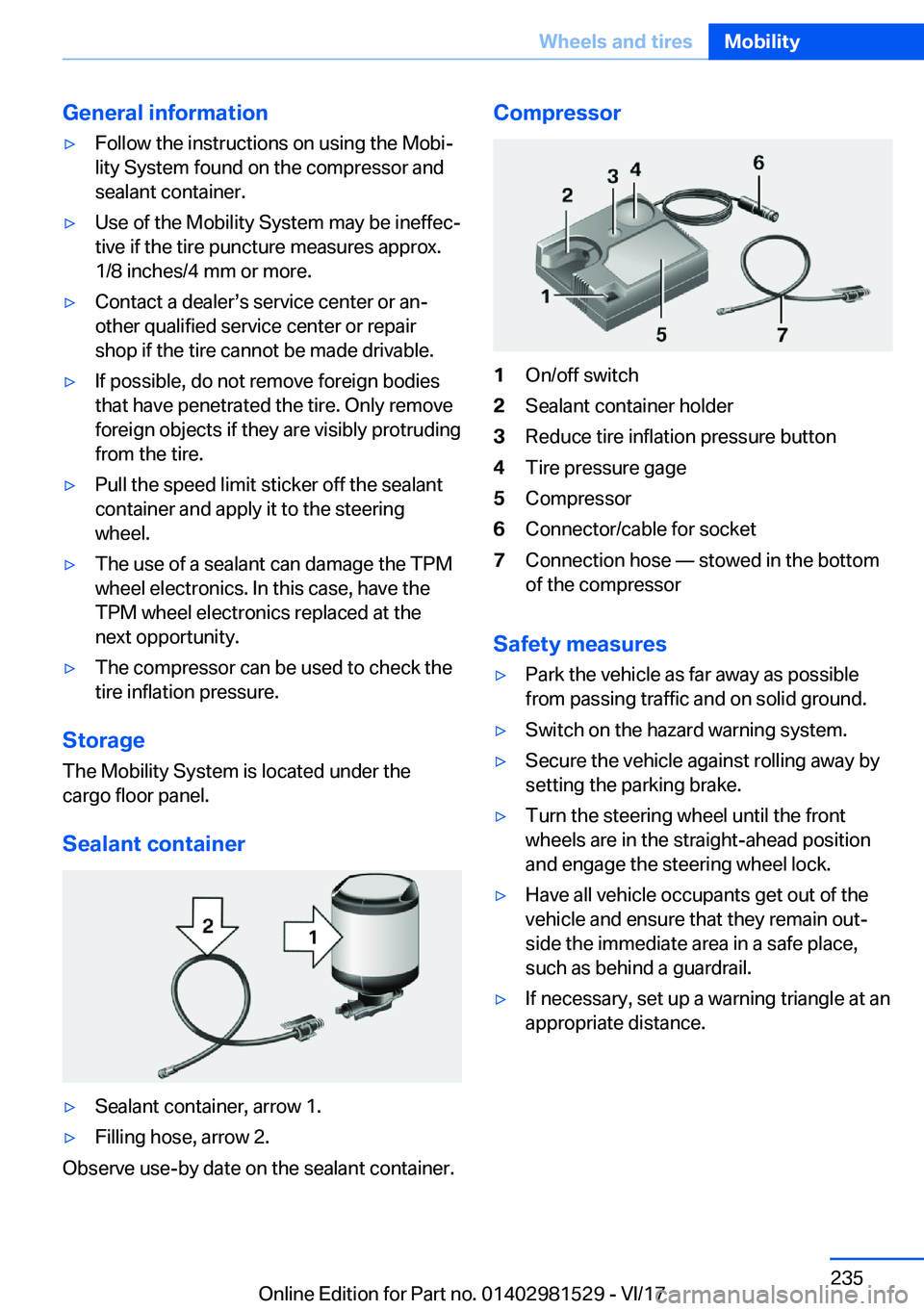

General
information'yFollow the instructions on using the Mobijlity System found on the compressor and
sealant container.'yUse of the Mobility System may be ineffecj
tive if the tire puncture measures approx.
1/8 inches/4 mm or more.'yContact a dealerss service center or anj other qualified service center or repair
shop if the tire cannot be made drivable.'yIf possible, do not remove foreign bodies that have penetrated the tire. Only remove
foreign objects if they are visibly protruding from the tire.'yPull the speed limit sticker off the sealant
container and apply it to the steering
wheel.'yThe use of a sealant can damage the TPM wheel electronics. In this case, have theTPM wheel electronics replaced at thenext opportunity.'yThe compressor can be used to check the
tire inflation pressure.
Storage
The Mobility System is located under thecargo floor panel.
Sealant
container
'ySealant container, arrow 1.'yFilling hose, arrow 2.
Observe use-by date on the sealant container.
Compressor1On/off switch2Sealant container holder3Reduce tire inflation pressure button4Tire pressure gage5Compressor6Connector/cable for socket7Connection hose n stowed in the bottom
of the compressor
Safety
measures
'yPark the vehicle as far away as possible
from passing traffic and on solid ground.'ySwitch on the hazard warning system.'ySecure the vehicle against rolling away by setting the parking brake.'yTurn the steering wheel until the frontwheels are in the straight-ahead position
and engage the steering wheel lock.'yHave all vehicle occupants get out of the vehicle and ensure that they remain outjside the immediate area in a safe place,
such as behind a guardrail.'yIf necessary, set up a warning triangle at an
appropriate distance.Seite 235Wheels
and
tiresMobility235
Online Edition for Part no. 01402981529 - VI/17

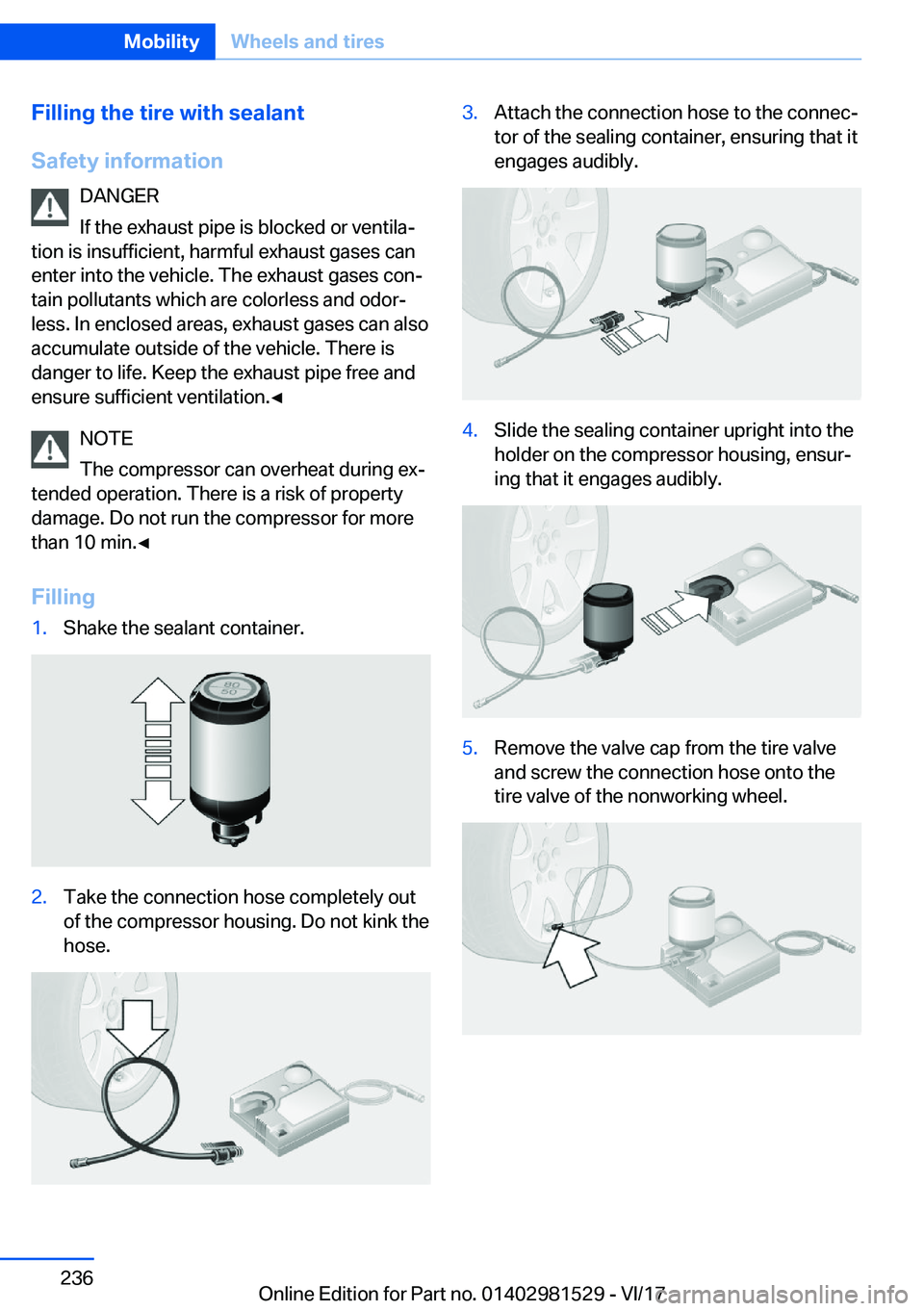

Filling
the
tire
with
sealant
Safety
information DANGER
If the exhaust pipe is blocked or ventilaj
tion is insufficient, harmful exhaust gases can
enter into the vehicle. The exhaust gases conj tain pollutants which are colorless and odorj
less. In enclosed areas, exhaust gases can also
accumulate outside of the vehicle. There is
danger to life. Keep the exhaust pipe free and
ensure sufficient ventilation.'

6.With the compressor switched off, insert
the plug into a power socket inside the vej
hicle.7.With the ignition switched on or the engine running, switch on the compressor.
Let the compressor run for max. 10 minutes tofill the tire with sealant and achieve a tire inflaj
tion pressure of approx. 2.5 bar.
While the tire is being filled with sealant, the
tire inflation pressure may sporadically reach
approx. 5 bar. Do not switch off the compresj
sor at this point.
If a tire inflation pressure of 2 bar is not
reached:
1.Switch off the compressor.2.Pull the connector out of the power socket inside the vehicle.3.Unscrew the filling hose from the tire valve.4.Drive 33 ft/10 m forward and back to disjtribute the sealant in the tire.5.Inflate the tire again using the compressor.
If a tire inflation pressure of 2 bar cannot be
reached, contact your dealerss service cenjter or another qualified service center or repair shop.
Stowing
the
Mobility
System
1.Remove the connection hose of the sealj
ant container from the tire valve.2.Pull the compressor connector out of the socket inside the vehicle.3.Remove the connection hose from thesealant container.4.Wrap and store the sealant container and
the connection hose in suitable material to
avoid dirtying the cargo area.5.Stow the Mobility System back in the cargo area.
Distributing
the
sealant
Immediately drive approx. 5 miles/10 km to enjsure that the sealant is evenly distributed in thetire.
Do not exceed the permissible maximum
speed of 50 mph/80 km/h.
If possible, do not drive at speeds less than
12 mph/20 km/h.
Correcting
the
tire
inflation
pressure
1.Stop at a suitable location.2.Screw the connection hose onto the tire valve stem.Seite 237Wheels
and
tiresMobility237
Online Edition for Part no. 01402981529 - VI/17

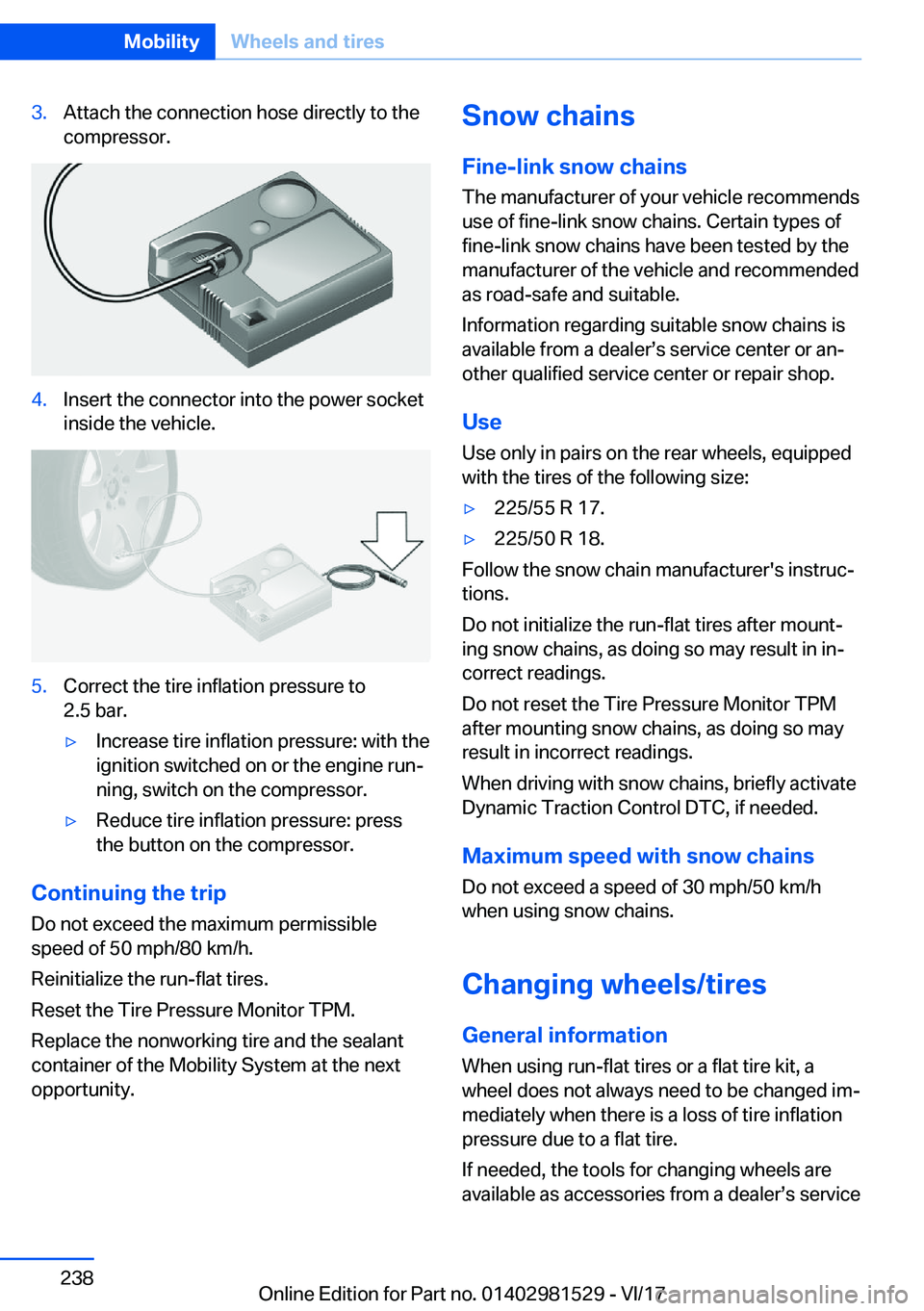

3.Attach the connection hose directly to the
compressor.4.Insert the connector into the power socket
inside the vehicle.5.Correct the tire inflation pressure to
2.5 bar.'yIncrease tire inflation pressure: with the
ignition switched on or the engine runj
ning, switch on the compressor.'yReduce tire inflation pressure: press
the button on the compressor.
Continuing
the
trip
Do not exceed the maximum permissible
speed of 50 mph/80 km/h.
Reinitialize the run-flat tires.
Reset the Tire Pressure Monitor TPM.
Replace the nonworking tire and the sealant
container of the Mobility System at the next
opportunity.
Snow
chains
Fine-link
snow
chains The manufacturer of your vehicle recommendsuse of fine-link snow chains. Certain types of
fine-link snow chains have been tested by the
manufacturer of the vehicle and recommended
as road-safe and suitable.
Information regarding suitable snow chains is
available from a dealerss service center or anj
other qualified service center or repair shop.
Use
Use only in pairs on the rear wheels, equipped
with the tires of the following size:'y225/55 R 17.'y225/50 R 18.
Follow the snow chain manufacturer's instrucj tions.
Do not initialize the run-flat tires after mountj
ing snow chains, as doing so may result in inj
correct readings.
Do not reset the Tire Pressure Monitor TPM after mounting snow chains, as doing so mayresult in incorrect readings.
When driving with snow chains, briefly activate
Dynamic Traction Control DTC, if needed.
Maximum
speed
with
snow
chains
Do not exceed a speed of 30 mph/50 km/h when using snow chains.
Changing
wheels/tires General
information
When using run-flat tires or a flat tire kit, a
wheel does not always need to be changed imj mediately when there is a loss of tire inflationpressure due to a flat tire.
If needed, the tools for changing wheels are
available as accessories from a dealerss service
Seite 238MobilityWheels
and
tires238
Online Edition for Part no. 01402981529 - VI/17

center or another qualified service center or rejpair shop.
Safety
information DANGER
The vehicle jack is only provided for
short-term lifting of the vehicle for wheel changes. Even if all safety measures are objserved, there is a risk of the raised vehicle falljing, if the vehicle jack tilts over. There is a riskof injuries or danger to life. If the vehicle is
raised, do not lie under the vehicle and do not
start the engine.'

On
a
slight
downhill
gradient
If you need to change a wheel on a slightdownhill grade, place chocks and other suitajble objects, for instance a rock, under the
wheels of both the front and rear axles against
the rolling direction.
Lug
bolt
lock
Concept
The wheel lug bolts have a special coding. The
lug bolts can only be released with the adapter
which matches the coding.
Overview
The adapter of the lug bolt lock is in the onj board vehicle tool kit or in a storage compartj
ment close to the onboard vehicle tool kit.
'yLug bolt, arrow 1.'yAdapter, arrow 2.
Unscrewing
1.Attach the adapter to the lug bolt.2.Unscrew the lug bolt.3.Remove the adapter after unscrewing the lug bolt.
Screwing
on
1.Attach the adapter to the lug bolt. If necesj
sary, turn the adapter until it fits on the lug bolt.2.Screw on the lug bolt. The tightening torj
que is 140 Nm.3.Remove the adapter and stow it after screwing on the lug bolt.
Preparing
the
vehicle
'yPark the vehicle on solid and non-slipground at a safe distance from traffic.'ySwitch on the hazard warning system.'ySet the parking brake.'yEngage a gear or move the selector leverto position P.'yAs soon as permitted by the traffic flow,have all vehicle occupants get out of the
vehicle and ensure that they remain outj side the immediate area in a safe place,
such as behind a guardrail.'yDepending on the equipment version, get tools and the emergency wheel from the
vehicle.'yIf necessary, set up a warning triangle or
portable hazard warning light at an approj priate distance.'yDo not place wood blocks or similar itemsunder the vehicle jack; otherwise, it cannot
reach its carrying capacity because of the
restricted height.'ySecure the vehicle additionally against rollj
ing.'yLoosen the lug bolts a half turn.Seite 240MobilityWheels
and
tires240
Online Edition for Part no. 01402981529 - VI/17
