Replac ing a wheel . . . . . . . . . . . . . . . . . . . 3 7 1
Space-saving spare tire . . . . . . . . . . . . . . . 37 5
Fuses and bulbs . . . . . . . . . . . . . . . . . . 376
Fu ses .. .. .. .. .... .. .... ... .. .. .... . 376
Bulbs. ... .. .. ... .. ..... ... .. .. .... . 380
Emergency situations . . . . . . . . . . . . 381
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 1
Starting by pushing or towing . . . . . . . . . . 381
Starting w it h jumper cables . . . . . . . . . . . 381
Using the jump start cable . . . . . . . . . . . . 382
Towing with a tow truck . . . . . . . . . . . . . . 383
Ra is ing t he ve hicle . . . . . . . . . . . . . . . . . . . 384
Accessories and Techn ical Data . 386
Technical data . . . . . . . . . . . . . . . . . . . . 386
Ve hicl e specif ications . . . . . . . . . . . . . . . . 386
N otes about tec hnica l data . . . . . . . . . . . . 386
We igh ts . . . . . . . . . . . . . . . . . . . . . . . . . . . 387
D imensions . . . . . . . . . . . . . . . . . . . . . . . . . 387
Capac ities . . . . . . . . . . . . . . . . . . . . . . . . . . 38 8
Gasoline engines . . . . . . . . . . . . . . . . . . . . 388
Consumer Information . . . . . . . . . . 389
Warranty coverages . . . . . . . . . . . . . . . . . . 389
Operating your veh icle outs ide the U.S .A .
or Canada . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Aud i Service Repair Manuals and
Literature . . . . . . . . . . . . . . . . . . . . . . . . . . 389
M ain tenance . . . . . . . . . . . . . . . . . . . . . . . . 389
Accesso ries and technical changes . . . . . . 39 1
D eclarat io n of Complia nce,
T ele commun ic a tions and Ele ctro nic
Sys tems . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 2
Index ... .. .. ............... .. .. .. . 393
Table of contents
5

Cockpit overv iew
Engin e oil temperatur e indi cator
App lies to: ve hicles w ith Audi virtual cockpit
The engine oil temperature is only shown in the
expanded view or in the sport view
,::::, page 15.
When engine oil temperatures are low, the dis­
p lay --- °F ( ---
0
() appears in the instrument clus ­
ter.
The engine has reached its operating tempera­
ture when the engine oil temperature is between 176 °F (80 °() and 248 °F (120 °() under normal
driving conditions . The engine oil temperature
may be higher if there is heavy engine load and
h igh temperatu res outside. This is not a ca use for
concern as long as
the . ,::::, page 31 or El
,:::, page 31 indicator lights do not turn on .
Boost indicator
Applies to: ve hicles with Audi virtual cockpit
The boost indicator is only displayed in the sport
view
,:::, page 15.
The current engine load (meaning the current
boost pressure) is indicated by a bar .
Tachometer
The tachometer displays the engine speed in rev­
olutions per minute (RPM).
The beginning of the red zone in the tachometer
indicates the maximum perm iss ible engine speed
for all gears once the engine has been broken in and when it is warmed up to operating tempera­
ture. Before reaching this zone, you should sh ift
into the next h ighest gear, select the D/S selec­
tor lever position, or remove your foot from the
accelerator pedal.
d) Note
The needle in the tachometer @,::::, page 10,
fig . 3
or ,::::, page 10, fig . 4 may only be in the
red a rea of the gauge fo r a short time or there
is a risk of engine damage. The location where
t he red zone beg ins va ries depending on the
eng ine.
12
@) For the sake of the environment
Upshifting early helps you to save fue l and re­
d uces operat ing no ise .
Fuel level
The display (z)c::>page 10, fig . 3 or c::>page 10,
fig. 4
only funct ions when the ignition is switch­
ed on . When the display has reached the reserve
mark, a red LED tur ns on and the
t9 indicator
li ght tur ns on
c::> page 34 . The red LED will blink
whe n the fuel level is very low .
For the tank capacity in your veh icle, refer to the
Technical
Data ,::::, page 388 .
(D Note
Never drive until the tank is comp letely emp­
ty . The irregular supply of fuel t hat results
from that can cause engine misfires. Uncom­
busted fue l w ill then enter the exhaust sys­
tem. This ca n cause overheati ng and damage
to the ca talyt ic converte r.
Odometer
Fig. S Instrument cluste r: odomete r and reset button
Tr ip odomet er and odomet er
The trip odometer shows the distance driven
s ince it was last reset.
It can be used to measure
shor t dista nces.
The trip odometer can be reset to zero by press ­
i ng the
@J reset button.
The odometer shows the total distance that the
vehicle has been driven.
llJI,

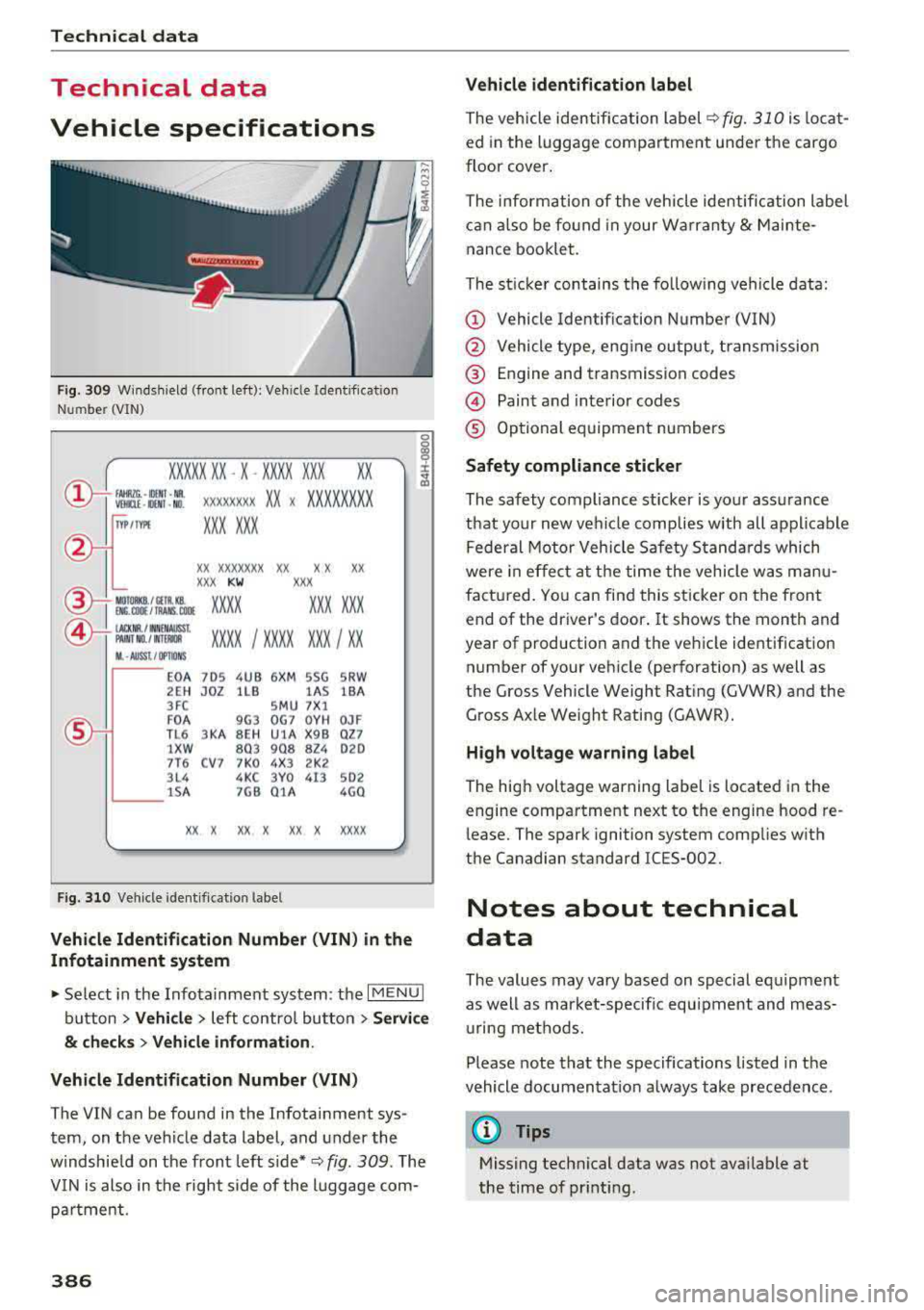

Technical data
Technical data
Vehicle specifications
Fig. 309 Windshiel d (fro nt left) : Ve hicl e Iden tific ation
N um ber ( VIN )
XXXXX XX -X -XXXX XXX XX
@-+ ~J:~t::1 ::: xxxxxxxx xx x xxxxxxxx
I YP lf'VPE XXX XXX
XX XXXXXXX XX X X XX
XXX
KW XXX
15\_L I MOIOlll @-+ ~~
1
:tr:~i XXXX I XXXX XXX I XX
II. -AUSST . / OPTIONS
.__ __
E0A 7D5 4UB
2EH JOZ lLB
3FC
F0 A 9G3
TL6 3 KA 8EH
lXW 803
7T6 CV7 7KO
3L4 4KC
lS A 7GB
6XM SSG
lAS
SMU 7Xl
0G7 0YH
UlA X9B
908 8Z4
4X3 2K2
3Y0 413
01A
SRW
1BA
OJF
027
020
502
4G0
XX X XX X XX X XXXX
Fig. 310 Vehi cle identification label
Vehicle Identification Number (VIN) in the
Infotainment system
~ Select in the Infotainment system: the I MENU I
button > Vehicle > left contro l button > Service
& checks> Vehicle information.
Vehicle Identification Number (VIN)
The VIN can be found in the Infotainment sys ­
tem, on the vehicle data label, and under the
windshield on the front left side* <=:>
fig. 309. The
VIN is also in the right side of the luggage com­
partme nt.
386
Vehicle identification label
The vehicle identification label <=:> fig. 310 is locat ­
ed in the luggage compartment under the cargo
floor cover.
The information of the vehicle identification label
can also be found in your Warranty
& Mainte­
nance booklet.
The st icker contains the follow ing vehicle data:
(D Vehicle Iden tifica tion Number (VIN)
@ Vehicle type, eng ine output, transmission
® Engine and transmission cod es
@ Paint and interior codes
® Optional equipment numbers
Safety compliance sticker
The safety compliance sticker is your assurance
that your new veh icle complies with all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu­
factured. You can find this sticker on the front
e nd of the dr iver's door. It shows the month and
y ear of production and the vehicle identification
number of you r vehicle (perforation) as well as
the G ros s Vehicle Weight R ating (GVWR) and the
Gro ss Axle We ight Rating (GAWR).
H igh voltage warning label
The high voltage warn ing label is located in the
e ngine compartment next to the engine hood re­
lease. The spark ignit ion system complies w ith
the Canadian s tand ard IC ES-002.
Notes about technical
data
The values may vary based on special equipment
as well as market-specific equipment and meas­ u ring methods.
Please note that the specifications listed in the
vehicle documentation a lways take precedence .
(D Tips
Missing technical data was not available at
the time of printing .
