Assistance systems
reach the pe rm it t ed eng ine s peed . The ad aptive
cr uise cont ro l switc hes off automatically an d ca n­
not be switc hed back on.
Ill ACC with traffic jam assist: currently un­
available. Parking brake applied
Th e systems sw it c h o ff if yo u set the p arking
b rak e. The sy st em s ar e av a ila ble ag a in a fter you
release the p arking brak e.
m'J ACC with traffic jam assist: currently un­
available . Stabilization control (ESC) input
This message appea rs if the electronic stab iliza­
tion co ntrol (E SC) is taki ng action to stab ilize t he
ve hicle . Th e sys tems sw itch off in th is scenar io .
m'J ACC with traffic jam assist: manual control!
This message appea rs if the veh icle rolls bac k
when sta rting on a slight incl ine, even thoug h the
systems are active. P ress the b rake pedal to pre­
ve nt the vehicle fr om rolling o r sta rt ing to move.
II ACC with traffic jam assist: currently un­
available . Downhill assist activated
Y o u can not a cti va te the sys tem whe n hill hold as·
sis t is ac tive .
Ill ACC with traffic jam assist: manual control!
This message appea rs if the dr iver does not take
over steer ing af ter mu ltiple dr iver in terve ntio n
reques ts a nd the sys tem switches off. The vehicle
b ra kes until it i s sta tiona ry.
I! Traffic jam assist: unavailable. See owner's
manual
The system can no longe r ensure that t he ve hicle
will stay in the lane and switches off. Have yo ur
ve hicle checked by an a uth orized Audi dea ler or
author ized Audi Se rvice Facility if the ma lfu nc­
t io n is con tinuous.
I! Traffic jam assist: Please take over steering!
This message appears as soon as the system
sto ps detecting steer ing activity whe n the system
lim its are reached. Always keep yo ur hands on
the stee rin g wheel so yo u ca n be ready to stee r at
a ny time.
II Traffic jam assist: currently unavailable .
Please fasten seat belt
124
T he sys tem swi tches off when t he dr ive r's safety
b elt is unfastened .
m'J ACC: efficiency assist not available in this
country
The ada ptati on to spee d lim its an d rou tes ahead
i s no t a vailable in this coun try.
ti.I ACC: predictive control currently unavaila ­
ble . See owner's manual
The adaptation to speed lim its and routes a head
switc hes off at speed limits under 20 mph
(30 km/ h).
The messa ge ca n also appear if the adaptation to
s p eed limits and ro utes ahead has a temporary
failu re. Have your ve hicle checked by an a uth o r­
i zed Audi dealer or author ized A udi Se rvice Facili­
ty if t he malfunc tion is con tinuo us.
Distance warning: malfunction! Please contact
Serv ice
The system ca nnot gua rantee t hat it will detect
vehicles correct ly and it has sw itched off . T he ra­
dar sensors have shifted or are fa ulty. D rive to an
aut horize d Aud i dea le r o r authorized Aud i Serv ice
Fac ility i mmed iate ly to have the ma lfu nction cor­
r ec ted .
Distance warning: currently unavailable. Sensor
view restricted due to surroundings. See own­
er's manual
This message ap pears if t he radar se nsor v iew is
o bstr ucte d, for examp le by leaves, s now, heavy
spray or dirt. Clean t he
se nsors¢ page 114,
fig. 112 .
Distance warning: currently unavailable. See
owner's manual
T his mess age app ears i f th e system h as a temp o­
r ary fai lure.
If this occurs m ultip le t imes, drive to
an a uthorized Audi dea le r or a uthorized Audi
Se rvice Facility immed iate ly to have the ma lfunc­
tion co rrecte d.
ACC: Please fasten seat belt
The sy stem is not com plete ly availabl e if the d riv­
e r's se at belt is unfa stene d.
Stationary object ahead

<( a, .... N ,....
N .... 0 \0
3 a,
This message appears if you would like to switch
the system on and there is a stationary object di­
rectly in front of your vehicle .
Door open
The system is not ava ilable when the door is
open.
Audi pre sense
Introduction
App lies to: vehicles with Audi pre sense
Within the limits of the system, the pre sense
functions can initiate measures in particularly
dangerous situations to protect the vehicle pas­
sengers and other road users.
- Due to the interlinking of various vehicle sys­
tems, critical driving situations can be detected by
pre sense basic and measures for preventa ­
t ive occupant protection are can be initiated .
- The
pre sense front system uses the data from
the adaptive cruise control* radar sensors and
the camera to calculate the probability of a col­
li sion. Within the limits of
the system, an im­
pending collision with vehicles can be detected
in both urban and rural speed ranges. In this
case, the system warns the driver visually,
acoustically and with a jerk on the brakes if nec­
essary. If needed, it can initiat e a partial or full
deceleration to reduce the collision speed or to
avoid the collision under certain circumstances .
I n conjunction with pre sense basic/rear, the
front safety belts are also revers ibly tensioned
when needed . The pre sense front is also active
when adapt ive cruise control* is switched off .
-Pre sense rear contains pre sense basic func­
tions. It uses the data from the side assist* ra­
dar sensors and calcu lates withi n the limits of
the system the probability of a rear end coll i­
sion with the vehicle beh ind you. Pre sense rear
is also active when side assist* is switched
off.
- Within the limits of the system, pre sense city
uses the camera data and can detect an im­
pending collision with vehicles and pedestrians.
In this case, the system warns the dr iver visual­
ly, acoustically and with a jerk on the brakes if
necessary. If needed, it can initiate a full decel­
eration to reduce the collision speed or to avoid
Assistance systems
the collision under certain circumstances. In
conjunction with pre sense basic/rear, the front
safety belts are a lso reversibly tens ioned when
needed .
A WARNING
Read the genera l information in c:>&. in Gen­
eral information on page 114,
c:> &. in Gener­
al information on page 135.
(D Tips
- Certain pre sense functions switch off when driving in reverse.
- The pre sense functions may not be availa­ ble if there is a malfunction in the ESC sys­
tem or the airbag control module.
- Note that the reversible belt tensioner on
the front passenger's side deactivates when
the front passenger's airbag is deactivated .
- Switch the pre sense
off when you a re not
using public streets or when loading the ve­
hicle onto a vehicle carrier, tra in, sh ip or
other type of transportat ion. This can pre­
vent an undesired inte rvention from
the pre
sense system.
Audi pre sense basic
Description
Applies to : vehicles with Audi pre sense basic
The pre sense basic functions are activated at a
speed of approx imately 20 mph (30 km/h) or
higher .
The following functions can be triggered under certain conditions within the limits of the sys­
tem:
- Tensioning of the safety belts (for examp le,
during heavy braking): the front safety belts have reversible belt tensioners . If a collision
does not occur, the safety belts loosen slightly
and are ready to trigger aga in .
- Closing the windows and sunroof* .
-
125

<( a, .... N ,....
N .... 0 \0
3 a,
your steering wheel ang le as long as you a re ac­
tively steer ing . Evasive steering support is availa­
ble at speeds between approximately 20 mph
(30 km/h) and 90 mph (150 km/h).
Tu rn as sist
When starting to drive a nd up to speeds of maxi­
mum
6 mph (10 km/h), the turn assist uses a
braking intervention to prevent your vehicle from
colliding with an oncoming vehicle when tu rning
left or right (available in certain countries). The
braking intervention causes your vehicle to stay
in its lane.
A WARNING
- Pre sense front cannot overcome the laws of
physics . It is a system des igned to assist and
it cannot prevent a collision in every circum­
stance. The drive r must always i nte rvene.
T he driver is always responsib le for b raking
at the correct time. Do not let the increased
safety provided tempt you into taking risks .
This cou ld increase your risk of a collision .
- The system can deploy incorrectly due to
system-specific limits .
- Please note that the sensors and the camera
do not always detect all objects or lane
markings. This increases the risk of an acci­
dent .
- Pre sense front does not react to people, an­
imals or objects that are cross ing the veh i­
cle's path or that are difficu lt to
detect¢ &
in General information on page 114 .
-Reflective objects such as guard rails or the
entrance to a tunnel, heavy rain and ice can
affect the function of the radar sensors and
the system's ability to detect a collis ion risk .
@:) Note
The sensors can be displaced by impacts or
damage to the bumper, whee l housing and
underbody. Pre sense front can be impa ired
by this . H ave an autho rized Aud i dealer or au­
thorized Audi Service Fac ility check their func­
tion .
l) Th is is no t a va ilable in som e countries.
A ss ista nce sys te m s
{!) Tips
-You can cancel the braking with increasing
force that is initiated by the system by brak­
ing yourself, by acce lerating noticeably or
by swerving.
- Keep in mind that pre sense front can brake unexpectedly. Always secure any cargo or
objects that you are transporting to reduce
the risk of damage or injury.
- Certa in pre sense front funct ions are switch­
ed off when the ESC is limited or switched
off
Q page 152.
Audi pre sense rear
Description
Appl ies to: vehicles with Aud i s ide ass ist
If the risk of a collision with a vehicl e a h ead is de ­
tected, the fo llowing functions can be triggered:
- Reversible tensioning of the front safety belts
at the corresponding speeds .
- Closing the windows and sun roof* .
- I nflat ing the side bolsters* on the seat back-
rest.
- Activating the emergency flashers with in-
creased frequency
l).
The message Audi pr e sense. ¢ page 126,
fig . 126
will warn you about the danger .
Audi drive select*: the function is not act ive de­
pending on the mode selected.
A WARNING
-~
- To reduce the r isk of an accident, please
note that the s ide ass ist* radar sensors do
not always detect every object.
- Pre sense rear does not react to people, ani­
mals or objects that are c rossing the vehi­
cle's path o r th at are d ifficul t to detect.
- Reflective objects such as guard ra ils, heavy
rain and ice ca n impair the function of the
radar sensors and the ability to detect a col-
lision risk.
~
127

Assistance systems
CJ) Note
The radar sensors can be displaced by impacts
or damage to the bumper, wheel housing and
underbody. Pre sense rear can be impaired by
this. Have an authorized Audi dealer or au­
thorized Audi Service Fac ility check their func­
tion.
(D Tips
- The pre sense rear functions switch off
when towing a trailer.
- The pre sense rear functions may also
switch off if there is a malfunction in the
side assist* system.
Audi pre sense city
Description
A ppl ie s to: ve hicles w ith Aud i p re se nse c ity
Within the limits of the system, pre sense city
can warn you of impending collisions with
vehicles and pedestrians and initiate the applica­
ble braking maneuver if needed. Pre sense city is
active at speeds of approximately 6 mph (10 km/ h) and higher .
A pedestrian warning can occur at speeds up to
SO mph (85 km/h), and vehicle warnings can oc­
cur at speeds up to 155 mph (250 km/h). A pre
sense city braking maneuver is poss ible at speeds
up to SO mph (85 km/h).
Warnings
A ppl ies to: ve hicles w ith Aud i p re sense c ity
The system recognizes various dangerous situa­
tions. The
early warning occurs if:
- a veh icle driving ahead brakes suddenly,
- your own vehicle approaches a significantly
slower vehicle or stationary vehicle in the direc­
tion of travel.
- a pedestrian is standing in the lane or is moving
into the lane .
When this warning occurs, it may only be possi­
ble to avoid a collision by swerving or braking
strongly . The message
Audi pre sense.
128
¢ page 126, fig. 126 and a warning tone will
warn you about the danger.
Additionally, a jerk on the brakes may occur as an
acute warning when there is an impending colli­
sion . If you do not react to the acute warning, pre
sense city can brake to the point of complete de­
ce leration within the limits of the system . This
reduces the vehicle speed in the event of a colli­
sion. The message
Audi pre sense. also ap­
pears.
The following functions are triggered in conjunc­
tion with pre sense basic/rear :
- Reversible tensioning of the front safety belts.
- Closing the windows and sunroof* .
- Inflating the s ide bolsters* on the seat back-
rest.
Audi drive select*: the function is not active de ­
pending on the mode selected .
&_ WARNING
- Pre sense city cannot overcome the laws of
phys ics.
It is a system designed to assist and
it cannot prevent a collision in every circum­
stance. The driver must always intervene.
The driver is always responsible for braking
at the correct time. Do not let the increased
safety provided tempt you into taking risks .
This could increase your risk of a collision.
-The system can dep loy incorrectly due to
system-specific limits.
-To reduce the risk of an accident, please
note that the camera does not always detect
every object.
-Pre sense city does not react to animals,
crossing or oncoming vehicles, objects such
as bars, railings or railcars, and objects that
are difficult to detect
c:> &. in General infor­
mation on page 114.
-In trailer mode, the braking behavior of the
trailer can be d ifferent than usual during au­
tomatic braking.
&_ WARNING
Pre sense city may be restr icted or not ava ila­
b le in the following example situations:
- in heavy fog, rain, spray or snow

<( a, .... N ,....
N .... 0 \0
3 a,
-when there are visual obstructions, such as glare, reflections or var iations in light
-when it is dark
-if the camera window or the windshie ld is
dirty, iced over, damaged or covered
-when driving on snow, ice or loose ground
-in curves
-if the ESC was restricted or switched off
-when towing a trailer
-when the driver's seat belt is unfastened
-up to ten seconds after switching on the ig-
nition
(D Note
Impacts or damage to the camera mount on
the windshield can displace the sensor. Pre
sense city can be impaired by this. Have an au­
thorized Audi dealer or authorized Audi Serv­
ice Facility check the ir function.
-You can cancel the system braking interven­
tion if you accelerate considerably or swerve
away.
-Keep in mind that pre sense city can brake
unexpectedly. Always secure any cargo or
objects that you are transport ing to reduce
the risk of damage or injury.
-Certain pre sense city funct ions are switch­
ed off when the ESC is limited or switched
off¢ page 152.
-When there is a malfunction in the camera,
the pre sense city functions also switch off.
Settings in the
Infotainment system
A ppl ies to: ve hicles with Audi pre sense
~ Se lect in the Infotainment system: !MENUI but­
ton
> Vehicle > left contro l button > Driver as ­
sistance> Audi pre sense.
Turn on /off Audi pre sense -
the pre sense func­
tions can be turned on and off.
If the system is switched off, it switches o n again
automatically once the ignition is sw itched on
again.
Assistance systems
Prewarning -the early warning can be switched
off or the pre sense city/front warning point can
be set
(Ea rly/Medium /Late ).
Set the warning t ime for the early warning to
Early at first. If this causes undesired ear ly warn ­
ings to appear, then set the warning time to
Me­
dium .
The Late warning time should on ly be set
in special circumstances, for example, when driv ­
ing with a very dynamic style.
(D Tips
Your settings are automatically stored and as­
signed to the remote control key being used.
Messages
Applies to : v ehicles wi th Audi pre sense
IIJ Audi pre sense: malfunction! Please contact
Service
T his message appears when the pre sense func ­
tion is affected. For example, this could be
ca used by a faulty sensor. Drive to an authorized
Audi dealer or authorized Audi Service Facility im­
mediately to have the malfunction corrected.
II Audi pre sense currently restricted. Restrict­
ed sensor vision due to surroundings. See own­
er's manual
This message appears if the radar sensor and
camera view is obstructed, for example by leaves,
snow, heavy spray or dirt. If necessary, clean the
sensors and the area around the camera
¢ page 114, fig . 112 or ¢page 134, fig. 134 .
II Audi pre sense: currently restricted. Towing
mode
For vehicles with a trailer hitch installed at the
factory, the pre sense rear functions switch off
when the electrical connector at the socket is
plugged in. There is no guarantee the functions
will switch off when using a retrofitted trailer
hitch.
II Audi pre sense: currently restricted
This message appears if the ESC is restricted or
switched off, for example.
IJl,,
129

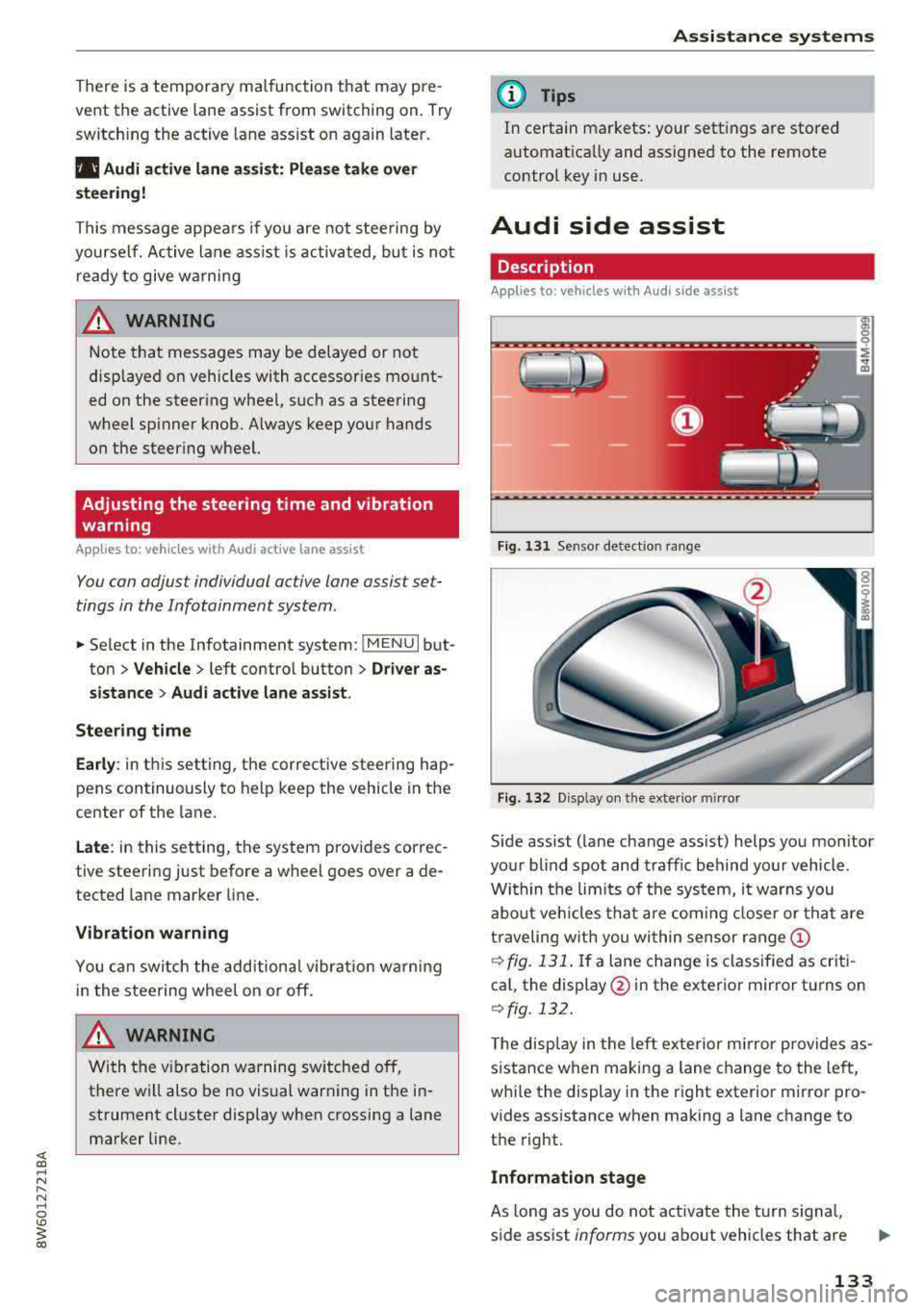

There is a temporary malfunction that may pre­
vent the active lane assist from switching on. Try
switch ing the active lane assist on again later.
111 Audi active lane assist: Please take over
steering!
This message appears if you are not steering by
yourself. Ac tive lane assist is activated, but is not
ready to give warning
A WARNING
Note that messages may be delayed or not
displayed on vehicles with accessor ies mount­
ed on the steering whee l, such as a steering
wheel spinner knob. Always keep your hands
on the steer ing whee l.
Adjusting the steering time and vibration
warning
A pplies to: ve hicles with Audi active lane assist
You can adjust individual active lane assist set­
tings in the Infotainment system .
-
.. Select in the Infotainment system: IMENUI but­
ton
> Vehicle > left contro l button > Driver as ­
sistance
> Audi active lane assist.
Steering time
Early :
in this setting, the corrective steering hap­
pens continuously to help keep the vehicle in the
center of the lane.
Late: in this setting, the system provides correc ­
tive steering just before a wheel goes over a de­
tected lane marker line.
Vibration warning
You can switch the additional vibration warning
in the steering wheel on or off.
WARNING
With the vibration warning switched off,
there will also be no visual warning in the in­
strument clus .ter display when crossing a lane
marker line.
Assistance systems
(D Tips
In certain markets : your sett ings are stored
automat ically and assigned to the remote
control key in use.
Audi side assist
Description
Applies to: vehicles wi th Aud i s ide ass ist
Fig . 131 Sensor detection range
Fig. 132 D isp lay on the exterio r m irror
S ide assist (lane change ass ist) helps you mon itor
your blind spot and traffic behind your vehicle .
Within the limi ts of the system, it warns you
about veh icles that are coming closer or that are
traveling with you wi thin sensor
range ©
¢ fig. 131. If a lane change is classified as criti­
cal, the display @in the exterior mirror turns on
¢fig . 132.
The display in the left exterior mirror p rovides as­
sistance when making a lane change to the left,
whi le the display in the right exterior mirror pro­
vides assistance when making a lane change to
the right.
Information stage
As long as you do not activate the turn signal,
side assist
informs you about vehicles that are
133

Ass is tance sy stems
detected and classified as crit ical. The d isp lay in
the mirror turns on, but is dim .
The display remains dim in the info rmation stage
so that yo ur view toward the front is not distur­
bed .
Warning stage
I f the d isp lay in a mirror blinks br ight ly when you
ac tivate a turn sig nal, side assist is
warning you
about de tected ve hicles tha t it has classified as
cr itical. If this happens, check traffic by g lanc ing
in the exterior mirrors and over your shoulder
¢ .&. in General information on page 135 .
Applies to: vehicles with active lane assist: the
d isp lay in the mirror can also blink if you have not
activated a turn signal: if you are approaching a
detected lane marker line and it appears you will
be leaving the lane, side ass ist will warn you
about detected vehicles that it has classified as
cr itical.
(D Tips
You can ad just the brightness on of the dis­
play on the rearview
mirror¢ page 135.
General information
Applies to: vehicles with Audi side assist
®
@
©
F ig . 133 Driving s itua tio ns
134
AUD I
F ig. 13 4 Rear of the ve hicle : posit ion of t he se nsors
Side assist funct ions at speeds above approx i­
mately 9 mph (15 km/h) .
@ Vehicles that are approaching
"' 00
I m
In certain cases, a veh icle w ill be classified as
critical for a lane change even if it is st ill some­
what far away. The faster a vehicle approaches,
the sooner the display in the ex terior m irror will
turn o n.
@ Vehicles traveling with you
Vehicles traveling with you are indicated in the
exter ior mir ror if they are class ified as cr it ical for
a la ne change . All vehicles detected by side ass ist
a re indicated by the time they enter your "blind
spot", at the latest.
© Vehicles you are p assing
If you slowly pass a vehicle that side assist has detected (the differe nce in speed between the
vehicle and your vehicle is less than approximate­
ly 9 mph ( 15 km/h)), the disp lay in the exter ior
mir ror turns on as soon as the vehicle ente rs you r
blind spot.
The display wi ll not turn on if you quickly pass a
vehicle that side ass ist has detected (the differ ­
ence in speed is grea ter than approximate ly 9
mph (15 km/h)) .
Functional limitations
The radar sensors are des igned to detect the left
and right adjacent lanes whe n the road lanes are
the norma l width. I n some situa tions, the display
i n the exte rior m irror may turn o n even though
there is no vehicle located in the area tha t is criti­
ca l for a lane c hange. For example:

<( a, .... N ,....
N .... 0 \0
3 a,
-If the lanes are narrow or if your are driving on
the edge of your lane. If this is the case , the
system may have detected a veh icle in another
lane that is
not adjacent to your current lane.
-If you are driving through a curve . Side assist
may react to a vehicle that is in the same lane
or one lane over from the adjacent lane.
-If side assist reacts to other objects (such as
roadside structures like guard rails).
-In poor weather conditions . The side assist
functions are limited.
Do not cover the radar
sensors ¢ fig. 134 with
stickers, deposits, bicycle whee ls or other ob­
jects, because this wi ll impa ir the function. Do
not use side assist when towing a trailer. For in­
formation on cleaning, see
¢page 362 .
A WARNING
-Always pay attention to traffic and to the
area around your vehicle. Side assist cannot replace a dr iver's attention. The dr iver alone
is a lways responsib le for lane changes and
similar d riving maneuvers.
-In some situat ions, the system may not
function or its funct ion may be limited. For
example:
-If vehicles are approach ing or being left
behind very quickly. The display may not
turn on in t ime.
-In poor weather conditions such as heavy
rain, snow or heavy mist.
-On very wide lanes, in tight curves, or if
there is a rise in the road surface. Vehicles
in the adjacent lane may not be detected
because they are outs ide of the sensor
range.
(D Note
The sensors can be displaced by impacts or damage to the bumper, wheel housing and
underbody. Th is can impa ir the system . Have
an authorized Audi dealer or authorized Audi
Serv ice Facility check their function.
-If the window glass in the driver's door or
front passenger 's doo r has been t inted, the
-
A ss ista nce sys te m s
display in the exterior mirror may be incor ­
rect.
-For an exp lanat ion on con formity w ith the
FCC regulat ions in the United States and the
Industry Canada regulations, see
¢ page 392.
Switching on/off
Applies to : vehicles wit h Aud i s ide ass ist
The system con be switched on/off in the Info­
tainment system .
If the system is activated , the disp lays in the ex­
terior mirrors will turn on briefly when the igni ­
tion is switched on .
.,. Select in the Infotainment system: I MENU! but­
ton
> V ehicle > left control b utton > D riv er as­
s istance
> Audi side a ssist. Off switches the
system off.
(D Tips
When yo u switch side assist on or off, the ex it
warning system activates or deactivates
¢ page 136 .
Setting the display brightness
Applies to : vehicles wit h Aud i s ide ass ist
The display brightness con be adjusted in the In ­
fotainment system.
.,. Sele ct in the Infotainment system: I MENU ! but­
t on
> Veh icle > left control b utton > D riv er as­
s istance
> Audi side a ssist.
The disp lay brightness adjusts automatically to
the brightness o f the surroundings, bo th in the
information and in the warning stage . In very
dark or very bright surround ings, the automatic
adjustment will set the display to the minim um
or max imum level. In such cases, you may notice
no change when adjusting the br ightness, or the
change may only be noticeable once the sur ­
roundings cha nge .
Adjust the br ightness to a leve l where the display
in the information stage will not disrupt your
view ahead . If you change the brightness, the d is-
play in the exterior mirror will br iefly show the
.,..
135
