2018 AUDI A4 width

detected and classified as crit ical. The display in
the mirror turns on, but is dim .
The display remains dim in the information stage
so that your view toward the front is not distur­
bed.
Warning stage If the d isplay in a mirror blinks brightly when you
activate a turn signal, side assist is
warning you
about detected vehicles that it has classified as
critical. If this happens, check traffic by gla nc ing
in the exterior m irrors and over your shoulder
c::> .&. in General information on page 130 .
Applies to: vehicles with active lane assist : the
d isplay i n the mirror can also blink if you have not
act ivated a turn signal: if you are app roaching a
detected lane marker line and it appears you will
be leaving the lane, side assist will warn you
about detected vehicles that it ha s classified as
critical.
(D Tips
You can ad just the brightness on of the dis ­
play on the rearview mirror
c::;, page 130 .
General information
Applies to: vehicles with Audi side assist
®
®
©
Fig. 129 Drivi ng situat ion s
Assistance systems
0
r AUD I
• •
Fig. 130 Rear of the veh icle: pos it ion of th e se nso rs
S id e assist functions at speeds above approxi­
mately 9 mph (15 km/h).
@ Vehicles that are approaching
In certain cases, a vehicle will be classified as
critical for a lane change even if it is still some ­
what far away . The faster a vehicle approaches,
the sooner the display in the exterior m irror will
turn on.
@ Vehicles traveling with you
Vehicles traveling with you are indicated in the
exter ior mirror if they are classified as cr itical for
a lane change . A ll vehicles detected by side assist
are ind icated by the time they enter your "blind
spot" , at the latest .
© Vehicles you are passing
If you s lowly pass a veh icle that s ide assist has
detected (the difference in speed between the
vehicle and your vehicle is less than approximate­
ly 9 mph ( 15 km/h)) , the disp lay in the exter ior
mirror turns on as soon as the vehicle en ters your
blind spot.
The display w ill not turn on if you quickly pass a
vehicle that side assist has detected (the differ­
ence in speed is greater than approximately 9
mph (15 km/h)) .
Functional limitations
T he radar sensors are designed to detect the left
and right adjacent lanes when the road lanes are
the normal width. In some situations, the display
in the exterior mirror may turn on even though
there is no vehicle located in the area that is criti-
cal for a lane change. For example :
..,.
129

a co .... N ,....
N .... 0 0
3 co
(D Tires for passenger vehicles
(if applicable)
"P" indicate s a tir e for a p ass enger
vehi cle . "T" indicates a tire de sig­
nated for temporary us e.
@ Nominal width
Nominal width of the tire be­
tween the sidewalls in millime­
ters. In general: the larger the number, the wider the tire.
@ Aspect ratio
Height/width ratio expressed as a
percentage.
@ Tire construction
R indicates a radial tire.
® Rim diameter
Siz e of the rim diameter in inches.
@ Load index and speed rating
The load ind ex indi cates the tire' s
lo ad-ca rry in g ca pacity.
The speed rating indicates the maximum permitted
speed ¢.& in
W inter tires o n page 349 .
"EXTRA LOAD", "xl" or "RF" indi­
cate s that the tire i s reinfor ced or
is an Extra Load tire.
Speed rat- Maximum permitted speed
ing
p
up t o 93 mph ( 150 km/h)
Q up to 99 mph (160 km/ h)
Wheels
Speed rat- Maximum permitted speed
ing
R up to 106 mph (170 km/h)
s u p to 11 0 mph ( 180 km/h)
T up to 118 mph (190 km/h)
u u p to 124 mph ( 200 km/h)
H up to 130 mph (210 km/h)
V up to 14 9 mph (2 40 km/h) al
z above 149 mph (240 km/h)al
w u p to 168 mph (270 km/h) al
y up to 1 86 mph (300 km/h)al
a) Fo r tir es ab ove 149 mph (2 40 km/h),
t ir e man ufact ure rs sometimes use the
co de
"Z R".
(j) US DOT number (TIN) and
manufacture date
The m anufac ture date i s listed on
the tire sidewall (it ma y only ap­
pear on the inner side of the tire):
DOT ... 2216 ...
means, for example , that the tire
was produced in the 22nd week of
the year 2016.
@ Audi Original Tires
Audi Original equipment tire s
with the de signation "AO" ha ve
been specially matched to your
Audi. When used correctl y, these
tires meet the high est standards
for safety and handling. An au­
thorized Audi dealer o r author­
ized Audi Ser vice Fa cilit y will be
a ble to pr ovide you with more in-
formation .
""
335

Wheel s

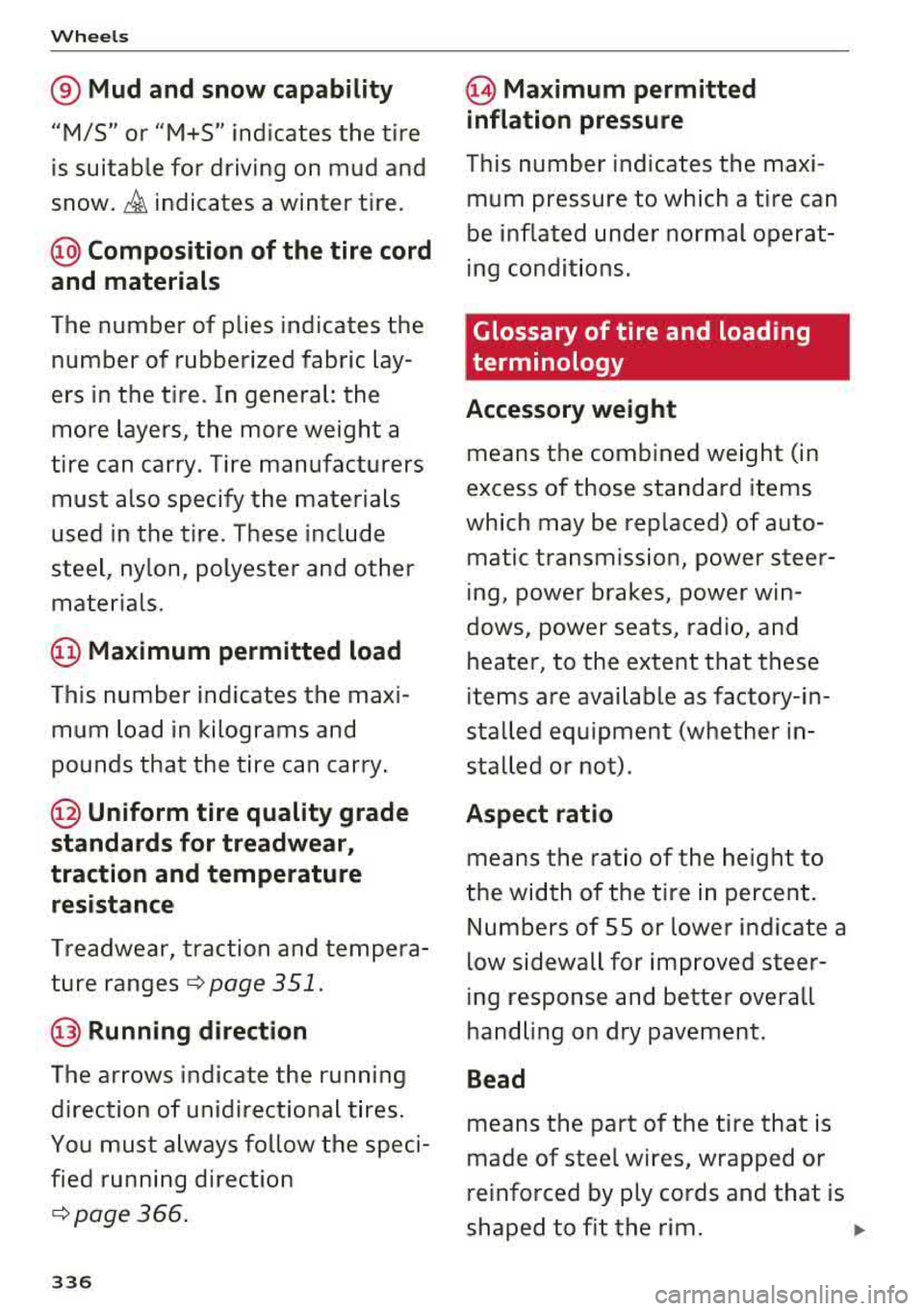

® Mud and snow capability
"M/5" or "M+S" indicates the tire
is sui table for driving on mud and
snow.
& indicates a winter tire.
@ Composition of the tire cord
and materials
The number of plies indicates the
number of rubberized fabric lay­
ers in the t ire. In general: the
more layers, the more weight a
tire can carry . Tire manufacturers
must also specify the materials
used in the tire. These include
steel, nylon, po lyester and other
materials.
@ Maximum permitted load
This number indicates the maxi­
mum load in kilograms and
pounds that the tire can carry .
@Uniform tire quality grade
standards for treadwear,
traction and temperature resist ance
Treadwear, traction and tempera­
ture
ranges ¢ page 351.
@ Running direction
The arrows indicate the running
direction of unidirectional t ires .
You must always follow the speci­
fied running direction
¢page 366 .
336
@ Maximum permitted
inflation pressure
This number indicates the maxi­
mum pressure to which a tire can
be inflated under normal operat ­
ing condit ions.
Glossary of tire and loading
terminology
Acces sory we ight
means the combined weight (in
excess of those standard items
which may be replaced) of auto­ matic transmission, power steer­
ing, power brakes, power win­
dows, power seats, radio, and
heater, to the extent that these
items are available as factory-in­
stalled equipment (whether in ­
stalled or not) .
Aspect ratio
means the ratio of the height to
the width of the tire in percent .
Numbers of 55 or lower indicate a
low sidewall for improved steer­
ing response and better overall
handling on dry pavement.
Bead
means the part of the tire that is
made of steel wires, wrapped or
reinforced by ply cords and that is
shaped to fit the r im .
...

Wheel s
Maximum (permissible)
inflation pressure
means the max imum cold infla­
tion pressure to which a t ire may
be inflated . Also called "maxi ­
mum inflation pressure."
Normal occupant weight
means 150 lbs. (68 k ilograms)
times the number of occupants seated in the vehicle up to the to­
tal seating capacity of your vehi­
cle .
Occupant distribution
means distribution of occupants
in a vehicle.
Outer d iameter
means the overall diamete r of an
inflated new tire.
Overall width
means the linear distance be­
tween the exteriors of the side ­
walls of an inflated tire , including
elevations due to labeling, deco­ rations, or protective bands or
ribs .
Ply
means a layer of rubber-coated
para llel cords.
338
Production options we ight
means the combined weight of
those installed regular product ion
options weighing over 5 lbs . (2 .3
kg) in excess of those standard
items which they replace, not pre­
viously considered in curb weight or accessory weight , including
heavy duty brakes, ride levelers,
roof rack, heavy duty battery, and
special trim.
Radial ply ti re
means a pneumatic tire in which
the ply cords that extend to the beads are la id at substantially 90
degrees to the centerline of the
tread.
Recommended inflation
pressure
see ¢ page 33 7, Cold tire infla­
tion pressure.
Reinforced tire
means a tire designed to operate
at higher loads and at higher in­
flation pressures than the corre­
sponding standard tire . Rein ­
forced tires may be identified as
"XL", "xl", "EXTRA LOAD", or "RF"
on the sidewall. ...

0 C0 .-< N ..... N .-< 0
~ a:,
Rim
means a metal support for a tire
or a tire and tube assembly upon
which the tire beads are seated.
Rim diameter
means nominal diameter of the
bead seat. If you change your
wheel size, you will have to pur­
chase new tires to match the new
rim diameter.
Rim size designation
means rim diameter and width.
Rim width
means nominal distance between
rim flanges .
Sidewall
means that portion of a tire be­
tween the tread and bead .
Speed rating (letter code)
means the speed at which a t ire is
designed to be driven for extend­
ed periods of time . The ratings
range f rom 93 mph (150 km/h)
to 186 mph (298 km/h)
¢ table
on page 335.
You may not find
this information on all tires be­
cause it is not required by law.
The speed rating letter code ,
w here applicable, is molded o n
the tire sidewall and indicates the
Wheels
maximum permissible roa d
speeds
¢ A in Winter tires on
page 349.
Tire pressure monitoring
system
means a system that detects
when one or more of a vehicle's
ti res are underinflated and illumi­
na tes a low tire pressure warning
telltale.
Tread
means that po rtion of a ti re that
comes i nto contact with the road .
Tread separation
means pulling away of the tread
from the tire carcass.
Treadwear indicators (TWI)
means the projections withi n the
principa l grooves desig ned to g ive
a visua l indication of the degrees
of wear of the t read. See
¢ page 343, Treadwear indicator
for mo re in fo rmat ion on meas ur­
ing t ire wear .
Uniform Tire Quality Grading
is a tire information system devel­
oped by the United Sta tes Nation­
a l Highway Traffic Safety Admin­
istration ( NHTSA) tha t is designed
to help buyers make re lat ive
339
..

a co .... N ,....
N .... 0 0
3 co
wash operator to reduce the risk of acci­dents.
- To reduce the risk of cuts, protect yourself
from sharp metal components when wash­
ing the underbody or the inside of the wheel
housings .
- After washing the vehicle, the brak ing effect
may be delayed due to mo isture on the
brake rotors or ice in the w inter . This in­
creases the risk of an acc ident. The brakes
must be d ried fi rst w ith a few careful b rake
applications.
(D Note
- If you wash t he vehicle in an automatic car
wash, yo u m ust fold the exte rior m irrors in
to reduce the risk of damage to the mirrors.
Power folding exte rior m irrors* must on ly
be fo lded in a nd out using the power folding
fu nct ion.
- To reduce the risk of damage to the rims
and tires, compare the width between the
whee ls on your vehi cle w it h t he dis tan ce be­
tween the g uide rai ls in the
car wash.
- To reduce t he risk of damage, compare the
height and width o f you r vehicle wi th the
Ca re and cleaning
height and w idth of the inside of the car
was h.
- T o red uce the risk of pa int damage, do not
was h the vehicle in d irect sun light .
- T o red uce the risk of d am age to the s urf ace,
do not use insect removing sponges, k itche n
sponges or similar items .
- Mat te finish painted veh icle components:
- To reduce the risk of damage to the sur-
face, do not use polishing agents or hard
wax .
- Never use protective wax. It can destroy
the matte finish effect .
- Do not place any stickers or magnetic
signs on vehicle parts painted with matte
finish paint . The paint cou ld be damaged
when the stickers or magne ts are re­
moved .
@ For the sake of the environment
Only wash t he vehicle in facilities s pec ially de­
s ign ed for that pu rpose . This will reduce the
r isk of dirty wate r contaminated with oil from
ente ring the sewe r sys tem.
Cleaning and care information
W hen cleani ng and ca ring for individua l vehicle
components, refer to the follow ing tables . The
i n formation contained there is simply recom­
mendations. For quest ions or for components t
h at are not liste d, co n su lt an autho riz ed Au di
dealer or authorized A udi Se rvice Fac ility . Also
fo llow the information found
in ¢ .&. .
Exterior cleaning
Component Situation Solution
Windshield wiper
Deposits c:> page 61, Cleaning the wiper blades
blades
Headlights /
Deposi ts So
ft spo nge wi th a mild so ap sol ution3>
Tail light s
S ensors /
Deposits Sensors: soft cloth w it h solvent-free cleaning solut ion
Camera len ses Camera le nses: soft clot h w ith alcohol-free cleaning solu-
tion
Snow/ice H
and br ush/solvent-free de-icing spray
Wheels Road salt Water
Brake dust Acid-free special cleaning solution
355

Tech nical data
Weights
Gross V ehicl e We ight Rat ing
The G ross Vehicle Weight Ra ting (GVWR), and
the Gross Axle Weight Rating (GAWR) for front
and rear are listed on a sticker on the driver's side
B-pillar respective ly on the front end of the driv­
er's door.
The G ross Vehicle Weight Rating includes the
weight of the basic vehicle plus full fuel tank, oil
and coolant, plus maximum load, which includes
passenger weight (150 lbs/68 kg per designated
seating position) and luggage
we ight¢ &..
Gros s Ax le Weight Rating
The Gross Axle Weight Rating is the maximum
load that can be applied at each axle of the vehi­
cle¢&_ .
Vehicle c apacity w eight
The vehicle capacity we ight (max . load) is listed
on the driver 's side B -p ill ar respectively on the
front end of the driver's door.
_& WARNING
-The actual Gross Axle Weight Rating at the
front and rear axles should not exceed the
permissible weights, and their comb inat ion
must not exceed the Gross Veh icle Weight
Rating.
- Exceeding permiss ible weight ratings can
result in veh icle damage, acc idents and pe r­
sonal i njury .
Dimensions
(D Note
-The veh icle capacity weight figures apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage). When
transport ing a heavy load in the luggage
compartment, carry the load as near to the
rea r axle as possible so that the ve hicle's
hand ling is not impaired .
- Do not exceed the maximum perm iss ible
axle loads or the maximum gross veh icle
we ight. Always remember that the ve hicle's
hand ling will be affected by the extra load.
Th erefore, a djust your speed acco rdingly.
- Always observe local regulations.
Length (in (mm )) Width (in (mm ))
Width across the Height at curb
mirrors (in (mm )) weight (in (mm))
A4 sedan 186.1 (4,726) 72.5 (1,842) 79.6 (2,022) 56.2 (1,427)
54 sedan 186
.8 (4,745) 72 .5 (1,842) 79 .6 (2,022) 55 .3 (1,404)
all road 187.0 (4,750) 72.5 (
1,842) 79.6 (2,022) 58.8 (1,493)
380
