NOTE:The setting can be increased or decreased by 5
MPH or km/h each time the upordown arrow button
is pushed for speed settings above 20 MPH (32 km/h).
To increase or decrease the set speed rapidly, push and
hold the upordown arrow button. Save the setting by
briefly pushing the button when you approach the
required setting.
Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
To cancel the setting, proceed as follows:
1. Briefly push the SET/BACKbutton. “On” will dis-
play.
2. Push and release the downbutton. “Off” will dis-
play.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.Trip B Activation
Through this option, it is possible to activate (On) or
deactivate (Off) the Trip B (partial trip) display.
For further information, see “Trip Computer.”
For activation/deactivation, proceed as follows:
1. Briefly push the SET/BACKbutton. “On” or “Off”
will display in the instrument cluster display (ac-
cording to previous setting).
2. Push and release the upordown arrow button to
select the setting and once selected a beep will occur
to signal the setting is saved.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Set Time
This function may be used to set the clock through two
submenu items: “Time” and “Mode.”
60 GETTING TO KNOW YOUR INSTRUMENT PANEL
Proceed as follows:
1. Briefly push theSET/BACKbutton. The display will
show the two submenu items “Time” and “Mode.”
2. Push and release the upordown arrow button to
navigate the two submenu items.
3. Select the required option and then push the SET/
BACK button.
4. When accessing the “Time” submenu item, briefly push the SET/BACK button and “hours” will flash
on the display.
5. Push and release the upordown arrow button for
setting.
6. Briefly push the SET/BACKbutton and “minutes”
will flash on the display.
7. Push and release the upordown arrow button for
setting. NOTE:
•The setting will increase or decrease by one unit
each time the upordown arrow button is pushed.
Push and hold the button to increase/decrease the
setting rapidly. Save the setting by briefly pushing
the button when you approach the required setting.
• Briefly push the SET/BACKbutton to return to the
“Time” sub-function.
• When accessing the “Mode” submenu, briefly push
the SET/BACK button. The previously set display
format will flash on the display.
• Push and release the upordown arrow button to
select “24h” or “12h.”
When you have selected the required settings, briefly
push the SET/BACK button to go back to the Time,
Mode submenu screen, or push and hold the SET/
BACK button (approximately one second) to go back to
the main screen without storing the settings.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 61
Set Date
This function may be used to set the date (day - month
- year).
To change the date, proceed as follows:
1. Briefly push theSET/BACKbutton and “year” will
flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton and “month”
will flash on the display.
4. Push and release the upordown arrow button for
setting.
5. Briefly push the SET/BACKbutton and “day” will
flash on the display.
6. Push and release the upordown button for setting.
NOTE: The setting will increase or decrease by one
unit each time the upordown arrow button is pushed.
Push and hold the upordown arrow button to
increase/decrease the setting rapidly. Save the setting
by briefly pushing the button when you approach the
required setting. Briefly push the
SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACKbutton
(approximately one second) to go back to the main
screen without storing the settings.
Autoclose
With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 12 MPH
(20 km/h).
To change the setting, proceed as follows:
1. Briefly push the SET/BACKbutton “On” or “Off”
will flash on the display (according to the previous
setting).
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Units (Set Units)
This function may be used to set the measurement unit
in three submenus: “Distance,” “Temperature” and
“Fuel Economy.”
62 GETTING TO KNOW YOUR INSTRUMENT PANEL

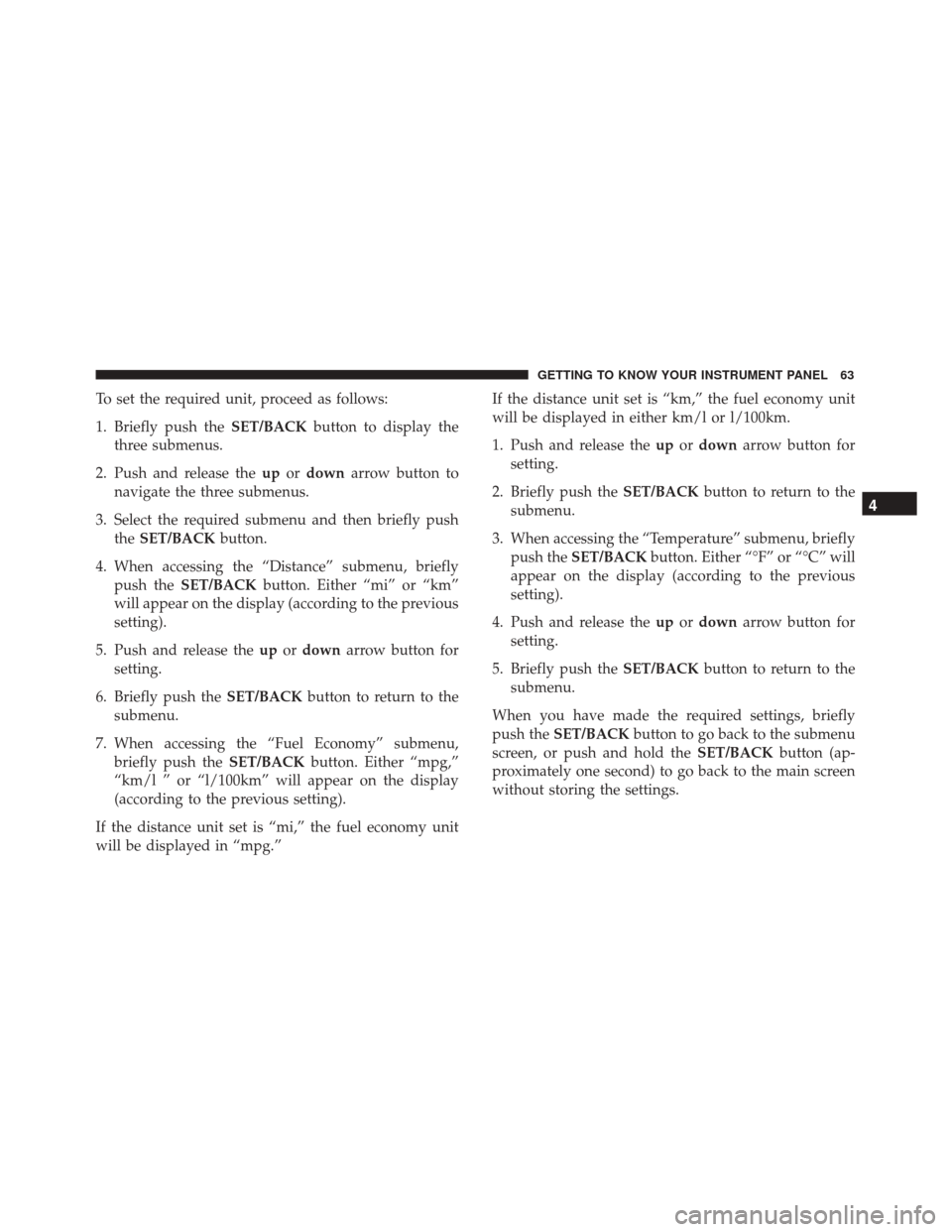

To set the required unit, proceed as follows:
1. Briefly push theSET/BACKbutton to display the
three submenus.
2. Push and release the upordown arrow button to
navigate the three submenus.
3. Select the required submenu and then briefly push the SET/BACK button.
4. When accessing the “Distance” submenu, briefly push the SET/BACK button. Either “mi” or “km”
will appear on the display (according to the previous
setting).
5. Push and release the upordown arrow button for
setting.
6. Briefly push the SET/BACKbutton to return to the
submenu.
7. When accessing the “Fuel Economy” submenu, briefly push the SET/BACKbutton. Either “mpg,”
“km/l ” or “l/100km” will appear on the display
(according to the previous setting).
If the distance unit set is “mi,” the fuel economy unit
will be displayed in “mpg.” If the distance unit set is “km,” the fuel economy unit
will be displayed in either km/l or l/100km.
1. Push and release the
upordown arrow button for
setting.
2. Briefly push the SET/BACKbutton to return to the
submenu.
3. When accessing the “Temperature” submenu, briefly push the SET/BACK button. Either “°F” or “°C” will
appear on the display (according to the previous
setting).
4. Push and release the upordown arrow button for
setting.
5. Briefly push the SET/BACKbutton to return to the
submenu.
When you have made the required settings, briefly
push the SET/BACK button to go back to the submenu
screen, or push and hold the SET/BACKbutton (ap-
proximately one second) to go back to the main screen
without storing the settings.
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 63
Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English (USA), German, Portuguese,
Spanish, French, Chinese, Russian, and Mexican Span-
ish.
To set the required language, proceed as follows:
1. Briefly push theSET/BACKbutton. The previously
set “language” will flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function, the volume of the buzzer accompa-
nying any failure/warning indication can be adjusted
to one of eight volume levels. To adjust the volume, proceed as follows:
1. Briefly push the
SET/BACKbutton. The previously
set volume “level” will flash on the display.
2. Push and release the upordown arrow button for
setting.
3. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the SET/BACK
button (approximately one second) to go back to the
main screen without storing the settings.
Service (Scheduled Servicing) — If Equipped
With this function, it is possible to view
information on mileage intervals for servic-
ing.
To obtain this information, proceed as follows:
Push the SET/BACK button briefly. The display shows
the service interval in miles (mi) or kilometers (km)
according to the previous setting (see the Unit Of
Measurement paragraph).
64 GETTING TO KNOW YOUR INSTRUMENT PANEL
Briefly push theSET/BACKbutton to go back to the
menu screen or hold the button down to go back to the
standard screen.
NOTE: The “Scheduled Servicing Plan” includes ve-
hicle maintenance at fixed intervals (refer to “Scheduled
Servicing” in “Servicing And Maintenance” for further
information). This message is displayed automatically
along with the warning light when the key is turned to
MAR/ON/RUN - 1242 miles (2,000 km) before these
deadlines and reappears every 124 miles (200 km).
Below 124 miles (200 km) servicing indications are more
frequent. The indication will appear in miles or kilome-
ters according to the Unit Of Measurement settings.
When the next scheduled service is approaching and
the key is turned to MAR/ON/RUN, the word Service
will appear on the display, followed by the number of
miles or kilometers left. Contact an authorized dealer.
The operations in the “Scheduled Servicing Plan” will
be performed and the message will be reset.
Daytime Running Lamps
This function may be used to activate/deactivate the
daytime running lamps. Proceed as follows to switch this function on or off:
1. Briefly push the
SET/BACKbutton to display the
three submenus.
2. Briefly push the SET/BACKbutton. “On” or “Off”
will flash on the display (according to previous
setting).
3. Push and release the upordown arrow button for
setting.
4. Briefly push the SET/BACKbutton to go back to the
menu screen, or push and hold the button (approxi-
mately one second) to go back to the main screen
without storing the settings.
Exit Menu
This function closes the initial menu screen.
Briefly push the SET/BACKbutton to go back to the
main screen.
Push and release the uparrow button to return to the
first menu option (Speed Buzzer).
Push and release the downarrow button to return to the
last menu option (Daylights).
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 65
Values Displayed
Indications On Display
Each time a value is selected, the following information
is shown in the instrument cluster display:
•“Trip A” or “Trip B” location(s)
• Name, value and unit of measure of the selected
value (e.g. Range 520 mi).
After a few seconds, the name of the selected value is
replaced by the corresponding icon.
Range
This indicates the distance which may be traveled with
the fuel remaining in the tank, assuming that driving
conditions will not change. The message “----” will
appear on the display in the following cases:
• Distance less than 30 miles (or 50 km).
• The vehicle is parked for a long time with the engine
running.
NOTE: The range depends on several factors: driving
style, type of route (freeway, residential, mountain
roads, etc.), conditions of use of the vehicle (load, tire
pressure, etc.). Trip planning must take into account the
above notes.
Average Fuel Consumption
This value shows the approximate average consump-
tion since the last reset.
Travel Distance
This value shows the distance covered since the last
reset.Instrument Cluster Display
66 GETTING TO KNOW YOUR INSTRUMENT PANEL
Current Fuel Consumption
This indicates the fuel consumption. The value is con-
stantly updated. The message “----” will appear on the
display if the vehicle is parked with the engine running.
Average Speed
This value shows the vehicle’s average speed as a
function of the overall time elapsed since the last reset.
Travel Time
This value shows the time elapsed since the last reset.
Tire Pressure Values
This screen will display OK at each Tire Pressure
Monitoring sensor. Refer to “Tire Pressure Monitoring
System” in “Safety” for further information.
TRIP COMPUTER
The Trip Computer is located in the instrument cluster.
It features a driver-interactive display (displays infor-
mation such as trip information, range, fuel consump-
tion, average speed, and travel time).
Trip Button
TheTRIP/RESET button, located on the right steering
column stalk, can be used to display and to reset the trip
values.
• A short button push displays the different values.
• A long button push resets the system and then starts
a new trip.
TRIP/RESET Button
4
GETTING TO KNOW YOUR INSTRUMENT PANEL 67
