2018 Acura MDX HYBRID Owner's Manual

360
uuRear Entertainment System (RES)*uFront Control Panel Operation
Features
1. Select Audio Menu .
2. Select RES Settings.
The following items are available:
• Rear Control: Sets whether to use the rear co ntrol panel to control the RES.
When setting is set to On, operates the RES using the rear control panel.
• Rear Speaker : Sets the front audio source to play through the rear speakers,
even when the RES is on. The RES source can only be heard through the wireless
headphones. When setting is set to On, outputs the sound of the front source to
the rear speakers.
• Single/Dual Screen Mode : Selects a source to continue playing when you
switch from dual mode to singl e mode on the overhead screen.

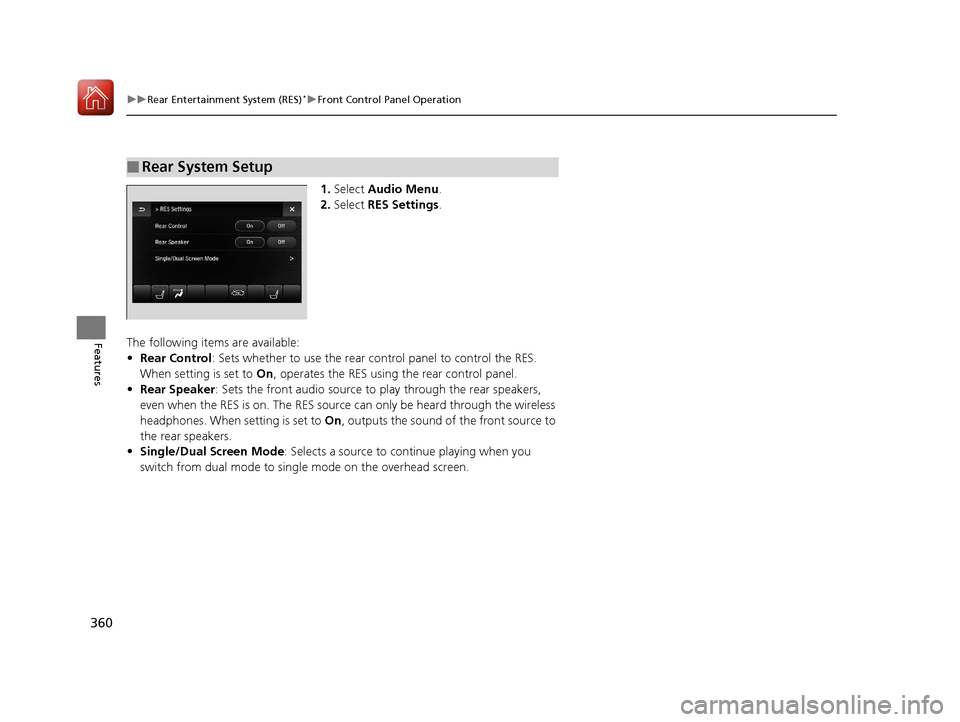

■Rear System Setup
18 ACURA MDX E-AWD-31TRX6100.book 360 ページ ２０１８年３月２７日　火曜日　午後８時６分

361
uuRear Entertainment System (RES)*uPlayable Discs
Features
Playable Discs
The discs that come with these labels can be played in your vehicle’s rear
entertainment system.
Also look for the region code of 1 or ALL on the package or jacket on the disc.
DVD-ROMs are not playable in this unit.1 Playable Discs
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights.
Use of this copyright prot ection technology must be
authorized by Rovi Corporation, and is intended for
home and other limited vi ewing uses only unless
otherwise authorized by Rovi Corporation. Reverse
engineering and disasse mbly are prohibited.
For DTS patents, see http://patents.dts.com .
Manufactured under licens e from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS Digital
Surround and Neural Surro und are trademarks of
DTS, Inc. © DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, MLP Lossless and the double-D
symbol are trademarks of Dolby Laboratories.
The disc packages or jackets should have one of these marks.
Also includes:
18 ACURA MDX E-AWD-31TRX6100.book 361 ページ ２０１８年３月２７日　火曜日　午後８時６分

362
Features
Customized Features
Use the information screen and On Demand Multi-Use DisplayTM to customize
certain features.
■How to customize
Select your desired setting item by pressing the SETTINGS button, then rotating
while the power mode is ON and the ve hicle is at a complete stop. Press .
1Customized Features
When you customize settings, make sure that the
vehicle is at a complete stop and transmission is put
into
(P.
To customize other featur es, rotate , move , ,
or , and press .
2 List of customizable options P. 369
Information Screen
1How to customize
The following settings can be customized on the On
Demand Multi-Use Display
TM.
•Edit Source Order
•Sound Settings•Edit/Delete HDD Music
•Audio Settings
•Screen Settings•RES Settings*
2 How to customize P. 385
Information Screen
Information Screen
SETTINGS Button
* Not available on all models
18 ACURA MDX E-AWD-31TRX6100.book 362 ページ ２０１８年３月２７日　火曜日　午後８時６分

363
uuCustomized Features u
Continued
Features
■Customization flow
Information Screen
Press the SETTINGS button.
BluetoothBluetooth
Bluetooth Device List
Edit Speed Dial
Auto Transfer
Auto Answer
Ring Tone
Automatic Phone Sync
Use Contact Photo
Enable Text/Email
Select Account
New Text/Email Alert
Text/Email


Default
Edit Pairing Code
Phone


Bluetooth/
Phone
Settings


See the Navigation System Manual.

Navigation Settings
18 ACURA MDX E-AWD-31TRX6100.book 363 ページ ２０１８年３月２７日　火曜日　午後８時６分

364
uuCustomized Features u
Features

Camera
SettingsFixed Guideline
Dynamic Guideline
*1 : Models with multi-view rear camera
*2 : Models with surround view camera system
Default Camera
Settings*1



Surround View
Camera
Auto Show Camera after Reverse

Default Camera Mode in Forward
Default Camera
Settings*2

Default Camera Mode in Reverse
Show Camera When Decelerating
Clear Parking Guidance Automatically
Fixed Guideline
Dynamic Guideline
Cross Traffic Monitor
Cross Traffic MonitorCross Traffic Monitor
Cross Traffic Monitor
18 ACURA MDX E-AWD-31TRX6100.book 364 ページ ２０１８年３月２７日　火曜日　午後８時６分

365
uuCustomized Features u
Continued
Features
“Trip A” Reset Timing
“Trip B” Reset Timing

Language Selection
Adjust Outside Temp. Display

Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep

Turn by Turn Display
Default
Meter
Driver
Assist
Lane Keeping Assist Suspend Beep
Blind Spot Info
Driving
Position
Road Departure Mi tigation Setting
ACC Display Speed Unit
Memory Position Link Easy Entry/Exit
Reverse Alert Tone
Vehicle
Settings
18 ACURA MDX E-AWD-31TRX6100.book 365 ページ ２０１８年３月２７日　火曜日　午後８時６分

366
uuCustomized Features u
Features
Maintenance ResetMaintenance Info.
Preferred Dynamic ModeDynamic
Mode
Key And Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Auto Door Lock
Auto Door Unlock Door
Auto Folding Door Mirror
Door Unlock Mode
Keyless Access Beep

Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Remote Start System On/Off
Walk Away Auto Lock
Lighting
Keyless
Access
Keyless Access Light Flash
Keyless Open Mode
Power Open By Outer Handle
Power
Tailgate
18 ACURA MDX E-AWD-31TRX6100.book 366 ページ ２０１８年３月２７日　火曜日　午後８時６分

367
uuCustomized Features u
Continued
Features
Auto Time Zone

Clock/Wallpaper Type
Clock Adjustment
Clock
Settings
Clock Format
Default
Auto Daylight
Clock Reset

AcuraLink Msg Notice
Delete AcuraLink Messages
AcuraLink Settings
AcuraLink Subscription Status
Default
18 ACURA MDX E-AWD-31TRX6100.book 367 ページ ２０１８年３月２７日　火曜日　午後８時６分
