2018 Abarth Punto headlights

49
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U036Abfig. 36
The daytime lights are an alternative to
dipped beam headlights for driving
during the daytime. They are compliant in
countries where is it obligatory to have lights on
during the day and permitted in those where it is
not obligatory. Daytime running lights cannot
replace dipped headlights when driving at night
or through tunnels. The use of daytime running
lights is governed by the highway code of the
country in which you are driving. Comply with
legal requirements.
WARNING
EXTERNAL LIGHTS
The left-hand stalk operates most of the external lights.
The ignition key has to be in the MAR position for the
exterior lights to come on. The instrument panel and
the various dashboard controls will come on with the
external lights.
The twist switch positions are shown in fig. 36:
ODay lights (D.R.L.)
6Day lights (D.R.L.) and side lights
2Side lights and dipped headlamps
DAYTIME RUNNING LIGHTS (DRL) fig. 36
(for versions/markets where provided)
With the ignition key turned to MAR and the twist
switch turned to position
Othe daytime running lights
are automatically activated; the other lights and interior
lighting remain off.
DIPPED HEADLAMPS/SIDE LIGHTS fig. 36
With the ignition key turned to MAR, turn the twist
switch to
2. If dipped beams are activated, the daytime
running lights go out and the side lights and dipped
headlights come on. The warning light
3on the
instrument panel comes on. When the ignition key is
turned to STOP or removed and the twist switch is
turned from
Oto 2, all the side lights and number
plate lights come on. The warning light
3on the
instrument panel comes on. The automatic operation of the daytime running lights
can be activated/deactivated via the display menu (see
“Reconfigurable multifunction display” paragraph in this
section). If the daytime running lights are deactivated, no
light comes on when the twist switch is turned to
O.
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:06 Pagina 49

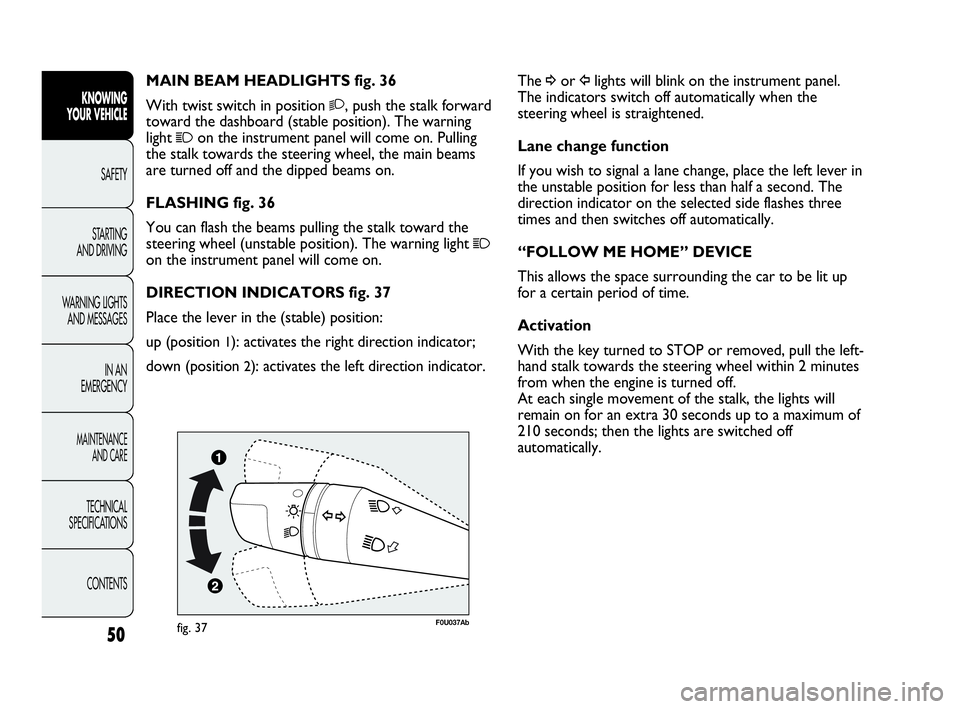

50
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The ¥or Îlights will blink on the instrument panel.
The indicators switch off automatically when the
steering wheel is straightened.
Lane change function
If you wish to signal a lane change, place the left lever in
the unstable position for less than half a second. The
direction indicator on the selected side flashes three
times and then switches off automatically.
“FOLLOW ME HOME” DEVICE
This allows the space surrounding the car to be lit up
for a certain period of time.
Activation
With the key turned to STOP or removed, pull the left-
hand stalk towards the steering wheel within 2 minutes
from when the engine is turned off.
At each single movement of the stalk, the lights will
remain on for an extra 30 seconds up to a maximum of
210 seconds; then the lights are switched off
automatically.
fig. 37F0U037Ab
MAIN BEAM HEADLIGHTS fig. 36
With twist switch in position
2, push the stalk forward
toward the dashboard (stable position). The warning
light
1on the instrument panel will come on. Pulling
the stalk towards the steering wheel, the main beams
are turned off and the dipped beams on.
FLASHING fig. 36
You can flash the beams pulling the stalk toward the
steering wheel (unstable position). The warning light
1
on the instrument panel will come on.
DIRECTION INDICATORS fig. 37
Place the lever in the (stable) position:
up (position
1): activates the right direction indicator;
down (position
2): activates the left direction indicator.
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:06 Pagina 50

59
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
F0U046Abfig. 46
F0U045Abfig. 45
DOOR LOCK fig. 47
To lock all doors at the same time, press button A,
located on the centre console control panel, regardless
of the position of the ignition key. REAR FOG LIGHT fig. 45
These lights come on, with the dipped headlights on or
with the side lights and fog lights on (for versions/
markets where provided) by pressing the button 4.
The warning light 4in the instrument panel will come on.
Press the button again to turn the lights off, or turn off
the dipped beams and/or the front fog lights (where
provided).
The use of rear fog lamps is governed by the Highway
Code of the country you are in. Comply with legal
requirements.
HEATED REAR WINDOW fig. 46
Press button A to turn this function on.
With the heated rear windscreen on, this function will
turn off automatically after about 20 minutes.
F0U047Abfig. 47
029-068 PUNTO Abarth GB 1ed 17-07-2012 12:06 Pagina 59

84
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
fig. 88
Adjusting headlight alignment fig. 88
To adjust, press buttons Òand on the control panel.
The display located on the instrument panel provides
a visual indication of the adjustment position.
Position 0 – one or two people in the front seats.
Position 1 – five people.
Position 2 – five people + load in the boot.
Position 3 – driver + maximum permitted load stowed
in the boot.
IMPORTANT Check the beam alignment every time the
load transported changes.
FRONT FOG LIGHTS ALIGNMENT
(for versions/markets where provided)
Contact an Abarth Dealership to have the fog lights
properly adjusted.
HEADLIGHT BEAM ADJUSTMENT ABROAD
fig. 89-90
The dipped headlights are adjusted to work in the
country where the vehicle was originally purchased.
In countries where vehicles are driven on the other side
of the road, the beams are aligned by applying a specially
designed adhesive film in order not to dazzle the
vehicles travelling in the opposite direction. HEADLIGHTS
HEADLIGHT BEAM AIMING
The correct direction of the headlights is essential for
the comfort and safety of the driver and other road
users. The headlights must be correctly directed to
ensure the best visibility. Contact an Abarth Dealership
to have the fog lights properly adjusted.
HEADLIGHT ALIGNMENT CORRECTOR
This device works with the ignition key in the MAR
position and the dipped headlights on. The car will tilt
backwards when it is loaded, raising the light beam.
The beams must therefore be realigned in this case.
069-108 PUNTO Abarth GB 1ed 17-07-2012 12:07 Pagina 84

136
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
DRIVING STYLE
Starting
Do not warm up the engine at low or high revs when
the car is stationary; this causes the engine to warm up
more slowly, thereby increasing fuel consumption and
emissions. It is therefore advisable to move off
immediately, slowly, avoiding high speeds: in this way the
engine will warm up more quickly.
Unnecessary actions
Avoid accelerating when stopped at traffic lights or
before switching off the engine. The latter action, like
double-clutching, is unnecessary and causes increase of
consumption and pollution.
Gear selection
As soon as the conditions of the traffic and road allow,
use a higher gear. Using a low gear for faster
acceleration will increase consumption. In the same way
improper use of a high gear increases consumption,
emissions and engine wear. Roof rack/ski rack
Remove the roof rack or the ski rack from the roof
after use. These accessories lower air penetration and
adversely affect consumption levels. When transporting
particularly large objects, use a trailer if possible.
Electrical devices
Use electrical devices only for the amount of time
needed. Rear heated window, additional headlights,
windscreen wipers and heater fan need a considerable
amount of energy, therefore increasing the requirement
of current increases fuel consumption (up to +25% in
the urban cycle).
Climate control system
The climate control system is an additional load which
greatly affects the engine leading to higher consumption
(on average up to +20%). When the temperature
outside the car permits it, use the air vents where
possible.
Devices for aerodynamic control
The use of non-certified devices for aerodynamic
control may adversely affect air drag and consumption
levels.
131-140 PUNTO Abarth GB 1ed 17-07-2012 13:20 Pagina 136

147
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
CRUISE CONTROL (green)
(for versions/markets where provided)
When the key is turned to the MAR position
the warning light comes on but should go out
after a few seconds.
The warning light switches on by rotating the Cruise
Control twist switch to ON.
The display will show a dedicated message.
Ü
MAIN BEAM HEADLIGHTS (blue)
The warning light comes on when the main
beams are turned on.
1
REAR FOG LIGHTS (amber)
The warning light comes on when the rear fog
lights are turned on.
4
INCOMPLETE DOOR LOCKING (red)
The symbol is shown on the display when one
or more doors or the tailgate are not perfectly
closed.
The display shows the dedicated message.
An acoustic signal is emitted with the doors open and
the car moving.
´
ENGINE OIL LEVEL LOW (red)
The symbol is shown on the display when the
engine oil level falls below the minimum
recommended value. Restore the correct engine
oil level (see “Checking fluid levels” in the “Servicing and
maintenance” section).
The display shows the dedicated message.
k
GENERIC WARNING
(amber)
Engine oil pressure sensor failure
The symbol is shown on the display when a fault in the
engine oil pressure sensor is detected. Contact an Abarth
Dealership to have the fault fixed as soon as possible.
è
ELECTRIC STEERING FAILURE
(red)
When the symbol is shown on the display, you
will not benefit from the electric power steering and the
effort needed to turn the wheel will be greatly
increased, although it will still be possible to steer the
car. Contact an Abarth Dealership.
The display shows the dedicated message.
g
141-150 PUNTO Abarth GB 1ed 17-07-2012 13:21 Pagina 147

159
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Halogen bulbs must be handled by holding
the metallic part only. Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the light
emitted and even compromise the life of the bulb
itself. In the event of accidental contact, wipe the
bulb with an alcohol-soaked cloth and leave to dry.
fig. 135F0U137Ab
IMPORTANT The internal surface of the light may
appear slightly misty: this does not indicate a fault, and is
actually caused by low temperature and the degree of
humidity in the air. Misting will rapidly disappear when
the headlights are switched on. The presence of drops
inside the headlights indicates infiltration of water.
Contact an Abarth Dealership.
TYPES OF BULBS
Different types of bulbs fig. 135 are installed on the car:
A Glass bulbs: clipped into position.
Pull to remove.
B Bayonet type bulbs: to remove this type of bulb from
its holder, press the bulb and turn it anticlockwise.C Tubular bulbs: release them from their contacts to
remove.
D-E Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
151-182 PUNTO Abarth GB 1ed 17-07-2012 13:24 Pagina 159

Bulbs Figure ref. Type Power
Dipped/main beam headlights
Daytime running lights
Front side lights
Front fog lights (for versions/markets where available)
Front direction indicators
Side direction indicators
Rear direction indicators
Rear side lights
Brake lights
Third brake light (additional brake light)
Reversing lights
Rear fog lights
Number plate lights
Front courtesy light with spot lights
Boot light
Courtesy lightH4
W21W
W5W
H11
PY21W
WY5W
PY21W
LED
P21W
W2.3W
W16W
W16W
W5W
C10W
W5W
C5W D
A
A
–
B
A
B
–
B
B
–
–
A
C
A
C55 W/60 W
21 W
5 W
55 W
21 W
5 W
21 W
–
21 W
2.3 W
16 W
16 W
5 W
10 W
5 W
5 W
160
KNOWING
YOUR VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
151-182 PUNTO Abarth GB 1ed 17-07-2012 13:24 Pagina 160
