20Keys, doors and windowsLock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.Radio remote control
Used to operate:
● central locking system 3 24
● load compartment 3 33
● anti-theft locking system 3 35
● anti-theft alarm system 3 36
The remote control has a range of
approx. 5 m. It can be restricted by
external influences. The hazard
warning flashers confirm operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Depending on model, the vehicle may
use a 2-button or 3-button remote
control or an electronic key which
includes the functionality of the
remote control.
Electronic key system 3 21.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual key operation 3 24.

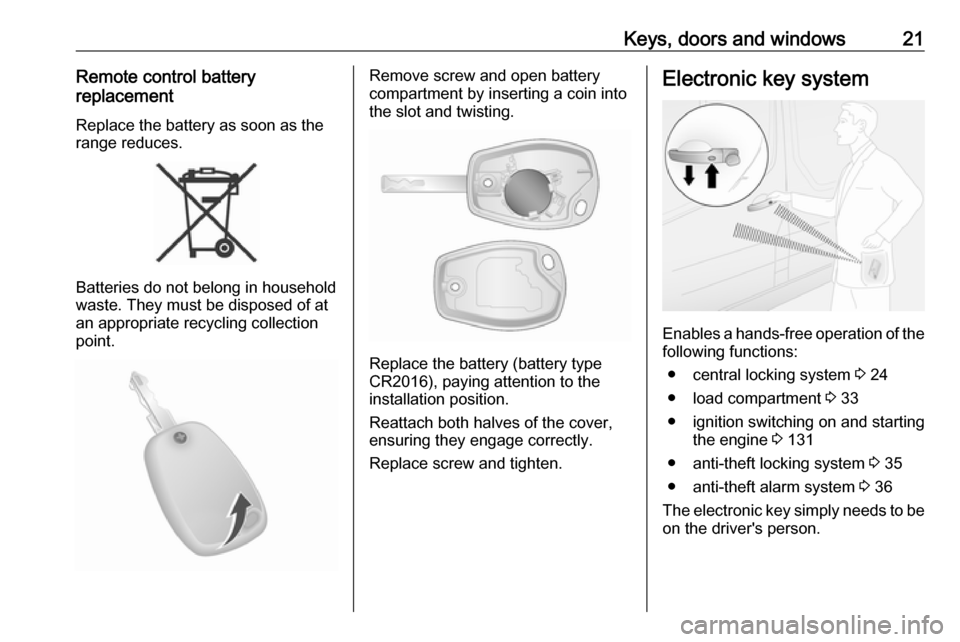

Keys, doors and windows21Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach both halves of the cover,
ensuring they engage correctly.
Replace screw and tighten.
Electronic key system
Enables a hands-free operation of the following functions:
● central locking system 3 24
● load compartment 3 33
● ignition switching on and starting the engine 3 131
● anti-theft locking system 3 35
● anti-theft alarm system 3 36
The electronic key simply needs to be on the driver's person.

22Keys, doors and windowsNotice
Always take the electronic key with you when exiting the vehicle.
The electronic key being left in the
card reader is indicated by a warning chime 3 103 and a message in the
Driver Information Centre 3 102
when the driver's door is opened.
Additionally, the electronic key
includes the functionality of the
remote control 3 20 and an entry
lighting function 3 114.
For hands-free operation, the
electronic key must be outside the
vehicle, within a range of approx.
1 m of the front doors or load
compartment. The range of operation
for the electronic key buttons can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Notice
Do not put the electronic key in the
load compartment during driving, as
this is outside of the detection zone(indicated by a warning chime at low
speed 3 103 and a message in the
Driver Information Centre 3 102).
Notice
In the event the electronic key is kept in the front passenger compartment
and a message appears in the Driver
Information Centre (possibly
accompanied by a warning chime)
indicating that it is out of reception
range, we recommend inserting the
electronic key in the card reader.
Notice
If the electronic key is not detected
in the front passenger compartment
after opening and closing a door with
the engine running, a message appears in the Driver Information
Centre (accompanied by a warning
chime when a certain speed is
exceeded), indicating that it is out of reception range.
This helps you avoid, e.g., driving off
after dropping off a passenger who
has the electronic key.
The message disappears when the
electronic key is detected again.Hands-free operation is automatically
disabled when the electronic key
buttons have been operated or the
central locking switch e 3 24 is
pressed. To re-enable hands-free
operation, restart the engine.
Power button 3 131.
Electronic key battery
replacement
Replace the battery as soon as the
system no longer operates properly
or the range is reduced. The need for
battery replacement is indicated by a
message in the Driver Information
Centre 3 102.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.

Keys, doors and windows23The need for battery replacement is
indicated by a message in the Driver Information Centre 3 102.
Notice
In an emergency, the vehicle can still
be locked / unlocked using the
emergency manual key in the
housing of the electronic key 3 21.
Press and hold the release button on
the side of the electronic key and pull out the emergency manual key from
the top. Unclip the battery cover
located on the rear of the electronic
key, then press one side of the battery
to release and remove the battery.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach battery cover and reinsert
the emergency manual key.
Electronic key synchronisation
Press any button on the electronic
key four times within range of the
detection zone (approx. 1 m) of the front doors or load compartment. The electronic key will be synchronised
when the ignition is switched on.
Fault
If the central locking system cannot
be operated or the engine cannot be started, the cause may be one of the
following:
● fault in electronic key
● electronic key out of reception range
● battery voltage too low● overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time
● interference from higher-power radio waves from other sources
Emergency manual key
Press and hold the release button on
the side of the electronic key and pull out the emergency manual key from
the top.
Manually lock or unlock the doors by turning the key in the lock.

Keys, doors and windows29doors) when the electronic key is
within range of the detection zone
(approx. 1 m).
The rear doors / tailgate (and sliding
side doors) only lock / unlock when at
least 3 seconds have passed since
the button was last pressed.
Hands-free operation is automatically disabled when the electronic key
buttons have been operated. To re-
enable hands-free operation, restart
the engine.
Load compartment locking and
unlocking with electronic key buttonsPress G to lock / unlock the rear
doors / tailgate (and sliding side
doors).
Electronic key system 3 21.
Manual key operation
Manually lock or unlock the doors by
turning the key in the lock.
Notice
If the battery in the electronic key
needs to be replaced, the vehicle
can still be locked / unlocked using
the emergency manual key in the
housing of the electronic key 3 21.
Central locking switch
Locks or unlocks the doors and loadcompartment from the passenger
compartment.
Press e to lock the vehicle. Activation
is indicated by the LED in the button.
When closing any open door, the door is locked automatically.
Press e again to unlock the vehicle.
If the vehicle is driven with an open
load compartment, the front doors
(and sliding side doors) can still be
locked. With the ignition switched on,
press and hold e for approx.

38Keys, doors and windowsActivation without monitoring of
passenger compartment
Disable monitoring of the passenger
compartment, e.g. when animals are
being left in the vehicle, or if the
auxiliary heater has been set for a
timed or remote controlled start
3 122.
Press and hold e on the remote
control or electronic key. An audible
signal will sound as confirmation.
The status will remain until the doors
are unlocked.
Alarm When triggered, the alarm sounds via a separate battery-backed power
sounder, and the hazard warning
lights flash simultaneously. The
number and duration of alarm signals are stipulated by legislation.
If the vehicle battery is disconnected
or its power supply is interrupted, the
alarm siren will be triggered. First
deactivate the anti-theft alarm system
if the vehicle battery must be
disconnected.To silence the alarm siren (if
triggered) and therefore deactivate
the anti-theft alarm system, reconnect vehicle battery and unlock the vehicle
or switch on the ignition.
Immobiliser
The immobiliser is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been
removed from the ignition switch and
also if the key is left in the ignition
switch when the engine is turned off.
If the engine cannot be started, switch off the ignition and remove key, wait
approx. two seconds and then repeat
the start attempt. If start attempt is
unsuccessful, attempt to start the
engine using the spare key and seek
the assistance of a workshop.Notice
Radio Frequency Identification
(RFID) tags may cause interference with the key. Do not have it placednear the key when starting the
vehicle.
Notice
The immobiliser does not lock the doors. You should always lock the
vehicle after leaving it and switch on
the anti-theft alarm system 3 24,
3 36.

Instruments and controls103automatically and j remains
illuminated. The fault will then be
stored in the on board system.
Warning messages
Warning messages regarding, e.g.
engine, battery or brake system
failure, are displayed together with
control indicator C and may be
accompanied by a warning chime.
Stop engine immediately and seek
the assistance of a workshop.
Warning messages, e.g. " BATTERY
CHARGING FAULT " disappear from
the display automatically when the cause of the fault has been remedied.
Fuel economy messages
Fuel economy messages provide tips to improve fuel efficiency. Journeys
can be saved in the system memory,
enabling you to compare
performances.
Refer to Infotainment manual for
further information.
Fuel economy rating 3 104.Warning chimes
If several warnings appear at thesame time, only one warning chime
will sound.
When starting the engine or whilst driving:
The warning chime regarding
unfastened seat belts has priority
over any other warning chime.
● If seat belt is not fastened 3 53.
● If the parking assist detects an object 3 154.
● If the vehicle speed briefly exceeds a set limit 3 151,
3 153.
● If a door or the bonnet is not properly closed when vehicle
exceeds a certain speed.
● During activation and deactivation of alarm monitoring
of vehicle inclination 3 36.
● If there is a fault in the brake system 3 97.
● If the vehicle battery is not charging 3 97.● If engine lubrication is interrupted
3 99.
● If AdBlue needs to be refilled or a
fault is present 3 140.
● If the electronic key is outside of the detection range.
Electronic key system 3 21.
Power button 3 131.
When the vehicle is parked and / or the driver's door is opened:
● If the key has been left in the ignition.
● If the electronic key has been left
in the card reader.
Electronic key system 3 21.
Power button 3 131.
● If the vehicle is in an Autostop. Stop-start system 3 135.
● If the exterior lights are on 3 108.

Driving and operating131Starting and operating
New vehicle running-in
Do not brake unnecessarily hard for
the first few journeys and after new
disc brake pads have been fitted.
During the first drive, smoke may
occur because of wax and oil
evaporating off the exhaust system.
Park the vehicle in the open for a
while after the first drive and avoid
inhaling the fumes.
During the running-in period, fuel and engine oil consumption may be
higher and the cleaning process of
the diesel particle filter may take
place more often. Autostop may be
inhibited to allow for charging the
vehicle battery.
Stop-start system 3 135.
Diesel particle filter 3 139.
Ignition switch positions
Turn key:0:ignition off: Some functions
remain active until key is
removed or driver's door is
opened, provided the ignition was on previously1:accessory power mode: Steeringwheel lock released, some
electrical functions are operable,
ignition is off2:ignition is on, diesel engine is
preheating. Control indicators
illuminate and most electrical
functions are operable3:engine start: Release key after
starting procedure beginsSteering wheel lock
Remove key from ignition switch and
turn steering wheel until it engages.9 Danger
Never remove the key from
ignition switch during driving as
this will cause steering wheel lock.
Power button
Electronic key must be inside the
vehicle, either in the card reader or
the front passenger compartment.
