2018.5 VAUXHALL VIVARO Owner's Manual

In brief7Seat adjustmentLongitudinal adjustment
Pull handle, slide seat, release
handle.
Try to move the seat back and forth to ensure that the seat is locked in place.
Seat position 3 45.
Seat adjustment 3 46.
Backrests inclination
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage. Do not lean on backrest
when adjusting.
Seat position 3 45.
Seat adjustment 3 46.
Seat height
Lever pumping motion:
up:seat higherdown:seat lower
Seat position 3 45.
Seat adjustment 3 46.

8In briefHead restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 44.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25°).
To unfasten belt, press red button on belt buckle.
Seat position 3 45.
Seat belts 3 53.
Airbag system 3 58.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Interior mirror, Wide view mirror
3 40.
Automatic anti-dazzle interior mirror
3 41.

In brief9Exterior mirrorsManual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 39.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 39.
Electric adjustment 3 39.
Folding exterior mirrors 3 39.
Heated exterior mirrors 3 40.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 58.
Ignition positions 3 131.

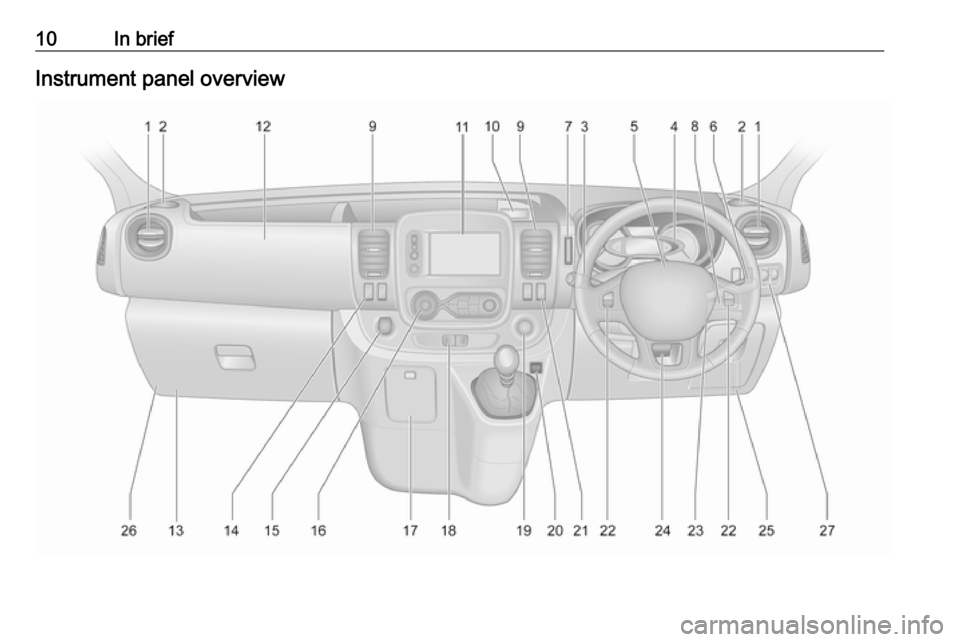

10In briefInstrument panel overview

In brief111Side air vents ...................... 127
2 Ashtray .................................. 88
Cupholder ............................ 73
3 Light switch ........................ 108
Rear fog light ....................... 112
Front fog lights ...................111
Exit lighting .......................... 114
Turn lights ........................... 111
Sidelights ............................ 108
Headlight flash, low beam
and high beam ....................109
4 Instruments .......................... 89
Driver Information Centre .... 101
Trip computer .....................104
5 Horn ...................................... 83
Driver airbag ......................... 61
6 Windscreen wiper,
windscreen washer system ..84
Rear window wiper, rear
window washer system ........85
Trip computer .....................1047Card reader for electronic
key system ............................ 21
8 Steering column controls ......83
9 Centre air vents ................... 127
10 Power outlet .......................... 87
Cigarette lighter ..................... 88
Coin tray, USB slot ................ 71
11 Info display .......................... 102
12 Front passenger airbag .........61
13 Glovebox .............................. 72
14 Heated exterior mirrors .........40
Heated rear window ..............43
Idle speed control ...............134
15 Power outlet .......................... 87
Cigarette lighter ..................... 88
16 Climate control system ........ 116
Electronic climate control
system ................................. 118
17 Ashtray .................................. 88
Cupholder ............................ 73
18 Hazard warning flashers .....111
Central locking system ..........2419Power button for electronic
key system .......................... 131
20 Eco button for fuel
economy mode ...................129
21 Stop-start system ................135
Cruise control ...................... 151
Speed limiter ....................... 153
22 Remote control on
steering wheel ......................83
Cruise control .....................151
23 Ignition switch with
steering wheel lock .............131
24 Steering wheel adjustment ...83
25 Bonnet release lever ...........165
26 Fuse box ............................. 181
27 Ultrasonic parking assist ....154
Electronic Stability
Program (ESP® Plus
)............ 149
Traction Control system
(TC) ..................................... 148
Headlight range
adjustment ......................... 109

12In briefInstrument panel
illumination control ..............112
Auxiliary heater ...................122
Speed limiter ....................... 153Exterior lighting
Turn outer light switch:
7:off8:sidelights9P:headlights
Vehicles with automatic light control:
AUTO:automatic light control:
exterior lighting is switched
on and off automatically
depending on external
lighting conditions.
Lighting 3 108.
Automatic light control 3 109.
Headlight warning device 3 103.

In brief13Front and rear fog lights
Turn inner light switch
>:front fog lightsø:rear fog light
Front fog lights 3 111.
Rear fog light 3 112.
Headlight flash, high beam and
low beamheadlight flash:pull stalkhigh beam:push stalklow beam:push or pull stalk
Automatic light control 3 109.
High beam 3 109.
Headlight flash 3 109.
Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 111.

14In briefHazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 111.
Horn
Press j.
Washer and wiper systems
Windscreen wiper7:offAUTO or P:interval wiping or
automatic wiping with
rain sensor1:slow2:fast
Windscreen wiper 3 84.
Wiper blade replacement 3 173.
