2018.5 OPEL ZAFIRA C Manual user

Seats, restraints39Manual seat adjustment
Drive only with engaged seats and
backrests.
Longitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Backrest inclination
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.

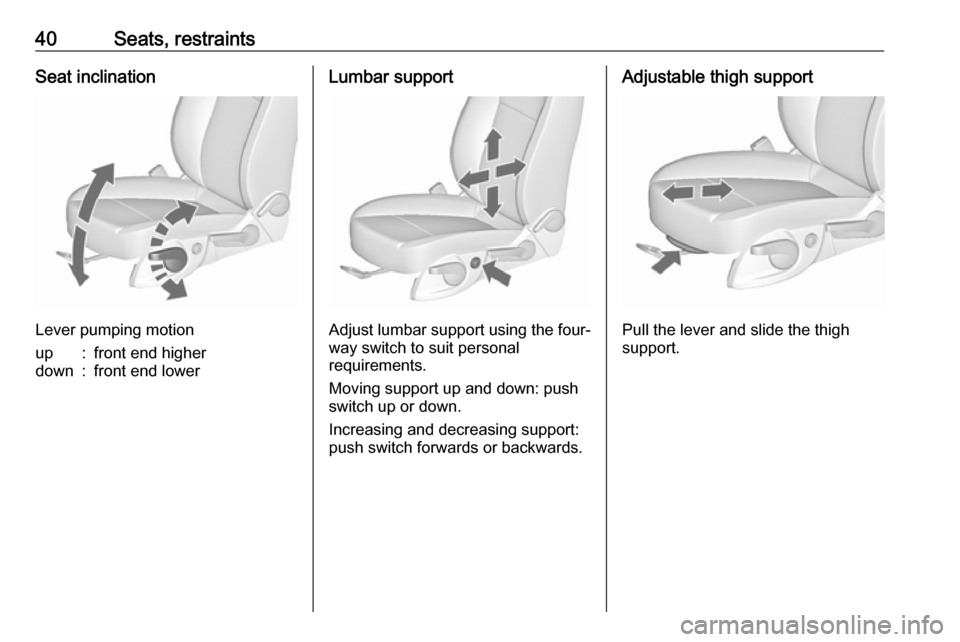

Seat height
Lever pumping motion
up:seat higherdown:seat lower

40Seats, restraintsSeat inclination
Lever pumping motion
up:front end higherdown:front end lowerLumbar support
Adjust lumbar support using the four-way switch to suit personal
requirements.
Moving support up and down: push switch up or down.
Increasing and decreasing support:
push switch forwards or backwards.
Adjustable thigh support
Pull the lever and slide the thigh
support.

Seats, restraints41Power seat adjustment9Warning
Care must be taken when
operating the power seats. There
is a risk of injury, particularly for
children. Objects could become
trapped.
Keep a close watch on the seats
when adjusting them. Vehicle
passengers should be informed
accordingly.
Longitudinal adjustment
Move switch forwards/backwards.
Seat height
Move switch upwards/downwards.
Seat inclination
Move front of switch upwards/
downwards.
Backrest inclination
Turn switch forwards/backwards.

42Seats, restraintsLumbar support
Adjust lumbar support using the four-way switch to suit personal
requirements.
Moving support up and down: push switch up or down.
Increasing and decreasing support:
push switch forwards or backwards.
Adjustable thigh support
Pull the lever and slide the thigh
support.
Overload
If the seat setting is electrically
overloaded, the power supply is
automatically cut-off for a short time.
Armrest
Base armrest
The armrest can be slid forwards.

Seats, restraints43FlexConsole armrest
The armrest can be moved in a centre
console. Pull the handle to slide the
armrest.
There are two storages, a storage
drawer and a movable cupholder in
the armrest console.
Armrest storage 3 69.
Removing the armrest
Flex console armrest can be
removed.
Press fastenings inward and fold down locking mechanism at the rear
end of the armrest.
Pull the handle in front of the armrest
and slide armrest rearwards out of the
console.
Installation in reverse order.
Heating
Adjust heating to the desired setting
by pressing ß for the respective seat
one or more times. The control
indicator in the button indicates the
setting.
Prolonged use of the highest setting
for people with sensitive skin is not
recommended.

44Seats, restraintsSeat heating is operational when
engine is running and during an
Autostop.
Stop-start system 3 201.Rear seats
Second row seats9 Warning
When seats or backrests of
second and third seat row are
being adjusted or folded, keep
hands and feet away from the
moving area.
Never store objects under the
seats.
Never adjust seats while driving as they could move uncontrollably.
Drive only with engaged seats and
backrests.
Base seats
Seat positioning
Each seat of the second seat row can be individually moved forward or
backward.
Pull handle, slide seat, release
handle and allow seat to engage.
The seats can be engaged in
intermediate positions.
Seat backrests
The backrest inclination of each seat
can be individually adjusted in three
positions.

Seats, restraints45
Pull the loop, adjust inclination,
release strap and allow backrest to
engage.
9 Warning
Use vertical position of the
backrest only for increased
luggage volume and not as
seating position.
Load compartment, folding down the
backrests 3 79.
Easy entry function
To permit an easy entrance to the
seats of the third row, the outer seats
of the second row can be tilted.
Pull release lever, fold backrest and
move the seat to the front.Folding back easy entry
First move seat to desired position
and then raise backrest.9 Warning
When folding up, ensure that the
seat is securely locked in position
before driving. Failure to do so
may result in personal injury in the event of hard braking or a collision.
Lounge seats
Two types of use are possible:
Normal seats, all three seats are
usable and individually adjustable.
Lounge seats, only outer seats are
usable but with most comfortable
adjustment.
Seat positioning
In normal position, the three seats of
the second seat row can be
individually moved in longitudinal
direction.
Pull handle under the seat, slide seat, release handle and allow seat to
engage.

46Seats, restraints
In lounge position, the outer seats are
additionally movable in transverse
direction when the centre seat
backrest is folded to an armrest.
The seats can be engaged in
intermediate positions.
Change from normal seat position to
lounge seat position ● Push down head restraint of centre seat by pressing the catch3 36.
● Fold down the centre backrest by
pulling the loop.
● Push the left and right buttons near the centre head restraint
and fold in the outer backrest
parts, to be used as an armrest.
Engage backrest parts in armrest position.
● Pull the handle under each outer seat and slide seats backwards.
In the rear area the seats move in
transverse direction. Allow seat
to engage.
This is the most comfortable seating position for the outer
seats.Caution
With seats in lounge position:
● Do not use easy entry function 3 44.
● Do not fold down backrests of the outer seats.
● Do not fold up centre backrest.
● Do not fold up or down the seats in the third row 3 48.
This would damage the seats.
