In brief15Turn lightsstalk up:right turn lightstalk down:left turn light
Turn lights 3 118.
Parking lights 3 119.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 117.
Horn
Press j.

16In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping
or
automatic wiping with rain
sensorOFF:off
For single wipe when the wiper is off,
press lever down to position 1x.
Windscreen wiper 3 77.
Windscreen washer
Pull lever.
Windscreen washer system 3 77.
Washer fluid 3 193.
Wiper blade replacement 3 195.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
ON:continuous operationOFF:offINT:intermittent operation

In brief17Rear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper and washer
3 78.
Climate control
Heated rear window
The heating is operated by pressing
Ü .
Heated rear window 3 33.
Heated windscreen 3 34.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 31.
Demisting and defrosting the
windows
● Set air distribution control to l.
● Press V.
● Set temperature control to warmest level.
● Set fan speed to highest level.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards the doorwindows.
Climate control system 3 123.

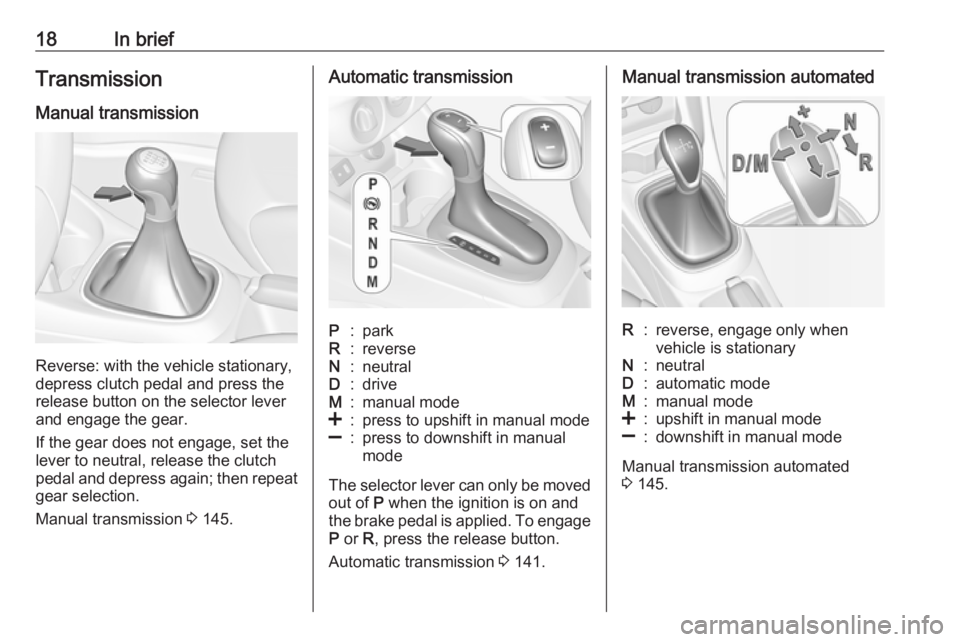

18In briefTransmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 145.
Automatic transmissionP:parkR:reverseN:neutralD:driveM:manual mode<:press to upshift in manual mode]:press to downshift in manual
mode
The selector lever can only be moved out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 141.
Manual transmission automatedR:reverse, engage only when
vehicle is stationaryN:neutralD:automatic modeM:manual mode<:upshift in manual mode]:downshift in manual mode
Manual transmission automated
3 145.

In brief19Starting offCheck before starting off ● Tyre pressure 3 211 and
condition 3 252.
● Engine oil level and fluid levels 3 191.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors 3 30,
seats 3 37 and seat belts
3 42.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Manual transmission: operate clutch and brake pedal.
Manual transmission automated:
operate brake pedal.
Automatic transmission: operate
brake pedal and move selector
lever to P or N.
● Do not operate accelerator pedal.
● Diesel engines: turn the key to
position 2 for preheating and wait
until control indicator !
extinguishes.
● Turn the key to position 2 for
preheating and wait until control
indicator ! extinguishes.
● Turn key to position 3 and
release.
Starting the engine 3 135.

20In briefStop-start system
If the vehicle is at a low speed or at astandstill and certain conditions are
fulfilled, activate an Autostop as
follows:
Vehicles with manual transmission: ● Depress the clutch pedal.
● Engage neutral gear.
● Release the clutch pedal.
An Autostop is indicated by control
indicator D.
To restart the engine, depress the
clutch pedal again. Control indicator
D extinguishes.
Vehicles with manual transmission
automated:
If the vehicle is at a standstill with the
brake pedal depressed, Autostop is
activated automatically, indicated by
control indicator D.
Release the brake pedal or move
selector lever out of D to restart the
engine. Control indicator D
extinguishes.
Stop-start system 3 136.Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply the parking brake. Activate the manual
parking brake without pressing the release button. Apply as
firmly as possible on a downhill slope or uphill slope. Depress
brake pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector
lever to position P before
removing the ignition key. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or

In brief21set the selector lever to positionP before removing the ignition
key. Turn the front wheels
towards the kerb.
● Close the windows and the sunroof.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
For vehicles with manual
transmission automated, the key can only be removed from
the ignition switch when the
parking brake is applied.
● Lock the vehicle by pressing e on
the radio remote control.
Activate the anti-theft alarm
system 3 28.
● The engine cooling fans may run
after the engine has been
switched off 3 190.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for
approx. 30 seconds before
switching off, in order to protect
the turbocharger.
Keys, locks 3 22.
Laying-up the vehicle for a long
period of time 3 189.

22Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 22
Keys .......................................... 22
Car Pass .................................... 23
Radio remote control .................23
Memorised settings ...................24
Central locking system ..............24
Automatic locking ......................26
Child locks ................................. 26
Doors ........................................... 27
Load compartment ....................27
Vehicle security ............................ 28
Anti-theft locking system ...........28
Anti-theft alarm system ..............28
Immobiliser ................................ 29
Exterior mirrors ............................ 30
Convex shape ........................... 30
Electric adjustment ....................30
Folding mirrors .......................... 30
Heated mirrors ........................... 31
Interior mirrors ............................. 31
Manual anti-dazzle ....................31
Automatic anti-dazzle ................31Windows...................................... 32
Windscreen ............................... 32
Manual windows ........................32
Power windows ......................... 32
Heated rear window ..................33
Heated windscreen ....................34
Sun visors .................................. 34
Roof ............................................. 34
Sunroof ...................................... 34Keys, locks
KeysCaution
Do not attach heavy or bulky itemsto the ignition key.
Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys, as
it is a component of the immobiliser
system.
Locks 3 231.
The code number of the adapter for
the locking wheel bolts is specified on a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 223.
