In brief74-door notchback
Press x on the remote control for at
least two seconds; the boot lid opens slightly.
Radio remote control 3 23, Central
locking system 3 24, Load
compartment 3 27.
Seat adjustment
Longitudinal adjustment
Pull handle, slide seat, release
handle. Try to move the seat back and forth to ensure that the seat is locked
in place.
Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45.
Backrest inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45, Seat folding
3 44.

8In briefSeat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45.
Seat inclination
Lever pumping motion
up:front end higherdown:front end lower
Seat position 3 41, Manual seat
adjustment 3 42, Power seat
adjustment 3 45.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 39.

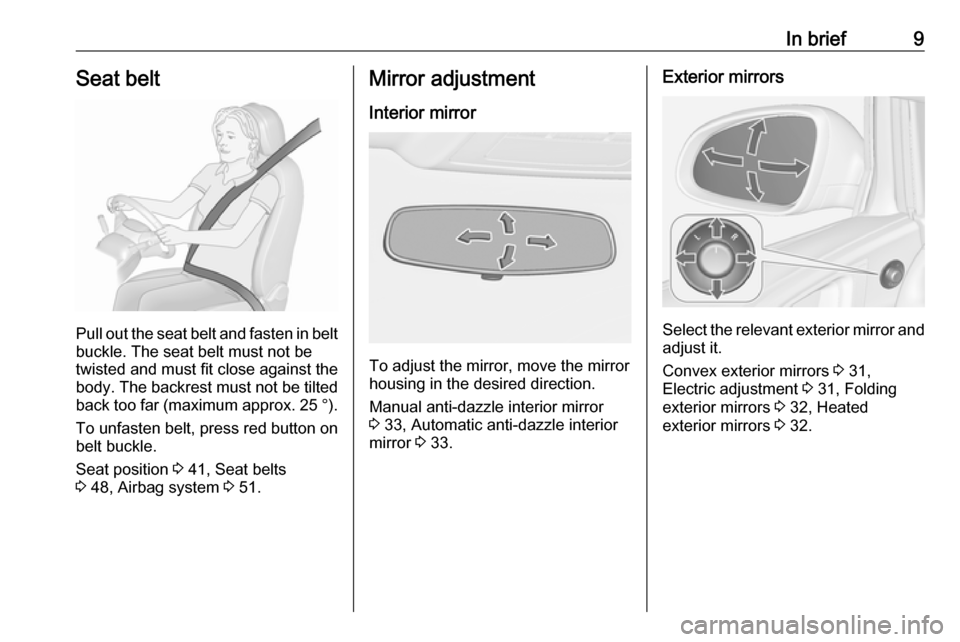

In brief9Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25 ° ).
To unfasten belt, press red button on belt buckle.
Seat position 3 41, Seat belts
3 48, Airbag system 3 51.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 33, Automatic anti-dazzle interior
mirror 3 33.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 31,
Electric adjustment 3 31, Folding
exterior mirrors 3 32, Heated
exterior mirrors 3 32.

10In briefSteering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 51, Ignition
positions 3 142.

In brief11Instrument panel overview

12In brief1Power windows .....................34
2 Exterior mirrors .....................31
3 Cruise control .....................160
Speed limiter ....................... 162
Adaptive cruise control .......163
Forward collision alert .........170
4 Side air vents ...................... 138
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................124
Exit lighting ......................... 128
Parking lights ...................... 125
Buttons for Driver
Information Centre ................94
6 Instruments .......................... 81
7 Steering wheel controls .......74
8 Driver Information Centre ...... 94
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear window
wiper, rear window washer
system ................................... 7510 Sport mode ........................ 158
Central locking system ..........24
Fuel selector ......................... 82
Hazard warning flashers ....124
Control indicator for airbag
deactivation .......................... 88
Control indicator for front
passenger seat belt .............88
Tour mode .......................... 158
11 Info Display ........................... 98
12 Anti-theft alarm system
status LED ........................... 29
13 Centre air vents .................. 138
14 Glovebox .............................. 61
15 Traction Control system
(TC) ..................................... 156
Electronic Stability Control (ESC) .................................. 156
Parking assist systems .......176
Lane departure warning .....188Eco button for stop-start
system ................................. 143
Unlock button for boot lid ......27
16 Climate control system ........ 130
17 AUX input, USB input, SD
card slot ................................ 11
18 Power outlet .......................... 79
19 Selector lever, manual
transmission ....................... 152
Automatic transmission ......148
20 Electric parking brake .........154
21 Ignition switch with
steering wheel lock ............142
22 Horn ..................................... 75
Driver airbag ........................ 52
23 Bonnet release lever ..........202
24 Storage compartment,
fuse box ............................. 226
25 Steering wheel adjustment ..74
26 Light switch ........................ 117
Headlight range
adjustment ......................... 120
Front fog lights ...................125

In brief13Rear fog light ...................... 125
Instrument illumination .......126
