2017 YAMAHA YZF-R1 odometer

Instrument and control functions
4-10
1
2
345
6
7
8
9
10
11
12
TRACK MODE
WARNING
EWA18210
Stop the vehicle before making any
setting changes. Changing settings
while riding can distract the opera-
tor and increase the risk of an acci-
dent.
Speedometer
The speedometer shows the vehicle’s
traveling speed.TIPThe display can be switched between
kilometers and miles. See “Unit” onpage 4-22.
Tachometer
The tachometer shows the engine
speed, as measured by the rotational
velocity of the crankshaft, in revolutions
per minute (r/min).TIP
In TRACK MODE, the tachometer
starts at 8000 r/min.

In STREET MODE, the tachome-
ter can be color-adjusted and has
a revolution peak hold indicatorwhich can be turned on or off.
NOTICE
ECA10032
Do not operate the engine in the ta-
chometer red zone.
Red zone: 14000 r/min and above
Information display
This section of the main screen is used
to show additional riding related infor-
mation such as air and coolant temper-
ature readings, tripmeters, and fuel
consumption statistics. The information
display items can be set into four
groups via the MENU screen.
The information display items are:
A.TEMP: air temperature
C.TEMP: coolant temperature
TRIP-1: tripmeter 1
TRIP-2: tripmeter 2
F-TRIP: fuel tripmeter
ODO: odometer
FUEL CON: the amount of fuel con-
sumed
FUEL AVG: average fuel consumption
CRNT FUEL: current fuel consumptionTIP
ODO will lock at 999999 and can-
not be reset.

TRIP-1 and TRIP-2 will reset to 0
and begin counting again after
9999.9 has been reached.

When the fuel tank reserve level
1. YRC items LCS/QS/LIF
2. ERS indicator (YZF-R1M)
3. Lap timer
4. Coolant temperature warning “ ”
5. Oil pressure warning “ ”
6. Clock
7. Transmission gear display
8. Information display
9. YRC items MODE/PWR/TCS/SCS
10.Speedometer
11.Tachometer
MODE
-
A
PWR
1
TCS
1
SCS
1
km/h
123
ODO
km
7890
GEARN
LAP 09
LATEST12
12 34
·1000 r/min
A
-
1
LC LCS
QS
LIF
12 :
00
11109
8
5
4
1
2
36
7
BX4-9-E0.book 10 ページ ２０１６年１２月１日　木曜日　午後８時７分

Instrument and control functions
4-28
1
2
345
6
7
8
9
10
11
12
To set the display groups
1. Select “Display Setting”.
2. DISPLAY-1, DISPLAY-2, DIS-
PLAY-3 and DISPLAY-4 are dis-
played.
3. For example, let’s select DIS- PLAY-1. STREET MODE 1-1,
STREET MODE 1-2, and TRACK
MODE are displayed. 4. Select STREET MODE 1-1.
5. Select the desired information dis-
play item with the wheel switch.
TIPThe information display items which
can be selected are:
A.TEMP: air temperature
C.TEMP: coolant temperature
TRIP-1: tripmeter 1 TRIP-2: tripmeter 2
ODO: odometer
FUEL CON: the amount of fuel con-
sumed
FUEL AVG: average fuel consumption
CRNT FUEL: current fuel consumption
6. Select STREET MODE 1-2 or TRACK MODE to set the remain-
ing DISPLAY-1 group items.
7. Select the triangle symbol to exit. To set the other display groups, re-
peat from step 3.
“Brightness”
This module allows you to adjust the
general brightness level of the display
screen.
BX4-9-E0.book 28 ページ ２０１６年１２月１日　木曜日　午後８時７分

Instrument and control functions
4-30
1
2
345
6
7
8
9
10
11
12
6. Short push the wheel switch again
to exit and go back to the MENU
screen.
“All Reset”
This module resets everything, except
the odometer and clock, to its factory
preset or default setting.
Select YES to reset all items. After se-
lecting YES, all items will be reset and
the screen will automatically return to
the MENU screen.
EAU12822
Clutch leverThe clutch lever is located on the left
side of the handlebar. To disengage
the clutch, pull the lever toward the
handlebar grip. To engage the clutch,
release the lever. The lever should be
pulled rapidly and released slowly for
smooth clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 4-47.)
EAU67010
Shift pedalThe shift pedal is located on the left
side of the motorcycle and is used in
combination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission.
When the quick-shift system is turned
on, the shift switch senses shift pedal
movement and allows for upshifting
without operating the clutch lever. See
QSS on page 4-17 for more informa-
tion.
1. Clutch lever
1
1. Shift pedal
2. Shift switch
1
2
BX4-9-E0.book 30 ページ ２０１６年１２月１日　木曜日　午後８時７分

Periodic maintenance and adjustment
7-3
1
2
3
4
5
678
9
10
11
12
EAU71030
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.

From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).

Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
EAU71051
Periodic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Fuel line Check fuel hoses for cracks or
damage.
Replace if necessary. 
2 *Spark plugs Check condition.
Adjust gap and clean.

Replace. 
3 *Valve clearance Check and adjust. Every 40000 km (24000 mi)
4 *Fuel injection Check engine idle speed.

Check and adjust synchronization. 
5 *Exhaust system Check for leakage.
Tighten if necessary.
Replace gaskets if necessary. 
6 *Evaporative
emission control
system Check control system for damage.
Replace if necessary.

BX4-9-E0.book 3 ページ ２０１６年１２月１日　木曜日　午後８時７分

Periodic maintenance and adjustment
7-4
1
2
3
4
5
67
8
9
10
11
12
7 *Air induction
system Check the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if necessary. 
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
BX4-9-E0.book 4 ページ ２０１６年１２月１日　木曜日　午後８時７分

Periodic maintenance and adjustment
7-5
1
2
3
4
5
678
9
10
11
12
EAU71351
General maintenance an d lubrication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Diagnostic system
check Perform dynamic inspection using
Yamaha diagnostic tool.
Check the error codes. 
2 *Air filter element Replace. Every 40000 km (24000 mi)
3Clutch Check operation.
Adjust. 
4 *Front brake Check operation, fluid level, and
for fluid leakage.
Replace brake pads if necessary. 
5 *Rear brake Check operation, fluid level, and
for fluid leakage.
Replace brake pads if necessary. 
6 *Brake hoses Check for cracks or damage.

Replace. Every 4 years
7 *Brake fluid Change. Every 2 years
8 *Wheels Check runout and for damage.
Replace if necessary. 
9 *Tires Check tread depth and for
damage.
Replace if necessary.
Check air pressure.
Correct if necessary. 
10 *Wheel bearings Check bearing for looseness or
damage. 
11 *Swingarm pivot
bearings Check operation and for
excessive play. 
Lubricate with lithium-soap-based grease. Every 50000 km (30000 mi)
BX4-9-E0.book 5 ページ ２０１６年１２月１日　木曜日　午後８時７分

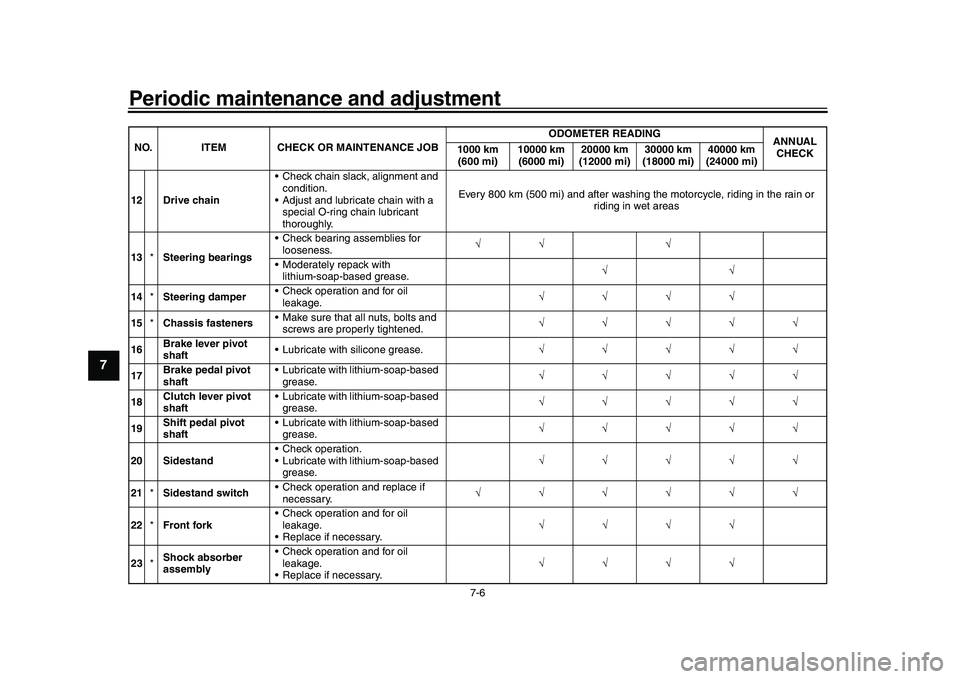

Periodic maintenance and adjustment
7-6
1
2
3
4
5
67
8
9
10
11
12
12 Drive chain Check chain slack, alignment and
condition.
Adjust and lubricate chain with a special O-ring chain lubricant
thoroughly. Every 800 km (500 mi) and after washing the motorcycle, riding in the rain or
riding in wet areas
13 *Steering bearings Check bearing assemblies for
looseness.  
Moderately repack with lithium-soap-based grease. 
14 *Steering damper Check operation and for oil
leakage. 
15 *Chassis fasteners Make sure that all nuts, bolts and
screws are properly tightened. 
16 Brake lever pivot
shaft Lubricate with silicone grease.

17 Brake pedal pivot
shaft Lubricate with lithium-soap-based
grease. 
18 Clutch lever pivot
shaft Lubricate with lithium-soap-based
grease. 
19 Shift pedal pivot
shaft Lubricate with lithium-soap-based
grease. 
20 Sidestand Check operation.
Lubricate with lithium-soap-based
grease. 
21 *Sidestand switch Check operation and replace if
necessary. 
22 *Front fork Check operation and for oil
leakage.
Replace if necessary. 
23 *Shock absorber
assembly Check operation and for oil
leakage.
Replace if necessary. 
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)BX4-9-E0.book 6 ページ ２０１６年１２月１日　木曜日　午後８時７分

Periodic maintenance and adjustment
7-7
1
2
3
4
5
678
9
10
11
12
24 *Rear suspension
relay arm and
connecting arm
pivoting points Check operation.

25 Engine oil Change (warm engine before
draining).
Check oil level and vehicle for oil leakage. 
26 Engine oil filter
cartridge Replace.

27 *Cooling system Check coolant level and vehicle
for coolant leakage. 
Change. Every 3 years
28 *EXUP system Check operation, cable free play
and pulley position. 
29 *Front and rear brake
switches Check operation.

30 *Moving parts and
cables Lubricate.

31 *Throttle grip
housing and cable Check operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing and cable. 
32 *Lights, signals and
switches Check operation.
Adjust headlight beam.

NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
BX4-9-E0.book 7 ページ ２０１６年１２月１日　木曜日　午後８時７分
