braking performance which could cause an
accident. You could also wear out the brakes
prematurely.
EBU33892KickstarterUse the kickstarter to start the engine when the
battery voltage is low. The kickstarter lever is lo-
cated under the seat. (See page 4-12.)

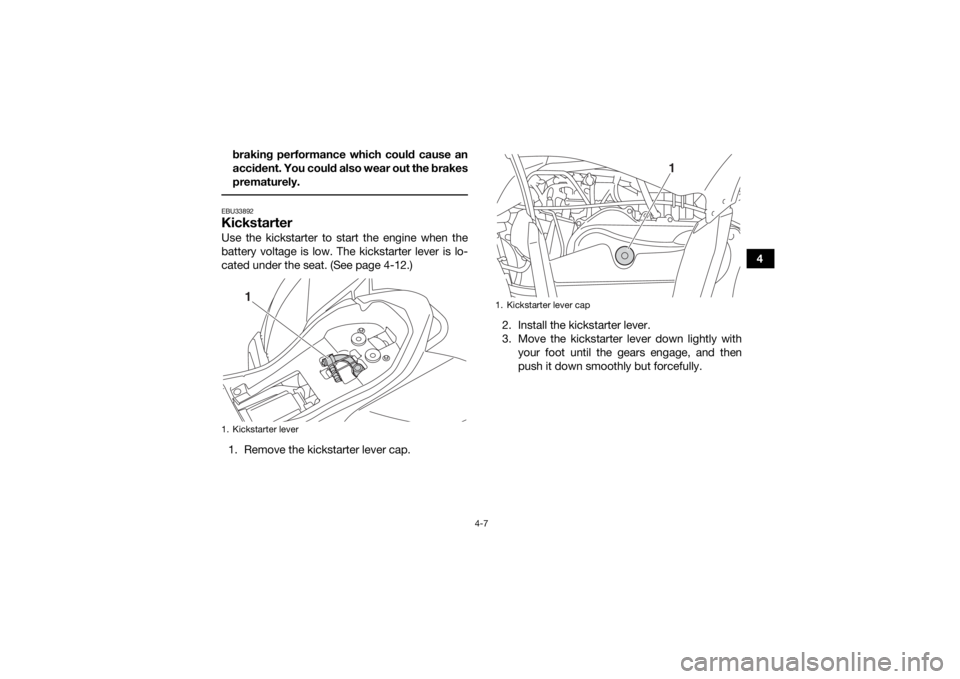

1. Remove the kickstarter lever cap. 2. Install the kickstarter lever.
3. Move the kickstarter lever down lightly with
your foot until the gears engage, and then
push it down smoothly but forcefully.1. Kickstarter lever
1
1. Kickstarter lever cap
1
UBW460E0.book Page 7 Monday, May 23, 2016 11:12 AM

4-8
44. When the engine has started, remove thekickstarter lever and store it under the seat.
5. Install the kickstarter lever cap.
NOTICEECB02300Do not use the kickstarter if the battery is not
installed or if the battery leads are not connect-
ed. EBU18721Fuel tank capRemove the fuel tank cap by turning it counter-
clockwise.
EBU18757FuelMake sure there is sufficient gasoline in the tank.
WARNING
EWB02522Gasoline and gasoline vapors are extremely
flammable. To avoid fires and explosions and
to reduce the risk of injury when refueling, fol-
low these instructions. 1. Before refueling, turn off the engine and be sure that no one is sitting on the vehicle. Nev-
er refuel while smoking, or while in the vicinity
1. Kickstarter lever
1
1. Fuel tank cap
1
UBW460E0.book Page 8 Monday, May 23, 2016 11:12 AM

4-9
4
of sparks, open flames, or other sources of
ignition such as the pilot lights of water heat-
ers and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the pump nozzle into the fuel
tank filler hole. Stop filling when the fuel
reaches the bottom of the filler tube. Because
fuel expands when it heats up, heat from the
engine or the sun can cause fuel to spill out of
the fuel tank.
3. Wipe up any spilled fuel immediately.NOTICE: Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic
parts.
[ECB00982]
4. Turn the fuel tank cap fully clockwise to make sure it is securely closed.
WARNING
EWB02532Gasoline is poisonous and can cause injury or
death. Handle gasoline with care. Never siphon
gasoline by mouth. If you should swallow some
gasoline or inhale a lot of gasoline vapor, or get
some gasoline in your eyes, see your doctor
1. Maximum fuel level
2. Fuel tank filler tube
2 1
Recommended fuel:
Regular unleaded gasoline only
For Europe: Regular unleaded gasoline only
with a research octane number of 95 or
higher
Fuel tank capacity: 5.6 L (1.48 US gal, 1.23 Imp.gal)
Fuel reserve amount: 0.7 L (0.18 US gal, 0.15 Imp.gal)
UBW460E0.book Page 9 Monday, May 23, 2016 11:12 AM

4-10
4immediately. If gasoline spills on your skin,
wash with soap and water. If gasoline spills on
your clothing, change your clothes.
NOTICEECB00071Use only unleaded gasoline. The use of leaded
gasoline will cause severe damage to internal
engine parts, such as the valves and piston
rings, as well as to the exhaust system. Your Yamaha engine has been designed to use
regular unleaded gasoline with a research octane
number of 91 or higher (95 or higher for Europe). If
knocking (or pinging) occurs, use a gasoline of a
different brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance costs.EBU18821Fuel cockThe fuel cock supplies fuel from the tank to the
carburetor while also filtering it.
The fuel cock lever positions are explained as fol-
lows and shown in the illustrations. OFF
With the fuel cock lever in this position, fuel will not
flow. Always turn the fuel cock lever to this posi-
tion when the engine is not running.
1. Arrow mark positioned over “OFF”
1
UBW460E0.book Page 10 Monday, May 23, 2016 11:12 AM

4-11
4
ON
With the fuel cock lever in this position, fuel flows
to the carburetor. Turn the fuel cock lever to this
position when starting the engine and riding. RES
This indicates reserve. With the fuel cock lever in
this position, the fuel reserve is made available.
Turn the fuel cock lever to this position if you run
out of fuel while riding. When this occurs, refuel as
soon as possible and be sure to turn the fuel cock
lever back to “ON”!
EBU18851Starter (choke) “ ”Starting a cold engine requires a richer air-fuel
mixture, which is supplied by the starter (choke).
Move the starter (choke) in direction (a) to turn on
the starter (choke).
1. Arrow mark positioned over “ON”
1
1. Arrow mark positioned over “RES”
1
UBW460E0.book Page 11 Monday, May 23, 2016 11:12 AM

4-12
4Move the starter (choke) in direction (b) to turn off
the starter (choke).
See the “Starting a cold engine” section on page
6-1 for proper operation.
EBU36430SeatTo remove the seat
While pushing the rear of the seat down, pull the
seat lock lever upward and then pull up the seat at
the rear. To install the seat
Insert the projections on the front of the seat into
the seat holders and push down on the seat at the

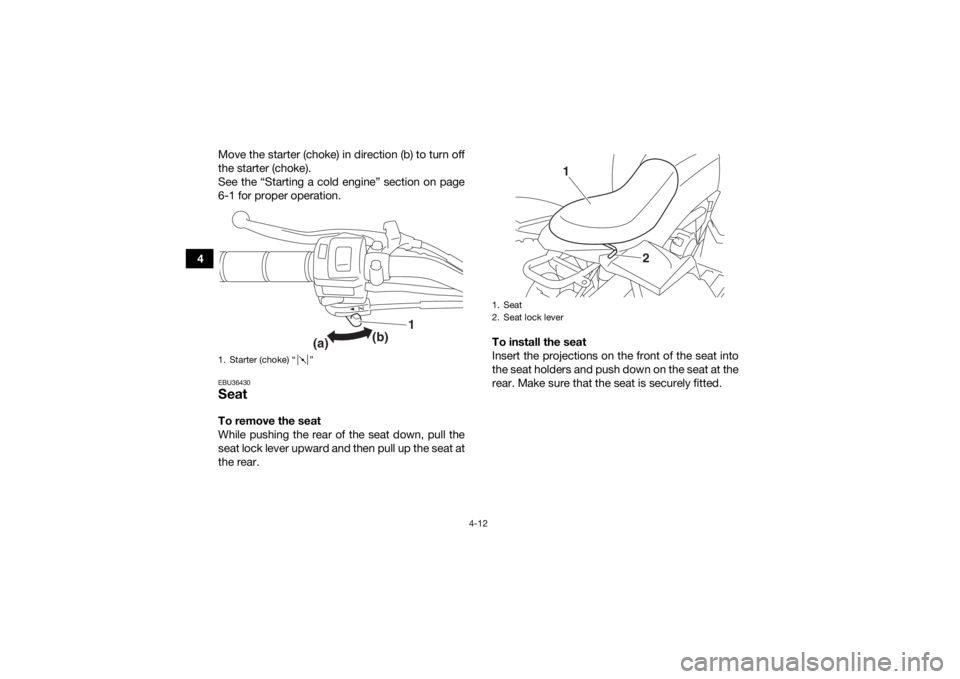

rear. Make sure that the seat is securely fitted.1. Starter (choke) “ ”
1
(a) (b)
1. Seat
2. Seat lock lever
1
2
UBW460E0.book Page 12 Monday, May 23, 2016 11:12 AM

4-13
4
EBU19024Adjusting the rear shock absorber as-
semblyThe spring preload can be adjusted to suit the rid-
er’s weight and the riding conditions.NOTICEECB01091Never turn the adjusting mechanism beyond
the minimum and maximum settings. Adjust the spring preload as follows.Turn the spring preload adjusting ring in direction
(a) to increase the spring preload and thereby
harden the suspension, and in direction (b) to de-
crease the spring preload and thereby soften the
suspension.
TIPA special wrench can be obtained at a Yamaha
dealer to make this adjustment.
1. Projection
2. Seat holder
2
1

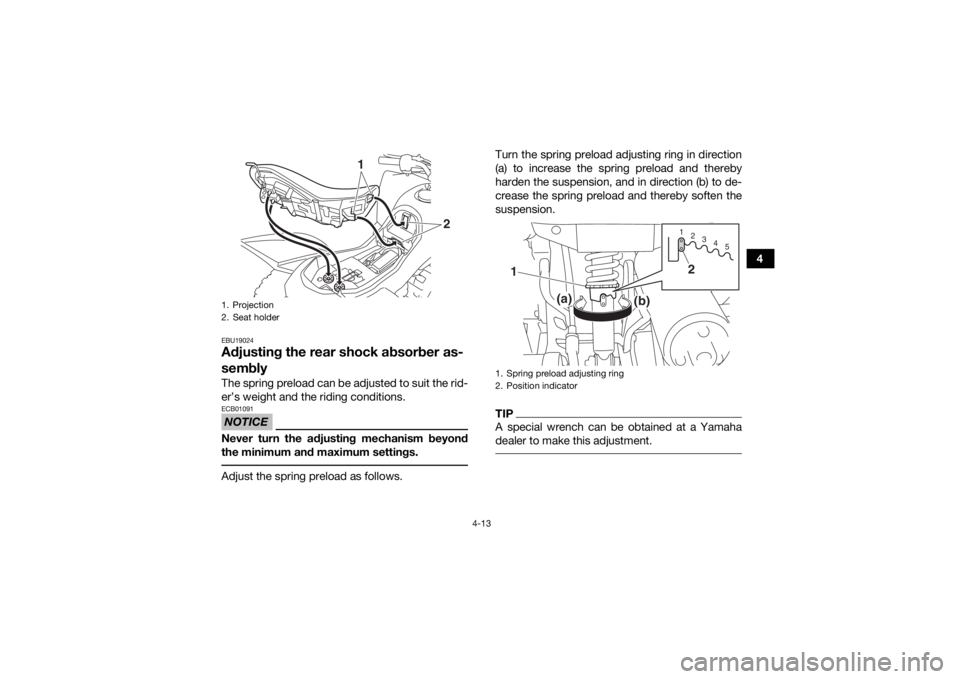

1. Spring preload adjusting ring
2. Position indicator
1
234 52
1
(a)
(b)
UBW460E0.book Page 13 Monday, May 23, 2016 11:12 AM

4-14
4

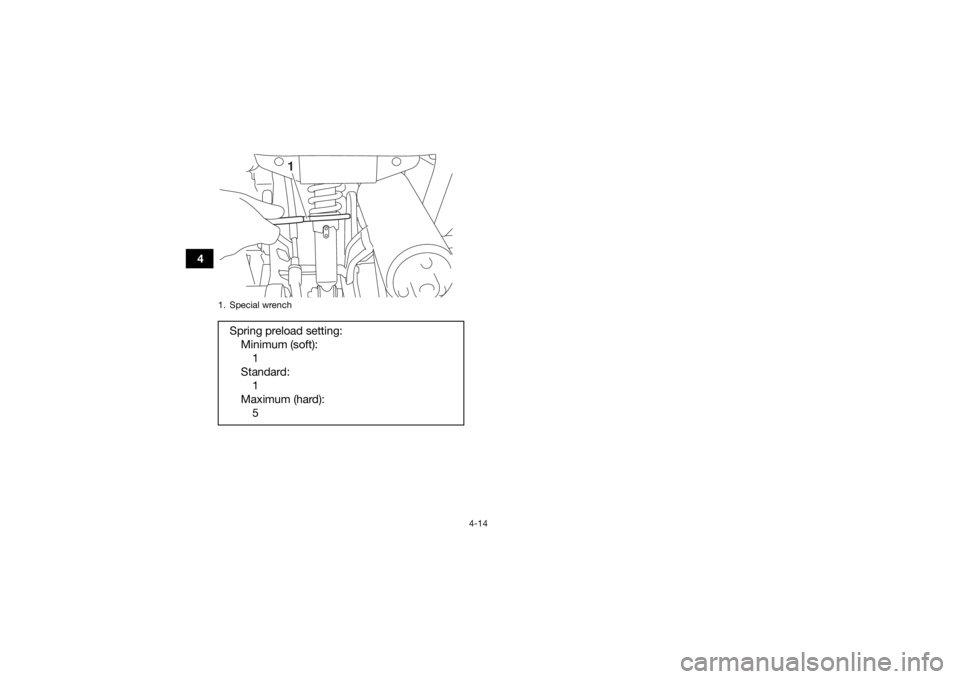

1. Special wrenchSpring preload setting:Minimum (soft):1
Standard: 1
Maximum (hard): 5
1
