Page 105 of 130
8-23
8
1. Loosen the upper locknut and fully turn in the
upper adjusting bolt.
2. Loosen the lower locknut.
3. Turn the lower adjusting bolt in direction (a) to increase the lever free play, and in direction
(b) to decrease it. 4. Tighten the lower locknut.
5. While applying the front brake, turn out the
upper adjusting bolt until the upper and lower
cable lengths are equal. The cable joint will
become vertical.

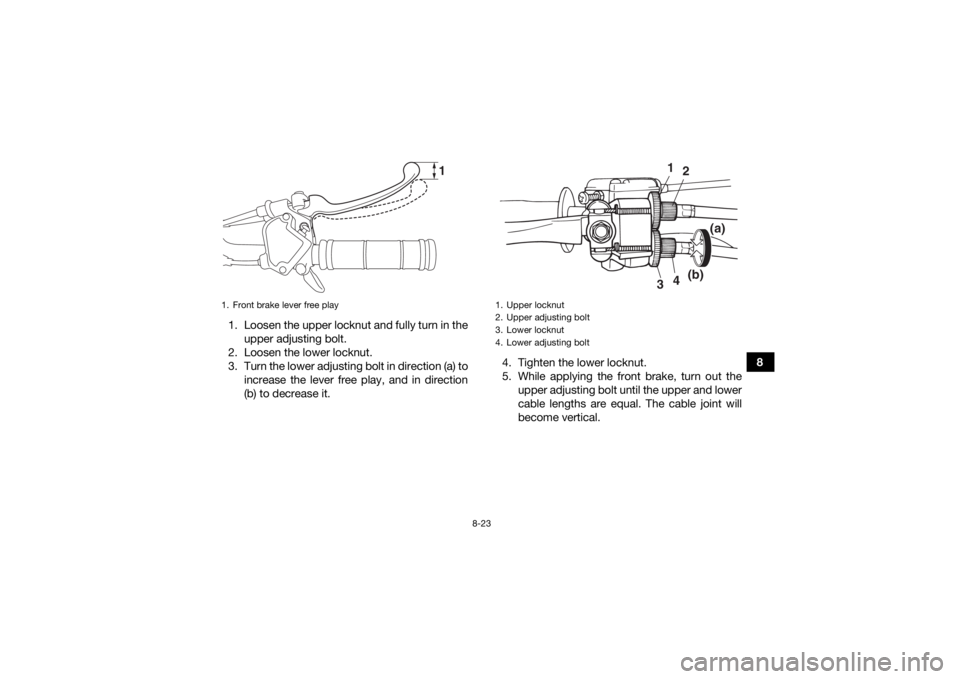

1. Front brake lever free play
1
1. Upper locknut
2. Upper adjusting bolt
3. Lower locknut
4. Lower adjusting bolt
12
4
3 (a)
(b)
UBD361E0.book Page 23 Monday, January 25, 2016 10:53 AM
Page 106 of 130
8-24
86. Tighten the upper locknut.
TIPAfter adjusting the brake lever free play, check the
front brake shoes for wear. EBU33782Adjusting the rear brake lever free playThe rear brake lever free play must be checked
and, if necessary, adjusted at the intervals speci-
fied in the periodic maintenance and lubrication
chart. The brake lever free play should measure 30.0–
40.0 mm (1.18–1.57 in) as shown. If the free play is
incorrect, adjust it as follows.
Turn the adjusting nut in direction (a) to increase
the brake lever free play, and in direction (b) to de-

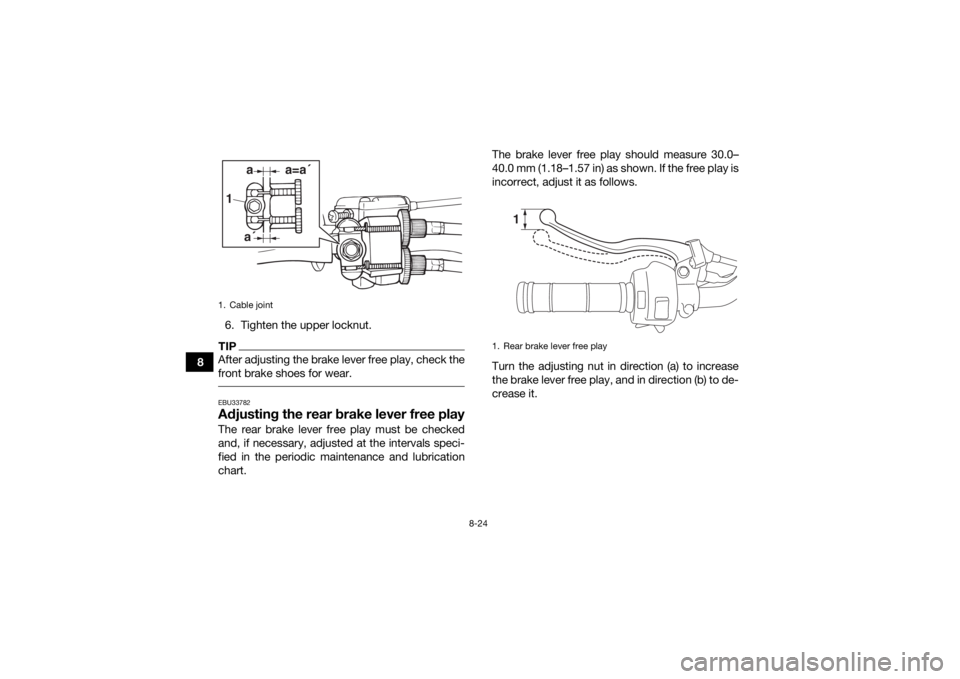

crease it.1. Cable joint1
aa´
a=a´
1. Rear brake lever free play
1
UBD361E0.book Page 24 Monday, January 25, 2016 10:53 AM
Page 107 of 130
8-25
8
TIPAfter adjusting the brake lever free play, check the
rear brake shoes for wear. EBU34013Drive chain slackThe drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack1. Place the ATV on a level surface.
TIPWhen checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground. 2. Move the ATV back and forth to locate the tightest portion of the drive chain, and then
measure the drive chain slack as shown.
3. If the drive chain slack is incorrect, adjust it as follows.

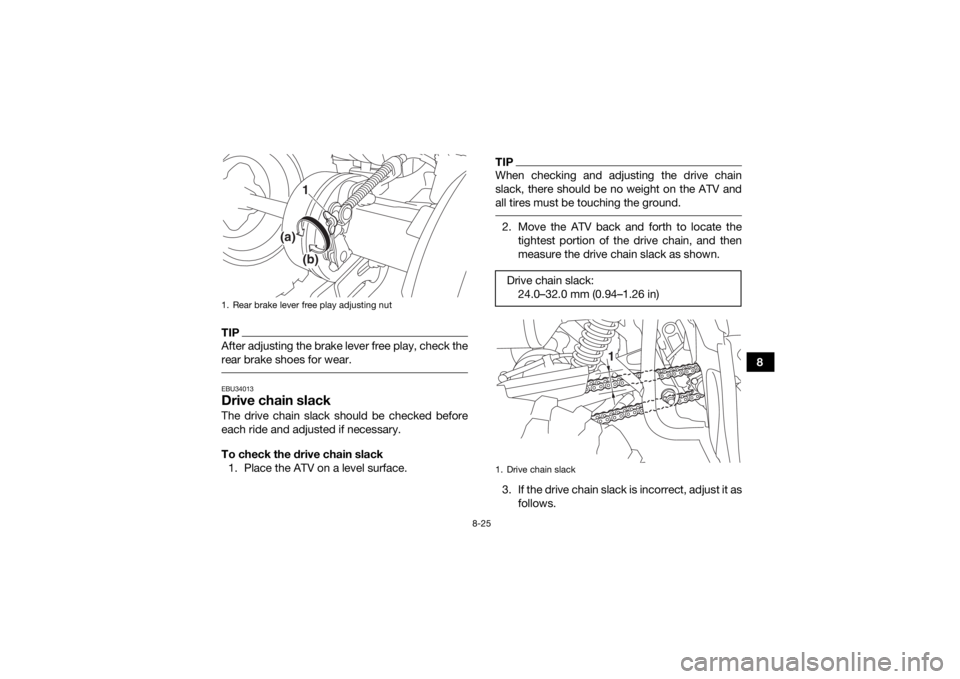

1. Rear brake lever free play adjusting nut
1
(a)
(b)
Drive chain slack:24.0–32.0 mm (0.94–1.26 in)1. Drive chain slack
1
UBD361E0.book Page 25 Monday, January 25, 2016 10:53 AM
Page 108 of 130
8-26
8To adjust the drive chain slack
1. Loosen the bolts and nuts. 2. Loosen the rear brake lever free play adjust-
ing nut.
3. Loosen the locknut.
1. Bolt
1. Nut
1
1
1. Rear brake lever free play adjusting nut
1
UBD361E0.book Page 26 Monday, January 25, 2016 10:53 AM
Page 109 of 130

8-27
8
4. To tighten the drive chain, turn the drive chain
slack adjusting nut in direction (a). To loosen
the drive chain, turn the adjusting nut in direc-
tion (b) and push the rear wheels forward.
NOTICE: Improper drive chain slack will
overload the engine as well as other vital
parts of the ATV and can lead to drive
chain slippage or breakage. To prevent
this from occurring, keep the drive chain
slack within the specified limits.
[ECB00543]
5. Tighten the locknut, and then the bolts and nuts to their specified torques. 6. Adjust the rear brake lever free play. (See
page 8-24.)
EBU24883Lubricating the drive chainThe drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.NOTICEECB00562The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas.
1. Drive chain slack adjusting nut
2. Locknut
1
2
(a)
(b)
Tightening torques:Locknut:22 Nm (2.2 m·kgf, 16 ft·lbf)
Bolt: 45 Nm (4.5 m·kgf, 33 ft·lbf)
Nut: 54 Nm (5.4 m·kgf, 39 ft·lbf)
UBD361E0.book Page 27 Monday, January 25, 2016 10:53 AM
Page 110 of 130

8-28
81. Clean the drive chain with kerosene and a
small soft brush. NOTICE: To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.
[ECB00572]
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a special O-ring chain lubricant. NOTICE: Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00582] EBU24905
Checking and lubricating the cablesThe operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.
WARNING
EWB02582
Inspect cables frequently and replace if
damaged. Corrosion can result when the ca-
ble sheaths become damaged, and cables
can also become frayed or kinked, which
could restrict the operation of controls and
lead to an accident or injury.
Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or
1. O-ring
1
1
Recommended lubricant:
Yamaha cable lubricant or other suitable cable lubricant
UBD361E0.book Page 28 Monday, January 25, 2016 10:53 AM
Page 111 of 130
8-29
8
do not work smoothly, you could be unable
to control the ATV, which could lead to an
accident or collision.

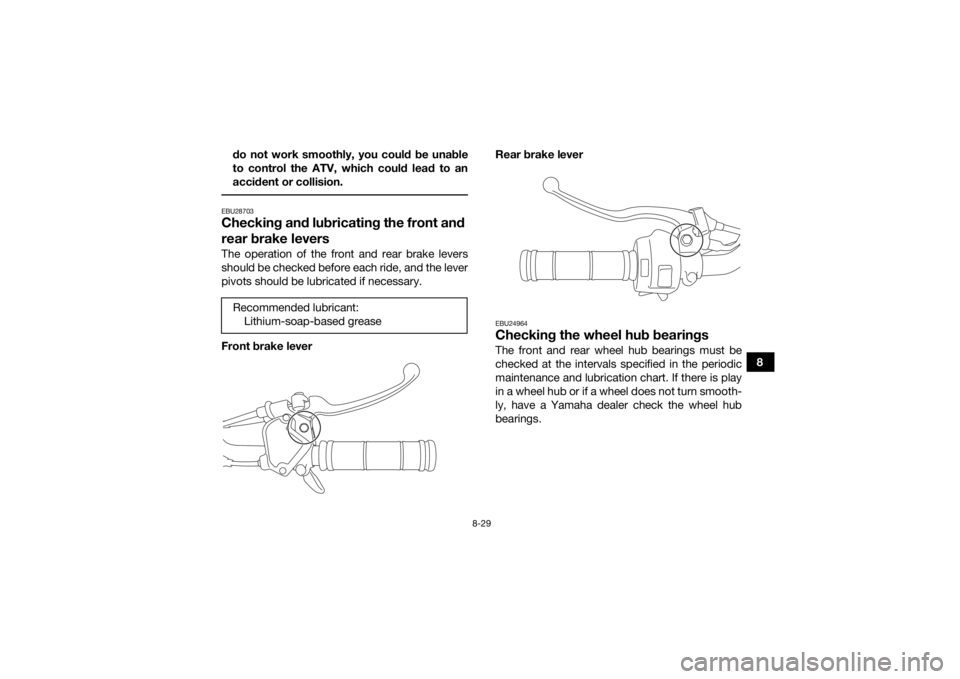

EBU28703Checking and lubricating the front and
rear brake leversThe operation of the front and rear brake levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
Front brake lever
Rear brake lever

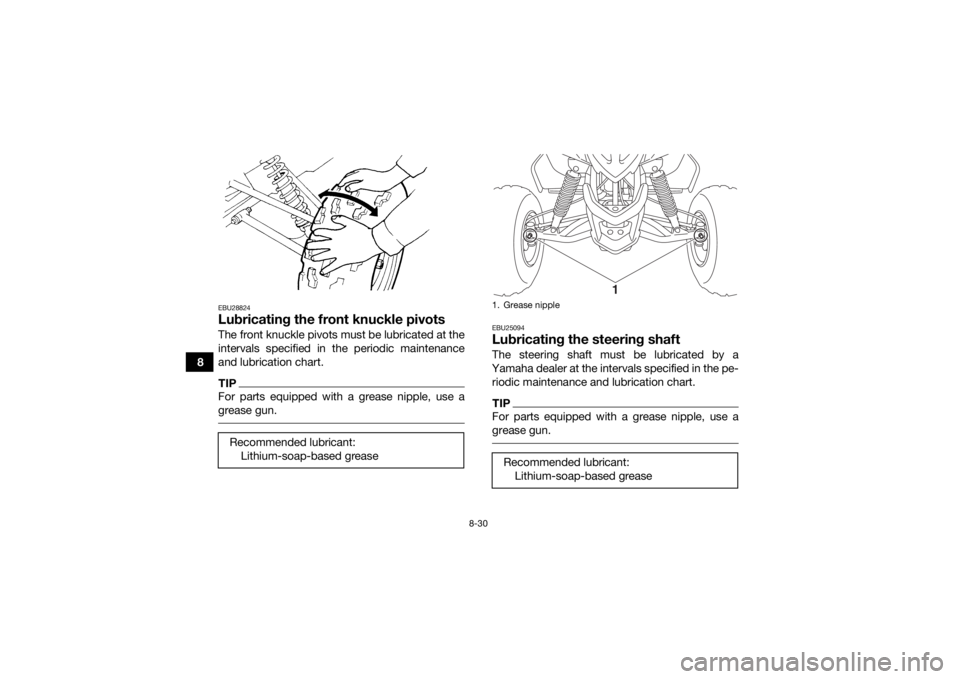

EBU24964Checking the wheel hub bearingsThe front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is play
in a wheel hub or if a wheel does not turn smooth-
ly, have a Yamaha dealer check the wheel hub
bearings.
Recommended lubricant:
Lithium-soap-based grease
UBD361E0.book Page 29 Monday, January 25, 2016 10:53 AM
Page 112 of 130
8-30
8
EBU28824Lubricating the front knuckle pivotsThe front knuckle pivots must be lubricated at the
intervals specified in the periodic maintenance
and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
EBU25094Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
Recommended lubricant: Lithium-soap-based grease
1. Grease nippleRecommended lubricant:Lithium-soap-based grease
1
