2017 YAMAHA YFM700R Owners Manual

8-45
8
Right side
EBU25094Lubricating the steering shaftThe steering shaft must be lubricated by a
Yamaha dealer at the intervals specified in the pe- riodic maintenance and lubrication chart.TIPFor parts equipped with a grease nipple, use a
grease gun.
EBU30036BatteryThe battery is located under the seat. (See page
4-12.)
This model is equipped with a VRLA (Valve Regu-
lated Lead Acid) battery. There is no need to
check the electrolyte or to add distilled water.
However, the battery lead connections need to be
checked and, if necessary, tightened.
WARNING
EWB02161Battery electrolyte is poisonous and danger-
ous, as it contains sulfuric acid, which can cau-
se severe burns. Avoid contact with skin, eyes
or clothing. Always shield your eyes when
working near batteries.
Antidote:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water or
milk. Follow with milk of magnesia, beaten egg
or vegetable oil. Call a physician immediately.
EYES: Flush with water for 15 minutes and get
prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flame, cigarettes or other sources of
ignition away. Ventilate when charging or using
in an enclosed space.
1. Upper grease nipple
2. Lower grease nippleRecommended lubricant: Lithium-soap-based grease
1
2
U2LS62E0.book Page 45 Thursday, February 25, 2016 8:44 AM

8-46
8KEEP OUT OF REACH OF CHILDREN.
NOTICEECB00621Never attempt to remove the battery cell seals,
as this would permanently damage the battery. To remove the battery
1. Remove the seat. (See page 4-12.)
2. Remove the battery holding plate (together with the battery cover) by removing the quick
fastener screws and the bolts. 3. Disconnect the negative battery lead first,
then the positive battery lead by removing
their bolt. NOTICE: When removing the bat-
tery, the main switch must be off, and the
negative lead must be disconnected be-
fore the positive lead.
[ECB01002]
4. Pull the battery out of its compartment.
1. Bolt
2. Battery holding plate
3. Battery cover
4. Quick fastener screw
1 2
4
3
1. Negative battery lead (black)
2. Battery
3. Positive battery lead (red)
1
3
2
U2LS62E0.book Page 46 Thursday, February 25, 2016 8:44 AM

8-47
8
To charge the battery
Have a Yamaha dealer charge the battery as soon
as possible if it seems to have discharged. Keep
in mind that the battery tends to discharge more
quickly if the ATV is equipped with optional elec-
trical accessories.
NOTICEECB00932To charge a VRLA (Valve Regulated Lead Acid)
battery, a special (constant-voltage) battery
charger is required. Using a conventional bat-
tery charger will damage the battery. To store the battery

If the ATV will not be used for more than one
month, remove the battery, fully charge it, and
then place it in a cool, dry place.
 If the battery will be stored for more than two
months, check it at least once a month and fully
charge it if necessary.NOTICEECB00941Always keep the battery charged. Storing a
discharged battery can cause permanent bat-
tery damage.
To install the batteryTIPBe sure the battery is fully charged. 1. Place the battery in its compartment.
2. Connect the positive battery lead first, then
connect the negative battery lead by installing
their bolt. NOTICE: When installing the bat-
tery, the main switch must be off, and the
positive lead must be connected before
the negative lead.
[ECB01111]
3. Hook the battery holding plate onto the bat- tery box.1. Positive battery lead (red)
2. Negative battery lead (black)
2 1
U2LS62E0.book Page 47 Thursday, February 25, 2016 8:44 AM

8-48
84. Install the battery holding plate with the bat-
tery cover by installing the bolts and the quick
fastener screws.
5. Install the seat. (See page 4-12.)
EBU34660Replacing a fuseThe main fuse and the fuse box are located under
the seat. (See page 4-12.)1. Battery holding plate
2. Battery box
2
1
1. Main fuse
2. Spare main fuse
1
2
U2LS62E0.book Page 48 Thursday, February 25, 2016 8:44 AM

8-49
8
If a fuse is blown, replace it as follows. 1. Turn the key to “ ” (off) and turn off all elec- trical circuits.
NOTICEECB00641To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.
2. Remove the blown fuse, and then install anew fuse of the specified amperage.
WARNING! Always use a fuse of the spec- ified rating, and never use a substitute ob-
ject in place of the proper fuse. An
improper fuse or a substitute object can
cause damage to the electrical system,
which could lead to a fire.
[EWB02173]
3. Turn the key to “ ” (on) and turn on the elec- trical circuits to check if the devices operate.
4. If the fuse immediately blows again, have a Yamaha dealer check the electrical system.
1. Fuel injection system fuse
2. Radiator fan motor fuse
3. Ignition fuse
4. Signaling system fuse
5. Headlight fuse
6. Spare fuse
1
2
3
45
6
Specified fuses:
Main fuse:30.0 A
Headlight fuse: 10.0 A
Ignition fuse: 10.0 A
Signaling system fuse: 10.0 A
Radiator fan motor fuse: 20.0 A
Fuel injection system fuse: 10.0 A
U2LS62E0.book Page 49 Thursday, February 25, 2016 8:44 AM

8-50
8
EBU30164Replacing a headlight bulbIf a headlight bulb burns out, replace it as follows.1. Remove the headlight unit by removing the bolt and pulling the headlight unit outward as
shown.
2. Remove the bulb cover. 3. Remove the socket by pushing it in and turn-
ing it counterclockwise, and then remove the
burnt-out bulb.1. Bolt
2. Headlight unit
2
1
1. Bulb cover
1
U2LS62E0.book Page 50 Thursday, February 25, 2016 8:44 AM

8-51
8
4. Place a new headlight bulb into position.
NOTICE: Do not touch the glass part of the
headlight bulb to keep it free from oil, oth-
erwise the transparency of the glass, the
luminosity of the bulb, and the bulb life will
be adversely affected. Thoroughly clean
off any dirt and fingerprints on the head-
light bulb using a cloth moistened with al-
cohol or thinner.
[ECB00652]
5. Install the socket by pushing it in and turning it clockwise.
6. Install the bulb cover.
7. Place the headlight unit in the original posi- tion, and then install the bolt.
8. Adjust the headlight beam if necessary.EBU25562Adjusting a headlight beamNOTICEECB00691It is advisable to have a Yamaha dealer make
this adjustment.
1. Socket
1
1. Do not touch the glass part of the bulb.
U2LS62E0.book Page 51 Thursday, February 25, 2016 8:44 AM

8-52

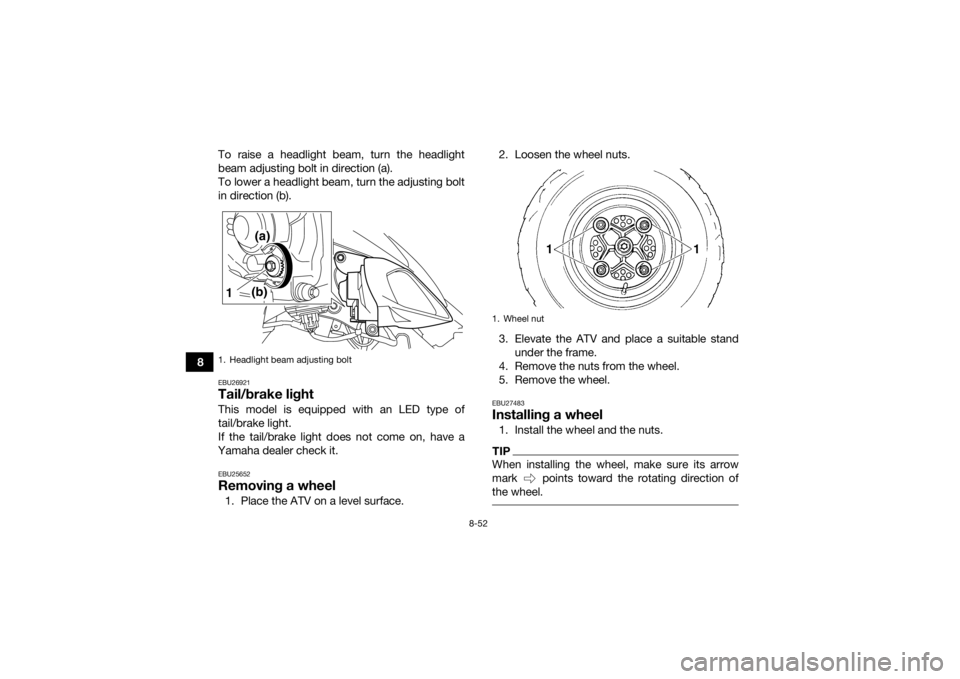

8To raise a headlight beam, turn the headlight
beam adjusting bolt in direction (a).
To lower a headlight beam, turn the adjusting bolt
in direction (b).
EBU26921Tail/brake lightThis model is equipped with an LED type of
tail/brake light.
If the tail/brake light does not come on, have a
Yamaha dealer check it.EBU25652Removing a wheel1. Place the ATV on a level surface. 2. Loosen the wheel nuts.
3. Elevate the ATV and place a suitable stand
under the frame.
4. Remove the nuts from the wheel.
5. Remove the wheel.
EBU27483Installing a wheel1. Install the wheel and the nuts.TIPWhen installing the wheel, make sure its arrow
mark points toward the rotating direction of
the wheel.
1. Headlight beam adjusting bolt1
(a)(b)
1. Wheel nut
U2LS62E0.book Page 52 Thursday, February 25, 2016 8:44 AM
