2017 YAMAHA XMAX 300 key

Smart key system
3-6
3This feature is convenient for locating
your vehicle in a parking lot and other
areas.
To turn the answer-
back beeper on
or off
The beeper, which sounds when the
answer-back function is operated, can
be turned on or off according to the fol-
lowing procedure. 1. Turn the smart key on and bring it within operating range.
2. Turn the main switch to “OFF”, and then push the main switch
knob once.
3. Within 9 seconds of pushing the knob, push and hold the knob
again for 5 seconds.
4. When the beeper sounds, the set- ting is complete.
If the beeper:z Sounds twice: The beeper is
turned off.
z Sounds once: The beeper is
turned on.
EAU76481
Replacin g the smart key bat-
tery
Replace the battery in the following sit-
uations.
z The smart key system indicator
light flashes for about 20 seconds
when the power of the vehicle is
turned on.
z The answer-back function does
not operate when the smart key
button is pushed.
WARNING
EWA14724
zThe battery an d other remov-
a b le parts may cause injury if
swallowe d. Keep the battery
an d other remova ble parts away
from chil dren.
z Do not expose the battery to d i-
rect sunli ght or other heat
sources.
NOTICE
ECA15784
z Use a cloth when openin g the
smart key case with a screw-
d river. Direct contact with har d
o bjects may damag e or scratch
the smart key.
1. Smart key system indicator light “ ”
1
UB74E0E0.book Page 6 Tuesday, May 2, 2017 1:04 PM

Smart key system
3-7
3
z
Take precautions to prevent the
waterproof seal from bein g
d amag ed or contaminated by
d irt.
z Do not touch the internal cir-
cuits an d terminals. This may
cause malfunctions.
z Do not apply excessive force to
the smart key when replacin g
the battery.
z Make sure the battery is in-
stalle d correctly. Confirm the di-
rection of the positive/“+” si de
of the b attery.

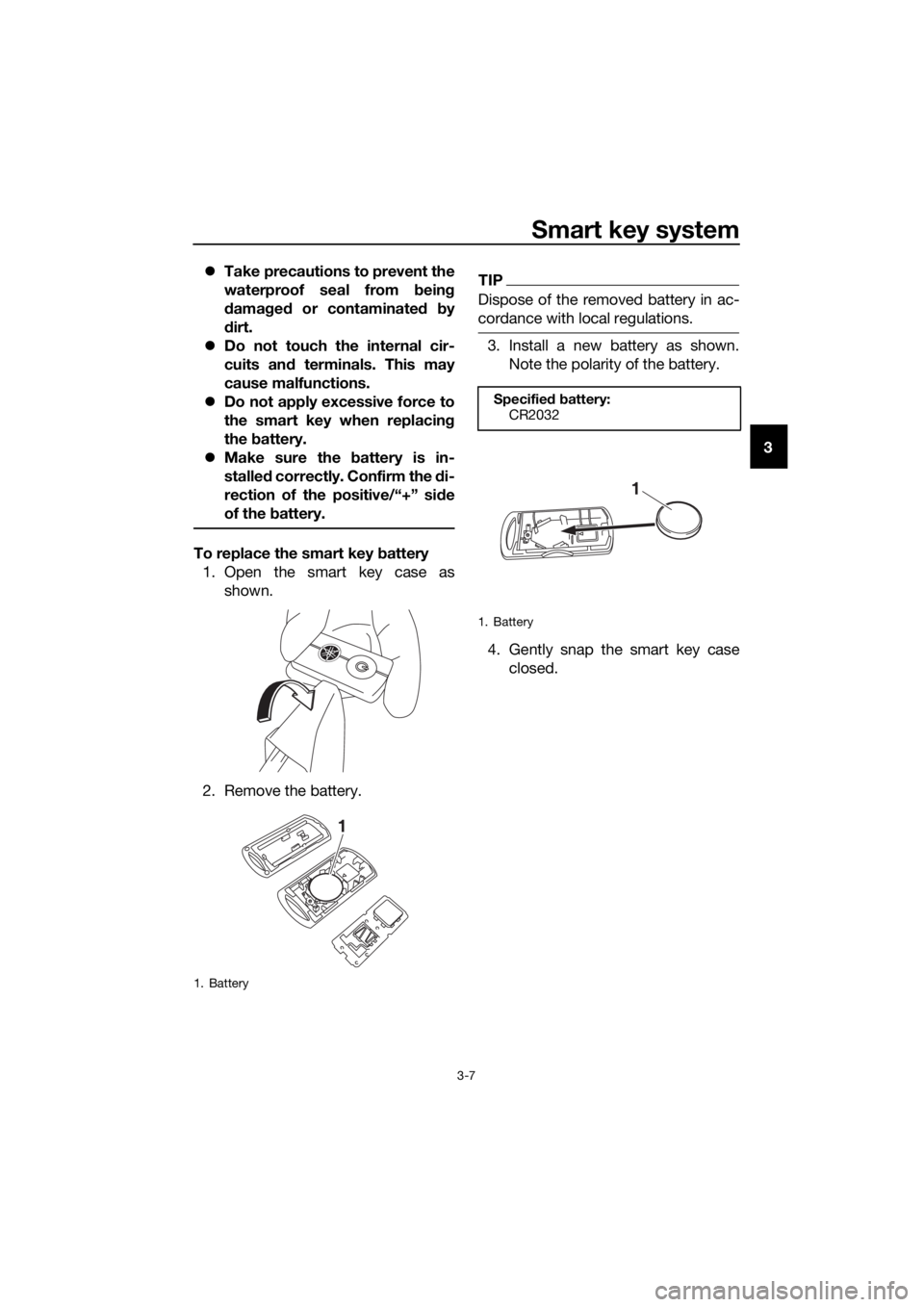

To replace the smart key battery
1. Open the smart key case as shown.
2. Remove the battery.
TIP
Dispose of the removed battery in ac-
cordance with local regulations.
3. Install a new battery as shown. Note the polarity of the battery.
4. Gently snap the smart key case closed.
1. Battery
1
Specified b attery:
CR2032
1. Battery
1
UB74E0E0.book Page 7 Tuesday, May 2, 2017 1:04 PM

Smart key system
3-8
3
EAU76892
Main switch
The main switch is used to turn the ve-
hicle power on and off, lock and unlock
the steering, and open the seat, fuel
tank cap lid and storage compartment
A. After pushing the main switch knob
and confirmation with the smart key
has taken place, the main switch can
be turned while the smart key system
indicator light is on (approximately 4
seconds).
WARNING
EWA18720
Never turn the main switch to
“OFF”, “ ”, or “OPEN” while the ve-
hicle is moving. Otherwise the elec- trical systems will
be switched off,
which may result in loss of control or
an acci dent.
TIP
Do not push the main switch knob re-
peatedly or turn the main switch back
and forth beyond normal use. Other-
wise, to protect the main switch from
damage, the smart key system will
temporarily disable and the smart key
system indicator light will flash. If this
occurs, wait until the indicator light
stops flashing before operating the
main switch again.
The main switch positions are de-
scribed below.
EAU76500ON (on)
All electrical circuits are supplied with
the power, and the engine can be start-
ed.
To turn the vehicle power on
1. Turn the smart key on and bring it
within operating range.
1. Main switch
2. Main switch knob
1. Smart key system indicator light “ ”
2
1
1
1. Push.
2. Turn.
1 2
UB74E0E0.book Page 8 Tuesday, May 2, 2017 1:04 PM

Smart key system
3-9
3
2. Push the main switch knob and
the smart key indicator light will
come on for approximately 4 sec-
onds.
3. While the smart key system indi- cator light is on, turn the main
switch to “ON”. All of the turn sig-
nal lights flash twice and the vehi-
cle power turns on.TIP
zIf the vehicle battery voltage is
low, the turn signal lights will not
flash.
z See “Emergency mode” on page
7-38 for information on turning the
vehicle power on without the
smart key.
EAU76510OFF (off)
All electrical systems are off.
To turn the vehicle power off
1. With the smart key turned on and
within operating range, turn the
main switch to “OFF”.
2. The turn signal lights flash once and the vehicle power turns off.
TIP
When the main switch is turned to
“OFF” but the smart key cannot be
confirmed (the smart key is either out-
side operation range or has been
turned off), the beeper will sound for 3
seconds and the smart key system in-
dicator light will flash for 30 seconds.z During this 30 seconds, the main
switch can be freely operated.
z After 30 seconds, the vehicle
power will turn off automatically.
z To turn the vehicle power off im-
mediately, push the main switch
knob four times within 2 seconds.
EAU79040OPEN (open)
The seat and storage compartment A
can be opened.
To open the seat, push the “SEAT”
button, and then lift the rear of the seat.
1. Turn.
1
1. Push.
2. Turn.
1
2
UB74E0E0.book Page 9 Tuesday, May 2, 2017 1:04 PM

Smart key system
3-10
3To open storage compartment A, push
the “LID” button.
TIP
Make sure that the seat and storage
compartment are securely closed be-
fore starting off.
Open position remin der
To prevent you from accidentally leav-
ing the vehicle unlocked by walking
away with the main switch still in the
“OPEN” position, the smart key system
beeper will sound under the following
conditions. z When the main switch has been in
the open position for 3 minutes
z If the smart key is turned off while
the main switch is in the open po-
sition
z If you walk out of range of the
smart key system with the main
switch in the open position
If the beeper sounds after 3 minutes,
turn the main switch to “OFF” or “ ”.
If the beeper sounds because the
smart key was turned off or moved out
of range, turn the smart key on and
walk back into range.
TIP
z The beeper will turn off after 1 mi-
nute.
1. “SEAT” button
1. Storage compartment A
1
1
1. “LID” button
1
UB74E0E0.book Page 10 Tuesday, May 2, 2017 1:04 PM

Smart key system
3-11
3
z
The seat can also be opened with
the mechanical key. (See page
4-20.)
EAU76521“ ” (lock)
The steering is locked and all electrical
systems are off.

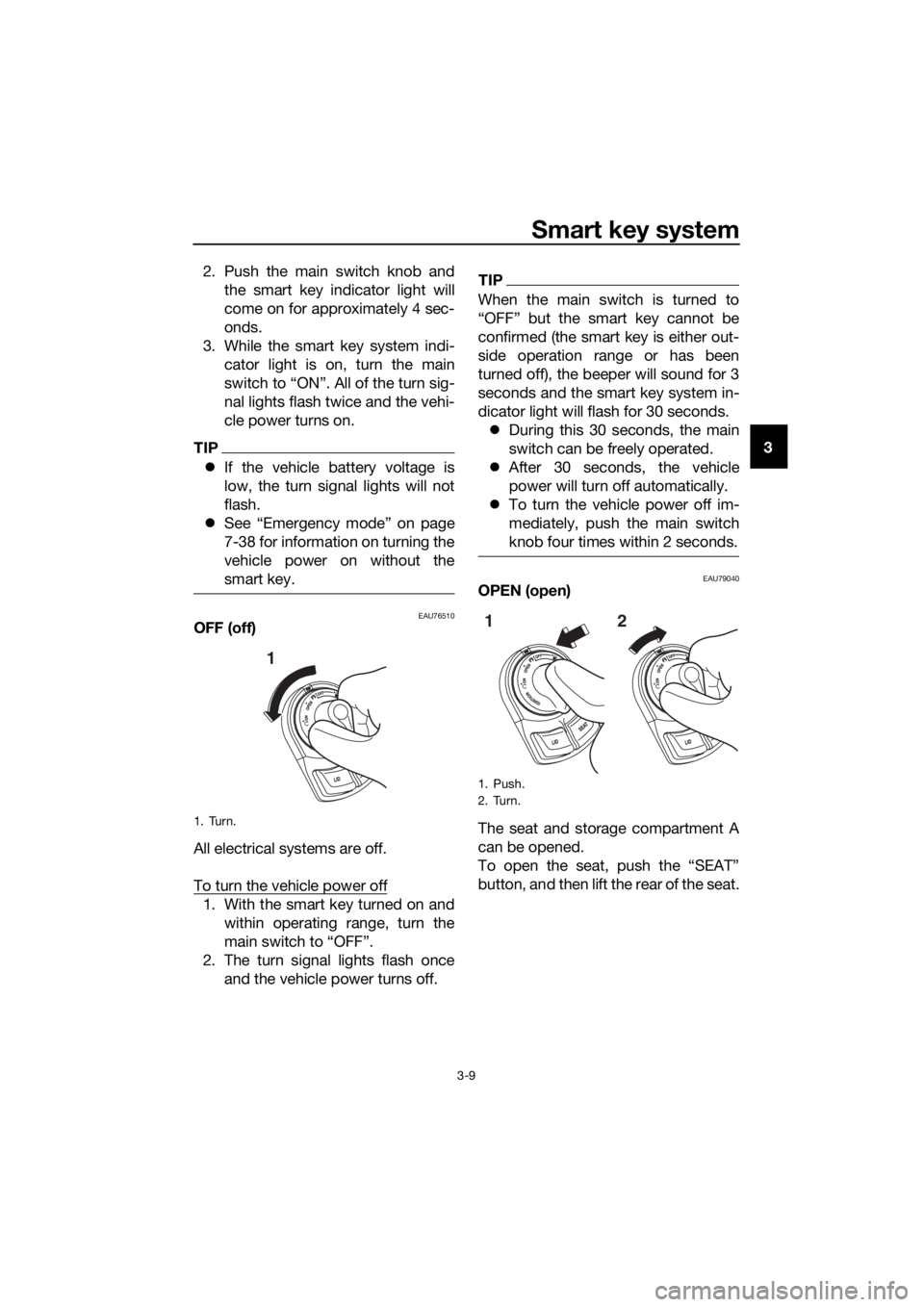

To lock the steering
1. Turn the handlebar all the way to
the left.
2. With the smart key turned on and within operating range, push the
main switch knob.
3. While the smart key system indi- cator light is on, push and turn the
main switch to “ ”.
TIP
If the steering will not lock, try turning
the handlebar back to the right slightly.
To unlock the steering
1. With the smart key turned on andwithin operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, push and turn the
main switch to the desired posi-
tion.
EAU76903 (parkin g)
The hazard lights and turn signal lights
can be turned on, but all other electri-
cal systems are off.

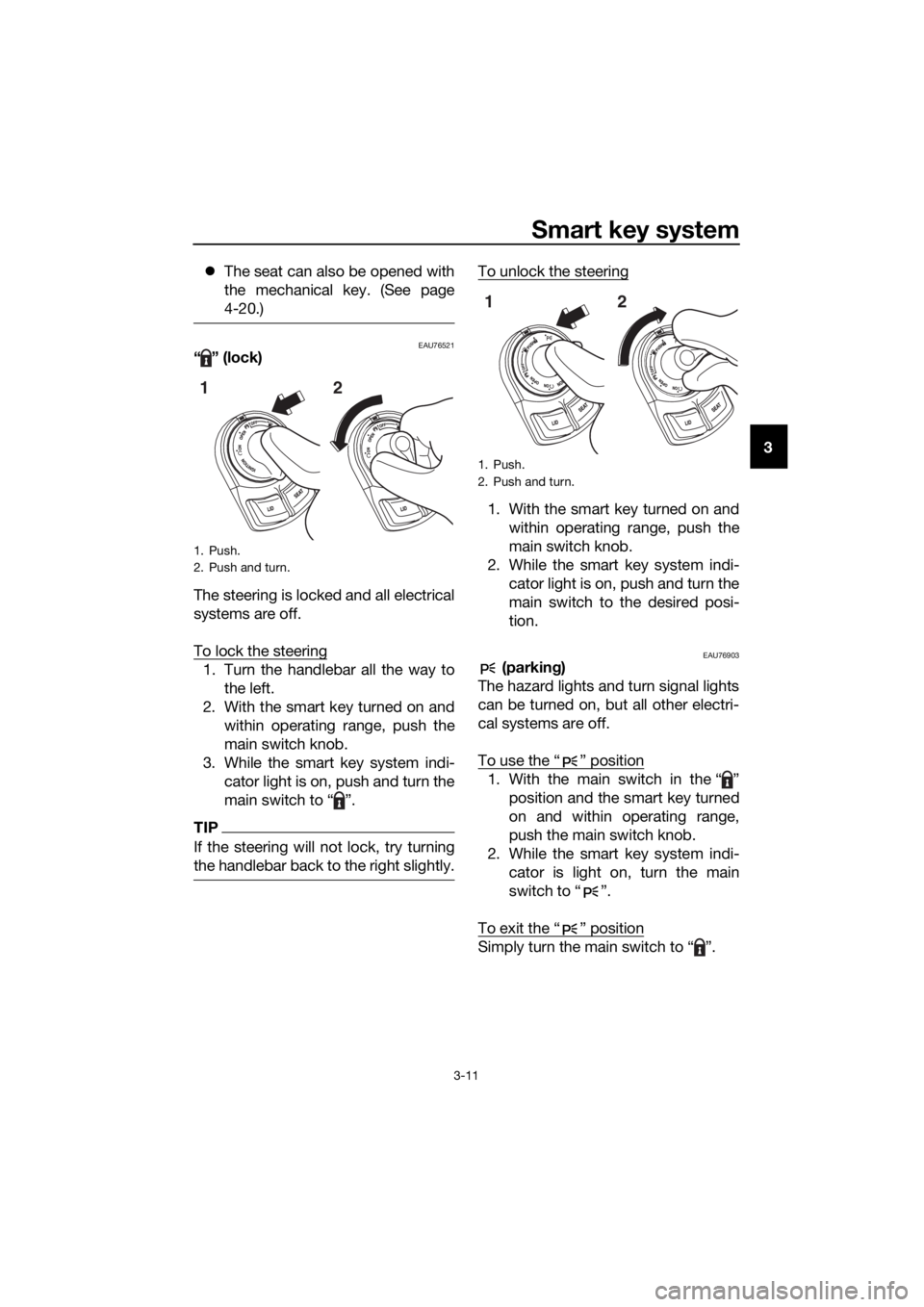

To use the “ ” position
1. With the main switch in the “ ” position and the smart key turned
on and within operating range,
push the main switch knob.
2. While the smart key system indi- cator is light on, turn the main
switch to “ ”.
To exit the “ ” position
Simply turn the main switch to “ ”.
1. Push.
2. Push and turn.
1 2
1. Push.
2. Push and turn.
12
UB74E0E0.book Page 11 Tuesday, May 2, 2017 1:04 PM

Smart key system
3-12
3
NOTICE
ECA20760
Using the hazar d or turn si gnal lig hts
for an exten ded len gth of time may
cause the battery to dischar ge.
EAU79000“ ” (fuel tank cap li d)

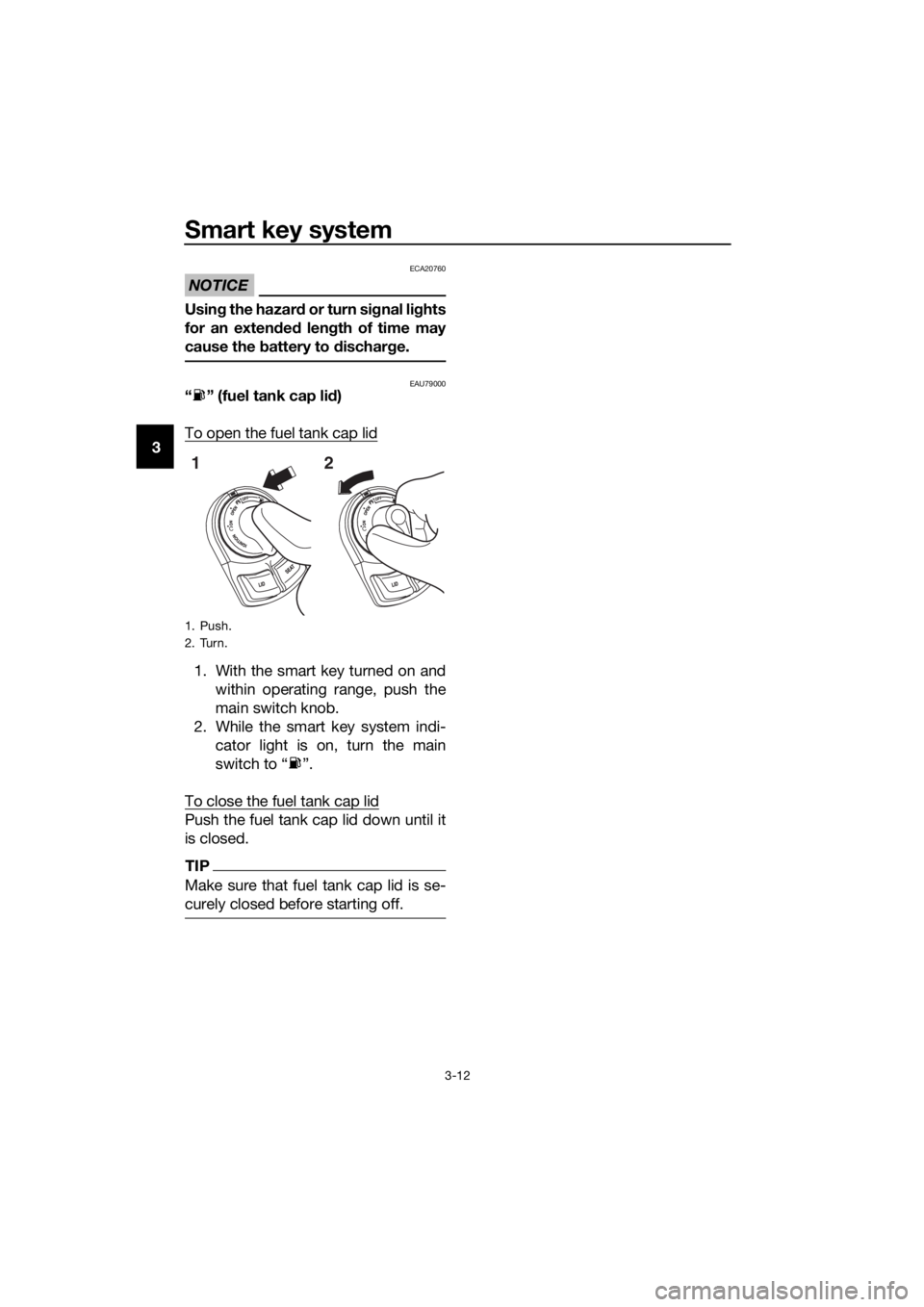

To open the fuel tank cap lid
1. With the smart key turned on and within operating range, push the
main switch knob.
2. While the smart key system indi- cator light is on, turn the main
switch to “ ”.
To close the fuel tank cap lid
Push the fuel tank cap lid down until it
is closed.
TIP
Make sure that fuel tank cap lid is se-
curely closed before starting off.
1. Push.
2. Turn.
12
UB74E0E0.book Page 12 Tuesday, May 2, 2017 1:04 PM

Instrument and control functions
4-1
4
EAU4939C

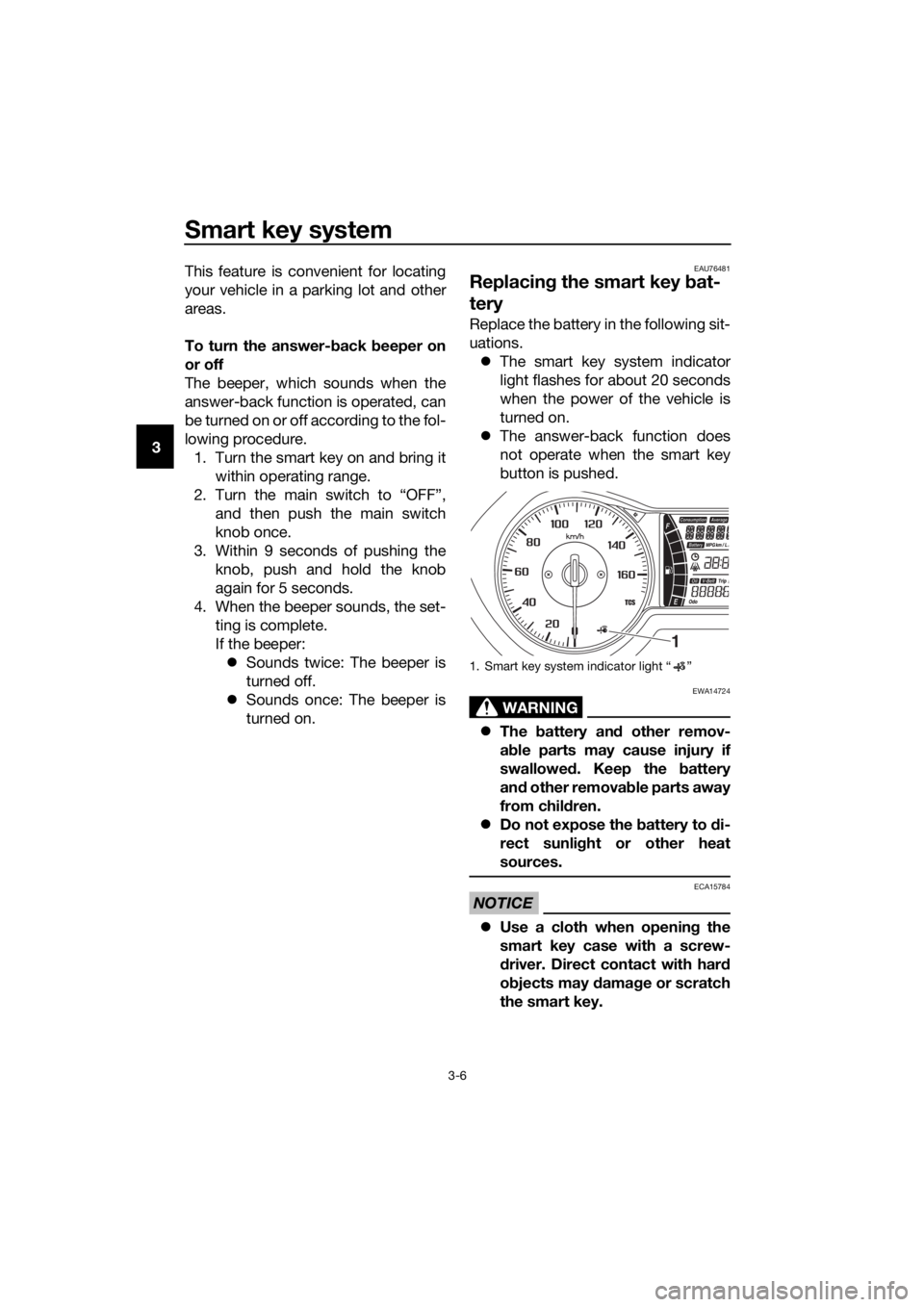

In dicator li ghts an d warnin g
li g hts
EAU11032Turn si gnal in dicator li ghts “ ”
an d“”
Each indicator light will flash when its
corresponding turn signal lights are
flashing.
EAU11081Hi gh beam in dicator li ght “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU78180En gine trou ble warnin g lig ht “ ”
This warning light comes on if a prob-
lem is detected in the engine or other
vehicle control system. If this occurs,
have a Yamaha dealer check the on-
board diagnostic system. The electrical circuit of the warning
light can be checked by turning the
main switch to “ON”. The warning light
should come on for a few seconds, and
then go off.
If the warning light does not come on
initially when the main switch is turned
to “ON”, or if the warning light remains
on, have a Yamaha dealer check the
vehicle.
EAU78171ABS warnin
g lig ht “ ”
In normal operation, the ABS warning
light comes on when the main switch is
turned to “ON”, and goes off after trav-
eling at a speed of 10 km/h (6 mi/h) or
higher.
If the ABS warning light: z does not come on when the main
switch is turned to “ON”
z comes on or flashes while riding
z does not go off after traveling at a
speed of 10 km/h (6 mi/h) or high-
er
The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 4-14 for an expla-
nation of the ABS.)
WARNING
EWA16041
If the ABS warnin g li ght does not go
off after travelin g at a speed of 10
km/h (6 mi/h) or hi gher, or if the
warnin g lig ht comes on or flashes
while ri din g, the b rake system re-
verts to conventional brakin g. If ei-
ther of the a bove occurs, or if the
warnin g lig ht does not come on at
all, use extra caution to avoi d possi-
b le wheel lock durin g emer gency
1. Left turn signal indicator light “ ”
2. Right turn signal indicator light “ ”
3. High beam indicator light “ ”
4. Anti-lock Brake System (ABS) warning
light “ ”
5. Engine trouble warning light “ ”
6. Traction control system indicator light “ ”
7. Smart key system indicator light “ ”
12
36745
ABS
ABS
