2017 YAMAHA XMAX 125 display

Instrument and control functions
3-6
3
EAUM3831
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:
a speedometer
a tachometer
a fuel meter
a clock
an odometer and tripmeter display
a multi-function display
a coolant temperature meter
TIP
Be sure to turn the key to “ON” be-
fore using the “SELECT”, “RE-
SET”, “TRIP” and “INFO” buttons.When the key is turned to “ON”, all
display segments of the multi-
function meter unit will momen-
tarily appear in order to test the
electrical circuit. The speedome-
ter and odometer will then perform
a display check and a welcome
message will scroll across the
multi-function display.
Traveling speed, distance traveled
and fuel consumption measure-
ments are displayed in kilometer-
based units.
For the UK: traveling speed, dis-
tance traveled and fuel consump-
tion measurements can be
displayed in mile-based units. To
switch between kilometers or
miles: hold the “SELECT” switch
pushed, turn the main switch to
“ON”, and keep the “SELECT”
switch pushed for an additional 8
seconds.
Speedometer
The speedometer shows the vehicle's
traveling speed.
Tachometer
1. Tachometer
2. Speedometer
3. “SELECT” button
4. “RESET” button
5. Multi-function display
6. Clock
7. Fuel meter
8. “TRIP/INFO” switch
9. Coolant temperature display
ZAUM1099
3
98765432111 10
12
0
1000r/minx
km/h
E
FCH
kmOdo
AirA
veCo
ns
OilV- Be
ltTi
meTr ipOdoSELECTRESETF
465
7
21
8
9INFOTRIP
1. Tachometer
2. High-rpm zone
ZAUM1101
1
9876543
2
1
11 10
12
0
1000r/minx
km/h
E
F
2
U2DME3E0.book Page 6 Friday, June 10, 2016 2:25 PM

Instrument and control functions
3-7
3 The tachometer allows you to monitor
the engine speed and keep it within the
ideal power range.
NOTICE
ECAM1150
Do not operate the engine in the ta-
chometer high-rpm zone.
High-rpm zone: 10000 r/min and
above
Fuel meter
With the key in the “ON” position, the
fuel meter indicates the amount of fuel
in the fuel tank. The display segments
of the fuel meter start from “F” (full) and
disappear towards “E” (empty) as the
fuel level decreases. When the fuel lev-
el is low, the fuel pictogram “ ” and
the last segment will flash. Refuel as
soon as possible.
TIP
The fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the fuel tank electrical circuit,
all segments of the fuel meter will flash
repeatedly. If this occurs, have a
Yamaha dealer check the vehicle.
Clock
To set the clock:
1. Push the “SELECT” button for 3
seconds, and the hour digits will
start flashing.
2. Use the “SELECT” button to set
the hours.
3. Push the “SELECT” button for 3
seconds, and the minute digits will
start flashing.
4. Use the “SELECT” button to set
the minutes.
5. Push the “SELECT” button for 3
seconds to complete setting the
clock.
Odometer and tripmeter display
The odometer and tripmeter display is
equipped with the following:
an odometer (which shows the to-
tal distance the vehicle has trav-
eled)
a tripmeter (which shows the dis-
tance traveled since last set to ze-
ro)
a time tripmeter (which shows the
elapsed riding time since last set
to zero)
1. Fuel meter
2. Fuel level warning indicator “ ”
3. Fuel reserve tripmeter
ZAUM1102
98765432111 10
12
0
1000r/min
km/h
E
FCH
kmT
ripOdo
SELECTRESET
F
312
1.
2. Function display
ZAUM1104CH
km
Odo
Air
OilV-BeltTimeT
ripOdoF
21
INFOTRIP
U2DME3E0.book Page 7 Friday, June 10, 2016 2:25 PM

Instrument and control functions
3-8
3a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
an oil change tripmeter (which
shows the distance traveled since
the last engine oil change)
a V-belt replacement tripmeter
(which shows the distance trav-
eled since the last V-belt replace-
ment)
Push the “TRIP” button to switch the
display in the following order:
Odo (odometer) → Trip (tripmeter) →
Trip Time (time tripmeter) → Oil (oil
change tripmeter) → V-Belt (v-belt re-
placement tripmeter) → Odo (odome-
ter)
When approximately 2.5 L (0.66 US
gal, 0.55 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “F Trip” and start counting the
distance traveled from that point. In
this case, push the “TRIP” button to
switch the display in the following or-
der:
Odo → Trip → Trip Time → F Trip (fuel
reserve tripmeter) → Oil Trip → V-Belt
Trip → Odo
To reset a standard tripmeter (not oil
change or V-belt change tripmeter),
select it by pushing the “TRIP” button
until “Trip”, “Trip Time”, “F Trip” is dis-
played. While “Trip, Trip Time, F Trip”
is displayed, push the “TRIP” button
for 3 seconds. If you do not reset the
fuel reserve tripmeter manually, it will
reset automatically and disappear after
refueling and traveling 5 km (3 mi).
TIP
The display cannot be changed
back to “F Trip” after it has been
reset.
The tripmeter will reset and con-
tinue counting after 9999.9 is
reached.
The odometer will lock at 999999
and cannot be reset.
Oil change indicator “Oil”
This indicator flashes at the initial 1000
km (600 mi), then at 5000 km (3000 mi)
and every 6000 km (3500 mi) thereafter
to indicate that the engine oil should be
changed. After changing the engine oil,
reset the oil change indicator.
To reset the oil change indicator
1. Turn the key to “ON”.
2. Push the “TRIP” button until “Oil”
(oil change tripmeter) is displayed,
and then push the “RESET” but-
ton for 3 seconds. The oil change
tripmeter value will flash.
3. Hold the “RESET” button pushed
for 15 to 20 seconds.
1. “TRIP/INFO” switch
2. “RESET” button
ZAUM1121CH
kmAir
OilOdo
1
INFOTRIP
2
SELECT RESET
km
U2DME3E0.book Page 8 Friday, June 10, 2016 2:25 PM

Instrument and control functions
3-9
3
4. Release the “RESET” button, and
the oil trip value will reset to zero.
TIP
If the engine oil is changed before the
oil change indicator comes on (i.e. be-
fore the periodic oil change interval has
been reached), the indicator must be
reset after the oil change for the next
periodic oil change to be indicated at
the correct time. To reset the oil
change indicator before the periodic oil
change interval has been reached, fol-
low the above procedure.
The electrical circuit of the indicator
can be checked according to the fol-
lowing procedure.
1.
2. Check that the oil change indica-
tor comes on for a few seconds
and then goes off.
3. If the oil change indicator does not
come on, have a Yamaha dealer
check the electrical circuit.
V-belt replacement indicator “V-
Belt”
This indicator flashes every 18000 km
(10500 mi) when the V-belt needs to be
replaced. After changing the V-belt, re-
set the V-belt replacement indicator.To reset the V-belt replacement indi-
cator
1. Turn the key to “ON”.
2. Push the “TRIP” button until “V-
Belt” (V-belt replacement tripme-
ter) is displayed, and then push
the “RESET” button for 3 sec-
onds. The V-belt replacement trip-
meter value will flash.
3. Hold the “RESET” button pushed
for 15 to 20 seconds.
4. Release the “RESET” button, and
the V-belt trip value will reset to
zero.
TIP
If the V-belt is replaced before the indi-
cator comes on, be sure to reset the V-
belt replacement indicator so that it will
come on at the next correct interval.
1.
ZAUM1122CH
kmAir
OilOdoSELECT RESET
km
Oil
1
1.
2.
1.
ZAUM1137CH
kmAir
Odo
1
INFOTRIP
2
SELECT RESETV- B el
t
ZAUM1138CH
kmAir
OdoSELECT RESET
km
1
V- B el
t
V- B el
t
U2DME3E0.book Page 9 Friday, June 10, 2016 2:25 PM

Instrument and control functions
3-10
3The electrical circuit of the indicator
can be checked according to the fol-
lowing procedure.
1. Turn the key to “ON”.
2. Check that the V-belt replacement
indicator comes on for a few sec-
onds and then goes off.
3. If the V-belt replacement indicator
does not come on, have a Yamaha
dealer check the electrical circuit.
Multi-function display
The multi-function display is equipped
with the following:
an ambient temperature display
a battery voltage level display
a fuel consumption display (aver-
age and instantaneous)
an average speed display
a warning message function
Push the “INFO” button to switch the
display between the ambient tempera-
ture “Air”, the battery voltage , the
average fuel consumption
“Ave/Cons__._km/L” or “Ave/Cons__._ L/100 km”, the instantaneous fuel
consumption “Cons__._km/L” or
“Cons__._L/100 km”, and the average
speed “Ave” in the following order:
Air → → Ave/Cons_ _._ km/L or
L/100 km → Cons__._km/L or L/100
km → Ave → Air
For the UK:
If the display units have been set to
miles, pushing the “INFO” button will
switch the display in the following or-
der:
Air → → Ave/Cons_ _._ MPG →
Cons__._MPG → Ave → Air
Ambient temperature display
This display shows the ambient tem-
perature from –10 °C to 50 °C in 1 °C
increments. The temperature dis-
played may vary from the actual ambi-
ent temperature.
TIP
The icy road warning indicator Ž will
flash when the temperature is below
4°C.

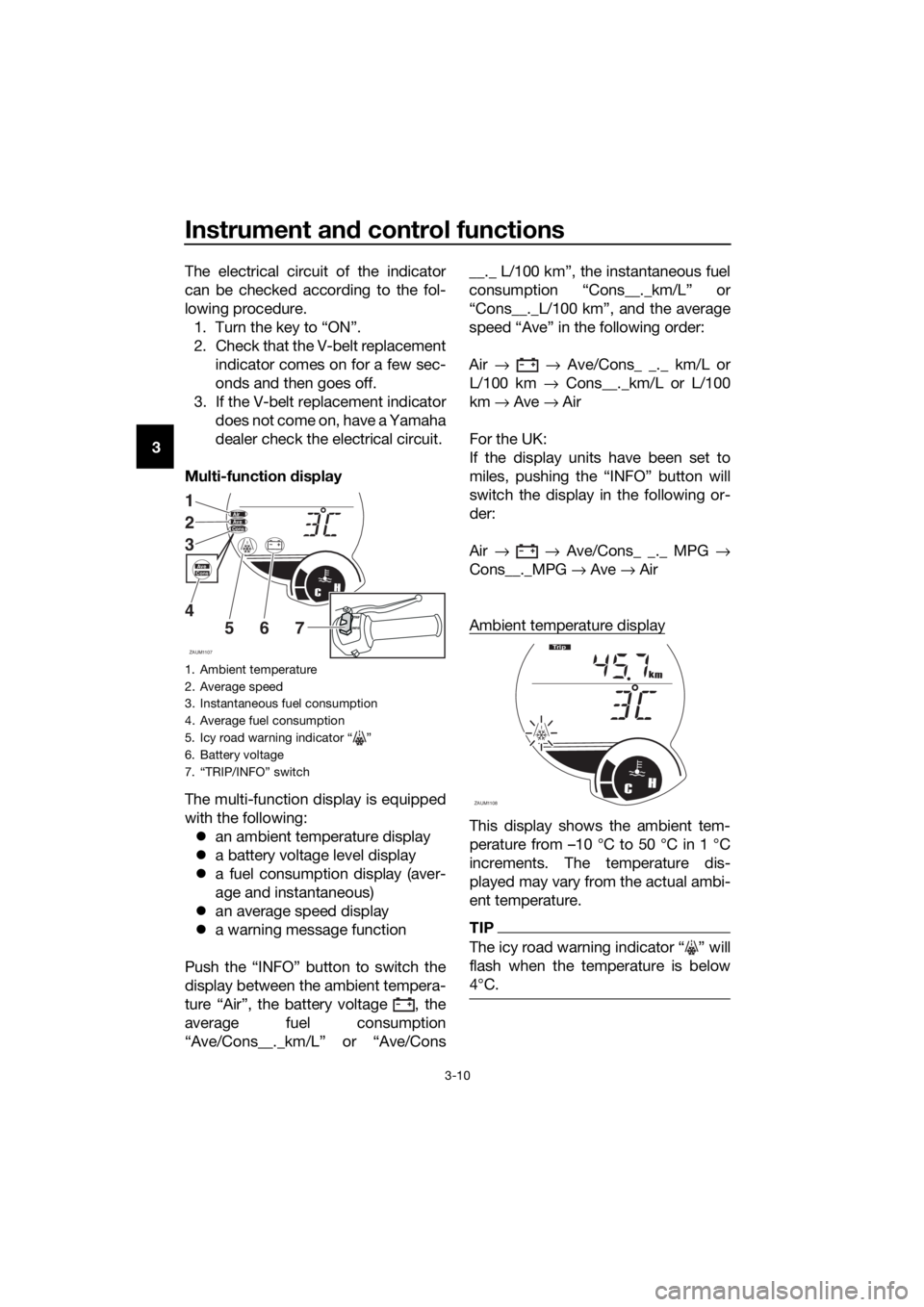

1. Ambient temperature
2. Average speed
3. Instantaneous fuel consumption
4. Average fuel consumption
5. Icy road warning indicator Ž
6. Battery voltage
7.
ZAUM1107
CH
AirAveCons
1
2
3
4
5
67INFOTRIP
AveCons
ZAUM1108CH
km
Tr i p
U2DME3E0.book Page 10 Friday, June 10, 2016 2:25 PM

Instrument and control functions
3-11
3 Battery voltage display
This display shows the battery voltage
from 10.1 volts to 17.9 volts in 0.1 in-
crements. The voltage displayed may
vary slightly from the actual battery
voltage.
TIP
If the battery warning indicator Ž


BATTŽ (low battery voltage) appears,
have a Yamaha dealer check the bat-
tery.
Average fuel consumption display
This display shows the average fuel
consumption since it was last reset.
The average fuel consumption display


be displayed when the multi-function
meter unit has been set to miles.
“Ave/Cons_ _._ km/L” is the aver-
age distance that can be traveled
on 1.0 L of fuel.
“Ave/Cons_ _._ L/100 km” is the
average amount of fuel necessary
to travel 100 km.
“Ave/Cons_ _._ MPG” is the aver-
age distance that can be traveled
on 1.0 Imp.gal of fuel.
To reset the average fuel consumption
display, push the “INFO” button for 3
seconds.
TIP
After resetting the average fuel con-

until the vehicle has traveled 1 km (0.6
mi).
Instantaneous fuel consumption dis-
play
The instantaneous fuel consumption



when the multi-function meter unit has
been set to miles.
“km/L” is the distance that can be
traveled on 1.0 L of fuel under cur-
rent riding conditions.
ZAUM1109CH
km
T
rip
ZAUM1110CH
km
L/100km
Cons
Oil
km/L
ZAUM1111CH
km
L/100km
Cons
Oil
km/L
U2DME3E0.book Page 11 Friday, June 10, 2016 2:25 PM

Instrument and control functions
3-12
3“L/100 km” is the amount of fuel
necessary to travel 100 km under
current riding conditions.
“MPG” is the distance that can be
traveled on 1.0 Imp.gal of fuel un-
der current riding conditions.
To switch between “km/L” and “L/100
km”, push the “INFO” button.
TIP
If traveling at speeds under 10 km/h

Average speed display
This display shows the average speed
since it was last reset. The average
speed is calculated as the total dis-
tance traveled divided by the total time

since the last set to zero.

when the multi-function meter unit has
been set to miles.
To reset the average speed display,


seconds.Warning message function
When a vehicle irregularity, road or ser-
vice condition has been detected, in
addition to any corresponding warning
lights or indicators, the following warn-
ing messages will display accordingly.
L FUEL (low fuel)
H TEMP (high coolant tempera-
ture)
L BATT (low battery voltage)
H BATT (high battery voltage)
ICE (possible icy road conditions)
OIL SERV (oil service required)
V-BELT SERV (V-belt service re-
quired)
Coolant temperature meter
This meter indicates the temperature
of the coolant, and thereby the engine.
The coolant temperature varies with
changes in the weather and engine
load. If the “H” segment and the cool-
ant temperature warning indicator start
flashing, stop the vehicle and let the
engine cool.
NOTICE
ECA10022
Do not continue to operate the en-
gine if it is overheating.
ZAUM1112CH
km
Odo
Ave
Cons
V- B e ltF
1. Coolant temperature meter
ZAUM11151
CH
km
Trip
U2DME3E0.book Page 12 Friday, June 10, 2016 2:25 PM

Instrument and control functions
3-14
3
NOTICE
ECA10062
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAUM3720Trip/info switch “TRIP/INFO”
This switch is used to make setting and
display changes in the multi-function
meter unit. See page 3-6 for more in-
formation.
EAU12902
Front brake lever
The front brake lever is located on the
right side of the handlebar. To apply
the front brake, pull this lever toward
the throttle grip.
1. Front brake lever
U2DME3E0.book Page 14 Friday, June 10, 2016 2:25 PM
