FUEL INJECTION SYSTEM
9-32
EAS2GBB376YAMAHA DIAGNOSTIC TOOL
This model uses the Yamaha diagnostic tool to identify malfunctions.
For information about using the Yamaha diagnostic tool, refer to the operation manual that is included
with the tool.
FEATURES OF THE YAMAHA DIAGNOSTIC TOOL
A diagnosis can be made more quickly than traditional methods with the Yamaha diagnostic tool.
Using this software, ECU and sensor data, as well as fault diagnosis, vehicle maintenance, and any
necessary information can be recorded and displayed on your computer screen through a USB
adapter connected to the computer interface with a communication cable connected to the vehicle’s
ECU.
Data obtained in various functions can be saved as vehicle history, and can be accumulated.
FUNCTIONS OF THE YAMAHA DIAGNOSTIC TOOL
However, the diagnostic tool cannot be used to freely change the basic vehicle functions, such as
adjusting the ignition timing.
CONNECTING THE YAMAHA DIAGNOSTIC TOOL
1. Remove the coupler for connecting setting tool.Yamaha diagnostic tool
90890-03231
Yamaha diagnostic tool (US)
90890-03234
Fault diagnosis mode Fault codes recorded on the ECU are read, and the con-
tents are displayed.
Function diagnostic mode Check the operation of the output value of each sensor
and actuator.
Inspection mode Determine whether each sensor or actuator is functioning
properly.
CO adjustment mode Adjust the concentration of CO admissions during idling.
Monitoring mode Displays a graph of sensor output values for actual oper-
ating conditions.
Logging mode Records and saves the sensor output value in actual driv-
ing conditions.
View log Displays the logging data.
ECU rewrite If necessary, the ECU is rewritten using the ECU rewrite
data provided by Yamaha. Ignition timing adjustment, etc.
cannot be changed from the vehicle’s original state.

FUEL INJECTION SYSTEM
9-34

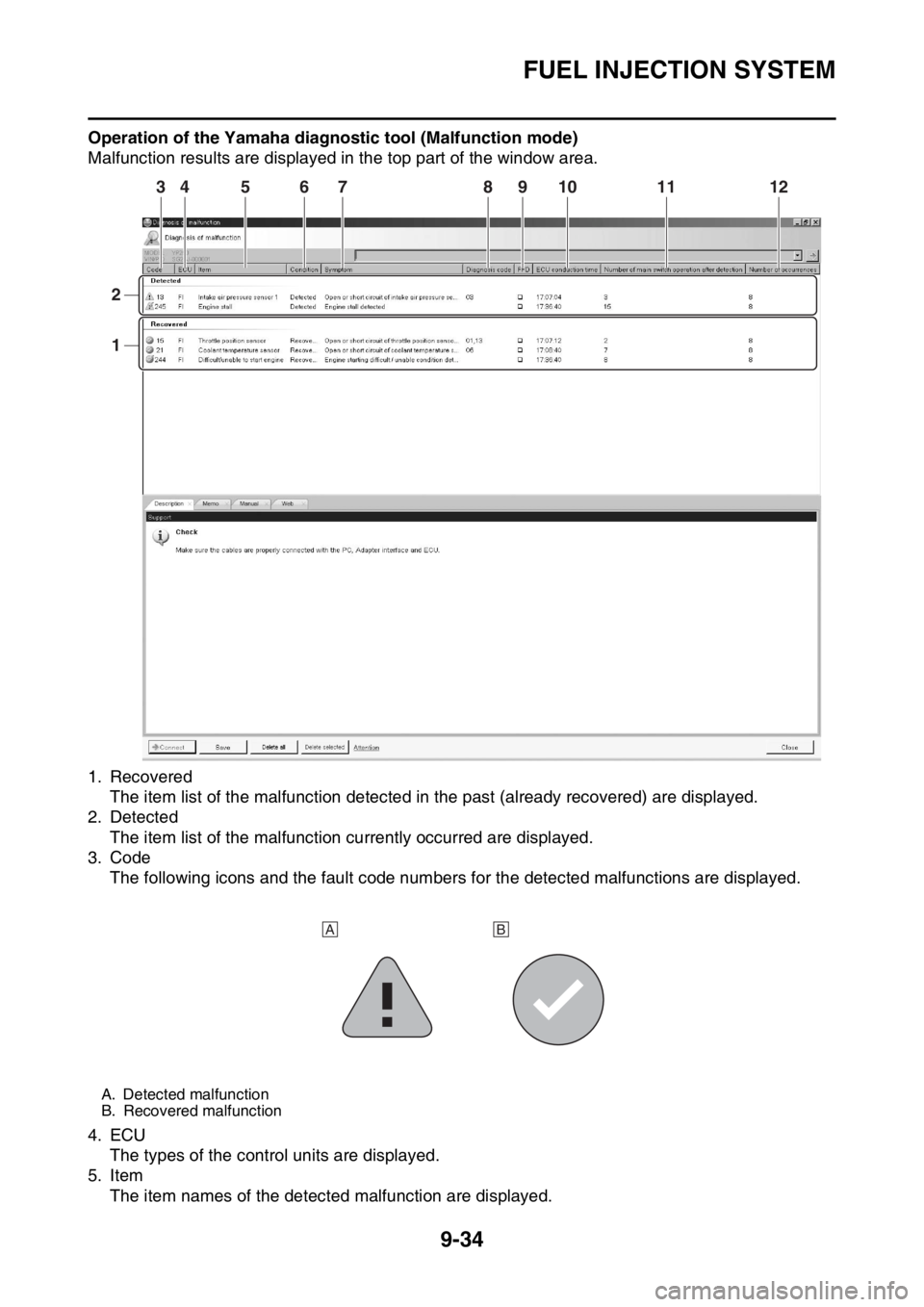

Operation of the Yamaha diagnostic tool (Malfunction mode)
Malfunction results are displayed in the top part of the window area.
1. Recovered
The item list of the malfunction detected in the past (already recovered) are displayed.
2. Detected
The item list of the malfunction currently occurred are displayed.
3. Code
The following icons and the fault code numbers for the detected malfunctions are displayed.
4. ECU
The types of the control units are displayed.
5. Item
The item names of the detected malfunction are displayed.
A. Detected malfunction
B. Recovered malfunction
23
1
456789101112
AB

FUEL INJECTION SYSTEM
9-35
6. Condition
The current conditions are displayed. (Detected/Recovered)
7. Symptom
The symptoms of the detected malfunction are displayed.
8. Diagnosis code
The diagnosis codes related to the detected malfunction are displayed.
9. FFD (only for models that can display freeze frame data)
The mark “ ” is displayed when the freeze frame data is available.
10.ECU conduction time (hour: minute: second)
The total ECU conduction time (total hours the vehicle’s start switch was ON) when the malfunc-
tion was detected is displayed.
11.Number of main switch operation after detection
The number of times the meter light comes on by pushing the start switch between the malfunction
detection and code reading is displayed.
12.Number of occurrences
The number of malfunction occurrences between the malfunction detection and code reading is
displayed.
EAS2GBB377TROUBLESHOOTING DETAILS
This section describes the measures per fault code number displayed on the diagnostic tool. Check
and service the items or components that are the probable cause of the malfunction following the or-
der given.
After the check and service of the malfunctioning part have been completed, reset the diagnostic tool
display according to the reinstatement method.
Fault code No.:
Fault code number displayed on the diagnostic tool when the engine failed to work normally.
Diagnostic code No.:
Diagnostic code number to be used when the diagnostic mode is operated.
Fault code No. 12
ItemCrankshaft position sensor: no normal signals are received
from the crankshaft position sensor.
Fail-safe systemUnable to start engine
Unable to drive vehicle
Diagnostic code No.—
Diagnostic tool display—
Procedure—
ItemProbable cause of malfunc-
tion and checkMaintenance jobConfirmation of service
completion
1 Connection of crankshaft po-
sition sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler securely
or repair/replace the wire har-
ness.Crank the engine.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 2.

FUEL INJECTION SYSTEM
9-37
TIP
• If fault code numbers 13 and 14 are both displayed, perform the checks and maintenance jobs for
fault code number 13 first.
• Before troubleshooting, disconnect the starter motor lead from the starter relay.
Fault code No. 13
Item Intake air pressure sensor: open or short circuit detected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.03
Diagnostic tool displayDisplays the intake air pressure.
ProcedureOperate the throttle while pushing the start switch.(If the display
value changes, the performance is OK.)
ItemProbable cause of malfunc-
tion and checkMaintenance jobConfirmation of service
completion
1 Connection of intake air pres-
sure sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler securely
or repair/replace the wire har-
ness.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 2.
2 Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler securely
or repair/replace the wire har-
ness.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 3.
3 Wire harness continuity. Open or short circuit  Re-
place the wire harness.
Between intake air pressure
sensor coupler and ECU cou-
pler.
black/blue–black/blue
pink–pink
blue–bluePush the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 4.
4 Installed condition of intake
air pressure sensor.
Check for looseness or
pinching.Improperly installed sensor
 Reinstall or replace the
sensor.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 5.

FUEL INJECTION SYSTEM
9-38
TIP
• If fault code numbers 13 and 14 are both displayed, perform the checks and maintenance jobs for
fault code number 13 first.
• Before troubleshooting, disconnect the starter motor lead from the starter relay. 5 Defective intake air pressure
sensor.Execute the diagnostic mode.
(Code No. 03)
When engine is stopped:
Atmospheric pressure at the
current altitude and weather
conditions is indicated.
At sea level: Approx. 101 kPa
1000 m above sea level: Ap-
prox. 90 kPa
2000 m above sea level: Ap-
prox. 80 kPa
3000 m above sea level: Ap-
prox. 70 kPa
When engine is cranking:
Make sure that the indication
value changes.
The value does not change
when engine is cranking. 
Check the intake air pressure
sensor.
Replace if defective.
Refer to “CHECKING THE
INTAKE AIR PRESSURE
SENSOR” on page 9-80.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 6.
6 Malfunction in ECU. Replace the ECU.
Fault code No. 14
ItemIntake air pressure sensor: hose system malfunction (clogged
or detached hose).
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.03
Diagnostic tool displayDisplays the intake air pressure.
ProcedureOperate the throttle while pushing the start switch.(If the display
value changes, the performance is OK.)
ItemProbable cause of malfunc-
tion and checkMaintenance jobConfirmation of service
completion
1 The intake air pressure sen-
sor hose is damaged, discon-
nected, clogged, twisted or
bent.Repair or replace the sensor
hose.Start the engine and let it idle
for approximately 5 seconds.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 2. Fault code No. 13
Item Intake air pressure sensor: open or short circuit detected.

FUEL INJECTION SYSTEM
9-39
TIP
Before troubleshooting, disconnect the starter motor lead from the starter relay. 2 Defective intake air pressure
sensor.Execute the diagnostic mode.
(Code No. 03)
When engine is stopped:
Atmospheric pressure at the
current altitude and weather
conditions is indicated.
At sea level: Approx. 101 kPa
1000 m above sea level: Ap-
prox. 90 kPa
2000 m above sea level: Ap-
prox. 80 kPa
3000 m above sea level: Ap-
prox. 70 kPa
When engine is cranking:
Make sure that the indication
value changes.
The value does not change
when engine is cranking. 
Check the intake air pressure
sensor.
Replace if defective.
Refer to “CHECKING THE
INTAKE AIR PRESSURE
SENSOR” on page 9-80.
Fault code No. 15
Item Throttle position sensor: open or short circuit detected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.01
Diagnostic tool displayThrottle position sensor signal
• 11–14 (fully closed position)
• 109–116 (fully open position)
Procedure• Check with throttle valve fully closed.
• Check with throttle valve fully open.
ItemProbable cause of malfunc-
tion and checkMaintenance jobConfirmation of service
completion
1 Connection of throttle posi-
tion sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler securely
or repair/replace the wire har-
ness.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 2. Fault code No. 14
ItemIntake air pressure sensor: hose system malfunction (clogged
or detached hose).

FUEL INJECTION SYSTEM
9-41
TIP
Before troubleshooting, disconnect the starter motor lead from the starter relay. 7 Malfunction in ECU. Replace the ECU.
Fault code No. 16
ItemThrottle position sensor: stuck throttle position sensor is de-
tected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.01
Diagnostic tool displayThrottle position sensor signal
• 11–14 (fully closed position)
• 109–116 (fully open position)
Procedure• Check with throttle valve fully closed.
• Check with throttle valve fully open.
ItemProbable cause of malfunc-
tion and checkMaintenance jobConfirmation of service
completion
1 Installed condition of throttle
position sensor.
Check for looseness or
pinching.Improperly installed sensor
 Reinstall or replace the
sensor.
Refer to “ADJUSTING THE
THROTTLE POSITION SEN-
SOR” on page 8-11.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 2.
2 Defective throttle position
sensor.Check throttle position sen-
sor signal.
Execute the diagnostic mode.
(Code No. 01)
When the throttle valve is fully
closed:
A value of 11–14 is indicated.
When throttle valve is fully
open:
A value of 109–116 is indicat-
ed.
An indicated value is out of
the specified range.  Re-
place the throttle position
sensor.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 3.
3 Malfunction in ECU. Replace the ECU. Fault code No. 15
Item Throttle position sensor: open or short circuit detected.

FUEL INJECTION SYSTEM
9-42
TIP
• Make sure that the engine is completely cool before checking the coolant temperature sensor.
• Before troubleshooting, disconnect the starter motor lead from the starter relay.
Fault code No. 21
Item Coolant temperature sensor: open or short circuit detected.
Fail-safe systemAble to start engine
Able to drive vehicle
Diagnostic code No.06
Diagnostic tool displayDisplays the coolant temperature.
ProcedureCompare the actually measured coolant temperature with the
Yamaha diagnostic tool display value.
ItemProbable cause of malfunc-
tion and checkMaintenance jobConfirmation of service
completion
1 Connection of coolant tem-
perature sensor coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler securely
or repair/replace the wire har-
ness.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 2.
2 Connection of wire harness
ECU coupler.
Check the locking condition
of the coupler.
Disconnect the coupler and
check the pins (bent or bro-
ken terminals and locking
condition of the pins).Improperly connected 
Connect the coupler securely
or repair/replace the wire har-
ness.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 3.
3 Wire harness continuity. Open or short circuit  Re-
place the wire harness.
Between coolant temperature
sensor coupler and ECU cou-
pler.
green/white–green/white
black/blue–black/bluePush the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 4.
4 Installed condition of coolant
temperature sensor.
Check for looseness or
pinching.Improperly installed sensor
 Reinstall or replace the
sensor.Push the start switch.
Fault code number is not dis-
played  Service is finished.
Fault code number is dis-
played  Go to item 5.
