2017 YAMAHA SCR950 Owners Manual

Periodic maintenance an d a djustment
6-2
6
EAU55631
Owner’s tool kitThe owner’s tool kit is located inside
the owner’s tool box behind panel C.
(See page 6-9.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.
TIP If you do not have the tools or ex-
perience required for a particular
job, have a Yamaha dealer per-
form it for you.
 Install the owner’s tool box with
the “INSIDE” mark facing inward.
1. Owner’s tool box
2. Owner’s tool kit
1
2
1. “INSIDE” mark
1
UBL3E0E0.book Page 2 Tuesday, November 15, 2016 2:38 PM

Periodic maintenance an d a djustment
6-3
6
EAU71030
TIP The annual checks must b e performed every year, except if a kilometer- based maintenance, or for the UK, a
milea ge- based maintenance, is performed instead.
 From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).
 Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and tech-
nical skills.
EAU71051
Perio dic maintenance chart for the emission control systemNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Fuel line • Check fuel hoses for cracks or
damage.
• Replace if necessary. √√√√√
2 *Spark plu gs • Check condition.
• Adjust gap and clean.
√√
• Replace. √√
3 *Valve clearance • Check and adjust. Every 20000 km (12000 mi)
4 *Fuel injection • Check engine idle speed.
√√√√√√
• Check and adjust synchroniza- tion. √√√√√
5 *Exhaust system • Check for leakage.
• Tighten if necessary.
• Replace gaskets if necessary. √√√√√
UBL3E0E0.book Page 3 Tuesday, November 15, 2016 2:38 PM

Periodic maintenance an d a djustment
6-4
6
6 *Evaporative emis-
sion control system • Check control system for dam-
age.
• Replace if necessary. √√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
UBL3E0E0.book Page 4 Tuesday, November 15, 2016 2:38 PM

Periodic maintenance an d a djustment
6-5
6
EAU71351
General maintenance an d lu brication chartNO. ITEM CHECK OR MAINTENANCE JOB ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
1 *Dia
gnostic system
check • Perform dynamic inspection us-
ing Yamaha diagnostic tool.
• Check the error codes. √√√√√√
2 *Air filter element • Replace. Every 40000 km (24000 mi)
3Clutch • Check operation.
•Adjust. √√√√√
4 *Front brake • Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary. √√√√√√
5 *Rear brake • Check operation, fluid level, and
for fluid leakage.
• Replace brake pads if necessary. √√√√√√
6 *Brake hoses • Check for cracks or damage.
√√√√√
• Replace. Every 4 years
7 *Brake flui d • Change. Every 2 years
8 *Wheels • Check runout, spoke tightness
and for damage.
• Tighten spokes if necessary. √√√√√
9 *Tires • Check tread depth and for dam-
age.
• Replace if necessary.
• Check air pressure.
• Correct if necessary. √√√√√
10 *Wheel bearin gs • Check bearing for looseness or
damage. √√√√
UBL3E0E0.book Page 5 Tuesday, November 15, 2016 2:38 PM

Periodic maintenance an d a djustment
6-6
6
11 *Swin
garm pivot
b earin gs • Check operation and for exces-
sive play. √√√√
12 *Drive belt • Check belt condition.
• Replace if damaged.
• Check belt tension.
• Adjust if necessary.
At the initial interval and every 4000 km (2500 mi) thereafter.
13 *Steerin g b earin gs • Check bearing assemblies for
looseness. √√
√
• Moderately repack with lithium- soap-based grease. √√
14 *Chassis fasteners • Make sure that all nuts, bolts and
screws are properly tightened. √√√√√
15 Brake lever pivot
shaft • Lubricate with silicone grease.
√√√√√
16 Brake ped
al pivot
shaft • Lubricate with lithium-soap-
based grease. √√√√√
17 Clutch lever pivot
shaft • Lubricate with lithium-soap-
based grease. √√√√√
18 Shift ped
al pivot
shaft • Lubricate with lithium-soap-
based grease. √√√√√
19 Si destan d • Check operation.
• Lubricate with lithium-soap-
based grease. √√√√√
20 *Sidestan d switch • Check operation and replace if
necessary. √√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
UBL3E0E0.book Page 6 Tuesday, November 15, 2016 2:38 PM

Periodic maintenance an d a djustment
6-7
6
21 *Front fork • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
22 *Shock a
bsor ber as-
sem blies • Check operation and for oil leak-
age.
• Replace if necessary. √√√√
23 En gine oil • Change (warm engine before
draining).
• Check oil level and vehicle for oil leakage. √√√√√√
24 En
gine oil filter car-
tri dge • Replace.
√√√
25 *Front an
d rear
b rake switches • Check operation.
√√√√√√
26 *Movin
g parts an d
cab les • Lubricate.
√√√√√
27 *Throttle
grip hous-
in g an d cab le • Check operation and free play.
• Adjust the throttle cable free play
if necessary.
• Lubricate the throttle grip housing and cable. √√√√√
28 *Li
ghts, si gnals an d
switches • Check operation.
• Adjust headlight beam.
√√√√√√
NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
( 24
000 mi)
UBL3E0E0.book Page 7 Tuesday, November 15, 2016 2:38 PM

Periodic maintenance an d a djustment
6-8
6
EAU72800
TIP Air filter
• This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com- pressed air to avoid damaging it.
• The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
 Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinders and calipers, and change the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged.
UBL3E0E0.book Page 8 Tuesday, November 15, 2016 2:38 PM

Periodic maintenance an d a djustment
6-9
6
EAU18773

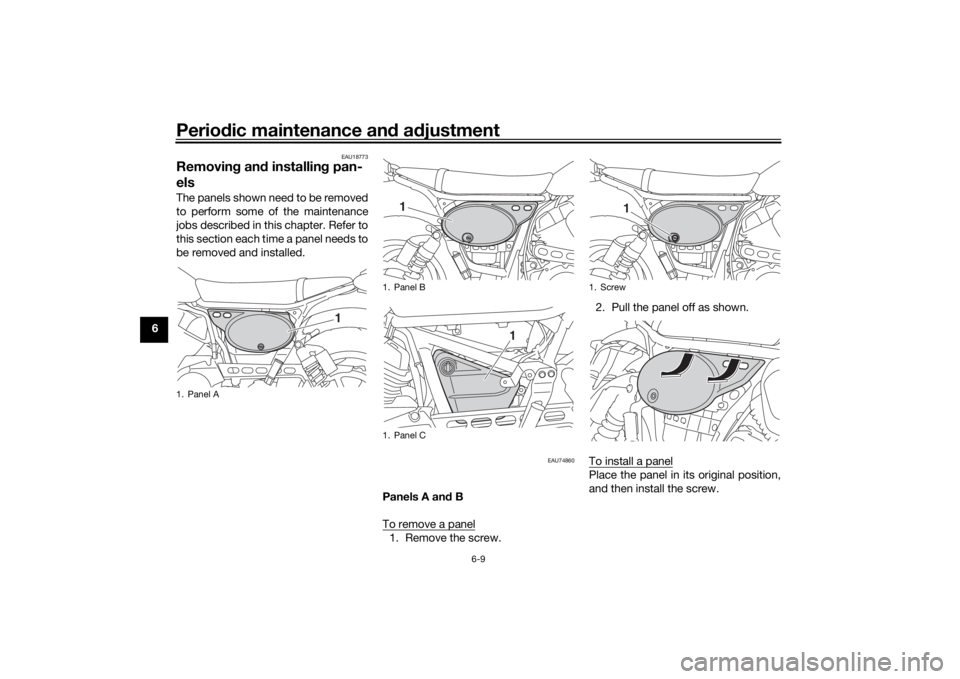

Removin g an d installin g pan-
elsThe panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU74860
Panels A an d B
To remove a panel1. Remove the screw. 2. Pull the panel off as shown.
To install a panel
Place the panel in its original position,
and then install the screw.
1. Panel A
1
1. Panel B
1. Panel C
1
1
1. Screw
1
