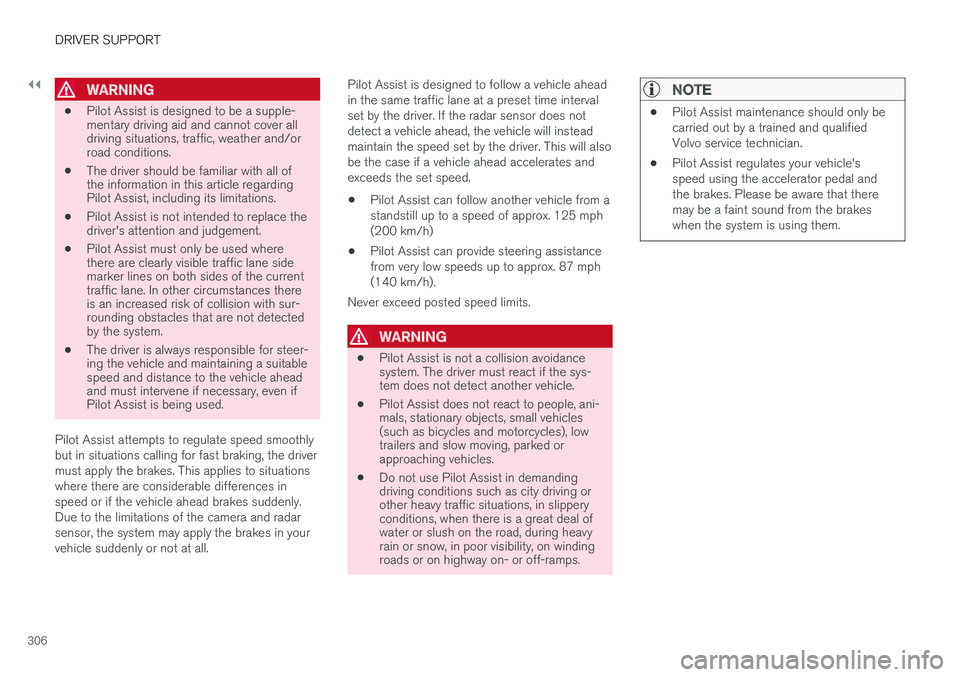

DRIVER SUPPORT
306

WARNING
•Pilot Assist is designed to be a supple-mentary driving aid and cannot cover alldriving situations, traffic, weather and/orroad conditions.
•The driver should be familiar with all ofthe information in this article regardingPilot Assist, including its limitations.
•Pilot Assist is not intended to replace thedriver's attention and judgement.
•Pilot Assist must only be used wherethere are clearly visible traffic lane sidemarker lines on both sides of the currenttraffic lane. In other circumstances thereis an increased risk of collision with sur-rounding obstacles that are not detectedby the system.
•The driver is always responsible for steer-ing the vehicle and maintaining a suitablespeed and distance to the vehicle aheadand must intervene if necessary, even ifPilot Assist is being used.
Pilot Assist attempts to regulate speed smoothlybut in situations calling for fast braking, the drivermust apply the brakes. This applies to situationswhere there are considerable differences inspeed or if the vehicle ahead brakes suddenly.Due to the limitations of the camera and radarsensor, the system may apply the brakes in yourvehicle suddenly or not at all.
Pilot Assist is designed to follow a vehicle aheadin the same traffic lane at a preset time intervalset by the driver. If the radar sensor does notdetect a vehicle ahead, the vehicle will insteadmaintain the speed set by the driver. This will alsobe the case if a vehicle ahead accelerates andexceeds the set speed.
•Pilot Assist can follow another vehicle from astandstill up to a speed of approx. 125 mph(200 km/h)
•Pilot Assist can provide steering assistancefrom very low speeds up to approx. 87 mph(140 km/h).
Never exceed posted speed limits.

WARNING
•Pilot Assist is not a collision avoidancesystem. The driver must react if the sys-tem does not detect another vehicle.
•Pilot Assist does not react to people, ani-mals, stationary objects, small vehicles(such as bicycles and motorcycles), lowtrailers and slow moving, parked orapproaching vehicles.
•Do not use Pilot Assist in demandingdriving conditions such as city driving orother heavy traffic situations, in slipperyconditions, when there is a great deal ofwater or slush on the road, during heavyrain or snow, in poor visibility, on windingroads or on highway on- or off-ramps.
NOTE
•Pilot Assist maintenance should only becarried out by a trained and qualifiedVolvo service technician.
•Pilot Assist regulates your vehicle'sspeed using the accelerator pedal andthe brakes. Please be aware that theremay be a faint sound from the brakeswhen the system is using them.

||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.308

WARNING
Pilot Assist only provides warnings for vehi-cles that its radar sensor and camera havedetected. For this reason, a warning may begiven later than expected or not at all. Thedriver should never wait for a warning beforeapplying the brakes.

Head-up-display *
A flashing symbol alerts the driver
If the vehicle is equipped with a head-up display,a flashing symbol in the windshield will alert thedriver.
NOTE
Strong sunlight, reflections, extreme light con-trasts, the use of sunglasses, or if the driver isnot looking straight ahead may make the vis-ual warning signal in the windshield difficult tosee.

Related information
•Pilot Assist* (p. 295)
•Starting and activating Pilot Assist-2(p. 308)
•Changing Pilot Assist-2 speed (p. 310)
•Setting a Pilot Assist-2 time interval (p. 311)
•Changing target vehicles and automaticbraking with Pilot Assist-2 (p. 314)
•Deactivating/resuming Pilot Assist (p. 312)
•Passing Assistance with Adaptive CruiseControl or Pilot Assist-2 (p. 289)
•Pilot Assist-2 limitations (p. 315)
•Pilot Assist-2 symbols and messages(p. 317)
•Adaptive Cruise Control (ACC)* (p. 281)
•Distance Alert* (p. 279)
•Head-up display (HUD)* (p. 122)
•Radar sensor limitations (p. 319)
•Camera limitations (p. 323)
Starting and activating Pilot Assist-2
Pilot Assist has to be started and then activatedbefore it can provide steering assistance andregulate speed and the distance to the vehicleahead.
Function buttons and symbols

||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.310
•the lane is at the top of a hill, on anuneven road surface or over a bump.
•bad weather conditions (rain, snow, fog,slush, poor visibility, backlighting, etc).
The driver should also be aware that PilotAssist has the following limitations:
•High curbs, barriers and temporary obsta-cles (cones, barriers etc) may not bedetected or could be detected incorrectlyas side marker lines, which may create arisk of collision. The driver must ensure asafe distance to these obstacles.
•The camera or radar sensor may not beable to detect objects if there are pot-holes or if there are stationary objectspartially or completely blocking the road.
•Pilot Assist does not "see" pedestrians,animals, etc.
•Pilot Assist's steering capacity is limitedand may not always be able to help thedriver keep the vehicle in the lane.

Hands on the steering wheel
Pilot Assist only functions when the driver'shands are on the steering wheel, which is con-tinuously monitored by the system. If this is notthe case, the driver will be alerted by a text mes-sage in the instrument panel. If the driver's handsare not returned to the steering wheel, an audiblesignal will sound.
If the driver does not return his/her hands to thesteering wheel after the audible signal, Pilot
Assist will go into standby mode and must be
reactivated by pressing .
Related information
•Pilot Assist* (p. 295)
•Pilot Assist-2* (p. 305)
•Changing Pilot Assist-2 speed (p. 310)
•Setting a Pilot Assist-2 time interval (p. 311)
•Changing target vehicles and automaticbraking with Pilot Assist-2 (p. 314)
•Deactivating/resuming Pilot Assist (p. 312)
•Passing Assistance with Adaptive CruiseControl or Pilot Assist-2 (p. 289)
•Pilot Assist-2 limitations (p. 315)
•Pilot Assist-2 symbols and messages(p. 317)
Changing Pilot Assist-2 speed
Different speeds can be set for Pilot Assist.
Function buttons and symbols
–Change a set speed by pressing the (1)or — (3) buttons briefly or by pressing andholding them:
•Press briefly: changes speed in+/– 5 mph (+/– 5 km/h) increments.Each press changes the vehicle's speedby +/– 5 mph (+/– 5 km/h).
•Press and hold: changes the speed+/– 1 mph (+/– 1 km/h) at a time.Release the button when the set speedindicator (4) has moved to the desiredspeed.
If speed is increased by pressing the accelerator
pedal before the button is pressed, the vehi-cle's speed when the button is pressed will

DRIVER SUPPORT
}}
* Option/accessory, for more information, see Introduction.313
In standby mode, the driver will have to regulatethe vehicle's speed and the distance to the vehi-cle ahead.
When Pilot Assist is in standby mode and yourvehicle comes too close to another vehicle, thedriver will be alerted by the Distance Alert func-tion.

Standby mode due to action by the driver
Pilot Assist is temporarily deactivated and put instandby mode if:
•the brakes are applied
•The gear selector is moved to N
•the turn signals are used for more than1 minute
•the vehicle is driven faster than the setspeed for more than 1 minute.
A temporary increase in speed, such as whenpassing another vehicle, does not affect the PilotAssist set speed. The vehicle will return to the setspeed when the accelerator pedal is released.
When the turn signals are used, Pilot Assist'ssteering function will be temporarily deactivated.When this is no longer the case, the steeringfunction will reactivate if the traffic lane's sidemarker lines can still be detected.

Automatic standby mode
Pilot Assist interacts with other systems, such asElectronic Stability Control. If any of these other
systems are not functioning properly, Pilot Assistwill automatically be deactivated.
WARNING
If this happens, the driver will be alerted by anaudible signal and a message in the instru-ment panel. The driver will have to adapt thevehicle's speed, apply the brakes when nec-essary and keep a safe distance to the vehicleahead.
Pilot Assist switches automatically to standbymode if:
•the vehicle's speed is below approx. 3 mph(5 km/h) and Pilot Assist cannot determine ifa vehicle ahead is a stationary vehicle or anobject.
•the vehicle's speed is below approx. 3 mph(5 km/h) and the vehicle ahead turns so thatPilot Assist no longer has a vehicle to follow(target vehicle).
•the driver's hands are not on the steeringwheel
•the driver's door is opened
•the driver unbuckles the seat belt
•engine speed (rpm) is too high/low
•the wheels lose traction
•brake temperature is too high
•the parking brake is set
•The camera lens/radar sensor is covered bye.g., wet snow or if heavy rain interferes withradar waves

Reactivating Pilot Assist from standby
mode
Generic illustration
–Press the button (1).
>The most recently set speed will be used.

WARNING
There may be a significant increase in speed
after the button has been pressed.

Related information
•Pilot Assist* (p. 295)
•Pilot Assist-2* (p. 305)
•Starting and activating Pilot Assist-2 (p. 308)

||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.316

WARNING
Pilot Assist is not a collision avoidance sys-tem. The driver is always responsible forsteering or applying the brakes if the systemdoes not detect another vehicle.
Do not use Pilot Assist in demanding drivingconditions such as city driving or other heavytraffic situations, in slippery conditions, whenthere is a great deal of water or slush on theroad, during heavy rain or snow, in poor visibil-ity, on winding roads or on highway on- or off-ramps.
In certain situations, it may be difficult for PilotAssist to assist the driver correctly or to deac-tivate automatically. In such cases, it is advisa-ble not to use Pilot Assist. Examples of suchsituations may be:
•the lane's side market lines are missing,badly faded or cross each other.
•the division of lanes is not clear, e.g.,when a line divides or merges withanother, at exits or if there are many roadsigns/markers.
•there are edges or other lines on or nearthe lane, e.g., curbs, cracks, repairedareas, sharp shadows, etc.
•the lane is narrow or winding.
•the lane is at the top of a hill, on anuneven road surface or over a bump.
•bad weather conditions (rain, snow, fog,slush, poor visibility, backlighting, etc).
The driver should also be aware that PilotAssist has the following limitations:
•High curbs, barriers and temporary obsta-cles (cones, barriers etc) may not bedetected or could be detected incorrectlyas side marker lines, which may create arisk of collision. The driver must ensure asafe distance to these obstacles.
•The camera or radar sensor may not beable to detect objects if there are pot-holes or if there are stationary objectspartially or completely blocking the road.
•Pilot Assist does not "see" pedestrians,animals, etc.
•Pilot Assist's steering capacity is limitedand may not always be able to help thedriver keep the vehicle in the lane.
The driver can always take action to override PilotAssist.

Steep roads and/or heavy loads
Pilot Assist is primarily intended for use on rela-tively level roads. The function may not be able tomaintain the correct time interval to the vehicleahead on when driving down steep hills. Thedriver should be attentive and prepared to applythe brakes in these situations.
Do not use Pilot Assist when the vehicle is trans-porting a heavy load or if it is towing a trailer.
Additional information
•The Off Road drive mode cannot beselected if Pilot Assist is activated.
•Pilot Assist uses the vehicle's camera andradar sensor, which have certain general limi-tations. See the articles "Camera limitations"and "Radar sensor limitations" for additionalinformation.

Related information
•Pilot Assist* (p. 295)
•Pilot Assist-2* (p. 305)
•Starting and activating Pilot Assist-2 (p. 308)
•Changing Pilot Assist-2 speed (p. 310)
•Setting a Pilot Assist-2 time interval (p. 311)
•Changing target vehicles and automaticbraking with Pilot Assist-2 (p. 314)
•Deactivating/resuming Pilot Assist (p. 312)
•Passing Assistance with Adaptive CruiseControl or Pilot Assist-2 (p. 289)
•Pilot Assist-2 symbols and messages(p. 317)
•Radar sensor limitations (p. 319)
•Camera limitations (p. 323)

||
DRIVER SUPPORT
* Option/accessory, for more information, see Introduction.318
In this illustration, Pilot Assist is set at 65 mph(110 km/h) and there is no target vehicle ahead.
In this example, Pilot Assist also provides steer-ing assistance because it is able to detect thetraffic lane's side marker lines.

Related information
•Pilot Assist* (p. 295)
•Pilot Assist-2* (p. 305)
•Starting and activating Pilot Assist-2 (p. 308)
•Changing Pilot Assist-2 speed (p. 310)
•Setting a Pilot Assist-2 time interval (p. 311)
•Changing target vehicles and automaticbraking with Pilot Assist-2 (p. 314)
•Deactivating/resuming Pilot Assist (p. 312)
•Passing Assistance with Adaptive CruiseControl or Pilot Assist-2 (p. 289)
•Pilot Assist-2 limitations (p. 315)
Driver support system radar sensor
The radar sensor is used by a number of driversupport systems to e.g., help detect other vehi-cles.
Radar sensor location
The radar sensor is used by the following func-tions:
•Distance Alert*
•Adaptive Cruise Control*
•Pilot Assist*
•City Safety
Any modifications to the radar sensor may makeits use illegal.

Related information
•Radar sensor limitations (p. 319)
•Radar sensor - type approval (p. 322)
•Distance Alert* (p. 279)
•Adaptive Cruise Control (ACC)* (p. 281)
•Pilot Assist* (p. 295)
•City Safety™ (p. 326)
•Pilot Assist-2* (p. 305)

DRIVER SUPPORT
}}
319
Radar sensor limitations
The radar sensor used by several of the driversupport systems has certain limitations, whichalso affect the systems using it.

Obstructions
The marked area must not be obstructed in any way.This area of the windshield should always be kept clean
The radar sensor is located at the upper, centersection of the windshield along with the camera.
WARNING
Never place any objects, decals, electronic tolldevices, window tinting films etc., on the wind-shield in front of or around the camera/radarsensor. This could reduce or block these com-ponents' functions, and could cause one ormore of the systems that utilize them to stopfunctioning.
This can also result in certain functions beingreduced or disabled, or they may respondincorrectly.
If this symbol and the messageWindscreen Sensors blockedappear in the instrument panel, thisindicates that the camera and/or radarsensor cannot detect other vehicles ahead.
The following table shows some of the situationsthat can cause the message to be displayed andsuggested actions.
CauseAction
The area of the windshield in front of the camera/radar sensor is dirty or covered by iceor snow.Clean the windshield or remove the ice/ snow.
Thick fog or heavy rain/snow reduces the camera/radar sensor's range of visibility.No action. The driver should be extra alert in conditions of thistype.
Water or snow on the surface of the road swirl up and block radar signals or the camera'sview.No action. The driver should be extra alert in conditions of thistype.
There is dirt between the inside of the windshield and the camera/radar sensor.Have the area of the windshield cleaned by a trained and quali-fied Volvo service technician.

||
DRIVER SUPPORT
320

Vehicle's speed
The radar sensor's capacity to detect vehiclesahead is impeded:
•if the speed of the vehicle ahead differsgreatly from your vehicle's speed.

Limited field of vision
The radar sensor has a limited field of vision. Insome situations it may detect a vehicle later thanexpected or not detect other vehicles at all.
Radar sensor's field of vision
In certain situations, the radar sensor cannotdetect vehicles at close quarters, for examplea vehicle that suddenly enters the lanebetween your vehicle and the target vehicle.
Small vehicles, such as motorcycles, or vehi-cles not driving in the center of the lane mayremain undetected.
In curves, the radar sensor may detect thewrong vehicle or lose sight of the target vehi-cle.
Low trailer in the radar shadow (generic illustration)
Low trailers may also be difficult to detect or maynot be detected at all. The driver should be extraalert in situations of this type.

High temperatures
If the temperature in the passenger compartmentis very high, the camera and radar sensor may betemporarily turned off for approx. 15 minutesafter the engine has been started to protect theirelectronic components. When the temperaturehas cooled sufficiently, the camera and radarsensor will restart automatically.

Damaged windshield
