2017 VOLVO XC90 TWIN ENGINE HYBRID USB

INFOTAINMENT
}}
* Option/accessory, for more information, see Introduction.461

Video settings
The following can be adjusted with the videoplayer in full screen or by opening the center dis-
play's Top view and tapping SettingsVideo:Primary Audio Default Language, Subtitleand Primary Subtitle Default Language.

Play DivX ®
This DivX device must be registered in order toplay purchased DivX Video-on-Demand (VOD)movies.
1. Open the center display's Top view and tap
SettingsVideoDivX® VOD to get aregistration code.
2. Go to vod.divx.com for additional informationand to complete the registration process.

Related information
•CD (media) player* (p. 459)
•Media player (p. 455)
•Voice control for radio and media (p. 127)
•Apps (applications) (p. 432)
•Connecting a Bluetooth® device (p. 455)
•Connecting a device via the AUX/USBsocket (p. 455)
•Gracenote (p. 463)
•Connecting to the Internet (p. 466)
•Media searches (p. 461)
•Video (p. 464)

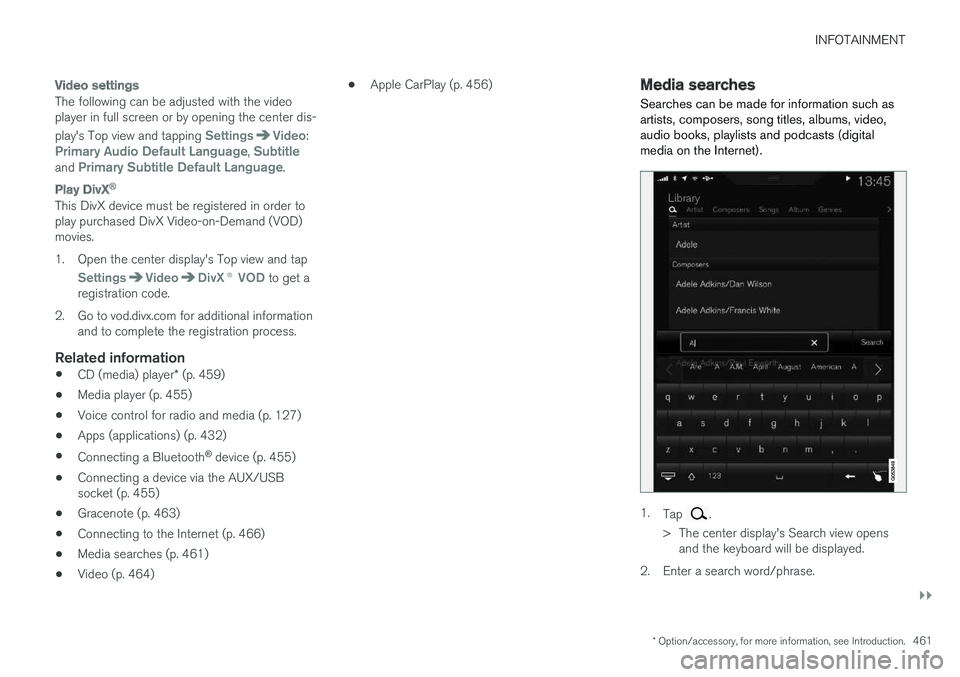

•Apple CarPlay (p. 456)Media searches
Searches can be made for information such asartists, composers, song titles, albums, video,audio books, playlists and podcasts (digitalmedia on the Internet).
1.Tap .
>The center display's Search view opensand the keyboard will be displayed.
2. Enter a search word/phrase.

||
INFOTAINMENT
462
3.Tap Search.
>The infotainment system will searchthrough all connected devices and anyresults will be displayed by category.
Swipe the screen horizontally to display each cat-egory separately.

Related information
•Media player (p. 455)
•Playing media (p. 459)
•Using the center display keyboard (p. 36)
Playing media through theAUX/USB sockets
An external media device, such as an iPod or anmp-3 player can be connected to the infotain-ment system.
A device with rechargeable batteries can berecharged when it is connected to the USBsocket (if the ignition is on or the engine is run-ning).
To simplify the use of a USB flash drive, it isadvisable to only store files with compatible fileformats on it. It will take considerably longer forthe system to index the files on the drive if it con-tains anything other than compatible files.
In addition to audio, the vehicle's media playeralso supports video playback when the externaldevice is connected to the USB socket.
Certain mp-3 players have proprietary file formatsthat are not supported by the infotainment sys-tem.

Related information
•Connecting a device via the AUX/USBsocket (p. 455)
Streaming media through aBluetooth connection
The media player is equipped with Bluetooth®
for streaming audio files from external
Bluetooth®-enabled devices.
Related information
•Connecting a Bluetooth® device (p. 455)
•Playing media (p. 459)
•Voice control for radio and media (p. 127)
•Media player (p. 455)
•Ignition modes (p. 400)
•Media player technical data (p. 464)

||
INFOTAINMENT
464
•None: no results will be shown.

Updating Gracenote
Gracenote's contents are updated continuously.For optimal functionality, always use the latestversion. See support.volvocars.com for informa-tion and downloads.

Related information
•Infotainment system license information(p. 472)
•Playing media (p. 459)
Video
The media player can play video from USB-con-nected devices.
No video will be available when the vehicle ismoving. Video will resume playing when the vehi-cle is stationary.
See the article "Media player technical data" for alist of video formats supported by the mediaplayer.

Related information
•Playing media (p. 459)
•Media player (p. 455)
•Media player technical data (p. 464)
Media player technical data
The following tables list compatible file formatsand other technical specifications for the mediaplayer.
Audio files
For-matFile extensionCodec
MP3.mp3MPEG1 Layer III,MPEG2 Layer III,MP3 Pro (mp3compatible),MP3 HD (mp3compatible)
AAC.m4a, .m4b, .aacAAC LC (MPEG-4part III Audio),HE-AAC (aacPlusv1/v2)
WMA.wmaWMA8/9,WMA9/10 Pro
WAV.wavLPCM
FLAC.flacFLAC

Video files
FormatFile extension
MP4.mp4, .m4v
MPEG-PS.mpg, .mp2, .mpeg, .m1v

INFOTAINMENT
* Option/accessory, for more information, see Introduction.465
FormatFile extension
AVI.avi
AVI (DivX).avi, .divx
ASF.asf, .wmv
MKV.mkv

Subtitles
FormatFile extension
SubViewer.sub
SubRip.srt
SSA.ssa

DivX ®
DivX Certified devices have been tested for highquality DivX (.divx, .avi) video playback. When yousee the DivX logo, you have the freedom to playyour favorite DivX movies.
ProfileDivX Home Theater
Video codecDivX, MPEG-4
Resolution720x576
Audio speed(bit rate)4.8Mbps
Frame per sec-ond30 fps
File extension.divx, .avi
Max. file size4 GB
Audio codecMP3, AC3
SubtitlesXSUB
Special func-tionsMultiple subtitles, multipleaudio, resume play
ReferenceMeets all requirements of
the DivX® Home Theaterprofile. Visit divx.com formore information and soft-ware tools to convert your
files into DivX® HomeTheater. video.

Storing information on a USB device
In order for the system to read data stored on aUSB device, the following specifications must bemet. Any folder structures will not be shown inthe center display during playback.
Max. number
Files15,000
Folders1,000
Folder levels8
Playlists100
Max. number
Tracks in a playlist1,000
SubfoldersNo limit
USB socket
•Type A socket
•Version 2.0
•Voltage 5 V
•Max. current 2.1 A

Related information
•CD (media) player* (p. 459)

INFOTAINMENT
466
Internet connected vehicle
Connecting to the Internet makes it possible toe.g., use certain navigation services, listen toweb radio, stream music using apps, contact aretailer and download software.
The vehicle can connect to the Internet usingBluetooth, Wi-Fi, a cell phone connected by acable to the USB socket or via the integratedmodem.
When connected, it is possible to share (tether) aWi-Fi-hotspot to allow other devices to use the
connection6.
Connection status is shown in the center dis-play's status bar.

Related information
•Connecting to the Internet (p. 466)
•Apps (applications) (p. 432)
•Booking service and repairs (p. 508)
•System updates (p. 506)
•Volvo ID (p. 32)
•Symbols in the center display status bar(p. 48)
•Tethering (Wi-Fi sharing) (p. 470)
Connecting to the Internet
Connect the vehicle to the Internet usingBluetooth, Wi-Fi, by connecting a phone througha cable to the USB socket or via the vehicle'sintegrated modem.
The cell phone and the network service providermust support Internet sharing (tethering) and thesubscription must included data transfer.
See the terms and confidentiality information atsupport.volvocars.com before connecting to theInternet.

NOTE
When using Apple CarPlay, an Internet con-nection can only be established by usingWi-Fi or the vehicle's integrated modem.

Connect using Bluetooth
See the article "Pairing a cell phone."

Connect using Wi-Fi
6This does not apply to Wi-Fi connections.

INFOTAINMENT
467
1. Activate tethering/personal hotspot in thecell phone.
2.Tap Settings in the center display's Topview.
3.Tap CommunicationWi-Fi.
4. Tap Wi-Fi to activate/deactivate.
5. Tap the name of the network to be used.
6. Enter the network password.
7. If a different connection was used previously,confirm the connection change.
> The vehicle will connect to the network.
Please be aware that certain cell phones disabletethering when the connection to the vehicle hasbeen broken, e.g., when the phone has beenremoved from the vehicle. In such cases, thephone's tethering function will have to be reacti-vated the next time the phone is used to connectto the Internet.
When a phone is connected to the vehicle, it issaved for future use. When a max. number of 50have been saved, the first one connected will bedeleted. To show the list of saved networks or to
manually delete a network, tap SettingsWi-Fi
Saved networks.
See the article "Wi-Fi technology and security"for network connection requirements.

Connect using a cable connected to the
USB socket
1. Connect the phone via a cable to the USBsocket in the tunnel console storage com-partment.
2. Activate USB tethering in the cell phone.
3. If a different connection was used previously,confirm the connection change.
> The vehicle will connect to the network.

Connect using the vehicle's integrated
modem
When the vehicle is connected using the modem,Volvo On Call services will use the connection.
1. Insert a personal SIM card in the holder.
2.Tap Settings in the center display's Topview.
3.Tap CommunicationVehicle ModemInternet.
4.Tap Vehicle modem Internet to activate/deactivate.
5.If a different connection was used previously,confirm the connection change.
6. Enter the SIM card's PIN code.
> The vehicle will connect to the network.
Related information
•Pairing a cell phone (p. 449)
•Connecting/disconnecting a cell phone(p. 451)
•Connecting a device via the AUX/USBsocket (p. 455)
•Wi-Fi technology and security (p. 471)
•Apple CarPlay (p. 456)

||
MAINTENANCE AND SERVICING
* Option/accessory, for more information, see Introduction.520
replaced by a trained and qualified Volvoservice technician.
Function[A]
Converter for controlling feed tothe rear axle electric motor5
––
––
Control module for actuator forengaging/changing gears5
High Voltage Coolant Heatercontrol module5
Control module for: A/C, chargemodule, heat exchanger cut-offvalve, cut-off valve for coolantthrough the climate system
5
Hybrid battery control module;high-voltage converter for com-bined high-voltage generator/starter motor with 500 V–12 Vvoltage converter
5
––
Converter for controlling feed tothe rear axle electric motor10
Function[A]
Hybrid battery control modulefor high-voltage converter forcombined high-voltage genera-tor/starter motor with 500 V–12V voltage converter
10
Charging module5
Cut-off valve for hybrid batterycoolant; coolant pump 1 forhybrid battery
10
Coolant pump for electric drivesystem10
Hybrid component cooling fan25
––
––
––
––
––
––
––
––
Function[A]
Front USB socket*5
12-volt socket in the front tun-nel console15
12-volt socket on the rear side
of the tunnel consoleA
12-volt socket in the tunnel con-
sole between the rear seats B
15
12-volt socket in the cargo com-partment
USB sockets for iPad holdersB
15
––
––
––
––
Heated windshield* driver sideShunt
Heated windshield* driver side40
Headlight washers*25
Windshield washer25
––

INDEX
572
Brakes
auto-hold 379
Brake system
Brake pad inspection 377
fluid 566
general information 376, 378, 380
Bulbs 534
replacing 530
specifications 536
C
Camera
driver support systems322
limitations323
Camera, Park Assist 362, 364, 366, 367
Capacity weight484, 563
Cargo area, steel grid225
Cargo area cover227
Cargo compartment
fuses527
raising/lowering the level218
Cargo net223
Cargo space218
Car wash547
Catalytic converter394
CD, USB, iPod, AUX, Bluetooth, Recents,
Library, Shuffle, Similar, Change device, Pri-
mary Audio Default Language, Subtitle, Pri-
mary Subtitle Default Language, Video,
DivX® VOD459
CD player 459
Cell phone
hands-free 448
Pairing 449
Cell phone voice control 126
Center display
changing settings 35
cleaning 552
keyboard 36
navigating in 43
overview 33
screen in the center console 50
symbols in the status bar 48
Chains 485
Changing a wheel 487
Charging cable
hybrid battery 405
Child restraints
recalls and registration 83
Child restraint systems 83
booster cushions 89
convertible seats 86
infant seats 84
ISOFIX/LATCH anchors90
top tether anchors92
Child safety81
booster cushions89
child restraint systems83, 91
convertible seats86
infant seats84
Child safety locks257
Child seats
lower attachment points91
City safety326, 334
City Safety
crossing traffic331
detecting objects329
limitations334
rear collision warning338
symbols and messages337
troubleshooting332
City Safety, On/Off328
City Safety™
Multi Target332
Cleaning
exterior547
interior550
Clean Zone Interior Package197
Climate system199
air distribution212, 213, 215
air filter198
