2017 VOLVO V90 airbag

||
SAFETY
* Option/accessory.
74
WARNING
The child seat's upper straps must be routed through the hole in the head restraint legbefore they are tensioned at the mountingpoint. If this is not possible, follow the recom-mendations from the child seat manufacturer.
NOTE
Fold the head restraints in order to facilitate fitting this type of child seat in cars with fold-ing head restraints on the outer seats.
NOTE
In cars with a cargo cover over the luggage compartment, this must be removed beforechild seats can be attached to the securingpoints.
Related information
• Child seats (p. 71)
• Lower mounting points for child seats (p. 74)
• i-Size/ISOFIX mounting points (p. 77)
• Table for location of child seats using thecar's seatbelts (p. 75)
Lower mounting points for child seats
The car is equipped with lower mounting points for child seats in the front seat * and the rear
seat.
The lower mounting points are designed to be used in conjunction with certain rear-facing childseats. Always follow the manufacturer's installation instructions when connecting a child seat to thelower mounting points.
The location of the mounting points
Mounting point locations in the front seat.
The mounting points in the front seat are located on the sides of the passenger seat's legroom. The mounting points in the front seat are onlymounted if the vehicle is equipped with a switch to activate/deactivate the passenger airbag
*.
Mounting point locations in the rear seat.
The mounting points in the rear seat are located on the rear section of the front seat's floor rails.
Related information
• Child seats (p. 71)
• Upper mounting points for child seats (p. 73)
• i-Size/ISOFIX mounting points (p. 77)
• Table for location of child seats using thecar's seatbelts (p. 75)
• Activating/deactivating the passenger air- bag
* (p. 66)

SAFETY
}}
* Option/accessory.75
Table for location of child seats using the car's seatbelts
The table gives a recommendation for which
child seats suit which locations, and for what size of child.NOTE
Always read the section "Child seats" before fitting a child seat in the car.
Weight Front seat (with deactivated airbag, only rear-facing child seats) Front seat (with activated airbag, only front-facingchild seats)Outer rear seat
Centre rear seat
Group 0 max 10 kg U
A, B
XUB
UB
Group 0+max 13 kg U
A, B
XUB
UB
Group 19-18 kg L
C
UFA, D
U, LC
U
Group 215-25 kg L
C
UFA
UE, F
, B *, G
, L C
UE

||
SAFETY
* Option/accessory.
76
Weight Front seat (with deactivated airbag, only rear-facing child seats) Front seat (with activated airbag, only front-facingchild seats)Outer rear seat
Centre rear seat
Group 3 22-36 kg X
UFA
UF, H
, B*, G
UH
U: Suitable for universal category restraints approved for use in this mass group.UF: Suitable for front-facing universally approved child seats.L: Suitable for particular child restraints. These restraints may be of the specific vehicle, restricted or semi-universal categories.B: Built-in restraint approved for this mass group.X: The seat is not suitable for children in this mass group.
A Adjust the backrest to a more upright position.
B Volvo recommends: Volvo infant seat (type approval E1 04301146).
C Volvo recommends: Volvo reversible seat in the rear-facing position (type approval E5 04192); Volvo rear-facing seat (type approval E5 04212).
D Volvo recommends rear-facing child seat for children in this mass group.
E Volvo recommends: Volvo reversible seat in the front-facing position (type approval E5 04191); booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169); Volvo booster seat (type approval E1 04301312).
F Volvo recommends: Römer KidFix XP (type approval E1 04301312).
G Volvo recommends: integrated booster cushion.
H Volvo recommends: booster cushion with and without back (type approval E5 04216); Volvo booster cushion with backrest (type approval E1 04301169).
WARNING
Never use a rear-facing child seat on the front passenger seat if the passenger airbag isactivated.
Related information
• Child seats (p. 71)
• Upper mounting points for child seats (p. 73)
• Table for location of ISOFIX child seats (p. 78) •
Table for location of i-Size child seats(p. 81)

SAFETY
}}
79
WeightSize classA
Type of child seat Front seat (with deactivated air-
bag, only rear-facing child
seats)B Front seat (with activated air-
bag, only front-facing child
seats)B Outer rear seat
Centre rear seat
Group 1 9-18 kg A Front-facing child seat
XILB, E, F
, XD
ILF
, IUF F
X
B Front-facing child seat
B1 Front-facing child seat C Rear-facing child seat ILB, E
, XD
XILG
X
D Rear-facing child seat
IL: Suitable for particular ISOFIX child restraint systems. These child restraint systems are those of the specific vehicle, restricted or semi-universal catego-
ries.IUF: Suitable for ISOFIX forward child restraint systems of universal category approved for use in the mass group.X: Not suitable for ISOFIX child restraint systems.
A For child seats with the ISOFIX fixture system there is a size classification to help users choose the right type of child seat. The size class can be read on the child seat's label.
B Works for the installation of ISOFIX child seats that are semi-universally approved (IL) if the car is equipped with the ISOFIX console accessory (the accessory range varies depending on market).
C Volvo recommends: Volvo infant seat secured using the ISOFIX fixture system (type approval E1 04301146).
D Applicable if the car is not fitted with an ISOFIX bracket.
E Adjust the backrest so that the head restraint does not touch the child seat.
F Volvo recommends rear-facing child seat for children in this mass group.
G Volvo recommends: BeSafe iZi Kid X3 ISOfix (type approval E5 04200).
WARNING
Never use a rear-facing child seat on the front passenger seat if the passenger airbag isactivated.
NOTE
If an i-Size/ISOFIX child seat has no size classification, the car model must be includedon the vehicle list for the child seat.
NOTE
Volvo recommends contacting an authorised Volvo dealer for information about which i-Size/ISOFIX child seats Volvo recommends.

SAFETY
81

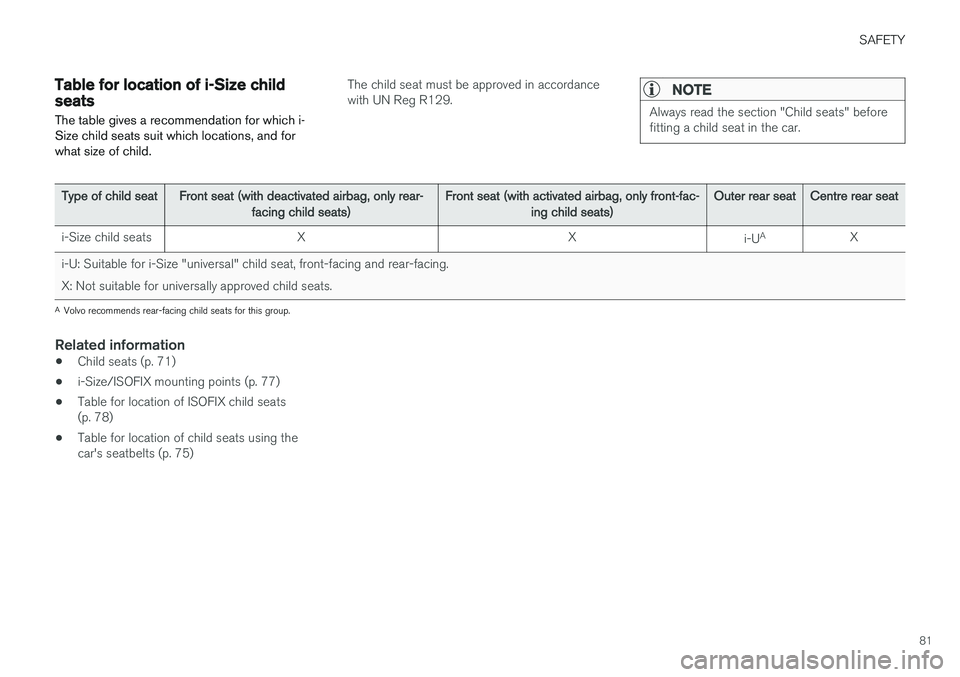

Table for location of i-Size child seats
The table gives a recommendation for which i- Size child seats suit which locations, and forwhat size of child.The child seat must be approved in accordance with UN Reg R129.NOTE
Always read the section "Child seats" before fitting a child seat in the car.
Type of child seat Front seat (with deactivated airbag, only rear-
facing child seats) Front seat (with activated airbag, only front-fac-
ing child seats) Outer rear seat
Centre rear seat
i-Size child seats X X
i-UA
X
i-U: Suitable for i-Size "universal" child seat, front-facing and rear-facing.
X: Not suitable for universally approved child seats.
A Volvo recommends rear-facing child seats for this group.
Related information
• Child seats (p. 71)
• i-Size/ISOFIX mounting points (p. 77)
• Table for location of ISOFIX child seats (p. 78)
• Table for location of child seats using thecar's seatbelts (p. 75)

INSTRUMENTS AND CONTROLS
* Option/accessory.
90
Driver display
The driver display shows information about the car and driving.
The driver display contains gauges, indicators and indicator and warning symbols. The content ofthe driver display depends on the car's equip-ment, settings and which functions are active atthat time. The driver display is available in two versions, 12- inch and 8-inch.
WARNING
In the event of a fault in the driver display the information on e.g. brakes, airbags or othersafety systems may not be shown. In whichcase, the driver cannot check the status ofthe car's systems or receive current warningsand information.
WARNING
If the driver display should extinguish, not illu- minate on activation/start or be fully or parti-ally illegible, the car must not be used. Youshould visit a workshop immediately. Volvorecommends an authorised Volvo workshop.
Driver display, 12-inch
Location in the driver display:
On the left In the middleOn the right
Speedometer Indicator and warning symbols
TachometerA
Trip meter Outside temperature gauge
ECO gaugeA
Odometer ClockGear shift indicator
Cruise control and speed limiter information Messages, in some cases with graphics Drive mode Road Sign Information * Door and seatbelt information Fuel gauge

INSTRUMENTS AND CONTROLS
}}
97
Warning symbols in the driver display The warning symbols alert the driver that an important function is activated or that a seriousfault or condition exists.
WARNING
If the brake fluid is below the MIN level in the
brake fluid reservoir, do not drive further before topping up the brake fluid. The loss of brake fluid must be investigated by a workshop. Volvo recommends contactingan authorised Volvo workshop.
WARNING
If the BRAKE and ABS symbols are lit at the same time, there is a risk that the rear end willskid during heavy braking.
Symbol Specification
Warning The red warning symbol illuminates when a fault has been indicatedwhich could affect the safetyand/or driveability of the car. Anexplanatory text is shown on thedriver display at the same time. Thewarning symbol can also illuminatein conjunction with other symbols.
Seatbelt reminder This symbol flashes if someone in a front seat has not put on theirseatbelt or if someone in a rearseat has taken off their seatbelt.
Airbags If the symbol remains illuminated or illuminates while driving, a fault hasbeen detected in one of the car'ssafety systems. Read the messagein the driver display. Volvo recom-mends that an authorised Volvoworkshop is contacted.
Symbol Specification
Fault in brake system If this symbol illuminates, the brake fluid level may be too low. Visit thenearest authorised workshop tohave the brake fluid level checkedand rectified.
Parking brake applied This symbol illuminates with a con- stant glow when the parking brakeis applied. A flashing symbol means that a fault has arisen. Read the messagein the driver display.

INSTRUMENTS AND CONTROLS
133
Steering wheel adjustment can be made in differ- ent ways depending on whether or not the car is equipped with knee airbag
19
.
WARNING
Adjust the steering wheel and fix it before driving away.
With speed related power steering the level of steering force can be adjusted. Steering force isregulated according to the car's speed in order togive the driver enhanced road responsiveness.
With knee airbag
Adjusting the steering wheel.
1. Push the lever forwards to release the steer- ing wheel. 2. Adjust the steering wheel to the position that
suits you.
3. Pull the lever back to fix the steering wheel in place. If the lever is stiff, press the steering wheel lightly at the same time as you movethe lever back.
Without knee airbag
Adjusting the steering wheel.
1. Pull the lever backwards to release the steer-ing wheel.
2. Adjust the steering wheel to the position that suits you.
3. Push the lever forwards to secure the steer- ing wheel. If the lever is stiff, press the steer- ing wheel lightly at the same time as youmove the lever back.
Related information
• Steering wheel (p. 131)
• Speed-dependent steering force (p. 272)
19
The car is only equipped with knee airbag in certain markets.
