2017 VOLVO S60 INSCRIPTION Owner´s Manual

S P E C I F I C A T I O N S

SPECIFICATIONS
368
Label information
The labels in your vehicle provide information such as the chassis number, paint code, tireinflation pressure, etc.

SPECIFICATIONS
}}
369
Location of labels

||
SPECIFICATIONS
370
List of labelsVehicle Emission Control Information. Your Volvo is designed to meet all applicable emission standards, as evidenced by the cer-tification label on the underside of the hood.For further information regarding these regu-lations, please consult your Volvo retailer.
Engine oil. This label contains the recom-
mended engine oil specifications.
Vehicle Identification Number (VIN). The
VIN plate is located on the top left surface of the dashboard. The Vehicle IdentificationNumber (VIN) should always be quoted in allcorrespondence concerning your vehicle withthe retailer and when ordering parts.
Tire inflation pressures. This label indicates
the correct inflation pressures for the tires that were on the vehicle when it left the fac-tory.
Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Minis-try of Transport (CMVSS) standards(Canada). Your Volvo is designed to meet all
applicable safety standards, as evidenced bythe certification label on the driver's side B-pillar (the structural member at the side ofthe vehicle, at the rear of the driver's dooropening). This label also includes codes forpaint color, etc. For further information regar-ding these regulations, please consult yourVolvo retailer. U.S. models have the upperdecal; Canadian models have the lower one.
Related information
• Weights (p. 373)
• Engine specifications (p. 375)

SPECIFICATIONS
}}
371
DimensionsThis section lists your vehicle's most important dimensions.
Dimensions–S60 Inscription
PositionDimensionin. (mm)
AGround clearance (curb weight + 2 people) A5.0 (127 )
BWheelbase112.4 (2856)
CLength185.6 (4715)
DLoad length, floor, seatback down72.0 (1829)
ELoad length, floor38.0 (965)
FHeight58.3 (1481)

||
SPECIFICATIONS
372
PositionDimensionin. (mm)
GLoad height19.4 (492)
HTrack, front62.5 (1588)
ITrack, rear62.4 (1585)
JLoad width, floor36.2 (919)
KWidth73.5 (1866)
LWidth incl. door mirrors (folded out)82.6 (2097)
MWidth incl. door mirrors (folded in)74.8 (1899)
AVaries slightly depending on tire size, optional sport chassis, etc.

SPECIFICATIONS
}}
373
Weights The following table lists important weight data for your vehicle.
CategoryUSA
Gross vehicle weight 4-cyl. FWDA
4-cyl. AWD B
4670 lbs 4820 lbs
Capacity weight 4-cyl. FWD 4-cyl. AWD
1000 lbs 1000 lbs
Permissible axle weights, front 4-cyl. FWD 4-cyl. AWD
2535 lbs 2605 lbs
Permissible axle weights, rear 4-cyl. FWD 4-cyl. AWD
2225 lbs 2335 lbs
Curb weight3650 - 3850 lbs
Max. roof load165 lbs

||

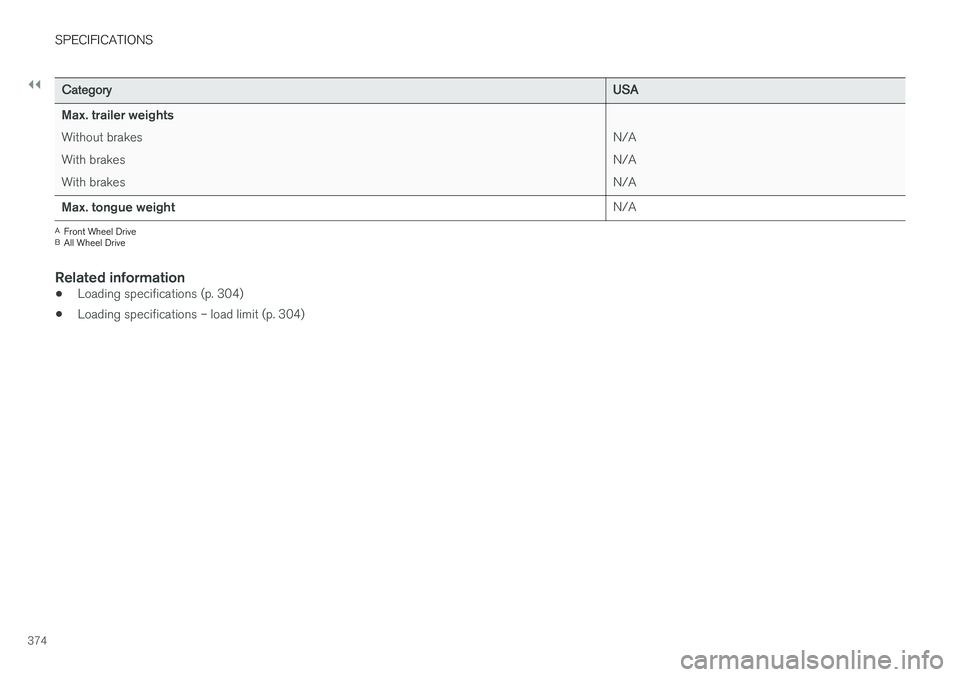

SPECIFICATIONS
374
CategoryUSA
Max. trailer weights Without brakes With brakesWith brakes
N/A N/AN/A
Max. tongue weightN/A
AFront Wheel Drive
B All Wheel Drive
Related information
• Loading specifications (p. 304)
• Loading specifications – load limit (p. 304)
