2017 VAUXHALL MOKKA X Owner's Manual

In brief7Backrest inclination
Pull lever, adjust inclination and
release lever. Allow the seat to
engage audibly.
Seat position 3 39, Seat adjustment
3 40.
Seat height
Lever pumping motion
up:seat higherdown:seat lower
Seat position 3 39, Seat adjustment
3 40.
Seat inclination
Press switch
top:front end higherbottom:front end lower
Seat position 3 39, Seat adjustment
3 40.

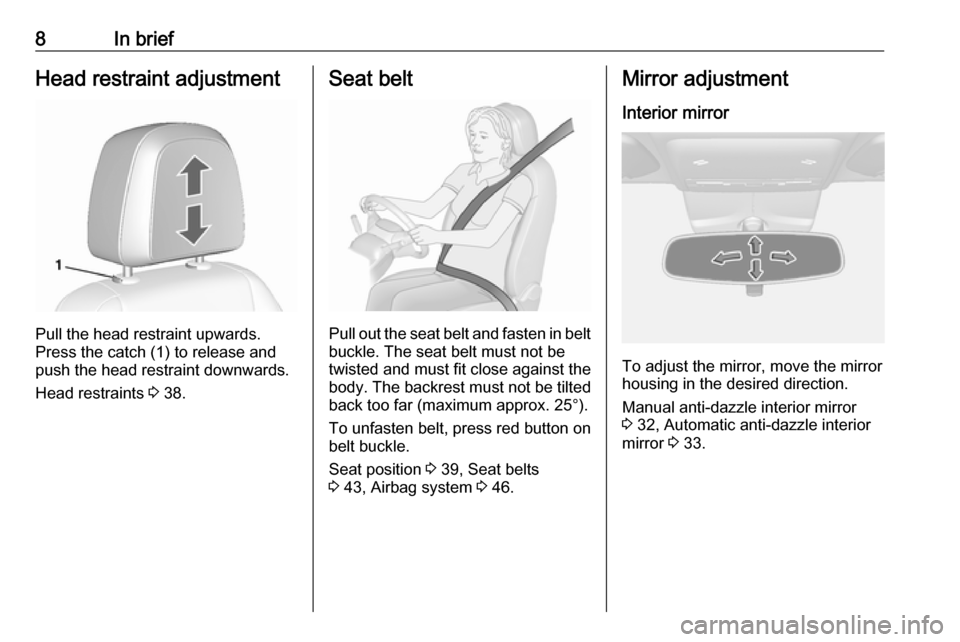

8In briefHead restraint adjustment
Pull the head restraint upwards.
Press the catch (1) to release and
push the head restraint downwards.
Head restraints 3 38.
Seat belt
Pull out the seat belt and fasten in belt
buckle. The seat belt must not be
twisted and must fit close against the
body. The backrest must not be tilted back too far (maximum approx. 25°).
To unfasten belt, press red button on belt buckle.
Seat position 3 39, Seat belts
3 43, Airbag system 3 46.
Mirror adjustment
Interior mirror
To adjust the mirror, move the mirror
housing in the desired direction.
Manual anti-dazzle interior mirror
3 32, Automatic anti-dazzle interior
mirror 3 33.

In brief9Exterior mirrors
Select the relevant exterior mirror andadjust it.
Convex exterior mirrors 3 31,
Electric adjustment 3 31, Folding
exterior mirrors 3 31, Heated
exterior mirrors 3 32.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 46, Ignition
positions 3 134.

10In briefInstrument panel overview

In brief111Central locking system ..........23
2 Power windows .....................34
3 Exterior mirrors .....................31
4 Light switch ......................... 114
5 Cruise control ...................... 151
Speed limiter ....................... 153
Forward collision alert .........154
6 Side air vents ...................... 130
7 Turn and lane-change
signals ................................. 121
Headlight flash ....................116
Low beam and high beam ..115
Buttons for Driver
Information Centre ................96
8 Instruments ........................... 83
9 Steering wheel controls .......76
10 Windscreen wiper,
windscreen washer system ...77
Rear window wiper, rear
window washer system .........79
11 Centre air vents ................... 130
12 Anti-theft alarm system
status LED ........................... 2913Info-Display ........................ 100
14 Controls for Info-Display
operation ............................. 100
15 Glovebox .............................. 58
16 Descent control system ......... 93
Fuel selector ......................... 85
Stop-start system ................137
17 Climate control system ........ 125
18 Electronic Stability Control
(ESC) .................................. 149
19 Control indicator for airbag
deactivation .......................... 92
20 Front storage ......................... 59
Power outlet .......................... 82
USB port, AUX input
21 Selector lever, manual
transmission ....................... 145
Selector lever, automatic
transmission ....................... 142
22 Parking brake ......................147
23 Hazard warning flashers ....120
24 Parking assist ..................... 157
Lane departure warning ......16425Ignition switch with
steering wheel lock ............134
Power button ....................... 134
26 Horn ..................................... 77
Driver airbag ........................ 49
27 Steering wheel adjustment ..76
28 Bonnet release lever ..........178
29 Front storage ......................... 59
Fuse box ............................ 191

12In briefExterior lighting
Turn light switch:
m:lights off8:sidelights9:low beam
Automatic light control
AUTO:automatic light control:
exterior lighting is switched
on and off automaticallym:activation or deactivation of
the automatic light control8:sidelights9:low beam
Fog lights
Press light switch:
>:front fog lightsø:rear fog light
Lighting 3 114.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
Automatic light control 3 115, High
beam 3 115, Headlight flash 3 116,
Adaptive forward lighting 3 118.

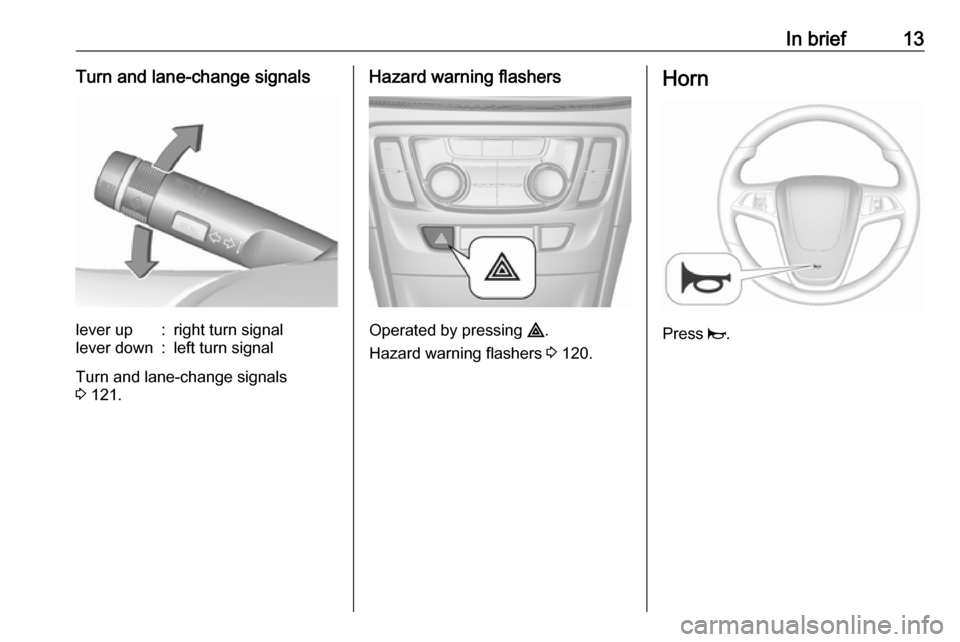

In brief13Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 121.
Hazard warning flashers
Operated by pressing ¨.
Hazard warning flashers 3 120.
Horn
Press j.

14In briefWasher and wiper systems
Windscreen wiperHI:fastLO:slowINT:interval wiping or automatic
wiping with rain sensorOFF:off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 77, Wiper
blade replacement 3 184.
Windscreen washer system
Pull lever.
Windscreen washer system 3 77,
Washer fluid 3 181.
Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch:continuous
operationlower switch:intermittent
operationmiddle position:off
