2017 VAUXHALL COMBO D instrument cluster

Keys, doors and windows23Central locking system
Unlocks and locks the front doors,
sliding side doors and load
compartment.
A pull on an interior door handle
unlocks and opens the respective
door.
For safety reasons, the vehicle
cannot be locked if the key is in the
ignition switch.
Unlocking Notice
In the event of an accident of a
certain severity, the vehicle unlocks
automatically.
Fuel cut-off system 3 94.Van
Press Ä: Front doors are unlocked.
Press Å: Rear doors / tailgate and
sliding side doors are unlocked.
Combi, Combo Tour
Press Ä: All doors, including rear
doors / tailgate and sliding side doors
are unlocked.
Press Å: Rear doors / tailgate only
are unlocked.
Notice
If engaged, the manual lock on the sliding side door remains engaged
even after unlocking the vehicle with
the remote control.
Sliding side door manual lock 3 21.
Locking
Close all doors. If the doors are not
closed properly, the central locking
system will not work.
Notice
If a door or the tailgate is open,
control indicator ( illuminates in the
instrument cluster 3 88.

Seats, restraints479Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Notice
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not fix any objects onto the airbag
covers and do not cover them with
other materials.
Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it might be necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
9 Warning
When the airbags inflate, escaping
hot gases may cause burns.
Control indicator v for airbag systems
3 80.
Fault
If there is a fault in the airbag and belt tensioner system, the control
indicator v illuminates in the
instrument cluster. The system is not
operational.
Depending on version, a
corresponding warning message,
e.g. Airbag failure , may also be
displayed in the Driver Information
Centre 3 88.
Have the cause of the fault remedied
by a workshop.
Control indicator v 3 80.
Child restraint systems on front
passenger seat with airbag
systems
Warning according to ECE R94.02:
EN: NEVER use a rear-facing child
restraint system on a seat protected
by an ACTIVE AIRBAG in front of it,
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem Sitz
verwenden, der durch einen davor
befindlichen AKTIVEN AIRBAG
geschützt ist, da dies den TOD oder
SCHWERE VERLETZUNGEN DES
KINDES zur Folge haben kann.
FR: NE JAMAIS utiliser un siège
d'enfant orienté vers l'arrière sur un
siège protégé par un COUSSIN
GONFLABLE ACTIF placé devant lui,

Instruments and controls67Instruments and
controlsControls ....................................... 68
Steering wheel adjustment ........68
Steering wheel controls .............68
Horn ........................................... 68
Windscreen wiper/washer .........69
Rear window wiper/washer .......69
Headlamp washer .....................70
Outside temperature ..................70
Clock ......................................... 70
Power outlets ............................. 72
Cigarette lighter ......................... 73
Ashtrays .................................... 73
Warning lights, gauges and indi‐ cators ........................................... 74
Instrument cluster ......................74
Speedometer ............................. 74
Odometer .................................. 74
Trip odometer ............................ 74
Tachometer ............................... 74
Fuel gauge ................................ 75
Fuel selector .............................. 75
Engine coolant temperature gauge ....................................... 76
Service display .......................... 76Transmission display .................77
Control indicators ......................77
Generic warning ........................79
Turn signal ................................. 80
Seat belt reminder .....................80
Airbag and belt tensioners .........80
Airbag deactivation ....................81
Charging system .......................81
Malfunction indicator light ..........81
Brake system ............................. 82
Brake pad wear ......................... 82
Antilock brake system (ABS) .....82
Transmission ............................. 82
Gear shifting .............................. 83
Hill start assist ........................... 83
Ultrasonic parking assist ...........83
Electronic Stability Control ........83
Engine coolant temperature ......84
Preheating ................................. 84
Diesel particle filter ....................84
Tyre pressure monitoring system ...................................... 85
Engine oil pressure ....................85
Change engine oil .....................86
Low engine oil level ...................86
Low fuel ..................................... 86
Drain fuel filter ........................... 87
Immobiliser ................................ 87
Stop-start system ......................87
Exterior light .............................. 87High beam................................. 87
Fog light ..................................... 88
Rear fog light ............................. 88
Cruise control ............................ 88
Door open .................................. 88
Information displays .....................88
Driver Information Centre ..........88
Vehicle messages ........................93
Warning chimes .........................93
Fuel system messages ..............94
Trip computer ............................... 94

74Instruments and controlsWarning lights, gauges
and indicators

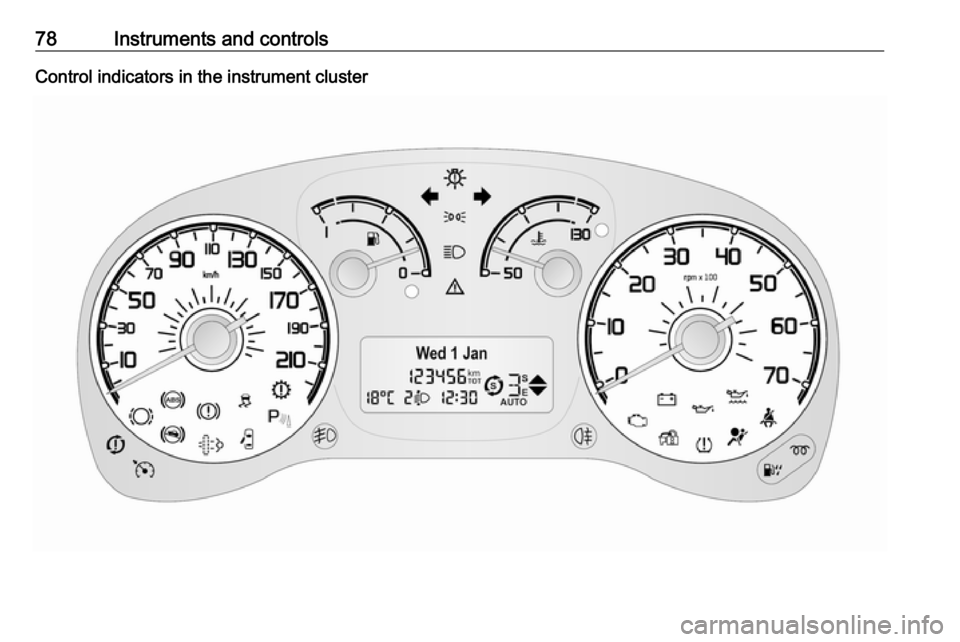

Instrument cluster
The needles of the instruments may
briefly rotate to the end position when
the ignition is switched on.
Speedometer
Indicates vehicle speed.
Odometer
Displays the recorded distance in
miles.
H may appear in the display until the
vehicle has travelled 60 miles.
Trip odometer
Displays the recorded distance since
the last reset.
Depending on version (standard or
multifunction display), there may be
two independent trip odometers, A or
B , which indicate how far the vehicle
has been driven since the last reset.
To reset the trip odometer, press and hold TRIP on the end of the wiper
lever 3 94 for a few seconds while
the relevant trip odometer is
displayed.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.

78Instruments and controlsControl indicators in the instrument cluster

88Instruments and controlsFog light> illuminates green.
The front fog lights are on 3 99.
Rear fog light ø illuminates yellow.
The rear fog light is on 3 99.
Cruise control
m illuminates green.
The system is switched on.
Depending on version, a
corresponding message, e.g. Cruise
Control on , may also be displayed in
the Driver Information Centre 3 88.
Cruise control 3 126.
Door open
( illuminates red.
Illuminates when a door, the bonnet
or the tailgate is open.
Depending on version, a warning
message may also be displayed in
the Driver Information Centre 3 88.When the vehicle starts to move, a
warning chime also sounds.Information displays
Driver Information Centre
The Driver Information Centre is
located in the instrument cluster
between the speedometer and
tachometer. Two versions are
available; a Standard version

Lighting103Lighting features
Exit lighting
If equipped, headlights come on for
approx. 30 seconds after the vehicle
is parked and the system is activated.
Activation 1. Switch off ignition.
2. Remove ignition key.
3. Pull turn signal lever towards steering wheel.
4. Operate turn signal lever again within two minutes.
This action can be repeated up to
seven times to a maximum period of
210 seconds.
Control indicator 8 3 87 illuminates
in the instrument cluster during use.
Depending on version, a warning
message may also be displayed in
the Driver Information Centre 3 88.
Deactivation Pull turn signal lever for more thantwo seconds to deactivate.
Battery discharge protection
To ensure reliable engine restarts,
several vehicle battery discharge
protection features are implemented
as part of the stop-start system, e.g.
some lights may be switched off
automatically after some time.
Stop-start system 3 113.

Driving and operating115Restarting the engineManual transmission
The selector lever must be in neutral to enable an automatic restart.
Depress the clutch pedal to restart the
engine.
Manual transmission automated
If the lever is in position N, select
another gear, otherwise release the brake pedal or move the lever to +, –
or R to enable an automatic restart.
If an electrical accessory, e.g. a
portable CD player, is connected to
the power outlet, a brief power drop
during the restart may be noticeable.
Restarting the engine with the key When one of the following conditions
occurs during an Autostop, the
engine will need to be restarted
manually using the key.
● the driver's seat belt is unfastened and the driver's door
is opened
● three minutes have elapsed since the engine was switched offIn this event, control indicator ^
flashes in the Driver Information
Centre in conjunction with a warning
chime. Depending on version, a
corresponding message may also be
displayed in the Driver Information
Centre 3 88.
Fault
If control indicator Æ illuminates in the
instrument cluster, there is a fault in
the stop-start system 3 87.
Depending on version, 9 will
illuminate as an alternative if control
indicator Æ is not present. A
corresponding warning message,
e.g. Start&Stop unavailable , may also
be displayed in the Driver Information
Centre 3 88.
Generic warning 9 3 79.
Seek the assistance of a workshop.Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear before switching off
the ignition. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear
before switching off the ignition. Turn the front wheels towardsthe kerb.
