2017 TOYOTA RAV4 display

374
RAV4_OM_OM0R005U_(U)
5-7. “SETUP” menu
Select “Delete contacts” using the “TUNE•SCROLL” knob.
Select the desired phone number using the knob and press
(YES).
To delete all the registered phone numbers, press (ALL) and then
press (YES).
Press (A-Z) to display the regi stered names in alphabetical order
of the initial.
Select “Delete other PB” using the “TUNE•SCROLL” knob.
Select the desired phonebook using the knob and press (YES).
Select “Auto transfer” usi ng the “TUNE•SCROLL” knob.
Select “ON” or “OFF” using the knob.
Select “Call volume” using the “TUNE•SCROLL” knob.
Change the call volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (SAVE).
Select “Ringtone volume” using the “TUNE•SCROLL” knob.
Change the ring tone volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
To set the volume, press (SAVE).
Deleting a registered phone number
Deleting another cellular phone’s phonebook
Setting automatic transferring of the phonebook on or off
Setting call volume
Setting ring tone volume
1
2
1
2
1
2
1
2
1
2

376
RAV4_OM_OM0R005U_(U)
5-8. Bluetooth® Audio
Operating a Bluetooth® enabled portable
player
∗
∗: If equipped
Power
Vo l u m e
Search playback
Next commands, random play
or back button
Repeat play
Fast-forwarding, rewinding or
selecting an album Changing the audio source/
playback
Playback/pause
Previous commands
Selecting a track
Displaying text message1
2
3
4
5
6
7
8
9
10
11

RAV4_OM_OM0R005U_(U)
3775-8. Bluetooth® Audio
5
Audio system
Press () to select desired album.
Press (MORE>) to display the commands.
Press and hold the “SCAN” button until you hear a beep.
The first 10 seconds of the first track in each album will be played.
To cancel, press the button again.
When the desired album is reached, press the button again.
Press “ ∧” or “∨ ” on the “SEEK/TRACK” butt on to select the desired
track.
Press the “SCAN” button.
The first 10 seconds of each track will be played.
To cancel, press the button again.
When the desired track is reac hed, press the button again.
Press ( ) or ( ).
Press ( Pressing (RPT) changes modes in the following order:
Track repeat →Album repeat →Off.
Press (MORE>) to display the command.
Pressing (RDM) changes modes in the following order:
Album random →All track random →Off.
Press (MORE>) to display the command.
Selecting an album
Scanning an album
Selecting a track
Scanning the tracks in an album
Fast-forwarding and rewinding tracks
Repeat play
Random play
1
2
1
2

378
RAV4_OM_OM0R005U_(U)
5-8. Bluetooth® Audio
Press ( ).
Press ( Press the “TEXT” button to display or hide the album title.
If there are continuing texts, is displayed.
Press and hold the button to display the remaining texts.
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
■ Display
→P. 340
Playing and pausing tracks
Switching the display

379
RAV4_OM_OM0R005U_(U)
5-9. Bluetooth® Phone
5
Audio system
Making a phone call∗
Select “Phonebook” using the “TUNE•SCROLL” knob.
Select the desired name using the knob and press the off-hook
switch.
By pressing (Add S. Dial) and one of the speed dial buttons (from [1] to [5]) while the desired name is selected, it can be regis-
tered as a speed dial.
Press (A-Z) to display the regi stered names in alphabetical order
of the initial.
Select “Speed dials” using the “TUNE•SCROLL” knob.
Press the desired preset button (f rom [1] to [5]) and press
the off-hook switch.
To delete a registered speed dial, after selecting the desired preset
button (from [1] to [5]) press (DELETE) and then press (YES).
To overwrite a speed dial, after selecting the desired preset button
(from [1] to [5]) press (YES).
∗: If equipped
To enter the “PHONE” mode, press the off-hook switch.
Dialing by selecting a name
Speed dialing
1
2
1
2

390
RAV4_OM_OM0R005U_(U)
5-12. Basic Operations

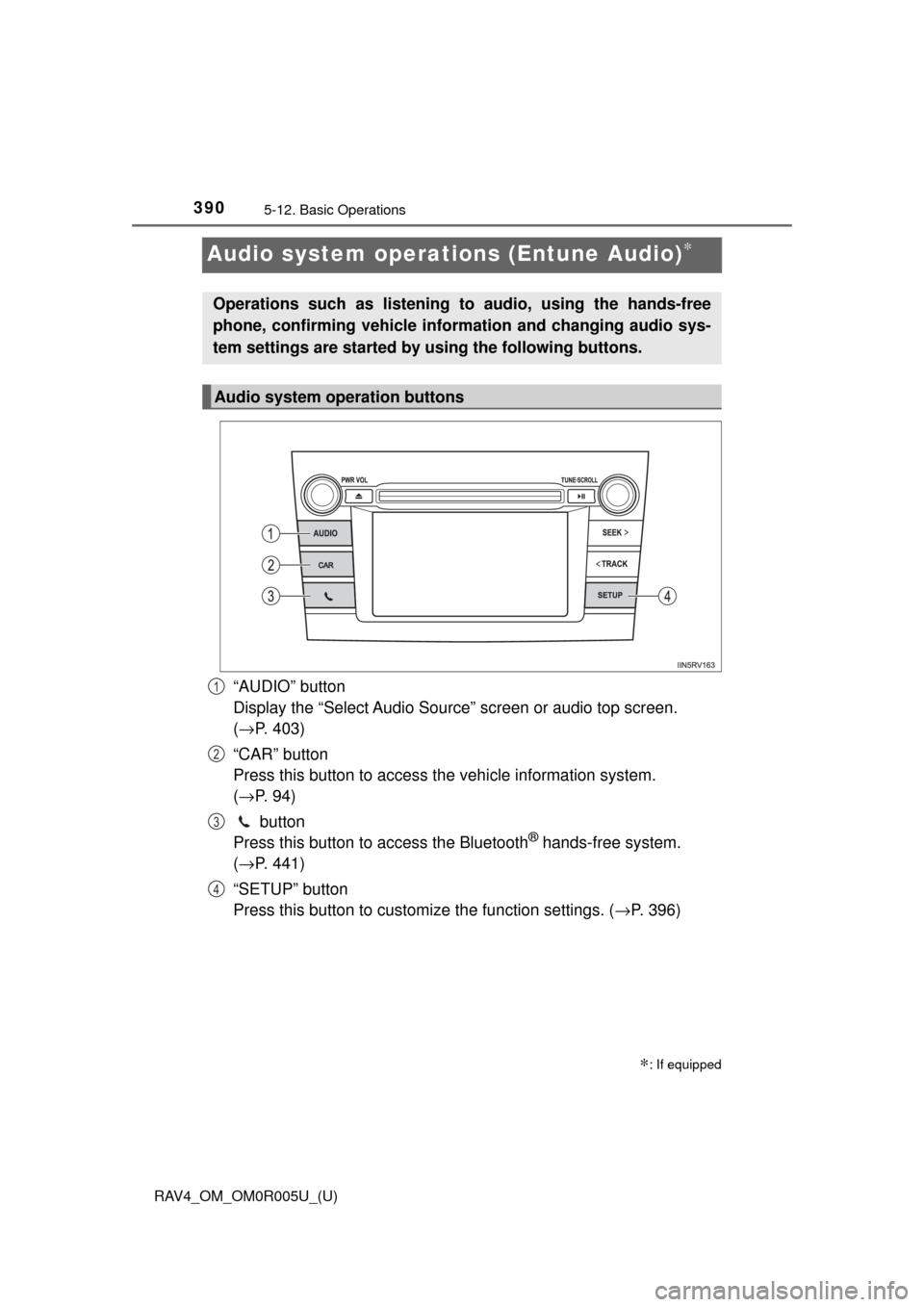

Audio system operations (Entune Audio)∗
“AUDIO” button
Display the “Select Audio Source” screen or audio top screen.
(→ P. 403)
“CAR” button
Press this button to access th e vehicle information system.
( → P. 94)
button
Press this button to access the Bluetooth
® hands-free system.
( → P. 441)
“SETUP” button
Press this button to customize the function settings. ( →P. 396)
∗: If equipped
Operations such as listening to audio, using the hands-free
phone, confirming vehicle inform ation and changing audio sys-
tem settings are started by using the following buttons.
Audio system operation buttons
1
2
3
4

RAV4_OM_OM0R005U_(U)
3915-12. Basic Operations
5
Audio system
Operations are performed by touching the screen directly with your
finger.
*: The above operations may not be performed on all screens. Also if thevehicle reaches a high altitude, it may become hard to perform above func-
tions.
■ When using the touch screen
●If the screen is cold, the display may be dark, or the system may seem to be
operating slightly slower than normal.
● The screen may seem dark and hard to see when viewed through sun-
glasses. Change your angle of viewing, adjust the display on the “Display
Settings” screen ( →P. 400) or remove your sunglasses.
Touch screen gestures
Operation methodOutlineMain use
Touch
Quickly touch and
release once.Changing and selecting
various settings.
Drag*
Touch the screen
with your finger, and
move the screen to
the desired position.Scrolling the lists, using
scroll bar in lists, etc.
Flick*
Quickly move the
screen by flicking
with your finger.Moving the list screen
(list screen limit).
NOTICE
■To avoid damaging the touch screen
● To prevent damaging the screen, lightly touch the screen buttons with your
finger.
● Do not use objects other than your finger to touch the screen.
● Wipe off fingerprints using a glass cleaning cloth. Do not use chemical
cleaners to clean the screen, as they may damage the touch screen.

394
RAV4_OM_OM0R005U_(U)
5-12. Basic Operations
Basic audio operations
Press this knob to turn the audio system on and off, and turn it to
adjust the volume.
Press this button to eject a disc
Insert a disc into the disc slot
Press to pause or resume playing music.
Turn this knob to select radio station bands, tracks and files. Also
the knob can be used to select items in the list display.
Press the button to seek up or down for a radio station, or to access
a desired track or file. : Select to pause music.
: Select to resume playing music.
Basic audio operations and functi ons common to each mode are
explained in this section.
Operating the audio system
1
2
3
4
5
6
7
